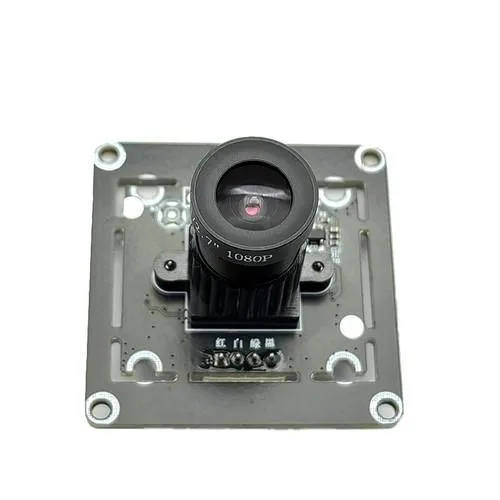

Small black rectangular USB camera module, 38 by 38 mm, fixed focus lens visible

Weinandianzi

Weinandianzi WN-C38HD1080P V1.0 2MP 1080P USB Camera Module

SKU CH-WTVM-9VMGW

A 2MP USB camera module with a 1/3.02-inch GC2083 CMOS sensor delivering 1080p at 30 FPS in MJPEG format

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module 30FPS FF 79° MJPEG, YUY2 UVC-compliant, Pl
  • Compatibility1/3.02-Inch GC2083 CMOS
  • 2MP HD 1080P resolution for clear product vision imaging
  • 1/3.02-inch GC2083 CMOS sensor captures detailed colour video
  • 79° field of view covers wide inspection areas
  • UVC-compliant USB 2.0 interface enables driver-free plug-and-play setup
  • Fixed-focus design with 30 FPS MJPEG at VGA for smooth preview

Purpose-built vision module

The Weinandianzi WN-C38HD1080P V1.0 is a compact 2MP USB camera module designed for product-vision tasks that need a fixed-focus, UVC-compliant sensor. It delivers 1920x1080 resolution at up to 30 frames per second over USB 2.0, making it suitable for automated inspection, kiosk integration or embedded monitoring where plug-and-play simplicity is required.

Compact board with fixed optics

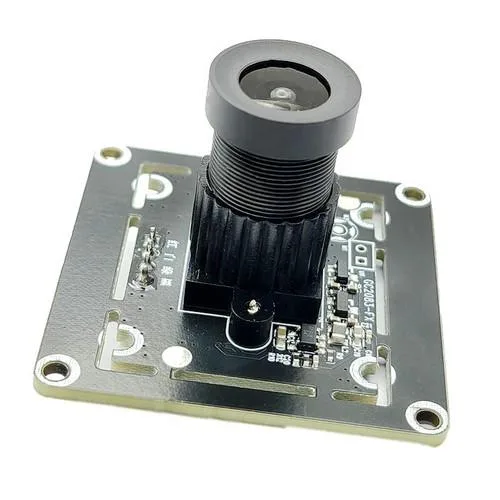

The 38x38 mm board houses a 1/3.02-inch GC2083 CMOS sensor with 2.7 µm pixels and a 79-degree field of view, outputting MJPEG or YUY2 streams without driver installation. Fixed focus removes moving parts, while the USB 2.0 interface supplies both power and data through a single cable, easing enclosure design and reducing cabling in tight industrial housings.

Upgrade path from lower-resolution modules

Teams replacing VGA or 720P fixed-focus cameras gain a direct jump to 1080P at 30 FPS in MJPEG mode, plus 5 FPS at full resolution in YUY2 for uncompressed colour fidelity. The step is worthwhile when detection algorithms need finer detail or when documentation images must be archived at full HD, but it does not address applications requiring autofocus, global shutter or higher frame rates at 1080P.

Highlights

  • 2MP HD 1080P resolution for clear product vision imaging
  • 1/3.02-inch GC2083 CMOS sensor captures detailed colour video
  • 79° field of view covers wide inspection areas
  • UVC-compliant USB 2.0 interface enables driver-free plug-and-play setup
  • Fixed-focus design with 30 FPS MJPEG at VGA for smooth preview

Specifications

BrandWeinandianzi
ModelWN-C38HD1080P V1.0
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module 30FPS FF 79° MJPEG, YUY2 UVC-compliant, Plug and Play for Product Vision
Compatibility1/3.02-Inch GC2083 CMOS
Features2MP HD 1080P GC2083 USB Camera Module

Questions about this item

What USB standard does the WN-C38HD1080P V1.0 use and what frame rate does it cap at?

The module uses High Speed USB 2.0 and delivers up to 30 FPS at 640 x 480 resolution.

What are the physical dimensions of the WN-C38HD1080P V1.0 camera module?

The module measures 38 mm by 38 mm, while the overall unit size is 13 x 9 x 9 cm.

How is the WN-C38HD1080P V1.0 installed and what step is often missed?

It is UVC-compliant plug-and-play on USB 2.0; the step often missed is selecting MJPEG format to reach 1920 x 1080 at 30 FPS instead of the default YUY2 5 FPS.
