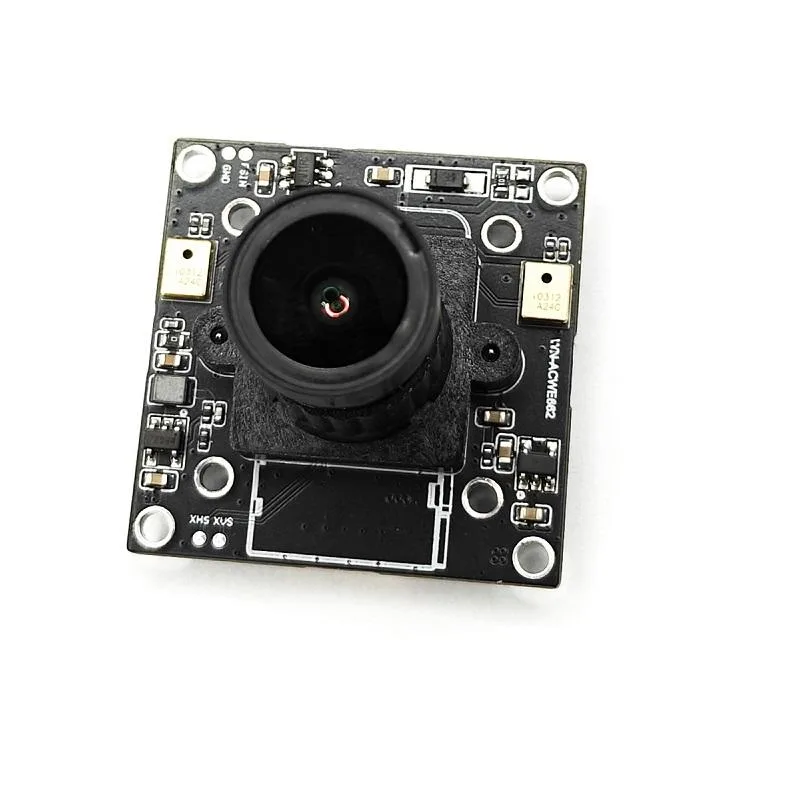

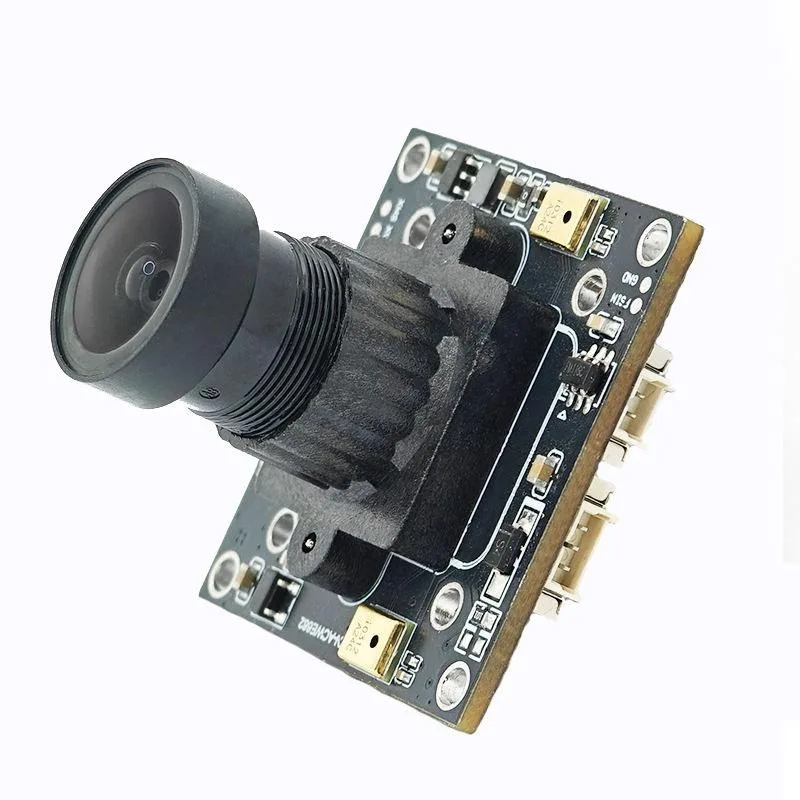

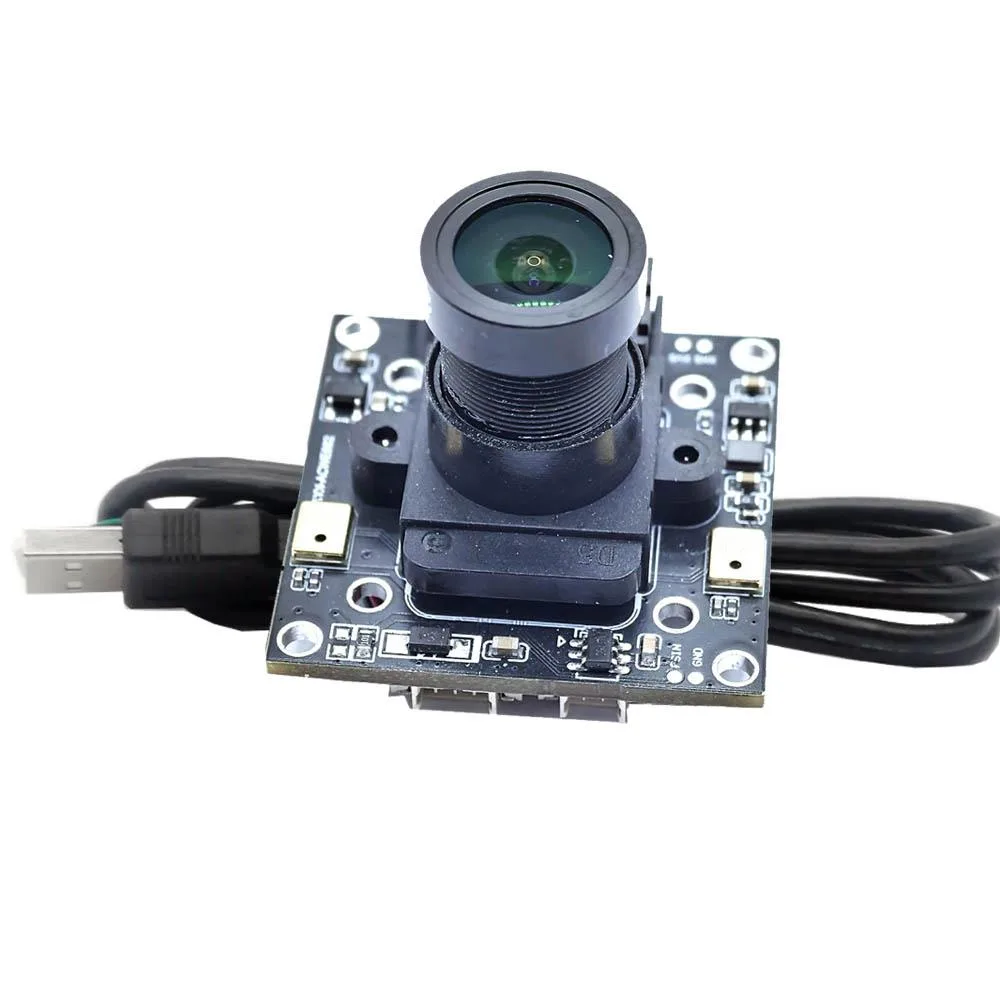

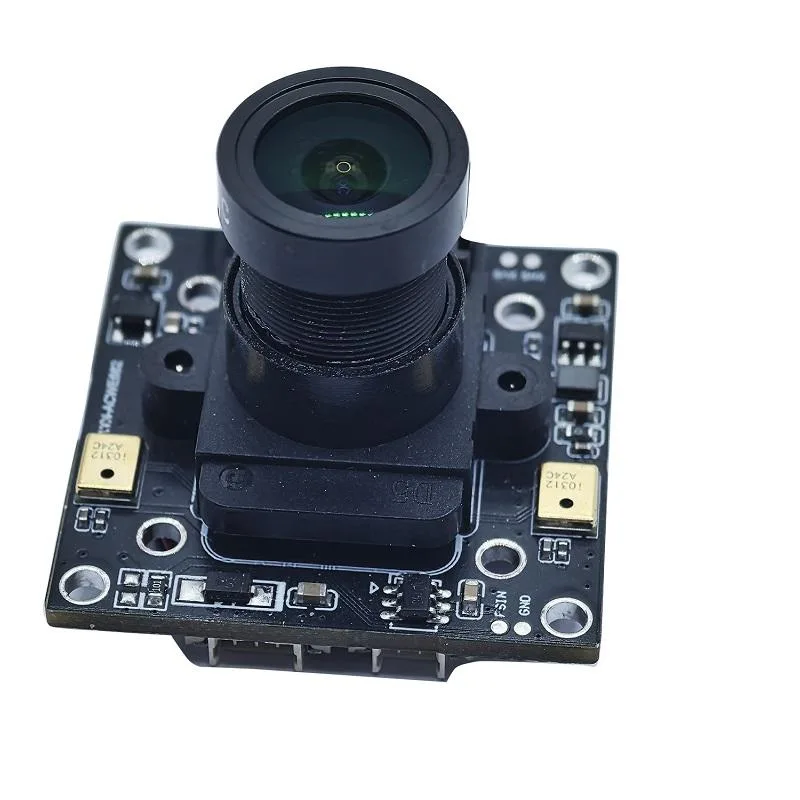

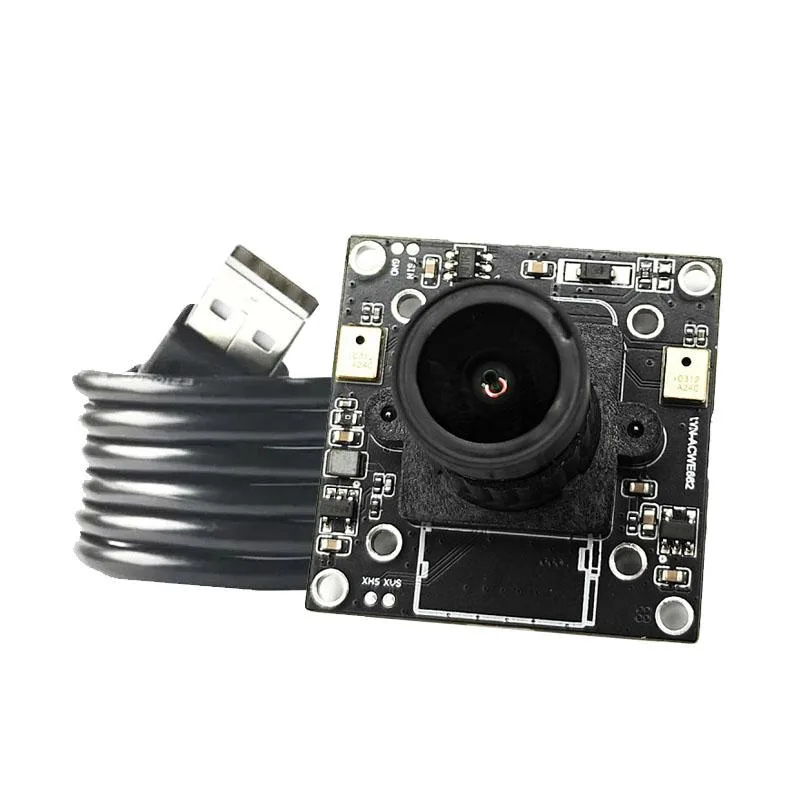

Black rectangular camera module board with visible lens and USB connector

Weinandianzi

Weinandianzi WN-ACWE662 V60 IMX662 USB 2.0 Camera Module

SKU CH-9DNT-ZCRXA

A 2MP 1080p camera module with a 1/2.8-inch IMX662 sensor, 92° field of view and USB 2.0 output at up to 60 FPS

  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Compatibility1/2.8-Inch IMX662 CMOS
  • Features60FPS 1/2.8-Inch IMX662 USB2.0 Camera Module
  • 1/2.8-inch IMX662 sensor captures 1080p video at 60 frames per second
  • 92-degree field of view fits wide scenes into a single frame
  • USB 2.0 interface delivers both power and data without extra cables
  • UVC and OTG support enables plug-and-play use on PCs and mobile devices
  • MJPEG and YUY2 formats provide flexible compression and raw output options

USB 2.0 Camera Module with IMX662 Sensor

This Weinandianzi WN-ACWE662 V60 module integrates a 1/2.8-inch IMX662 CMOS sensor that captures 1920 x 1080 video at up to 60 frames per second. It outputs MJPEG or YUY2 formats over a High Speed USB 2.0 connection and presents a 92-degree field of view. The board measures 13 x 9 x 9 cm and uses an electronic rolling shutter for exposure control. It suits developers adding UVC-compatible vision to embedded or PC-based projects.

Practical Limits of the USB 2.0 Interface

USB 2.0 bandwidth caps sustained throughput, so only MJPEG delivers 1080p at 60 FPS while YUY2 drops to 5 FPS at the same resolution. At 720p the module manages 60 FPS in MJPEG and 5 FPS in YUY2, while VGA reaches 60 FPS MJPEG or 30 FPS YUY2. The rolling shutter can introduce skew on fast-moving subjects, and the fixed-focus lens cannot adjust for close-range detail.

Check Your Host Before Ordering

Verify that your host provides a standard USB 2.0 or 3.0 port capable of 480 Mbit/s signalling and supplies 5 V power over the bus. Confirm the operating system includes a UVC driver so the camera enumerates without extra software. Ensure the 92-degree field of view matches the intended mounting distance and that MJPEG support exists in your capture pipeline if 60 FPS 1080p is required.

Highlights

  • 1/2.8-inch IMX662 sensor captures 1080p video at 60 frames per second
  • 92-degree field of view fits wide scenes into a single frame
  • USB 2.0 interface delivers both power and data without extra cables
  • UVC and OTG support enables plug-and-play use on PCs and mobile devices
  • MJPEG and YUY2 formats provide flexible compression and raw output options

Specifications

BrandWeinandianzi
ModelWN-ACWE662 V60
Quantity1
ColorBlack
Size13x9x9cm
Compatibility1/2.8-Inch IMX662 CMOS
Features60FPS 1/2.8-Inch IMX662 USB2.0 Camera Module

Questions about this item

Which resolution and frame-rate combination should I pick for smooth video?

Choose 1920x1080 at 60FPS in MJPEG mode for the highest fluidity; YUY2 at the same resolution is limited to 5FPS.

What does the 60FPS claim deliver when the module is connected to a PC?

At 1080P MJPEG the sensor outputs 60 frames every second; YUY2 drops to 5FPS, so use MJPEG for real-time capture.

How does the USB 2.0 interface limit the available video formats?

USB 2.0 bandwidth caps YUY2 at 5FPS for 1080P and 30FPS for VGA, while MJPEG sustains 60FPS up to 1080P.
