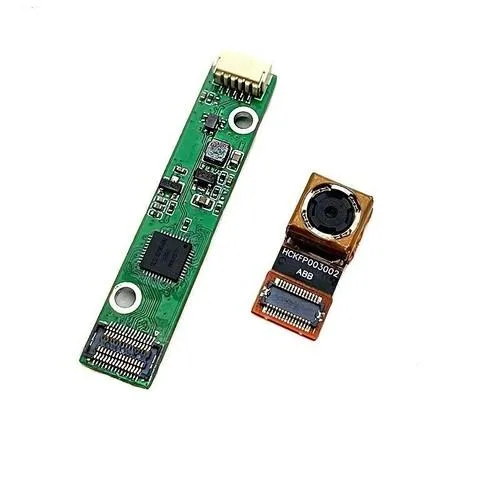

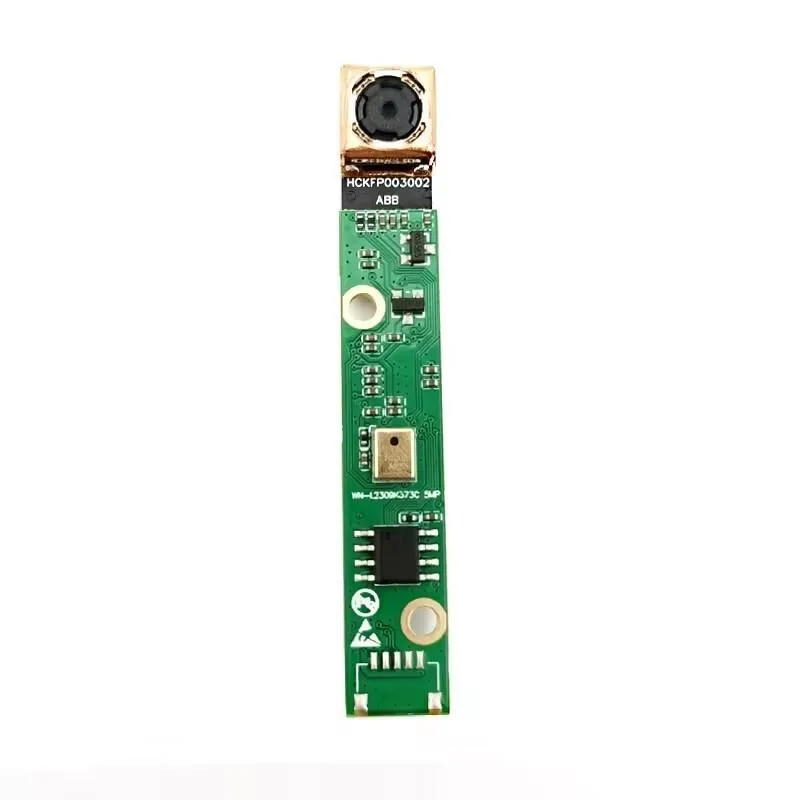

Small rectangular USB camera module board with integrated lens and flex cable, green PCB finish

Weinandianzi

Weinandianzi WN-2309K373C 5MP USB Camera Module 2592x1944 Autofocus 68°

SKU CH-5V5V-G8YZZ

5MP USB camera module with OV5647 sensor, autofocus and 68° field of view, UVC-compliant for plug-and-play use

  • TypeOther
  • Quantity1
  • Size13x9x9cm
  • SpecificationsUSB Camera Module 2592x1944 Autofocus 68° motherboard + lens
  • Compatibility1/4.0-inch OV5647 CMOS
  • Features1/4.0-inch OV5647 CMOS 5MP HD USB Camera Module 2592x1944 Au
  • 5MP OV5647 sensor captures 2592x1944 detail
  • Autofocus lens covers 68° field of view
  • UVC compliant for plug-and-play on Windows, Android, Linux, Mac
  • MJPEG and YUY2 output formats supported
  • Compact 58.1mm module with 5-pin 1.0mm connector

Weinandianzi WN-2309K373C 5MP USB Camera Module

This compact USB camera module uses a 1/4.0-inch OV5647 CMOS sensor to capture 2592x1944 resolution stills and video. It connects via a 5PIN 1.0mm connector and operates over High Speed USB2.0 with UVC-compliant plug-and-play support across Windows, Android, Linux and Mac OS.

Makers needing autofocus and a 68° field of view

The autofocus lens with 3.6mm EFL and F/2.4 aperture suits robotics, kiosks or embedded vision projects that require hands-free focusing at a moderate wide angle. Buyers who need a narrower field of view, fixed-focus optics or a different sensor format should look elsewhere.

5MP resolution with MJPEG and YUY2 output

The module comfortably handles 2592x1944 capture at 1.4µm pixel size, delivering MJPEG or YUY2 streams for recording or streaming. Rolling-shutter readout and USB2.0 bandwidth limit high-frame-rate or low-latency applications, so very fast motion or uncompressed high-throughput pipelines will run out of headroom.

Highlights

  • 5MP OV5647 sensor captures 2592x1944 detail
  • Autofocus lens covers 68° field of view
  • UVC compliant for plug-and-play on Windows, Android, Linux, Mac
  • MJPEG and YUY2 output formats supported
  • Compact 58.1mm module with 5-pin 1.0mm connector

Specifications

BrandWeinandianzi
ModelWN-2309K373C
TypeOther
Quantity1
Size13x9x9cm
SpecificationsUSB Camera Module 2592x1944 Autofocus 68° motherboard + lens splice board UVC-compliant, Plug and Play
Compatibility1/4.0-inch OV5647 CMOS
Features1/4.0-inch OV5647 CMOS 5MP HD USB Camera Module 2592x1944 Autofocus 68° motherboard + lens splice board UVC-compliant, Plug and Play

Questions about this item

What host connection does the WN-2309K373C need to operate?

The module connects via a 5PIN 1.0mm header and draws power through a USB 2.0 high-speed link.

Will the 1/4.0-inch OV5647 sensor work with my existing USB 2.0 ports?

Yes, the USB 2.0 high-speed interface is backward-compatible with standard USB 2.0 hosts.

How can I verify the autofocus is functioning at the 68° field of view?

Open a UVC preview tool and confirm the live image reaches 2592x1944 while the lens adjusts focus automatically.
