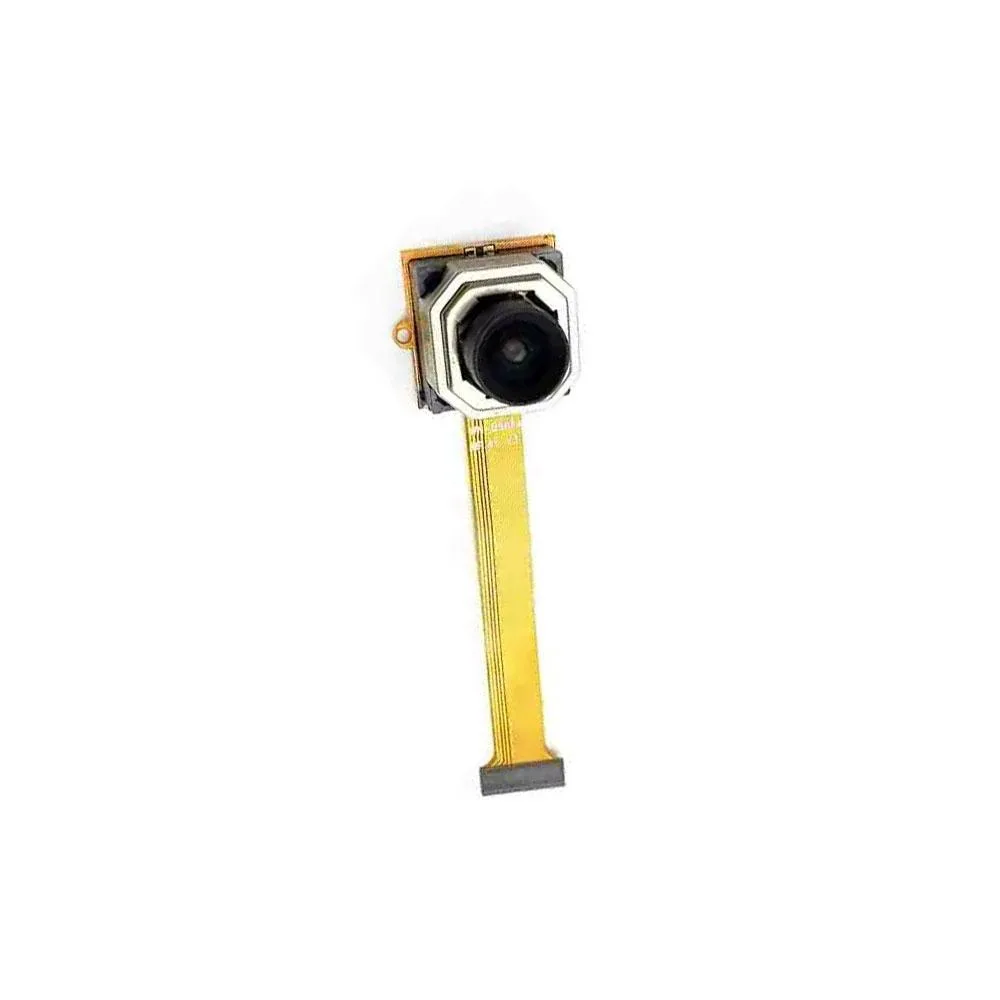

Small rectangular camera module with lens and 30-pin ribbon cable

Weinandianzi

Weinandianzi OS08A20 4K 8MP MIPI Camera Module Autofocus 90° 30-Pin CSI

SKU CH-RZAY-44ZQ8

4K 8 MP MIPI CSI camera module with autofocus, 90° field of view and 60 fps output for machine vision

  • TypeOther
  • Quantity1
  • Size13x9x9cm
  • SpecificationsCamera Module Autofocus 90 Degree 30PIN MIPI CSI for Product
  • CompatibilityOS08A20
  • Features3840Hx2160V 4K 8MP HD OS08A20 MIPI Camera Module Autofocus 9
  • Sharp 4K 8MP video at 3840×2160 60 fps
  • Fast autofocus keeps subjects crisp across 90° view
  • 30-pin MIPI CSI link moves data cleanly
  • Compact 102 × 21 mm board fits tight builds
  • 75 mm FPC cable eases routing in vision rigs

Weinandianzi OS08A20 4K Camera Module

The Weinandianzi OS08A20 is an 8MP MIPI camera module built for product vision tasks. It captures 3840 by 2160 video at up to 60 frames per second using a 1/2.0-inch sensor with 2.0 micron pixels. Autofocus and a 90 degree field of view suit close-range inspection or robotics work.

30-Pin CSI Integration Requirements

The module connects via a 30-pin MIPI CSI interface with a 75mm FPC cable. It requires three supply rails at 2.8V, 1.8V and 1.2V for analog, I/O and digital domains. The compact 102 by 21mm board leaves space in tight enclosures while the CSI-2 serial output streams data directly to a compatible host processor.

Suited For Embedded Vision Builders

Engineers adding autofocus 4K vision to embedded boards will find the pinout and voltage levels straightforward. Buyers needing global shutter exposure, wider dynamic range or a different lens mount should evaluate other sensor options. The fixed focus motor and rolling shutter limit suitability for high-speed motion capture.

Highlights

  • Sharp 4K 8MP video at 3840×2160 60 fps
  • Fast autofocus keeps subjects crisp across 90° view
  • 30-pin MIPI CSI link moves data cleanly
  • Compact 102 × 21 mm board fits tight builds
  • 75 mm FPC cable eases routing in vision rigs

Specifications

BrandWeinandianzi
TypeOther
Quantity1
Size13x9x9cm
SpecificationsCamera Module Autofocus 90 Degree 30PIN MIPI CSI for Product Vision
CompatibilityOS08A20
Features3840Hx2160V 4K 8MP HD OS08A20 MIPI Camera Module Autofocus 90 Degree 30PIN MIPI CSI for Product Vision

Questions about this item

At what frame rate does the 3840×2160 sensor cap out during continuous capture?

The module outputs a maximum of 60fps at 4K 8MP resolution over the 30-pin MIPI CSI link.

How much heat does the 1/2.0-inch OS08A20 sensor generate when streaming 60fps all day?

The sensor runs on 2.8V analog, 1.8V digital I/O and 1.2V core rails, keeping power draw low for sustained 4K 60fps operation.

Which host board connector matches the 30-pin MIPI CSI flex on this module?

The 75mm FPC cable terminates in a 30-pin MIPI CSI interface that plugs directly into a compatible 30-pin CSI socket on the host board.
