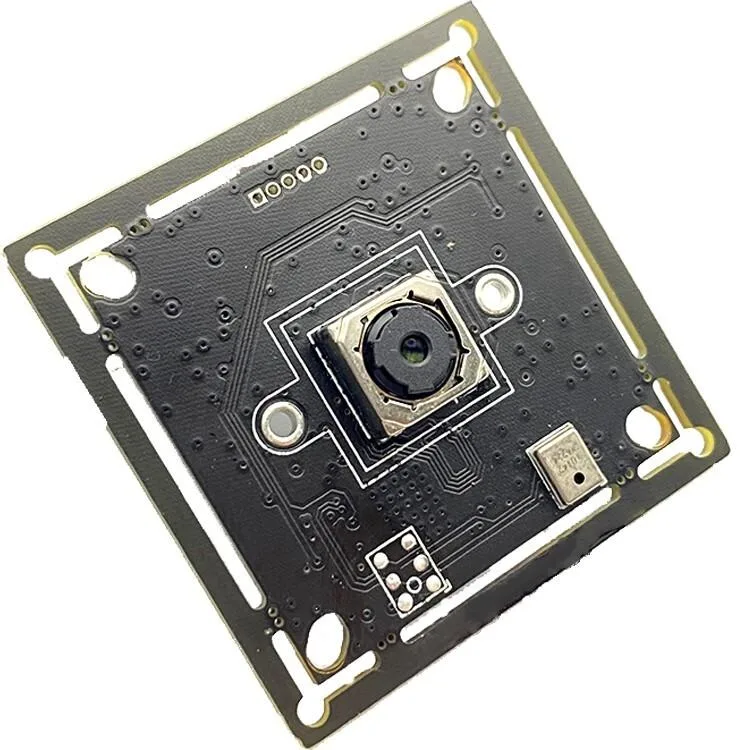

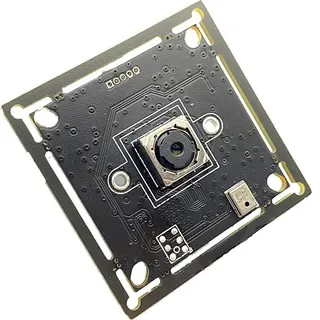

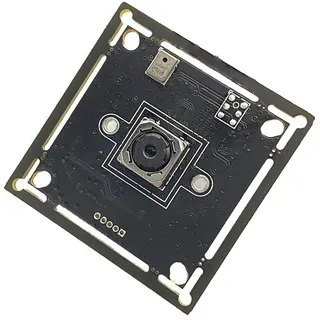

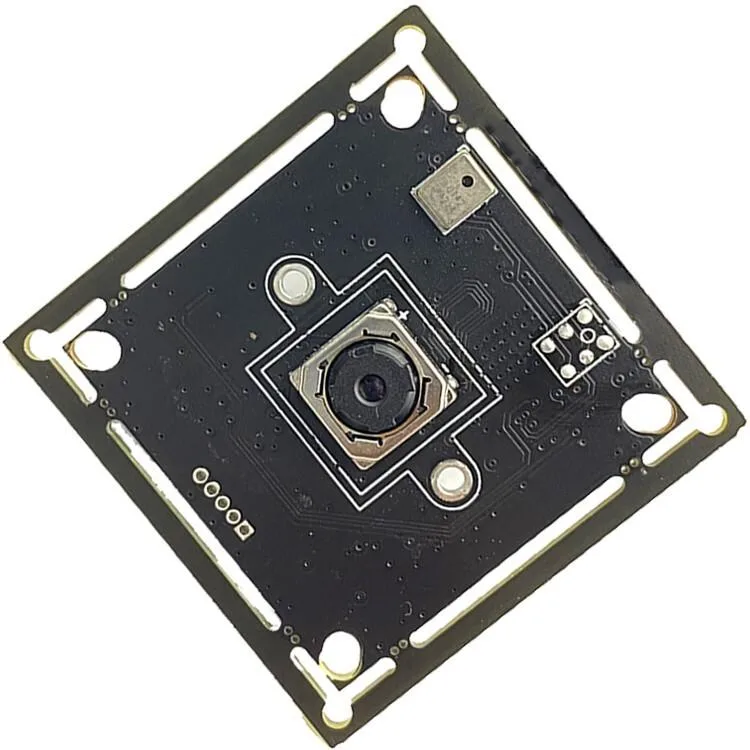

Small black square camera module on green circuit board with USB cable attached

Weinandianzi

Weinandianzi 8MP USB2.0 Camera Module WN-L2106.K220L IMX179 77° AF

SKU CH-YM93-R3EQW

An 8 MP autofocus USB 2.0 camera module with a 77° field of view and IMX179 sensor for Windows, Android, Linux and macOS

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module AF 77° MJPEG, YUY2 UVC USB2.0 Webcam Board
  • Compatibility8MP HD 1/3.2" IMX179 CMOS
  • Sharp 8MP images from a 1/3.2″ IMX179 sensor
  • Wide 77° field of view captures more scene
  • Autofocus keeps subjects clear at varying distances
  • UVC plug-and-play works with Windows, Android, Linux, Mac
  • 0 m USB cable and 5-pin 1.25 mm connector included

8MP USB 2.0 Camera Module for Embedded Vision

The Weinandianzi WN-L2106.K220L is an 8-megapixel USB 2.0 camera module built around a 1/3.2-inch IMX179 CMOS sensor. It delivers a maximum resolution of 3264 x 2448 pixels and a 77-degree field of view. Autofocus with a 3.54 mm EFL lens and F2.0 aperture keeps subjects sharp. The module outputs MJPEG or YUY2 video over a high-speed USB 2.0 connection.

38 mm Square Board with 5-Pin Connector and 1 m

The bare board measures 38 x 38 mm and terminates in a 5-pin 1.25 mm pitch connector, with a default 1.0 metre USB cable attached. It draws power directly from the USB bus, so no external supply is required. UVC compliance makes it plug-and-play on Windows, Android, Linux and macOS without driver installation. Controllable parameters include brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight contrast and exposure.

Upgrades Fixed-Focus 720p Modules for Autofocus

This module replaces fixed-focus 720p or lower boards when autofocus and 8 MP stills are needed. The jump is worth it for kiosks, robotics or inspection rigs that require close-up clarity across varying distances. It is not suited for applications needing global shutter, higher frame rates at full resolution, or a narrower field of view than 77 degrees.

Highlights

  • Sharp 8MP images from a 1/3.2″ IMX179 sensor
  • Wide 77° field of view captures more scene
  • Autofocus keeps subjects clear at varying distances
  • UVC plug-and-play works with Windows, Android, Linux, Mac
  • 0 m USB cable and 5-pin 1.25 mm connector included

Specifications

BrandWeinandianzi
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module AF 77° MJPEG, YUY2 UVC USB2.0 Webcam Board for Windows
Compatibility8MP HD 1/3.2" IMX179 CMOS
Features8MP HD 1/3.2" IMX179 CMOS USB Camera Module

Questions about this item

Does the 1/3.2-inch IMX179 sensor overheat during continuous streaming?

The module draws power from the USB 2.0 bus and uses an electronic rolling shutter, so it runs without active cooling and stays within normal operating temperature for typical use.

How loud is the autofocus motor when recording video all day?

The autofocus mechanism is silent during operation, adding no audible noise to recordings.

Which host connector does the 5-pin 1.25mm interface plug into?

The board ships with a 1.0 metre USB cable that terminates in a standard USB Type-A plug for direct connection to a PC or embedded board.
