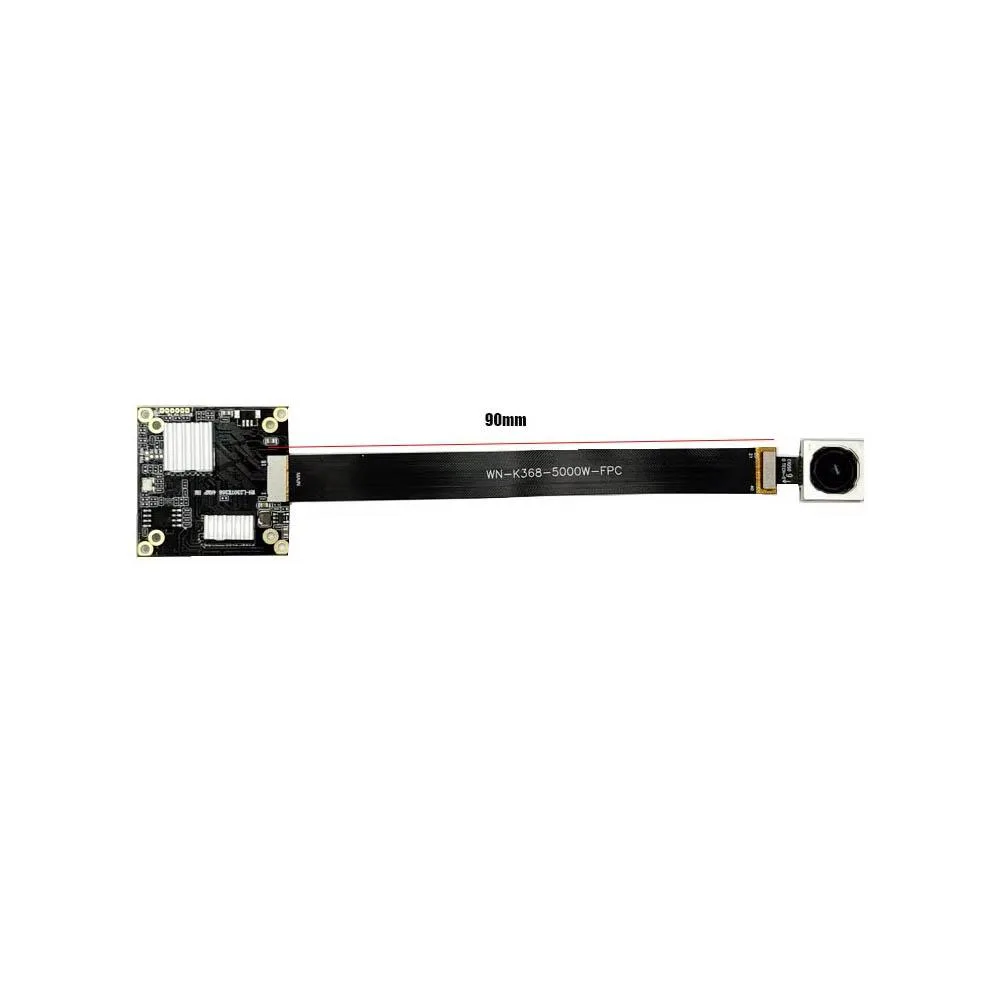

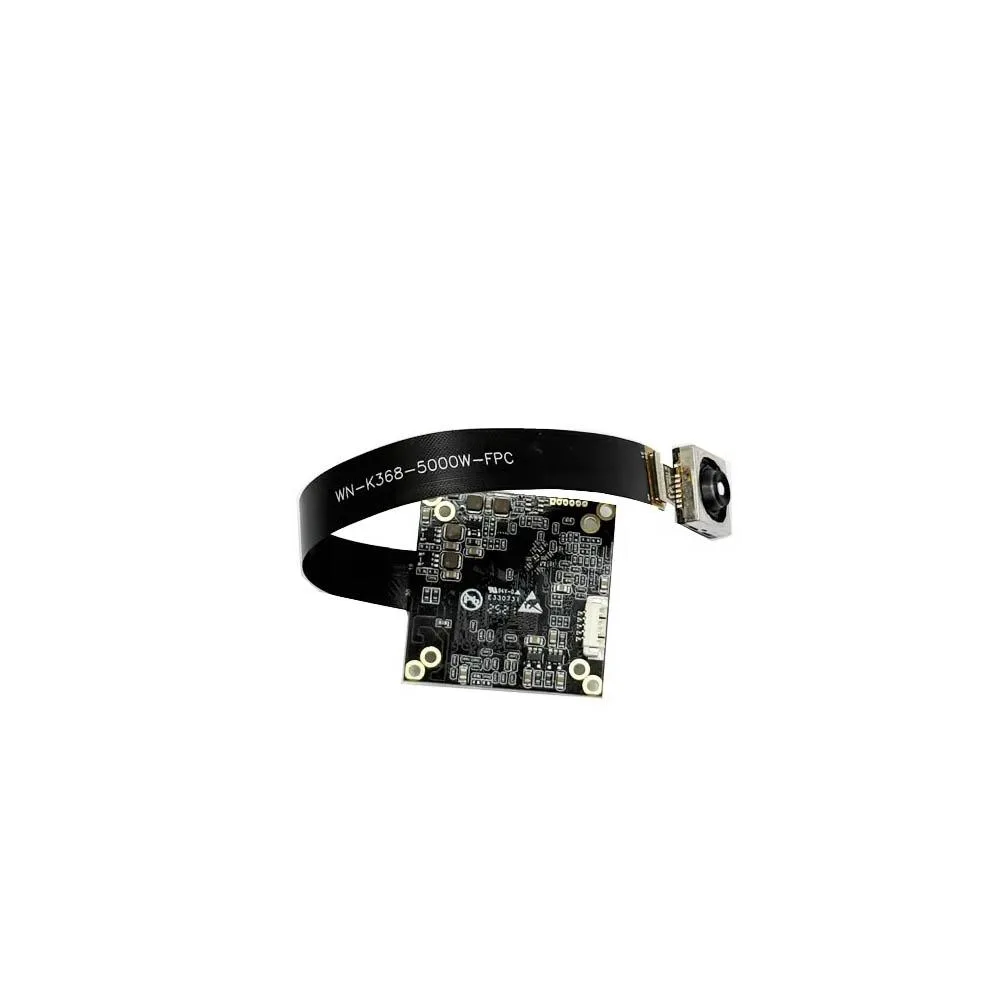

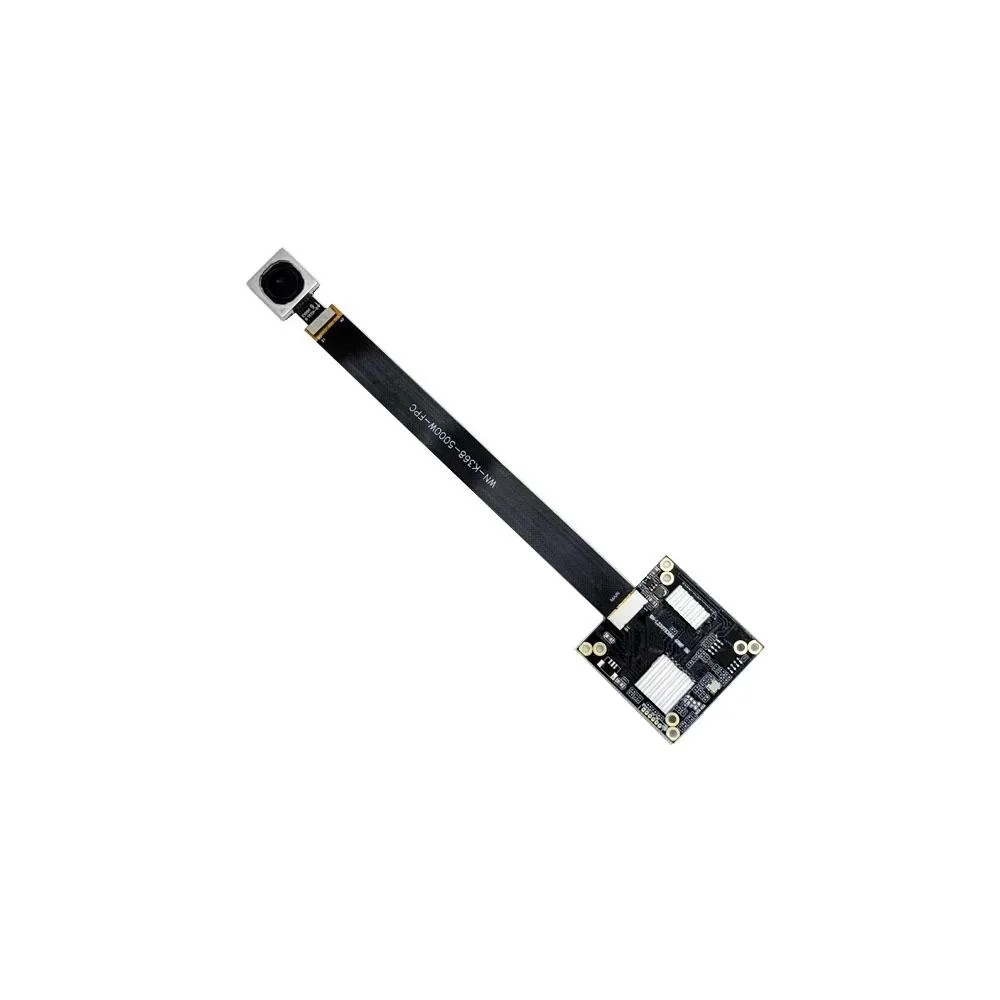

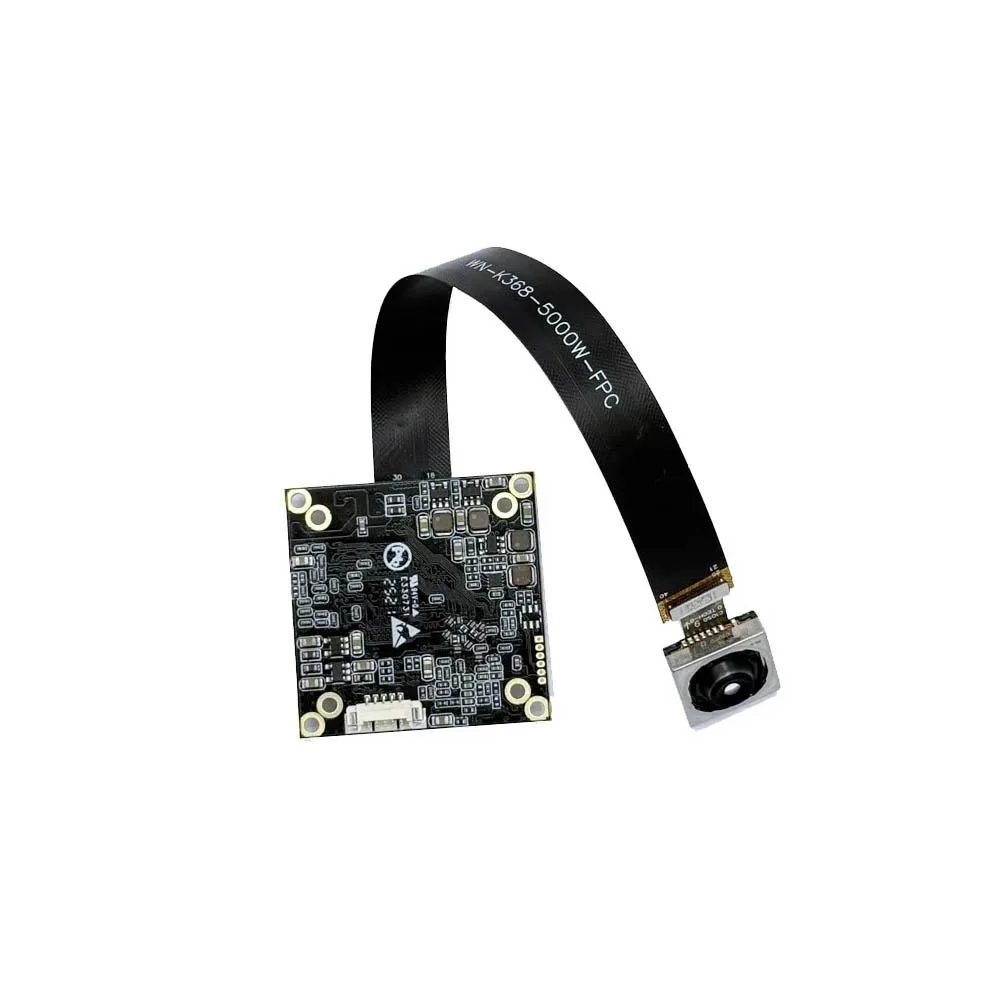

Small black rectangular USB camera module on green PCB with flexible ribbon cable attached

Weinandianzi

Weinandianzi 50MP IMX766 USB Camera Module PDAF 84.4°

SKU CH-WQ64-STN1Y

A 50 megapixel USB camera module with a 1/1.56-inch IMX766 sensor, PDAF autofocus and an 84.4° field of view

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Specifications1/1.56-Inch IMX766 USB Camera Module
  • Compatibility1/1.56-Inch IMX766
  • Capture expansive scenes with 84.4° field of view
  • Fast, accurate focus using PDAF technology
  • 50 megapixel IMX766 sensor captures stunning detail
  • Plug and play USB 2.0 connectivity for hassle-free setup
  • Versatile MJPEG and YUV2 output formats for varied processing needs

50MP IMX766 USB Camera Module

The Weinandianzi WN-L2307K368 V2.0 integrates a 1/1.56-inch IMX766 sensor delivering 50MP stills at 8160x6120 resolution. It targets developers and integrators building vision systems, robotics platforms or industrial inspection rigs that need high-detail capture over USB.

Capacity and frame-rate headroom

MJPEG output reaches 50MP at 5FPS, 12MP at 15FPS and 4K at 30FPS, while 1080p sustains 30FPS. YUY2 mode is limited to 1080p at 5FPS, 720p at 10FPS and VGA at 30FPS, so bandwidth-heavy pipelines should stay on MJPEG for higher resolutions.

Build integration and connectivity

The module uses a USB 2.0 plug-and-play interface with FPC and PCB construction, outputting MJPEG or YUY2 without driver installation. An 84.4° diagonal field of view and PDAF autofocus suit wide-angle monitoring, but the USB 2.0 link caps maximum throughput, ruling out uncompressed high-frame-rate 4K streams.

Highlights

  • Capture expansive scenes with 84.4° field of view
  • Fast, accurate focus using PDAF technology
  • 50 megapixel IMX766 sensor captures stunning detail
  • Plug and play USB 2.0 connectivity for hassle-free setup
  • Versatile MJPEG and YUV2 output formats for varied processing needs

Specifications

BrandWeinandianzi
ModelWN-L2307K368 V2.0 50MFT
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Specifications1/1.56-Inch IMX766 USB Camera Module
Compatibility1/1.56-Inch IMX766
FeaturesUSB Camera Module PDAF 84.4 Degree FPC+PCB MJPEG, YUY2 Protocol Plug and Play

Questions about this item

Will the USB 2.0 interface on this IMX766 module limit frame rates when I use it alongside an older USB 2.0 hub?

The module runs at 5 fps for 8160x6120 MJPEG, 15 fps for 4000x3000, and 30 fps for 3840x2160, 1920x1080 and 1280x720; YUY2 modes are 5 fps at 1920x1080, 10 fps at 1280x720 and 30 fps at 640x480, all within USB 2.0 bandwidth.

How can I verify the PDAF autofocus is functioning correctly after I connect the module?

Point the camera at a high-contrast target; the lens should snap focus within a fraction of a second and the live preview at 1920x1080 MJPEG 30 fps will show a sharp image without hunting.

Does the package include a lens, mounting hardware or cables, or must I source them separately?

The box contains the FPC+PCB camera module only; a compatible lens, mount and USB cable are not included and must be purchased separately.
