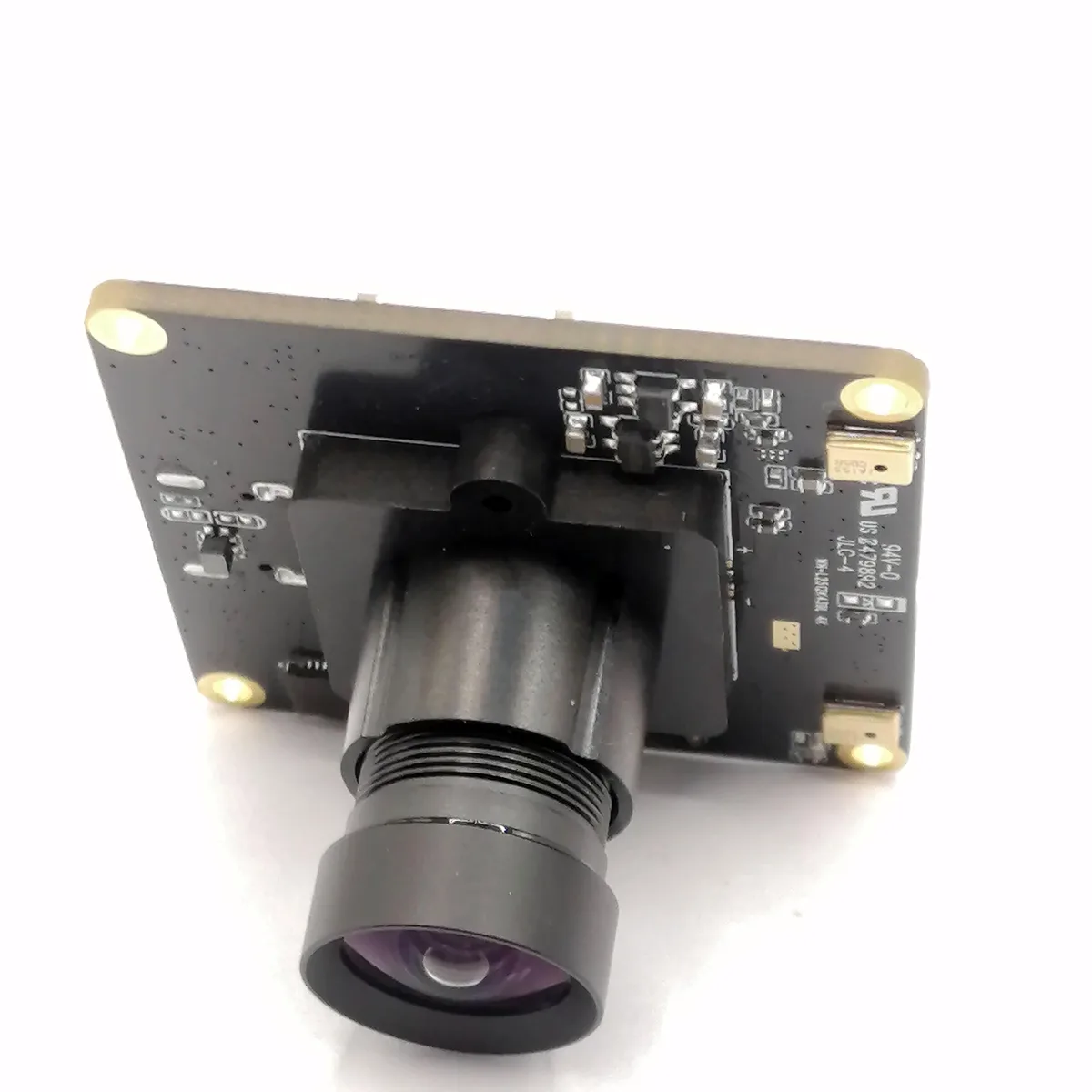

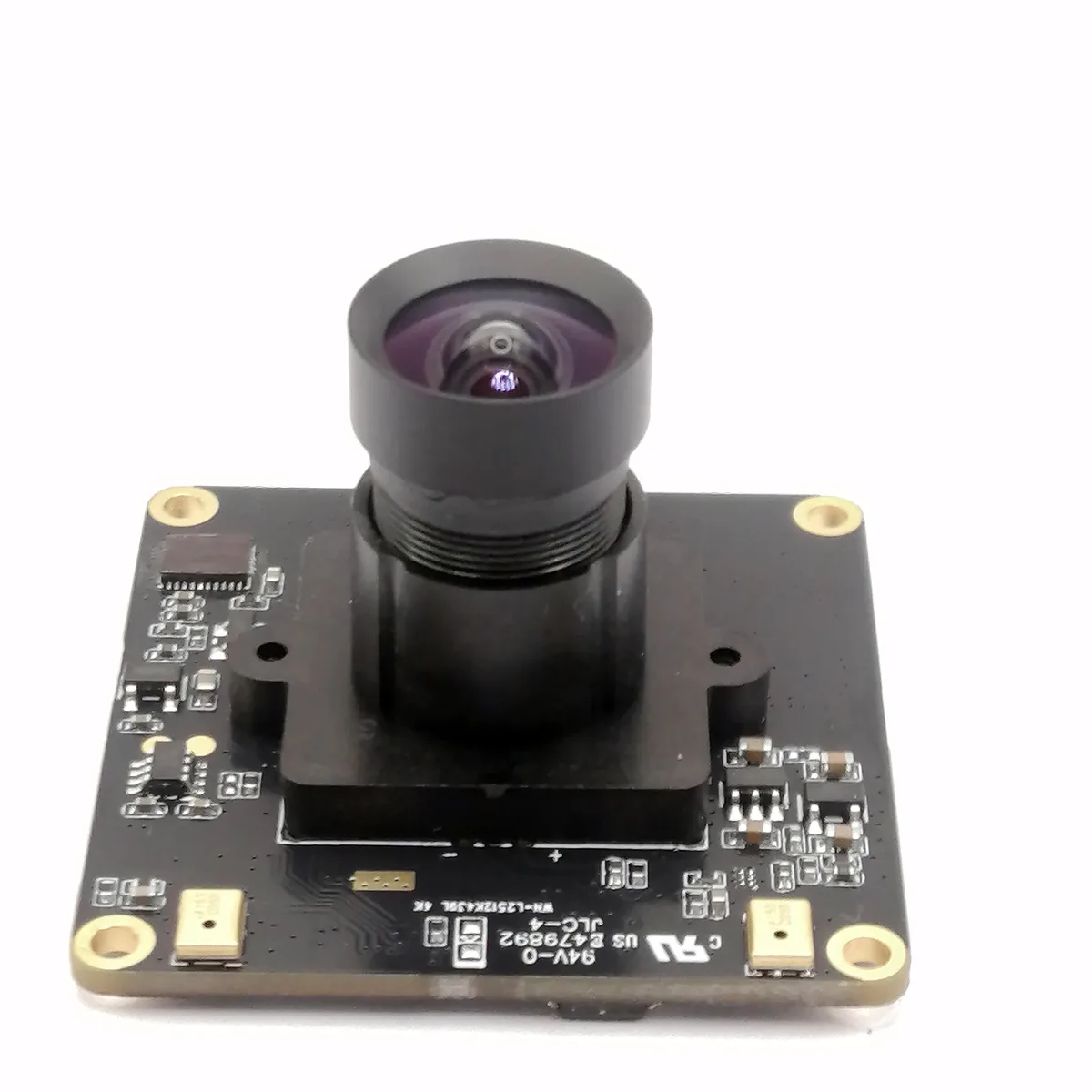

Black rectangular camera module with Type-C port and small lens, 13x9x9cm

Weinandianzi

Weinandianzi 3840x2160 8MP IMX678 USB3.0 Type-C 60FPS 92° PDAF camera accessory

SKU CH-X3Z0-SF3MX

An 8 MP Sony IMX678 camera module captures 4K video at 60 fps over USB 3.0 Type-C with a 92° field of view and PDAF autofocus

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Compatibility1/1.8-Inch IMX678 CMOS
  • Features1/1.8-inch IMX678 USB3.0 Camera Module
  • 4K video at 60 FPS for smooth motion capture
  • 8 MP IMX678 sensor delivers detailed 3840×2160 images
  • USB 3.0 Type-C provides high-speed data transfer
  • 92° wide field of view covers more scene
  • PDAF autofocus locks onto subjects quickly

8MP USB 3.0 Type-C camera module

The Weinandianzi accessory integrates a 1/1.8-inch IMX678 CMOS sensor and delivers 3840x2160 resolution at 60 frames per second over a high-speed USB 3.0 Type-C link. It is aimed at developers and integrators who need a compact 8-megapixel video source with PDAF autofocus for machine-vision, streaming or embedded imaging projects.

Thermal and power profile

The module draws power directly from the USB 3.0 bus and uses an electronic rolling shutter with 2D-DNR and 3D-DNR noise reduction to maintain clean output without active cooling. Fixed-focus optics and a 92-degree diagonal field of view keep the design passive, so no fan or heatsink is required during continuous operation.

Integration requirements

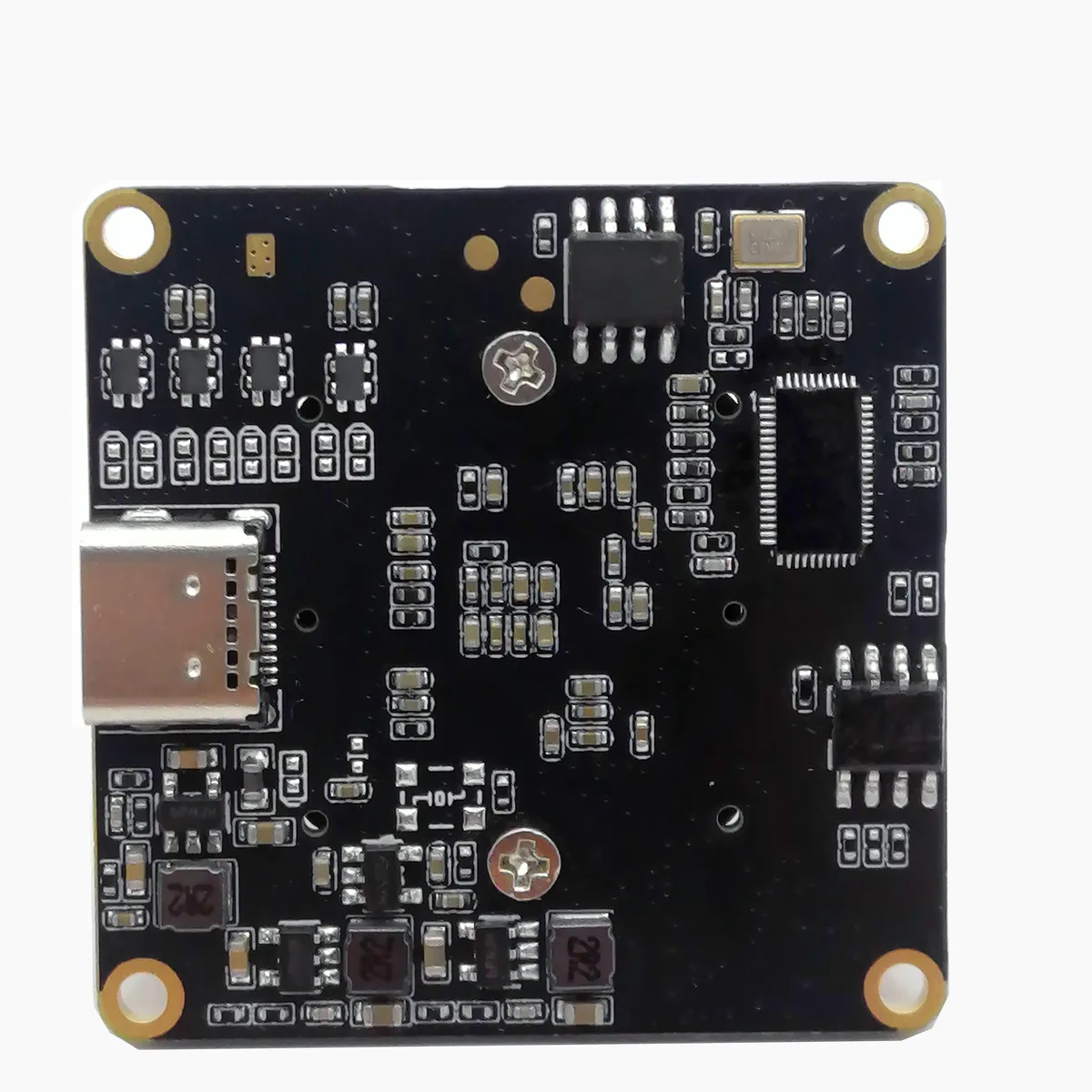

A host with a USB 3.0 Type-C port supplies both data and power, while the 30-by-15-millimetre PCB and 64-by-10-millimetre FPC allow placement in tight enclosures. The camera outputs MJPEG or YUV2 formats at multiple resolutions down to 640x480, freeing the system designer from adding a separate image processor or capture card.

Highlights

  • 4K video at 60 FPS for smooth motion capture
  • 8 MP IMX678 sensor delivers detailed 3840×2160 images
  • USB 3.0 Type-C provides high-speed data transfer
  • 92° wide field of view covers more scene
  • PDAF autofocus locks onto subjects quickly

Specifications

BrandWeinandianzi
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Compatibility1/1.8-Inch IMX678 CMOS
Features1/1.8-inch IMX678 USB3.0 Camera Module

Questions about this item

How do I connect the Type-C USB3.0 camera module to my system and what step is often missed?

Plug the USB Type-C cable into a USB 3.0 port for full 60FPS bandwidth; using a USB 2.0 port limits MJPEG 4K to 15FPS and YUY2 4K to 15FPS.

What maintenance will the IMX678 module need over time?

Clean the 6P+IR 650nm lens (EFL 4.25mm, F/1.8) with a microfibre cloth when image quality drops; no user-serviceable parts inside.

What limit appears first during continuous 4K 60FPS MJPEG streaming?

USB 3.0 bus bandwidth and host-controller thermal throttling cap sustained MJPEG 3840x2160 at 60FPS before the sensor overheats.
