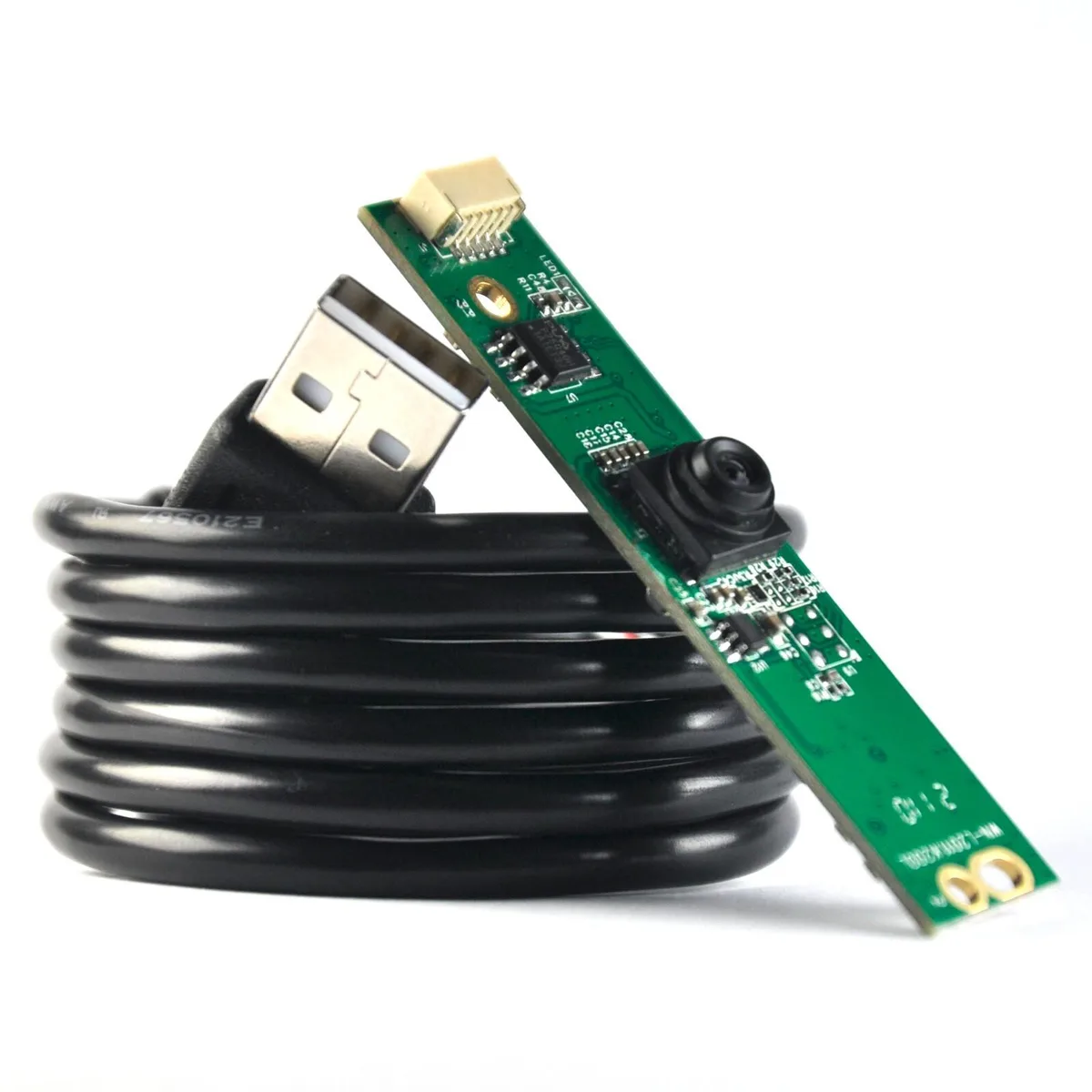

Black rectangular camera module with lens on short cable

Weinandianzi

Weinandianzi 12MP 4K IMX258 USB2.0 Camera Module 125° Fixed Focus camera accessory

SKU CH-ZN47-NMQC0

12MP IMX258 USB 2.0 camera module captures 4K video at 15 fps or 1080p at 30 fps with a 125° fixed-focus lens

  • TypeOther
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module Fixed Focus 125° UVCcompliant, Plug and Pl
  • Compatibility1/3.06-Inch IMX258 CMOS
  • Features12MP 4K 1/3.06-Inch IMX258 CMOS USB Camera Module Fixed Focu
  • 12 MP 4K IMX258 sensor captures detailed images
  • 125° field of view covers wide scenes
  • UVC compliant plug and play simplifies integration
  • USB 2.0 interface supports 3840 x 2160 at 30 fps
  • Fixed focus design ensures consistent sharpness

Industrial USB Camera Module

The Weinandianzi 12MP camera module uses a 1/3.06-Inch IMX258 CMOS sensor to capture 4K stills at 3840 x 3104 resolution. It connects via USB 2.0 with a one-metre cable and operates as a UVC-compliant plug-and-play device. Fixed focus and a 125-degree field of view suit machine-vision and monitoring tasks.

Resolution and Frame Rate Limits

The sensor delivers 15 frames per second at the full 3840 x 3104 resolution in MJPEG format. Higher frame rates of 30 fps are only available at reduced resolutions such as 3840 x 2160, 3264 x 2448 or 2592 x 1944. Output formats are limited to MJPEG and YUY2 over the USB 2.0 bandwidth.

Fixed-Focus Wide-Angle Applications

This module suits integrators who need a wide, fixed-focus view for inspection, kiosk or surveillance setups where the working distance remains constant. Buyers who require autofocus, variable focal lengths or higher frame rates at maximum resolution should consider other sensor options.

Highlights

  • 12 MP 4K IMX258 sensor captures detailed images
  • 125° field of view covers wide scenes
  • UVC compliant plug and play simplifies integration
  • USB 2.0 interface supports 3840 x 2160 at 30 fps
  • Fixed focus design ensures consistent sharpness

Specifications

BrandWeinandianzi
TypeOther
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module Fixed Focus 125° UVCcompliant, Plug and Play For Industrial
Compatibility1/3.06-Inch IMX258 CMOS
Features12MP 4K 1/3.06-Inch IMX258 CMOS USB Camera Module Fixed Focus 125° UVCcompliant, Plug and Play For Industrial

Questions about this item

What frame rate does the 3840×3104 resolution actually deliver on USB 2.0?

The sensor reaches 15 fps at 3840×3104 over USB 2.0; dropping to 3840×2160 or lower resolutions raises the rate to 30 fps.

Does the USB 2.0 interface limit the maximum resolution or frame rate?

USB 2.0 caps the top resolution 3840×3104 to 15 fps, while 3840×2160, 3264×2448 and 2592×1944 all run at 30 fps.

What physical space and mounting does the 62×13 mm module need?

The board measures 62×13 mm, has a 1 m fixed cable and a 125° fixed-focus lens, so it fits in tight enclosures without extra focus hardware.
