Black PCIe Wi-Fi 7 card with red heatsink and two external antennas

Wavlink

Wavlink WN685BE3-B Wi-Fi 7 PCIe adapter

SKU CH-CS5J-1MHXM MPN WN685BE3-B

A tri-band Wi-Fi 7 PCIe adapter with Bluetooth 5.4, delivering up to 8774 Mbps across 2.4 GHz, 5 GHz and 6 GHz bands for Windows 10 or 11 desktops

  • TypePCIE Wi-Fi Adapter
  • ColorBlack / Red
  • StandardsIEEE 802.11a/b/g/n/ac/ax/be
  • Wireless Data Rates2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
  • WiFi GenerationWi-Fi 6E
  • SecurityWPA2/WPA3, WPA2-PSK encryption

Color Black / Red

Class WiFi 7

Wireless Speed 8774mbps

Options WiFi 7 + BT 5.4

  • AX5400
  • WiFi 7 + BT 5.4

Struck-through versions exist but are not stocked here.

  • Wi-Fi 7 delivers up to 8774 Mbps combined throughput across three bands

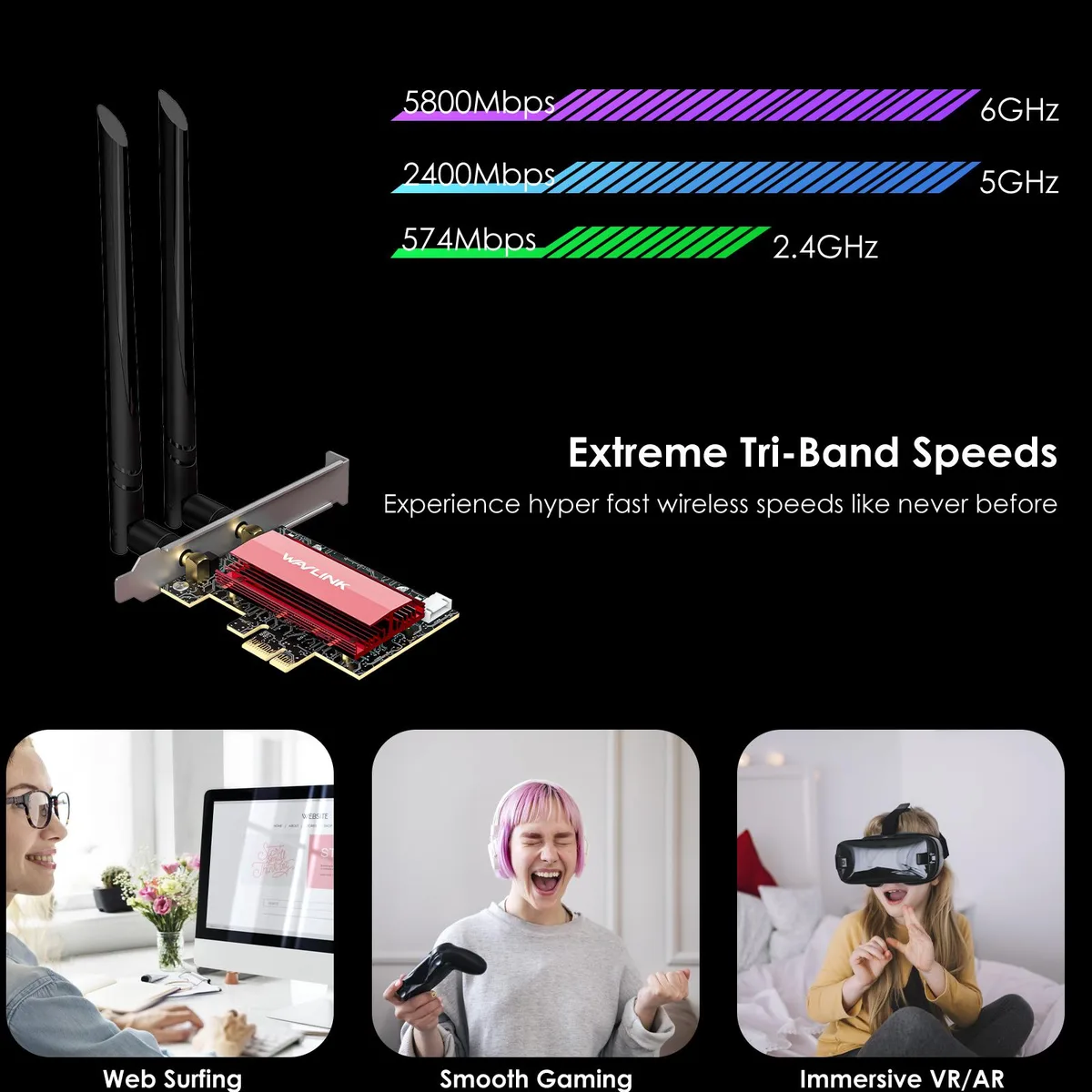

  • Tri-band 2.4 GHz 574 Mbps 5 GHz 2400 Mbps 6 GHz 5800 Mbps for high bandwidth tasks
  • Bluetooth 5.4 adds modern peripheral support with included internal cable
  • Low-profile bracket and heat sink fit compact desktops and aid cooling
  • Windows 11 64-bit required for 6 GHz operation and full Wi-Fi 7 features

Tri-band Wi-Fi 7 desktop adapter

The Wavlink WN685BE3-B installs in a PCIe slot and uses the Intel BE200 chipset to deliver 574 Mbps on 2.4 GHz, 2400 Mbps on 5 GHz and 5800 Mbps on 6 GHz. It also adds Bluetooth 5.4 through an internal 9-pin header cable. Windows 10 or 11 64-bit is required, with Windows 11 needed for 6 GHz operation.

Desktop builders with compatible Intel-chipset

Suits users who want tri-band Wi-Fi 7 and Bluetooth 5.4 on a Windows desktop. Not for laptops or small-form-factor systems lacking a full-height or low-profile PCIe slot. Not for motherboards built around AMD chipsets, as the supplier states compatibility is not supported on those platforms. Buyers who cannot run a Bluetooth header cable to the motherboard will not get Bluetooth functionality.

6 GHz band requires Windows 11

The adapter’s 6 GHz radios and 5800 Mbps top rate are only usable when the operating system is Windows 11 64-bit; Windows 10 limits operation to 2.4 GHz and 5 GHz bands. This single software constraint decides whether the full tri-band capability can be realised.

Highlights

  • Wi-Fi 7 delivers up to 8774 Mbps combined throughput across three bands
  • Tri-band 2.4 GHz 574 Mbps 5 GHz 2400 Mbps 6 GHz 5800 Mbps for high bandwidth tasks
  • Bluetooth 5.4 adds modern peripheral support with included internal cable
  • Low-profile bracket and heat sink fit compact desktops and aid cooling
  • Windows 11 64-bit required for 6 GHz operation and full Wi-Fi 7 features

Specifications

BrandWavlink
Model685BE3-B
TypePCIE Wi-Fi Adapter
ColorBlack / Red
StandardsIEEE 802.11a/b/g/n/ac/ax/be
Wireless Data Rates2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
WiFi GenerationWi-Fi 6E
SecurityWPA2/WPA3, WPA2-PSK encryption
Frequency Band2.4 GHz / 5 GHz / 6 GHz
LEDs1 X Link
BluetoothBluetooth 5.4
System RequirementsSupport Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.
Weight0.7Lbs
Temperature0°C - 40°C (32°F - 104°F)
Package Contents-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does this Wi-Fi 7 card fit a PCIe x1 slot and a low-profile case?

The adapter works in PCIe x1, x4, x8 or x16 slots and a low-profile bracket is included in the box.

What is the step people forget when installing Bluetooth 5.4 on this adapter?

Connect the supplied Bluetooth cable to the motherboard 9-pin header or the Bluetooth function will not work.

When will the external antennas on this tri-band adapter need replacement?

The two external antennas are detachable; replace them only if the connectors or cables become physically damaged.
