Wavlink
Wavlink WL-WN922BE3-A BE6500 Wi-Fi 7 PCIe Adapter
Tri-band Wi-Fi 7 adapter reaches 6500 Mbps with 6 GHz support, Bluetooth 5.4 and two 5 dBi antennas on an external base
- Wireless Data RatesBE6500
- Frequency Band2.4 GHz / 5 GHz / 6 GHz
- InterfacePCI Express
- TypePCIE Wi-Fi Adapter
- ColorBlack
- Standards802.11be
Interface Type PCIe
- USB 3.0
- PCIe
- Wi-Fi 7 BE6500 delivers up to 6500 Mbps total throughput for 4K/8K streaming
- Tri-band 2.4 GHz 688 Mbps, 5 GHz 2882 Mbps, 6 GHz 2882 Mbps handles heavy network loads

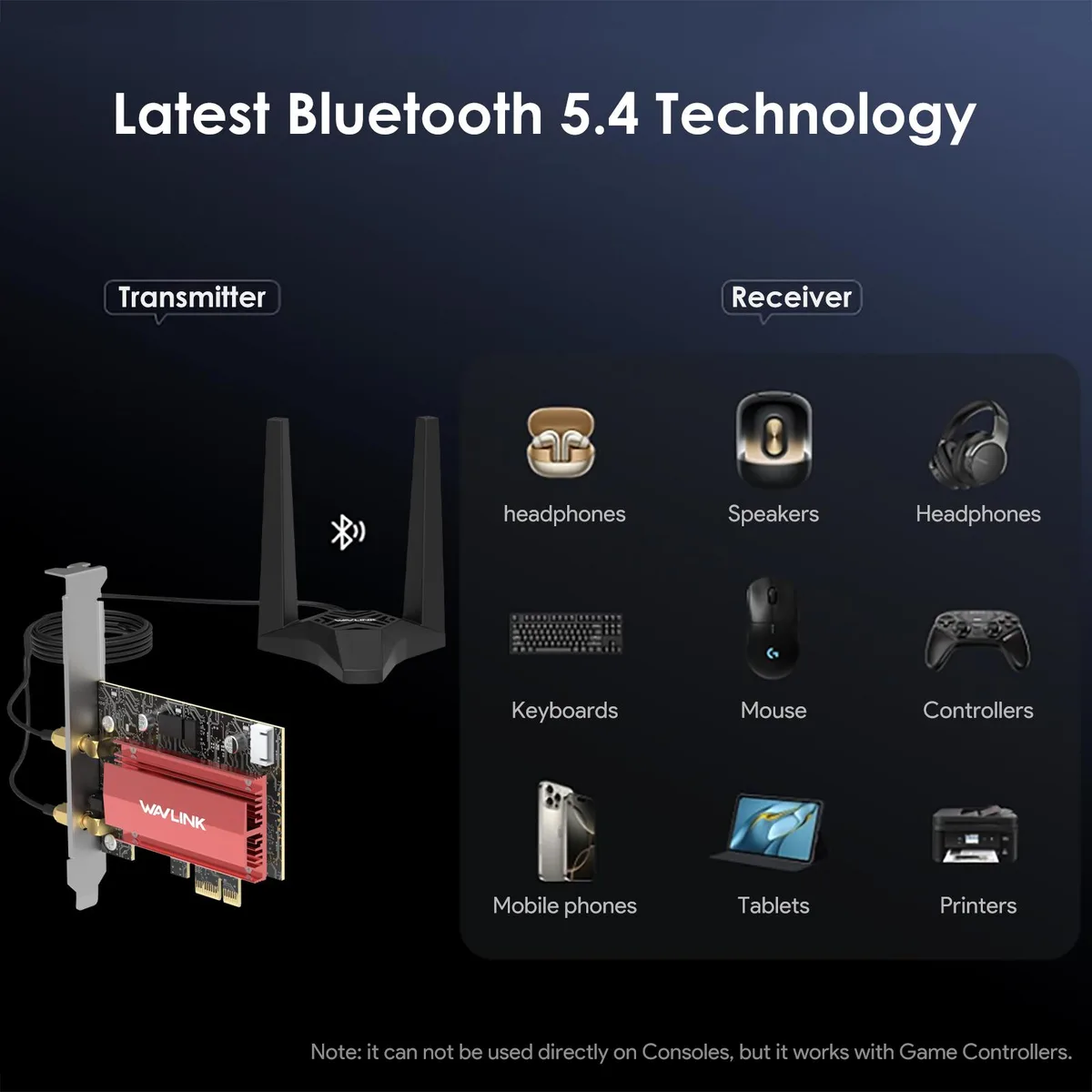

- Bluetooth 5.4 extends transmission distance with better stability for peripherals
- MU-MIMO and OFDMA improve device efficiency and cut latency in busy environments
- Dual 5 dBi external antennas on a dedicated base optimise signal capture and reduce interference
Wavlink BE6500 Wi-Fi 7 PCIe Adapter
This new Wavlink WL-WN922BE3-A adapter brings Wi-Fi 7 and Bluetooth 5.4 to a desktop PC through a PCI Express slot. It ships with two 5 dBi external antennas on a separate base, a USB 3.0 cable and a low-profile bracket for small cases.
Suited to Windows 11 desktops with a free PCIe slot
The card requires Windows 11 and an available PCI Express lane. It is not for systems running older Windows versions or Linux, nor for laptops or mini PCs that lack a full-size expansion slot.

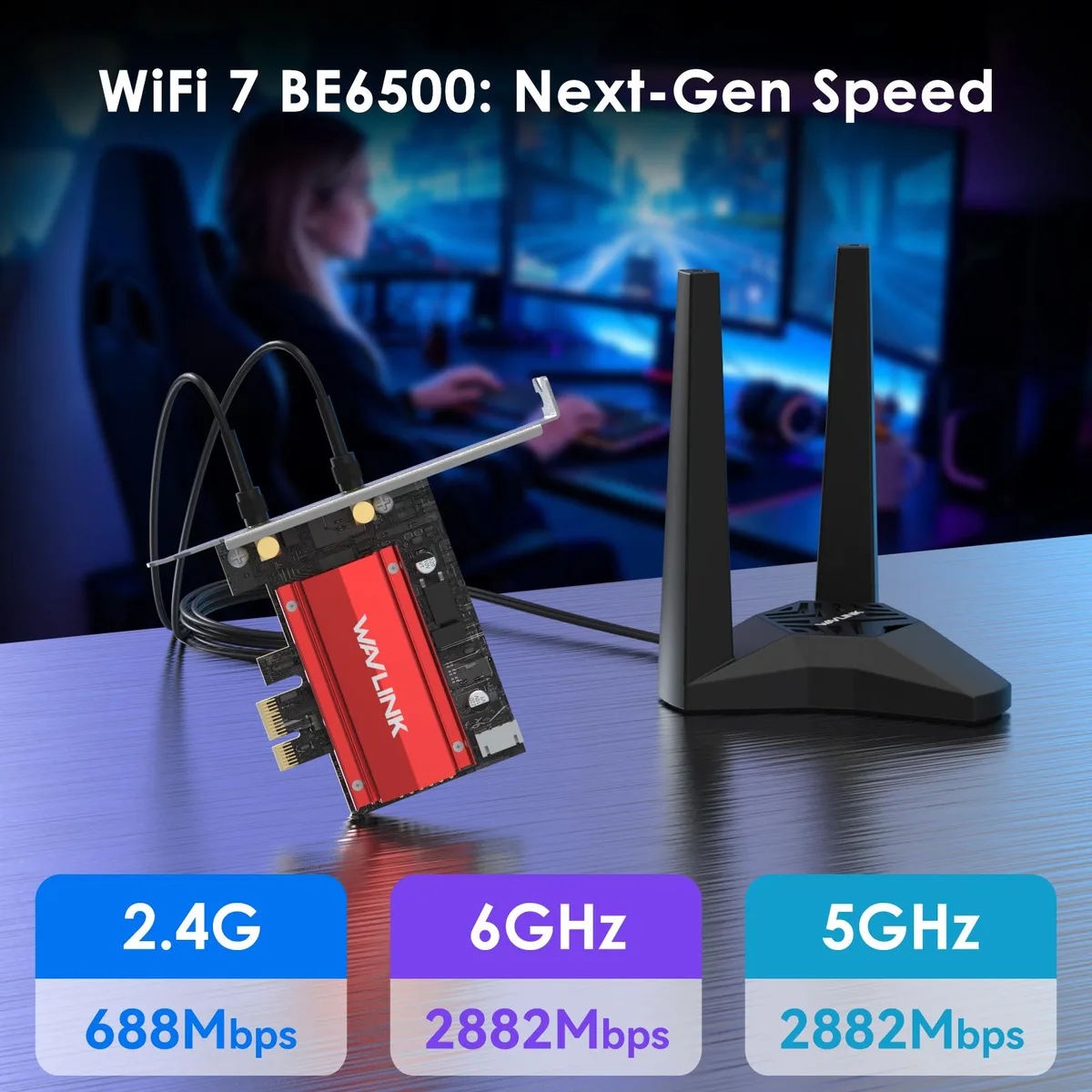

Tri-band 6500 Mbps with 6 GHz support
Maximum throughput reaches 6500 Mbps split across 2.4 GHz at 688 Mbps, 5 GHz at 2882 Mbps and 6 GHz at 2882 Mbps. This single figure decides whether the adapter matches the router and the broadband plan you already use.
Highlights
- Wi-Fi 7 BE6500 delivers up to 6500 Mbps total throughput for 4K/8K streaming
- Tri-band 2.4 GHz 688 Mbps, 5 GHz 2882 Mbps, 6 GHz 2882 Mbps handles heavy network loads
- Bluetooth 5.4 extends transmission distance with better stability for peripherals
- MU-MIMO and OFDMA improve device efficiency and cut latency in busy environments
- Dual 5 dBi external antennas on a dedicated base optimise signal capture and reduce interference
Specifications
| Wireless Data Rates | BE6500 |
|---|---|
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Interface | PCI Express |
| Type | PCIE Wi-Fi Adapter |
| Color | Black |
| Standards | 802.11be |
| WiFi Generation | Wi-Fi 7 |
| Security | WPA 3 |
| Antenna | 2×5dBi external Wi-Fi 7 antennas |
| Bluetooth | Bluetooth 5.4 |
| System Requirements | Win 11 only |
| Brand | Wavlink |
| Model | WL-WN922BE3-A |
| Features | Specification: -The latest Wi-Fi 7 BE6500 standard gives you incredible speed and connectivity. -Tri-Band speeds up to 2.4GHz 688Mbps, 5GHz 2882Mbps, 6GHz 2882Mbps. -Supports the latest Bluetooth 5.4 with a longer transmission distance and better stability. |
| Package Contents | -1 x WiFi 7 BE6500 Pcie Adapter -1 x USB 3.0 Cable -1 x Quick Start Guide |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Does the WL-WN922BE3-A fit a low-profile case with the included bracket?
The package includes a low-profile bracket so the card can be installed in slim chassis without removing the standard bracket.
What is the installation step users often miss with the Bluetooth 5.4 function?
The USB 3.0 cable in the box must be connected from the adapter to an internal USB header; without it Bluetooth 5.4 will not work.
How do I maintain the 2×5dBi external antennas over time?
Check the antenna base connections periodically and tighten the RP-SMA joints if they loosen; no other maintenance is required.
