Wavlink WL-WN583HX3 AX3000 wireless range extender
Dual-band Wi-Fi 6 range extender with 160 MHz bandwidth, five 5 dBi antennas and repeater, access-point, router and mesh modes covering up to 3000 sq ft for 256 devices
- StandardsIEEE 802.11ax
- Frequency Band2.4 GHz / 5.0 GHz
- Wireless Data RatesAX3000
- SecurityWPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX
- WPA/WPA2WPA3
- Antenna4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)+1 x
- Dual-band Wi-Fi 6 reaches 2975 Mbps combined throughput
- 160 MHz bandwidth on 5 GHz enables faster data rates
- Four operating modes suit repeater, AP, router or mesh needs
- Five 5 dBi antennas extend coverage up to 3000 sq ft
- WPA3 security plus WPS button for simple device pairing
AX3000 Wi-Fi 6 range extender
The Wavlink WL-WN583HX3 is a dual-band wireless range extender that also works as an access point, router or mesh node. It targets homes with dead zones who want AX3000-class throughput without running new cables. Buyers needing more than one gigabit Ethernet port or multi-gig wired backhaul are not served by this device.
Wall-mount design with five 5 dBi antennas

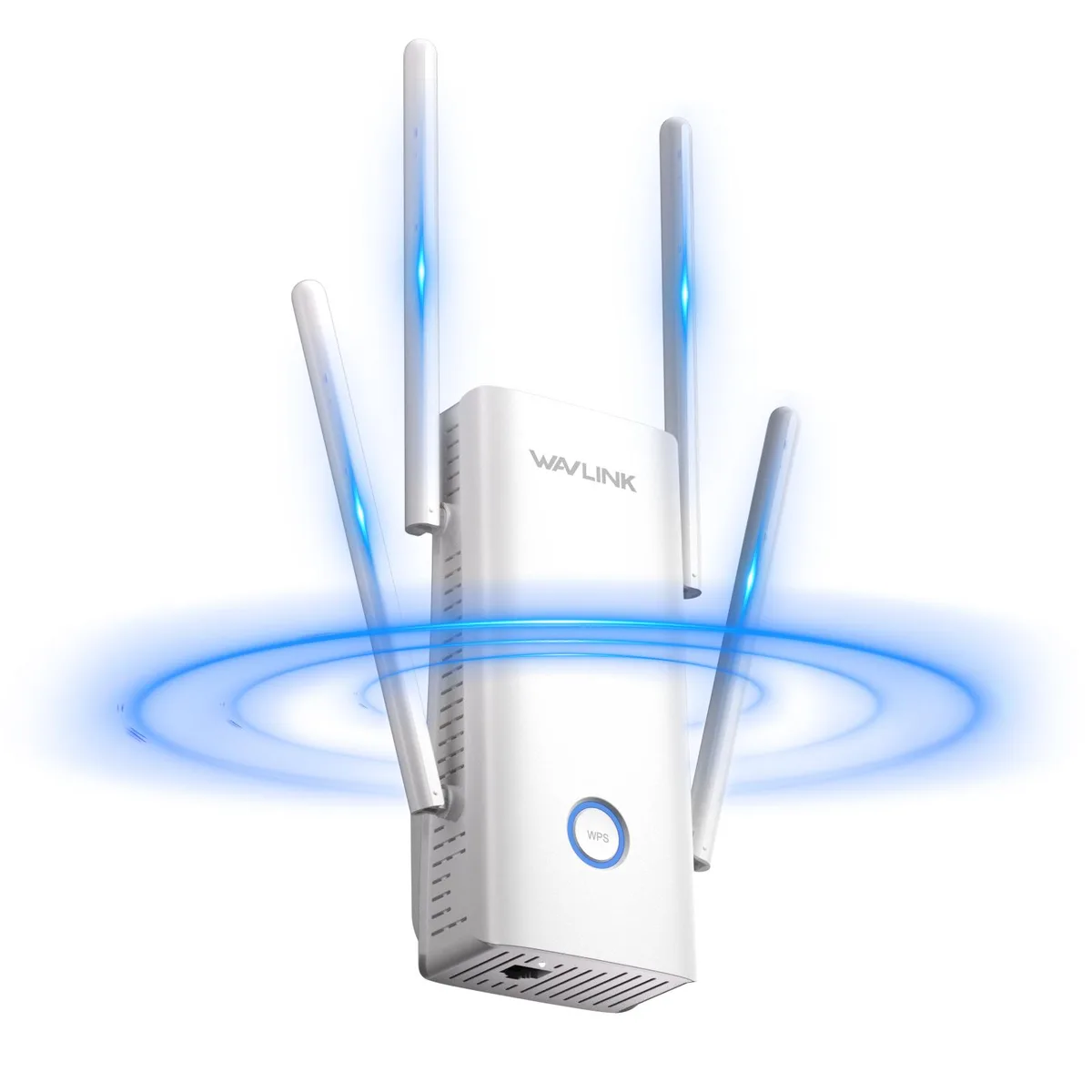

Four external 5 dBi omni-directional antennas (15.4 cm each) plus one internal antenna fold flat for wall mounting, saving shelf space. A single 10/100/1000 Mbps WAN/LAN port handles wired clients or uplink duty. LED colour codes on the WPS button show connection state at a glance.
160 MHz channel width on 5 GHz
The 5 GHz radio uses a 160 MHz channel to reach 2402 Mbps PHY rate, but real-world throughput drops when clients lack 160 MHz support or DFS channels are occupied. The 2.4 GHz radio tops out at 573 Mbps. Mesh roaming works only with other Wavlink AX3000 units.
Highlights
- Dual-band Wi-Fi 6 reaches 2975 Mbps combined throughput
- 160 MHz bandwidth on 5 GHz enables faster data rates
- Four operating modes suit repeater, AP, router or mesh needs
- Five 5 dBi antennas extend coverage up to 3000 sq ft
- WPA3 security plus WPS button for simple device pairing
Specifications
| Brand | Wavlink |
|---|---|
| Model | WL-WN583HX3 |
| Standards | IEEE 802.11ax |
| Frequency Band | 2.4 GHz / 5.0 GHz |
| Wireless Data Rates | AX3000 |
| Security | WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX |
| WPA/WPA2 | WPA3 |
| Antenna | 4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)+1 x 5dBi internal antenna |
| Operating Mode | Supports Repeater/AP/Router/Mesh mode |
| Ports | 1 x WAN/LAN(10/100/1000Mbps) |
| LED | 1 x WPS(Purple/Red/Blue); 1 x WAN/LAN(Blue) |
| Button | 1 x Power On/Off; 1 x Reset; 1 x WPS |
| Features | - Dual band 2.4G 573Mbps +5G 2402Mbps with the aggregated speeds up to 2975Mbps. - The BSS coloring technology enables a better spatial reuse. - The WiFi 6 MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance. - One Gigabit Ethernet port provides your devices with high-speed network experience. - With various modes, you can either use it as a regular Repeater/AP/Router or pair it with a Mesh device. - High grade WLAN security with WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX. - Compact wall plug design for easy placement. - Antenna: 4 x 5dBi high |
| Package Contents | - 1 x Wi-Fi 6 Repeater/AP/Router - 1 x RJ-45 Ethernet Cable - 1 x Quick Start Guide |
Questions about this item
What does the 160 MHz bandwidth on the 5 GHz band actually cap in practice?
The 5 GHz radio reaches 2402 Mbps with 160 MHz channels, while the 2.4 GHz radio tops out at 573 Mbps, giving an aggregate AX3000 rating of 2975 Mbps.
How much space do the four external 5 dBi antennas need when wall-mounting the WL-WN583HX3?
Each external antenna is 15.4 cm (6.1 in) long, so allow at least that much clearance above the unit plus room for the single internal antenna.
What is the difference between a 2-second and an 8-second press of the WPS button during setup?
A 2-second press pairs downstream devices to the extender, while an 8-second press connects the extender to the upstream router.
