Gray rectangular Thunderbolt 5 docking station with multiple ports visible

Wavlink

Wavlink WL-UTD59 Thunderbolt 5 docking station 140W PD triple 4K dual 8K 120Gbps

SKU CH-HA6C-QDXRH MPN WL-UTD59

Connects a Thunderbolt 5 laptop to triple 4K or dual 8K displays, 2.5GbE, four 10Gbps USB-A ports, UHS-II card reader and audio while delivering 140W charging

  • ColorGray
  • CompatibilitySystems/ Devices Compatibility: - Windows 11 or higher - Mac
  • Thunderbolt 3Thunderbolt 5
  • Ports Spec1×Combo Audio Jack; SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0);
  • Features- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwid

Color Gray

  • Up to 120Gbps dynamic bandwidth with Thunderbolt 5
  • Triple 4K at 144Hz or dual 8K at 60Hz on Windows 11
  • 140W power delivery to laptop via upstream port
  • 12-in-1 hub: 3 Thunderbolt 5 downstream, 4 USB-A 10Gbps, 2.5GbE, UHS-II card reader
  • Mac OS 14.6 or later on M chip supports dual 6K displays

Thunderbolt 5 dock with triple 4K support

The Wavlink WL-UTD59 is a 12-in-1 Thunderbolt 5 docking station for Windows 11 and macOS 14.6 or later. It delivers up to 120 Gbps dynamic bandwidth and 80 Gbps bi-directional data speed. The unit provides 140 W power delivery to the host laptop through its upstream port. Three downstream Thunderbolt 5 ports add video output and peripheral charging.

Ideal for high-resolution multi-monitor setups

This dock suits users who need triple 4K at 144 Hz or dual 8K at 60 Hz on Thunderbolt 5 Windows laptops. Mac users with M-series Pro, Max or M4 chips can drive dual 6K displays. Buyers whose laptops only have USB4, USB 3.0 or basic USB-C ports will see reduced display, data and charging performance. It is not for systems running Windows 10 or macOS versions below 14.6.

140 W host charging via upstream Thunderbolt 5

The single upstream Thunderbolt 5 port supplies up to 140 W of power to the connected laptop. This decides whether the dock can run a high-performance workstation without a separate power brick. Three downstream ports provide up to 30 W and 15 W each for accessories.

Highlights

  • Up to 120Gbps dynamic bandwidth with Thunderbolt 5
  • Triple 4K at 144Hz or dual 8K at 60Hz on Windows 11
  • 140W power delivery to laptop via upstream port
  • 12-in-1 hub: 3 Thunderbolt 5 downstream, 4 USB-A 10Gbps, 2.5GbE, UHS-II card reader
  • Mac OS 14.6 or later on M chip supports dual 6K displays

Specifications

BrandWavlink
ModelUTD59
ColorGray
CompatibilitySystems/ Devices Compatibility:
- Windows 11 or higher
- Mac OS 14.6 or later (M chip)
- Compatible with Thunderbolt 5/4, USB4, and USB 3.0 computers featuring a USB-C port.
Thunderbolt 3Thunderbolt 5

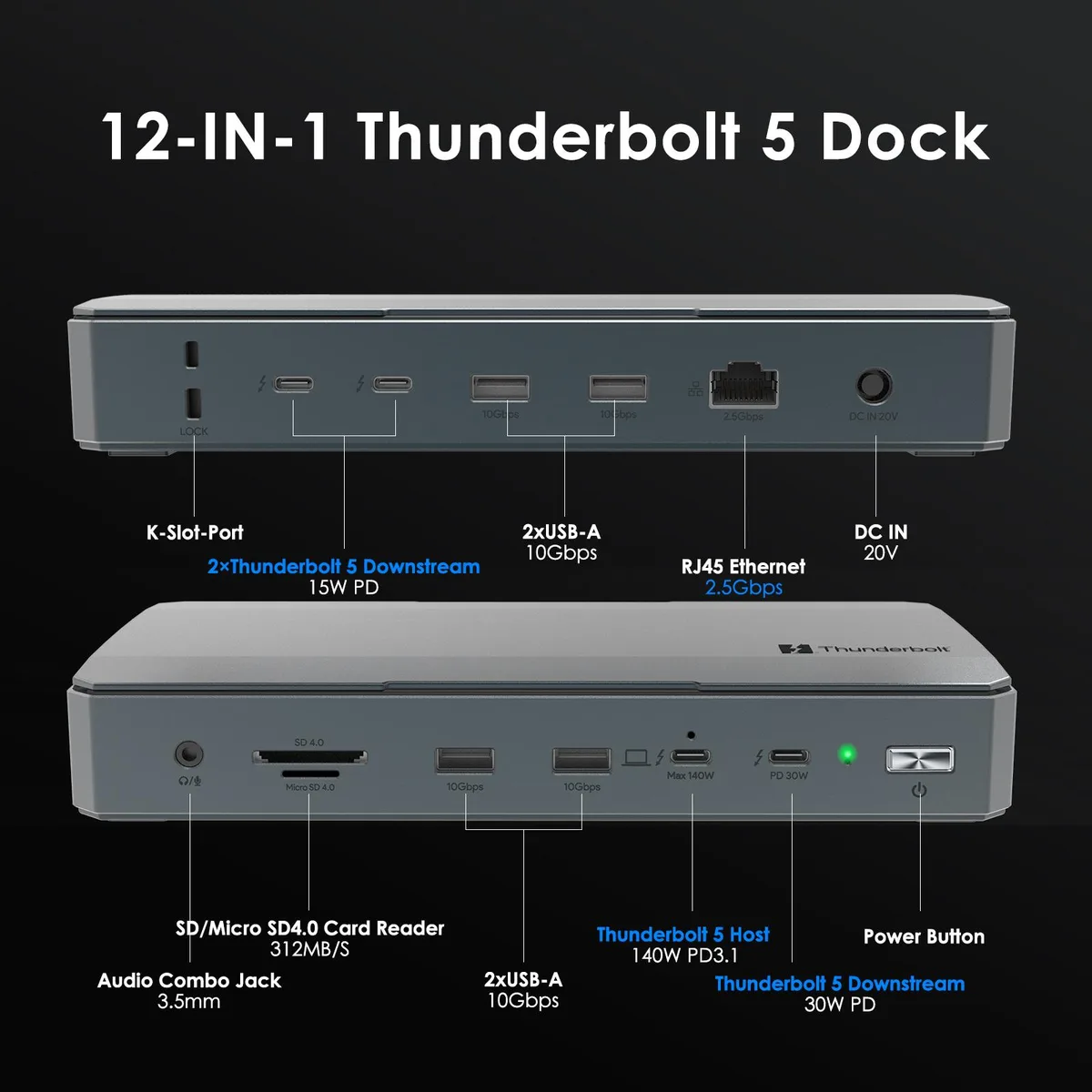

Ports Spec1×Combo Audio Jack; SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0); 2×USB-A(10Gbps); 1×TBT 5 UFP (Host, Max. 140W Charging, Video); 1×TBT 5 DFP (80Gbps, Video, PD 30W);
Rear:1×Lock; 2×TBT 5 DFP (80Gbps, Video, Charging); 2×USB-A (10Gbps); 1×RJ45 Ethernet; 1×DC IN (20V).
Features- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.
- 3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W instant charging for the downstream devices.
- 4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
- 1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
- 1* UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the UHS-II SD 4.0 card reader slot need replacement from heavy daily inserts?

The card reader supports UHS-II and SD 4.0 at up to 312 MB/s; it has no moving parts and is rated for standard industrial insertion cycles.

What limits sustained triple 4K 144 Hz output on Windows 11?

Triple 4K at 144 Hz requires a Thunderbolt 5 host with DSC support; the dock provides 120 Gbps video bandwidth and 80 Gbps data per downstream port.

How much heat and noise does the dock produce when all three Thunderbolt 5 downstream ports and 140 W charging run continuously?

The unit is fanless and aluminium-bodied; it dissipates heat silently through the chassis while delivering up to 140 W upstream and 30 W per downstream port.
