Rectangular black and grey USB-C docking station with multiple ports visible

Wavlink

Wavlink WL-UMD05M 13-in-1 USB-C Docking Station 100W PD

SKU CH-0JY4-0JDSB MPN WL-UMD05M

13-in-1 USB-C dock drives three monitors at up to 4K 60 Hz dual or 8K 30 Hz single while delivering 100 W PD charging and 10 Gbps data

  • ColorBlack/Gray
  • Compatibility✓ Windows 10 or later ✓ Mac OS 10.15 or later (Can extend a
  • Features-One DP and two HDMI work for triple video output, supportin

Color Black

  • Triple-monitor productivity with one USB-C cable
  • Single display up to 8K at 30 Hz or 4K at 144 Hz
  • Dual 4K at 60 Hz on Windows and macOS
  • 100 W Power Delivery keeps laptop charged while working
  • Two 10 Gbps USB-C plus four 5 Gbps USB-A ports

13-in-1 USB-C Docking Station

The Wavlink WL-UMD05M is a 13-in-1 USB-C docking station that adds three video outputs, wired networking, audio and multiple USB ports through a single host connection. It delivers up to 100W Power Delivery to charge the laptop while peripherals are attached. The unit requires a laptop with a full-featured USB-C port supporting PD 3.0 and DisplayPort Alt Mode. Windows 10 or later and macOS 10.15 or later are supported.

Windows multi-monitor users

Windows users with DP 1.4 graphics can drive three 4K displays simultaneously, while DP 1.2 systems are limited to mixed 1080p and 900p outputs. macOS only extends one external screen regardless of port count, so Mac owners needing two distinct external monitors should look elsewhere. The dock also needs an i5-class CPU and 8GB RAM minimum, ruling out older ultraportables.

Triple 4K headroom with DP 1.4

With a DP 1.4 host the dock handles triple 4K at 60/60/30 Hz or dual 4K at 60 Hz, plus 8K at 30 Hz or 4K at 144 Hz on a single DisplayPort stream. DP 1.2 hosts drop to dual 1080p at 60 Hz or triple 1080p/900p mixes. Data ports provide two 10Gbps USB-C and four 5Gbps USB-A connections; Gigabit Ethernet adds wired networking. Bandwidth saturates when three high-refresh 4K panels and fast storage run together.

Highlights

  • Triple-monitor productivity with one USB-C cable
  • Single display up to 8K at 30 Hz or 4K at 144 Hz
  • Dual 4K at 60 Hz on Windows and macOS
  • 100 W Power Delivery keeps laptop charged while working
  • Two 10 Gbps USB-C plus four 5 Gbps USB-A ports

Specifications

BrandWavlink
ModelWL-UMD05MPRO

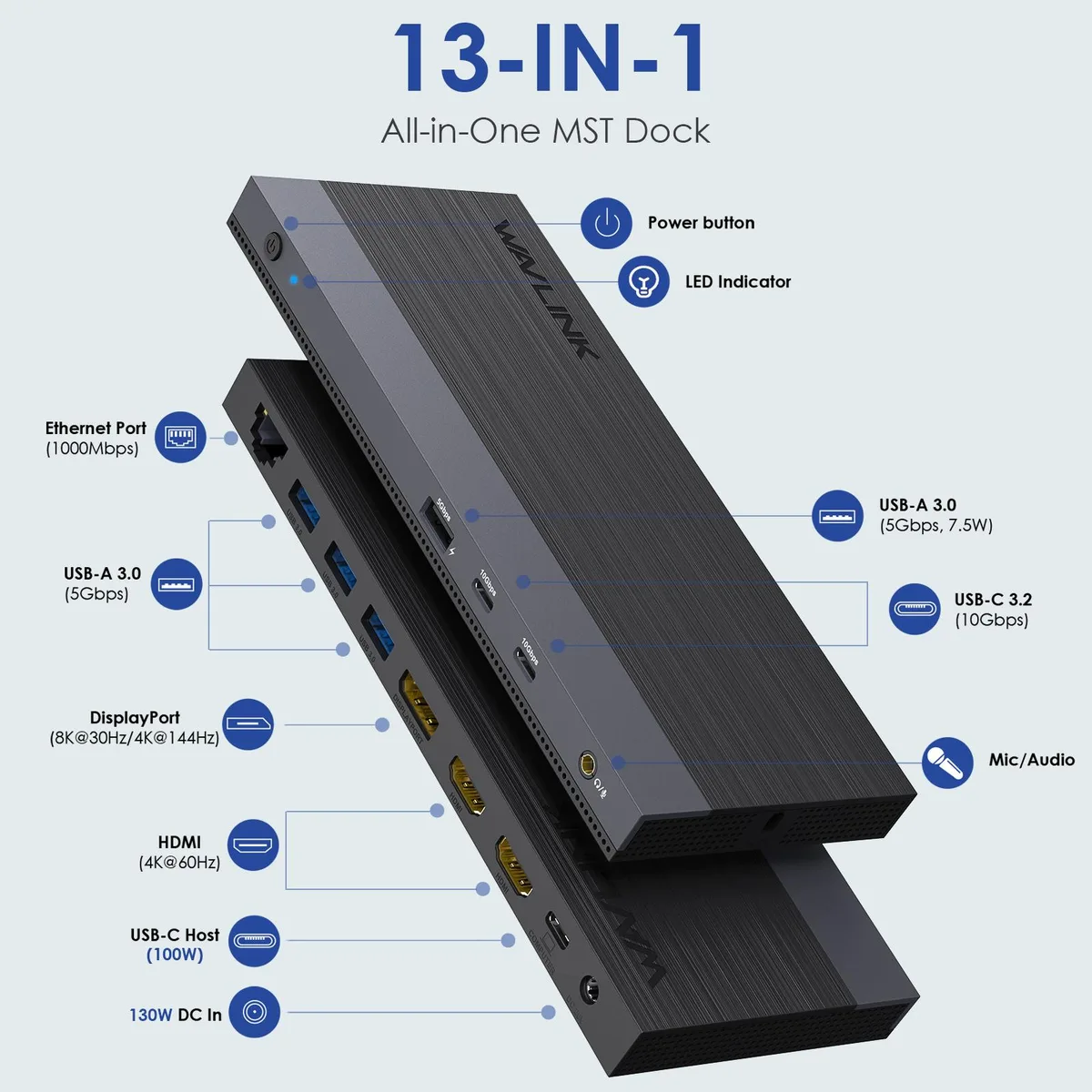

Part Number1×RJ45 Gigabit Ethernet Port; 3×USB-A (5Gbps); 1×DP; 2×HDMI; USB-C Upstream (Host, PD100W); 1×Power Port (20V,6.5A)
Rear: Power Button; 1×USB-A (5Gbps,7.5W); 2×USB-C (10Gbps); 4-pole jack
ColorBlack/Gray
Compatibility✓ Windows 10 or later
✓ Mac OS 10.15 or later (Can extend a different only)
✓ CPU i5 or higher, RAM 8GB or above
✓ Requires that laptop supports PD 3.0 ✓ Laptop with full-funtional USB-C Port (PD+DP Alt Mode+Data)
Features-One DP and two HDMI work for triple video output, supporting single DP Max. 4K@144Hz/8K@30Hz and dual 4K@60Hz.
-One PD3.0 USB-C upstream port provides 100W upstream charging for the laptop.
-Two USB-C transfer speed up to 10Gbps, and are backward compatible with USB 3.0/2.0.
-Four USB-A transfer speed up to 5Gbps, one of them supports BC1.2 fast charging, and are compatible with USB 2.0/1.1.
-One Gigabit LAN port for a stable and fast wired network, and is backward compatible with 100/10Mbps network.
-One 3.5mm 4-pole jack for audio output and input.

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my laptop need a full-featured USB-C port with Power Delivery 3.0 and DisplayPort Alt Mode to use the Wavlink WL-UMD05M?

Yes. The dock requires a laptop USB-C port that supports PD 3.0 charging, DP Alt Mode video output and data together; without all three the dock cannot deliver 100 W charging or drive its DP and HDMI outputs.

Will the dock’s two 10 Gbps USB-C ports and four 5 Gbps USB-A ports work at full speed with my older 5 Gbps USB-A peripherals?

Yes. All six downstream USB ports are backward compatible; your existing 5 Gbps devices will operate at their rated speed while the two 10 Gbps USB-C ports remain available for faster drives.

After connecting three monitors, how can I verify the dock is delivering the highest supported refresh rates?

Open your OS display settings and confirm each external panel shows its target resolution and refresh rate — for example 4K at 60 Hz on dual HDMI or 4K at 144 Hz on the DP port when the laptop supports DP 1.4.
