Wavlink
Wavlink WL-UG77PD1-PRO-A Triple 4K 60Hz Docking Station 100W Charging
Drives three 4K 60 Hz displays via HDMI or DisplayPort, adds 10 Gbps USB ports, 2.5 Gbps Ethernet and 100 W laptop charging over USB-C
- ColorSilver
- CompatibilityCompatible Systems - Windows 11/10 - Mac OS 13 or later - An
- Features-The upstream USB-C port provides the host laptop with 100W
- Drives three 4K displays at 60 Hz for expansive multi-monitor workflows
- Delivers up to 100 W laptop charging through the upstream USB-C port
- Two 10 Gbps USB ports move large files in seconds
- 5 Gbps Ethernet provides fast, stable wired network access
- Works with Windows 11, Windows 10, Mac OS 13 and later, Android 8.0 and later, Ubuntu and ChromeOS
Triple 4K docking for multi-screen workflows
This docking station drives three 4K displays at 60 Hz through three HDMI or two DisplayPort outputs. It targets financial analysts, creative professionals and project managers who need simultaneous high-resolution screens. The unit connects via USB-C or USB-A and requires a driver installation on the host system.
Silver chassis with 13-port layout and hybrid cable

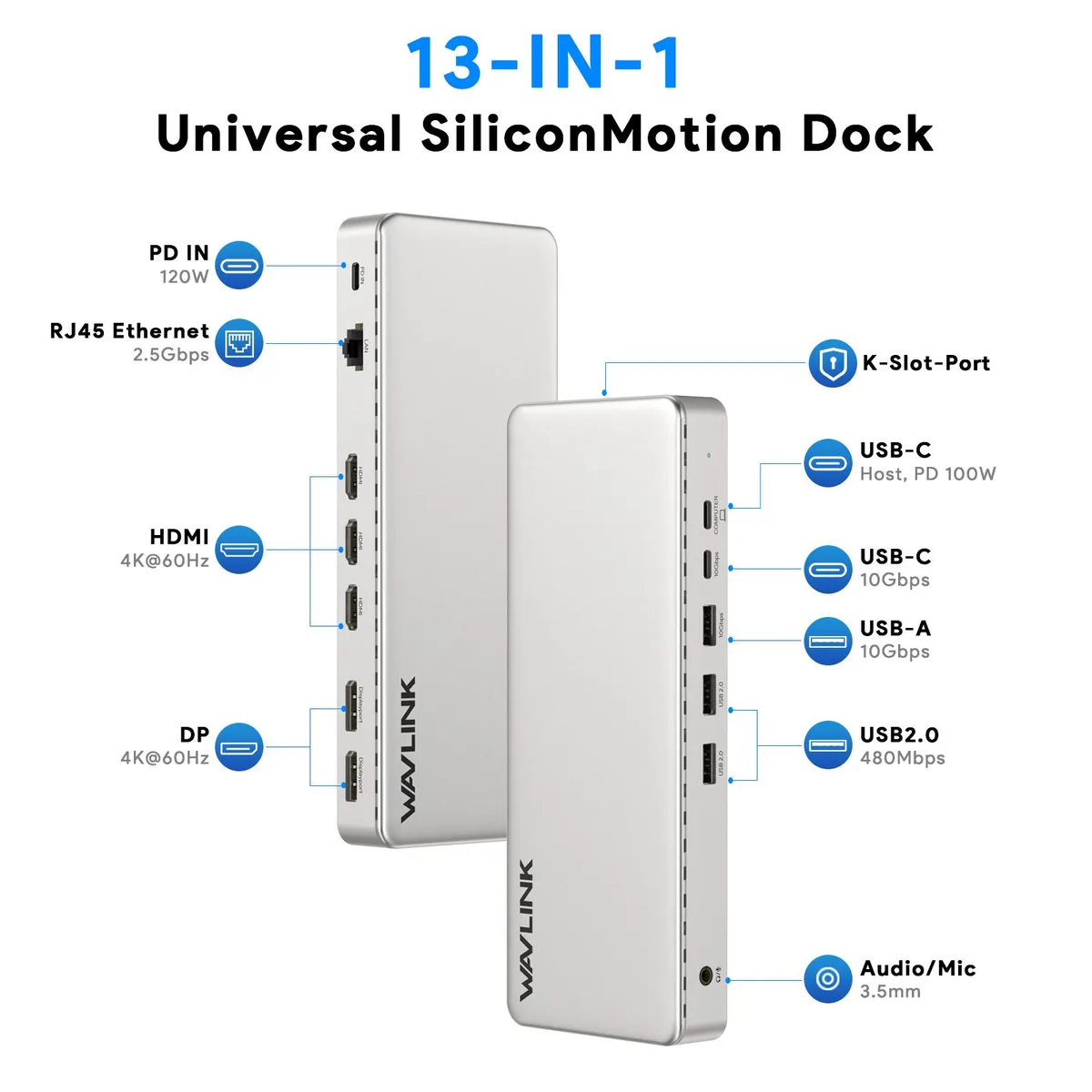

The silver enclosure integrates five video ports, two 10 Gbps USB ports, a 2.5 Gbps Ethernet jack and upstream charging. A 1 m USB-C cable with a USB-A adapter is included for broad laptop compatibility. The PD input accepts up to 120 W while the upstream port delivers 100 W to the host when its USB-C port supports charging.
Replaces single-output adapters and cable clutter
This dock consolidates power, video, data and networking into one device, removing the need for separate chargers and multiple dongles. The jump is worth it when a workflow demands three 4K@60 Hz screens and high-speed peripherals from a single connection. It does not suit buyers who need plug-and-play operation without driver setup or whose laptops lack video-capable USB-C ports.
Highlights
- Drives three 4K displays at 60 Hz for expansive multi-monitor workflows
- Delivers up to 100 W laptop charging through the upstream USB-C port
- Two 10 Gbps USB ports move large files in seconds
- 5 Gbps Ethernet provides fast, stable wired network access
- Works with Windows 11, Windows 10, Mac OS 13 and later, Android 8.0 and later, Ubuntu and ChromeOS
Specifications
| Brand | Wavlink |
|---|---|
| Model | WL-UG77PD1 Pro |
| Color | Silver |
| Compatibility | Compatible Systems - Windows 11/10 - Mac OS 13 or later - Android 8.0 or later - Ubuntu -ChromeOS |
| Features | -The upstream USB-C port provides the host laptop with 100W charging. -Two USB ports support 10Gbps data transmission. -RJ45 Ethernet port provides 10/100/1000M/2.5G high-speed network. -Five video ports(3*HDMI+2*DP) support up to 4K@60Hz resolution. -Supports extend and mirror video modes through display interfaces. -PD IN 3.0 passthrough provides 120W power supply for the docking station. |
Questions about this item
What Thunderbolt versions does the upstream port support and what video output limit does that set?
The upstream port works with Thunderbolt 5, 4 and 3, enabling up to three 4K displays at 60 Hz when the host also supports that bandwidth.
What host connector and cable are required to attach the dock?
A USB-C port on the laptop is required; the box includes a 1 m USB-C cable with a USB-A adapter for systems that only have USB-A.
How is the dock set up and which step is commonly missed?
Install the supplied driver before connecting the dock — it is not plug-and-play — then attach the upstream cable and the included power adapter for 100 W laptop charging.
