Rectangular dark docking station with multiple video and data ports visible on front and rear faces

Wavlink

Wavlink WL-UG69PD8 Pro 5K Quad Display USB-C Docking Station

SKU CH-HZZ0-67YW6

Connects up to four monitors at 5K resolution while delivering 100W laptop charging, 2.5G Ethernet and multiple USB ports through a single USB-C link

  • CompatibilityCompatible Systems: Windows7/8/10(32/64-bit), Mac OS 10.8 or
  • Thunderbolt 3Working Standards: USB-C upstream: USB3.1 Gen2 (10G Data and
  • Ports SpecEquipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ out
  • Features1 x USB-C (PD 30W), 3 x USB 3.0(5Gb/s), 1 x USB 3.1(10Gb/s),
  • FunctionEquipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ out
  • Connect four monitors at 5K 5120x1440@60Hz via HDMI or DP++

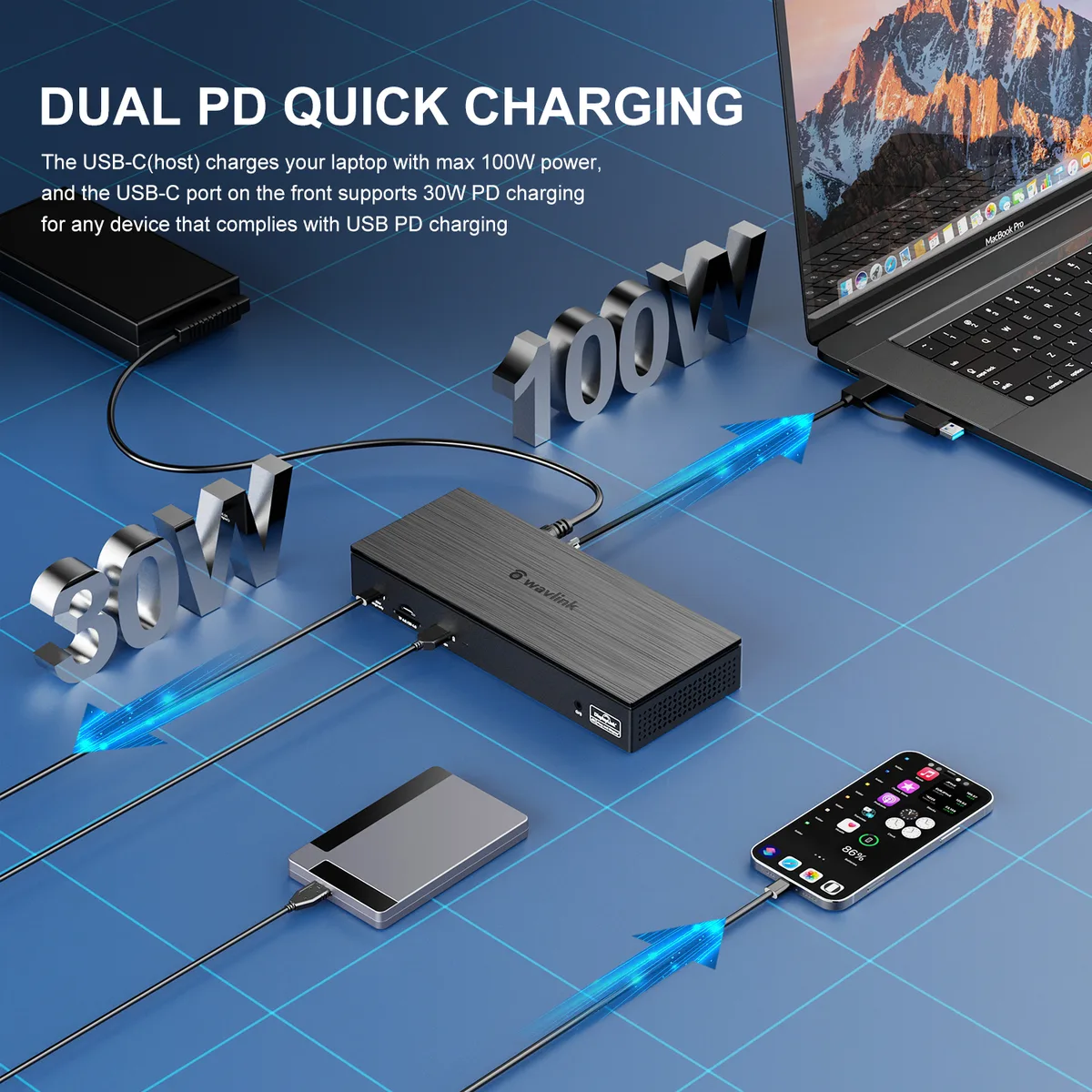

  • Charge laptop up to 100W and phone up to 30W simultaneously with 180W adapter
  • Wired 2.5Gbps Ethernet for stable network performance
  • Ten USB ports including 10Gbps and 5Gbps for fast peripheral access
  • Combo audio jack plus SD 4.0 card reader for media workflow

Quad 5K docking station

The Wavlink WL-UG69PD8 Pro adds four external monitors, wired networking, audio, card reading and multiple USB peripherals to a laptop through one USB-C cable. It is built for professionals who need a large multi-screen workspace without opening their computer. An included 180 W power supply delivers up to 100 W to the host and 30 W to a front USB-C port.

Display limits and port groups

Each of the four video streams can use either a DisplayPort or an HDMI connector, but not both at the same time. Dual-display configurations reach 5120 x 2880 at 60 Hz, while quad-display tops out at 3840 x 2160 at 60 Hz. The latest driver is required to achieve 5120 x 1440 at 60 Hz on a single stream.

Host requirements check

Verify that your device’s USB-C port supports video output and Power Delivery before ordering. Performance on Ubuntu, Chrome OS and Android may be limited compared with Windows or macOS. The front USB-C port supplies 30 W charging only and does not carry data.

Highlights

  • Connect four monitors at 5K 5120x1440@60Hz via HDMI or DP++
  • Charge laptop up to 100W and phone up to 30W simultaneously with 180W adapter
  • Wired 2.5Gbps Ethernet for stable network performance
  • Ten USB ports including 10Gbps and 5Gbps for fast peripheral access
  • Combo audio jack plus SD 4.0 card reader for media workflow

Specifications

BrandWavlink
ModelWL-UG69PD8 Pro

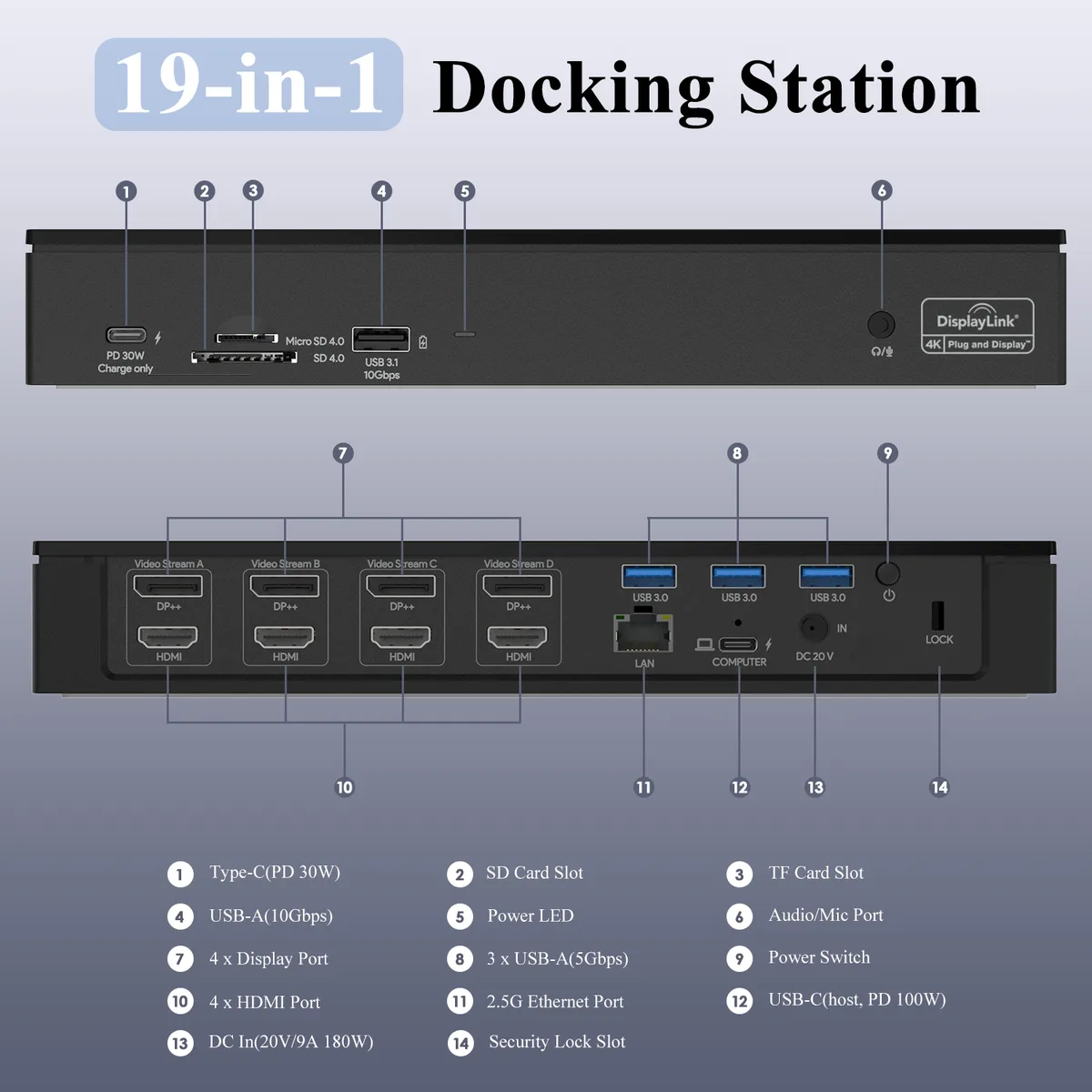

Part Number1 x USB-C(PD 30W) 1 x USB-C(host: PD 100W) 4 x DisplayPort 4 x HDMI 1 x USB-A 3.1(10Gbps) 3 x USB-A 3.0(5Gbps) 1 x 2.5G Ethernet Port 1 x DC In(20V/9A 180W) 1 x Security lock 1 x Audio/Mic Port 1 x SD/TF Card Slot
CompatibilityCompatible Systems: Windows7/8/10(32/64-bit), Mac OS 10.8 or later, Chrome OS, Android, Ubuntu, performance might be limited on Ubuntu, Chrome OS and Android.
Thunderbolt 3Working Standards: USB-C upstream: USB3.1 Gen2 (10G Data and PD3.0 Charging) DP/HDMI: 4K/60Hz USB3.1 Type-A : 10Gbps USB3.0 Type-A : 5Gbps RJ45: 2.5Gbps Ethernet 4-pole Phone Jack: TRRS / Stereo SD / TF: SD V4.0 USB-C downstream: PD3.0 30W
Ports SpecEquipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ outputs, 100W host PD charging, 2.5Gbps RJ45 Ethernet connection, SD/TF card reader, PD 30W USB-C port(charge only), three USB-A ports(5Gbps), USB-A port(10Gbps), 2-in-1 Audio&Mic.
Features1 x USB-C (PD 30W), 3 x USB 3.0(5Gb/s), 1 x USB 3.1(10Gb/s), 1 x Type-C (host; PD 100W), 4 x DisplayPort & 4 x HDMI, RJ45 2.5G Ethernet, 3.5mm “two in one” audio/mic port, SD/TF card slot, DC 20V/9A 180Watt Power Supply, Power button Security lock to protect docking safety Microsoft Windows and Mac OS X compatible The new generation 2.5G Ethernet port supports 2.5Gbps Integrated SD V4.0 Card Reader with SD/Micro SD slot supportsUHS-ll theoretical bus speed up to 312MB/s Single & Dual display 5K@60Hz: Supports resolutions up to 5120 x 2880@60Hz when connecting dual DP ports simultaneo
FunctionEquipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ outputs, 100W host PD charging, 2.5Gbps RJ45 Ethernet connection, SD/TF card reader, PD 30W USB-C port(charge only), three USB-A ports(5Gbps), USB-A port(10Gbps), 2-in-1 Audio&Mic. This dock turns your device into a small workstation, providing you with a sleek workspace.

Questions about this item

Should I use the four DisplayPort outputs or the four HDMI outputs for my four monitors?

Each video stream group lets you use either one DisplayPort or one HDMI port, not both at the same time, so pick the connector type that matches your monitors and use one port per screen.

What resolution can I actually run on four screens at once?

Quad display is supported up to 3840 x 2160 at 60 Hz on each monitor.

My laptop only has a standard USB-C port — will the 2.5 Gbps Ethernet and 10 Gbps USB-A port still work at full speed?

The dock’s upstream link is USB 3.1 Gen 2 at 10 Gbps, so the 2.5 Gbps Ethernet and the single 10 Gbps USB-A port can operate at their rated speeds provided your laptop’s USB-C port also supports 10 Gbps data.
