Compact black capture box with HDMI ports and blue LED

Wavlink

Wavlink WL-HG900U video capturing device 4K 60Hz in 30Hz capture

SKU CH-NB1W-T0A6P MPN WL-HG900U

Captures 4K at 30 Hz from HDMI 2.0 sources with passthrough, 3.5 mm audio I/O and driver-free UVC support on Windows, Mac, Linux and Android

  • LED IndicatorBlue
  • System Requirements-CPU: Intel Core i5 or higher -RAM: 8G or higher -Windows 7/
  • Feature-Support Max 4K@60Hz Video Input with 1 x HDMI 2.0 IN Port.
  • Mount SizeUnit Size: 4.3 x 2.9 x 0.8in (L x W x H)
  • Weight120g/4.2oz
  • Package ContentIn the Box 1x 4K@60Hz HDMI Grabber G1 PRO 1x HDMI(F) to HDMI
  • Capture 4K video at 30Hz for detailed recordings
  • Pass through 4K at 60Hz to your display while streaming
  • Plug and play on Windows, Mac, Linux and Android without drivers
  • Record game audio and mic together via 3.5mm ports
  • Compact 120g design fits any streaming setup

What it does

The Wavlink WL-HG900U is a video capturing device that accepts a 4K 60Hz HDMI signal and records or streams it at 4K 30Hz via USB-C. It is built for streamers and content creators who need a simple way to bring console gameplay, camera feeds or mobile output into OBS and similar software.

Who it suits

Creators on Windows 7 or later, macOS 10.12 or later, Android 9 or later and Linux who want plug-and-play capture with passthrough for a local monitor. It is not for users who must record at 4K 60Hz, need multi-channel audio mixing beyond stereo line and mic inputs, or require an internal PCIe card for lower system latency.

What the bundle changes

The box includes a female-to-female HDMI cable, a USB-A to USB-C cable and a USB-A to USB-C converter so you can connect to either port style without buying extra adapters. A quick-start guide gets the device recognised in OBS, vMix, Zoom and other UVC applications immediately.

Highlights

  • Capture 4K video at 30Hz for detailed recordings
  • Pass through 4K at 60Hz to your display while streaming
  • Plug and play on Windows, Mac, Linux and Android without drivers
  • Record game audio and mic together via 3.5mm ports
  • Compact 120g design fits any streaming setup

Specifications

BrandWavlink
ModelWL-HG900U

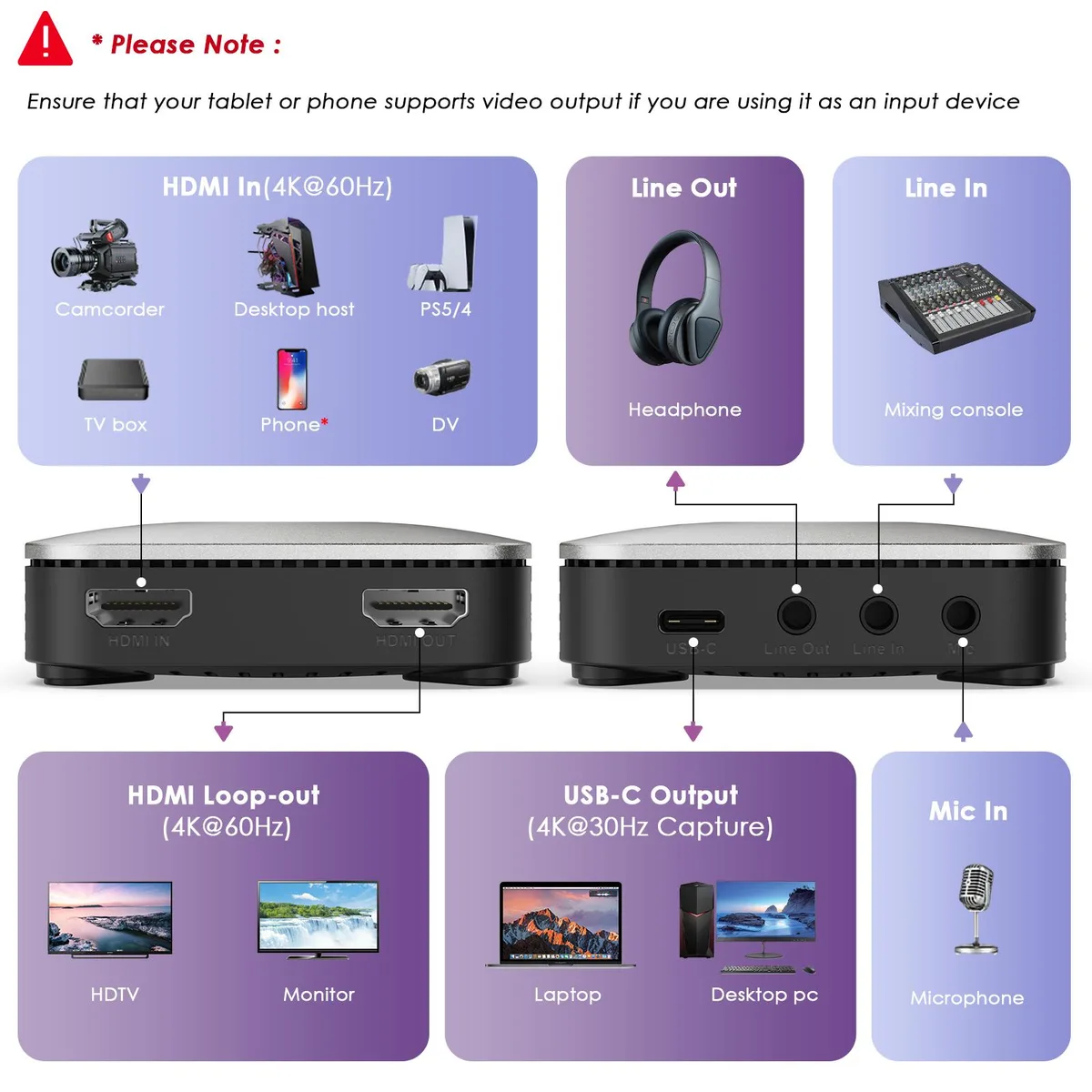

Part Number1 x HDMI IN(4K@60Hz);1 x HDMI OUT(4K@60Hz);1 x Type-C(4K@30Hz);1 x 3.5mm Line in;1 x 3.5mm Line out;1 x 3.5mm Mic in
LED IndicatorBlue
System Requirements-CPU: Intel Core i5 or higher
-RAM: 8G or higher
-Windows 7/8/10/11 or later
-Mac OS 10.12 or later
-Android 9 or later
-Linux
Feature-Support Max 4K@60Hz Video Input with 1 x HDMI 2.0 IN Port.
-Support Video Passthrough with 1 x HDMI 2.0 OUT Port.
-Support Max 4K@30Hz Capture.
-Support third-party softwares like OBS to capture and stream your videos from various input sources like game consoles, cameras and so on.
-Support USB 3.0 Type-C port for UVC/UAC and compatible with USB 2.0 Interface.
-Support UVC Output Format : YUY2/NV12.
-Support 3.5 mm Line In and 3.5mm MIC for External Audio Input.
-Support 3.5 mm Line Out for External Audio Output.
-Compatible with Multiple Operating Systems such as Mac, Windows, Lin
Mount SizeUnit Size: 4.3 x 2.9 x 0.8in (L x W x H)
Weight120g/4.2oz
Package ContentIn the Box
1x 4K@60Hz HDMI Grabber G1 PRO
1x HDMI(F) to HDMI(F) Cable
1x USB-A to USB-C Cable
1x USB-A to USB-C Converter
1x Quick Start Guide
Option4K

Questions about this item

What computer specifications are required to use the WL-HG900U capture device?

The system needs an Intel Core i5 or higher CPU, 8G RAM or higher, and Windows 7/8/10/11, Mac OS 10.12 or later, Android 9 or later, or Linux.

Can I connect a 4K 60Hz monitor to the HDMI output while capturing at 4K 30Hz?

Yes, the HDMI 2.0 OUT port supports video passthrough up to 4K@60Hz while the device captures at a maximum of 4K@30Hz via USB Type-C.

How do I confirm the device is capturing video after connecting it to my PC?

Open OBS or another supported application, add a video capture device source, and verify the preview shows your input signal at the expected resolution and frame rate.
