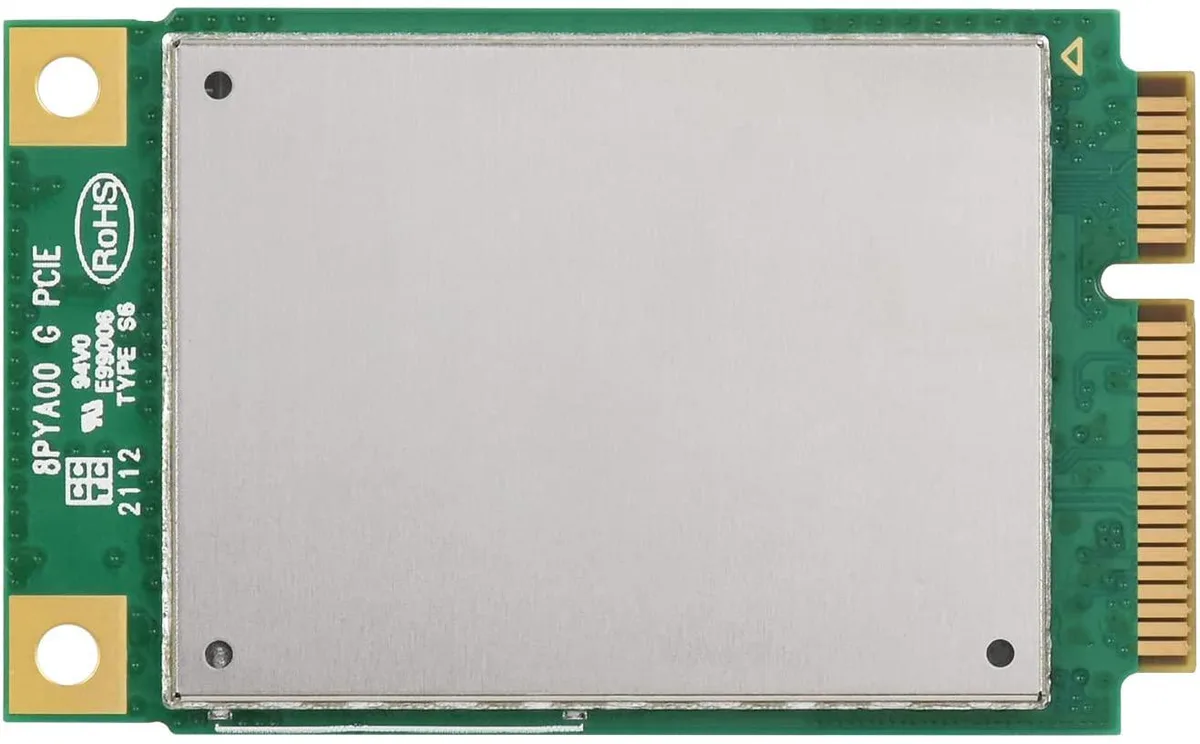

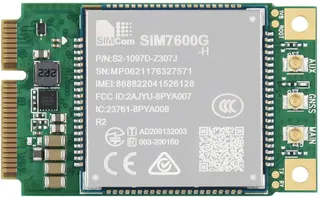

Green rectangular Mini-PCIe module with gold edge connector and black components

WaveShare

WaveShare SIM7600G-H-PCIE 4G LTE Cat-4 Mini-PCIe Module

SKU CH-CJEY-SWDFA

A Mini-PCIe module delivering 4G LTE Cat-4 connectivity with 150 Mbps downlink and 50 Mbps uplink plus multi-constellation GNSS

  • CPU TypeOther
  • Global 4G LTE Cat-4 connectivity up to 150 Mbps downlink
  • Mini-PCIe form factor fits a wide range of embedded boards
  • Multi-constellation GNSS receiver delivers accurate positioning data
  • Supports LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS and EDGE networks
  • AT-command compatible with SIM7500 and SIM7600 series modules

Global LTE Cat-4 connectivity

The WaveShare SIM7600G-H-PCIE adds 4G LTE Cat-4 to any system with a free Mini-PCIe slot. It delivers up to 150 Mbps downlink and 50 Mbps uplink across LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS and EDGE networks worldwide. A multi-constellation GNSS receiver provides positioning data for tracking or timing applications. Drivers are available for Windows, Linux and Android, and AT commands match the SIM7500 and SIM7600 series for easier integration.

Mini-PCIe upgrade path

The module replaces older 3G or 2G-only Mini-PCIe cards when a project needs faster cellular throughput and broader band support. The jump is worth it when field devices must move from legacy GSM or UMTS links to LTE Cat-4 speeds without redesigning the carrier board. Existing SIM7500 or SIM7600 firmware can be reused because the AT command set is compatible, reducing software migration effort.

IoT and industrial integrators

This suits engineers building telematics units, surveillance gear, CPE, industrial routers or remote diagnostics boxes that require global LTE and GNSS in a Mini-PCIe form factor. Buyers who need 5G NR, higher LTE categories, M.2 Key B or soldered LGA footprints should look at something else.

Highlights

  • Global 4G LTE Cat-4 connectivity up to 150 Mbps downlink
  • Mini-PCIe form factor fits a wide range of embedded boards
  • Multi-constellation GNSS receiver delivers accurate positioning data
  • Supports LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS and EDGE networks
  • AT-command compatible with SIM7500 and SIM7600 series modules

Specifications

CPU TypeOther

Questions about this item

What slot does the SIM7600G-H-PCIE module plug into?

It uses a Mini-PCIe connector that fits a standard Mini-PCIe slot on the host board.

Which driver should I load first when installing the module on Linux?

Load the USB serial driver for the SIM7600 series; the module then appears as a USB modem and AT commands become available.

When should I plan to replace the SIM7600G-H-PCIE module?

Replace it if the radio fails to register on LTE Cat-4 networks or if GNSS positioning stops acquiring satellites.
