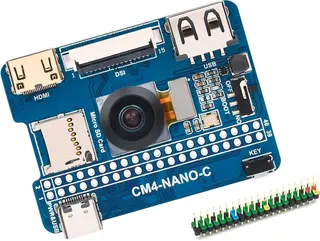

Compact green PCB with 40-pin header, mini HDMI, USB-A, camera module and TF card slot

WaveShare

WaveShare Nano Base Board (C) CM4 8MP 160°FOV development board

SKU CH-FEAC-N1QQM

Development board for Raspberry Pi Compute Module 4 with 8MP 160°FOV camera, mini HDMI 4K 30fps, USB 2.0, MIPI DSI, 40-pin GPIO and TF card slot in 55×40mm form factor

  • CPU TypeOther
  • Compact carrier matches CM4 footprint for space-constrained designs
  • 15-pin 1.0mm MIPI DSI connector drives display panels directly
  • Onboard IMX219 8MP camera with 160°FOV enables wide-angle vision
  • USB 2.0 Type-A and mini HDMI 4K 30fps for peripheral and video output
  • TF card slot supports CM4 Lite variants without eMMC storage

Compact CM4 Carrier With 8MP 160° Camera

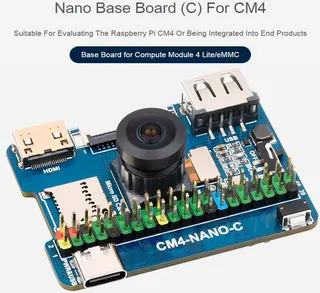

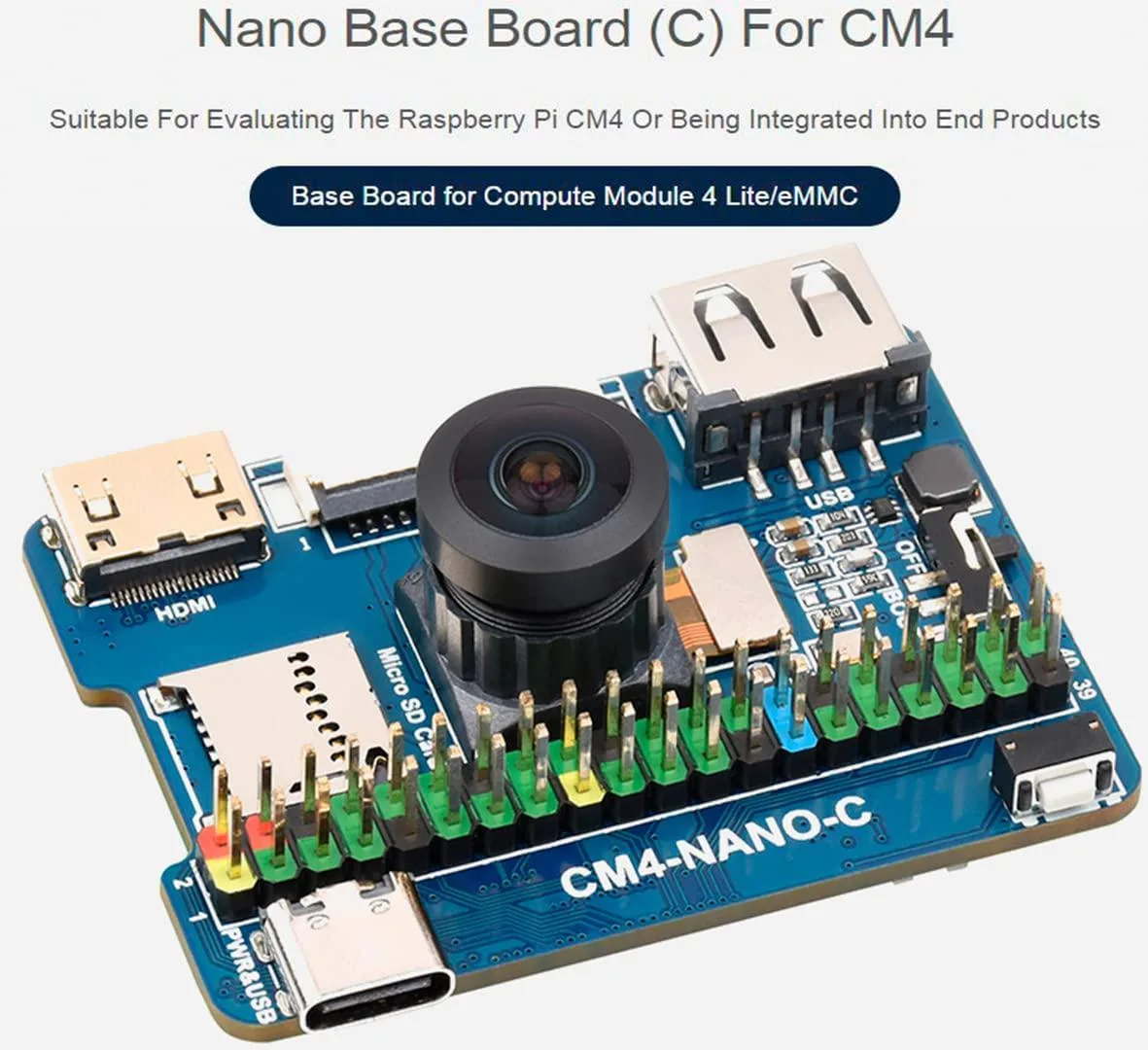

The WaveShare Nano Base Board (C) is a carrier board sized at 55x40 mm that matches the Raspberry Pi Compute Module 4 footprint. It targets developers and integrators who need a ready-to-use platform for evaluating CM4 Lite or eMMC modules in edge-vision prototypes or finished IoT devices.

Interfaces For Direct Integration

A standard CM4 socket accepts the module while onboard peripherals include one USB 2.0 Type-A port, a 40-pin GPIO header, a 15-pin 1.0 mm MIPI DSI connector and a Mini HDMI output supporting 4K at 30 fps. A TF card socket provides boot storage for Lite variants and the board runs from a 5 V supply.

Replaces Custom Breakout Boards

This board removes the need to design a custom PCB when a wide-angle camera and standard display links are required. It is not suited for projects that demand multiple camera inputs, higher-speed USB or additional high-density connectors beyond the single GPIO header and DSI port provided.

Highlights

  • Compact carrier matches CM4 footprint for space-constrained designs
  • 15-pin 1.0mm MIPI DSI connector drives display panels directly
  • Onboard IMX219 8MP camera with 160°FOV enables wide-angle vision
  • USB 2.0 Type-A and mini HDMI 4K 30fps for peripheral and video output
  • TF card slot supports CM4 Lite variants without eMMC storage

Specifications

CPU TypeOther

Questions about this item

How does the 5 V power input limit the board under sustained full load?

The board draws power through the 5 V input; sustained full load on the Compute Module 4 plus the 8 MP camera and any attached peripherals will be constrained by the current capacity of that single 5 V supply.

What heat or noise should I expect when the board runs continuously with the IMX219-D160 camera active?

The board has no fan or heatsink fitted; the Compute Module 4 and camera module will warm up during continuous operation, so external cooling is recommended for all-day use.

Which Compute Module 4 variant must I already own for the TF card socket to be useful?

The TF card socket is only used with a Compute Module 4 Lite that lacks on-board eMMC; an eMMC-equipped CM4 does not need the socket.
