Small green circuit board with wide-angle lens and 15-pin ribbon cable, 25 by 24 mm

WaveShare

WaveShare IMX219-160 8MP 160° Camera Module

SKU CH-1PFY-4ZTE1

An 8-megapixel IMX219 sensor with a 160-degree wide-angle lens for Jetson Nano and Raspberry Pi Compute Module 3/3+ AI vision projects

  • 8MP IMX219 sensor captures 3280 x 2464 resolution images
  • 160° diagonal field of view with
  • F2.35 aperture and 3.15mm focal length suited to low-light scenes
  • 25mm x 24mm board with four screw holes and 3.3V power output
  • Includes 16cm 15-pin FFC cable for Jetson Nano and CM3/3+ connection

Wide-Angle Vision Module

The WaveShare IMX219-160 is an 8 megapixel camera accessory built around the IMX219 sensor. It delivers a 3280 x 2464 resolution through a 160 degree diagonal field of view. The module targets developers working on Jetson Nano or Raspberry Pi Compute Module 3/3+ platforms who need expansive visual coverage for AI inference tasks such as face recognition or road mark detection.

Compact Integration Footprint

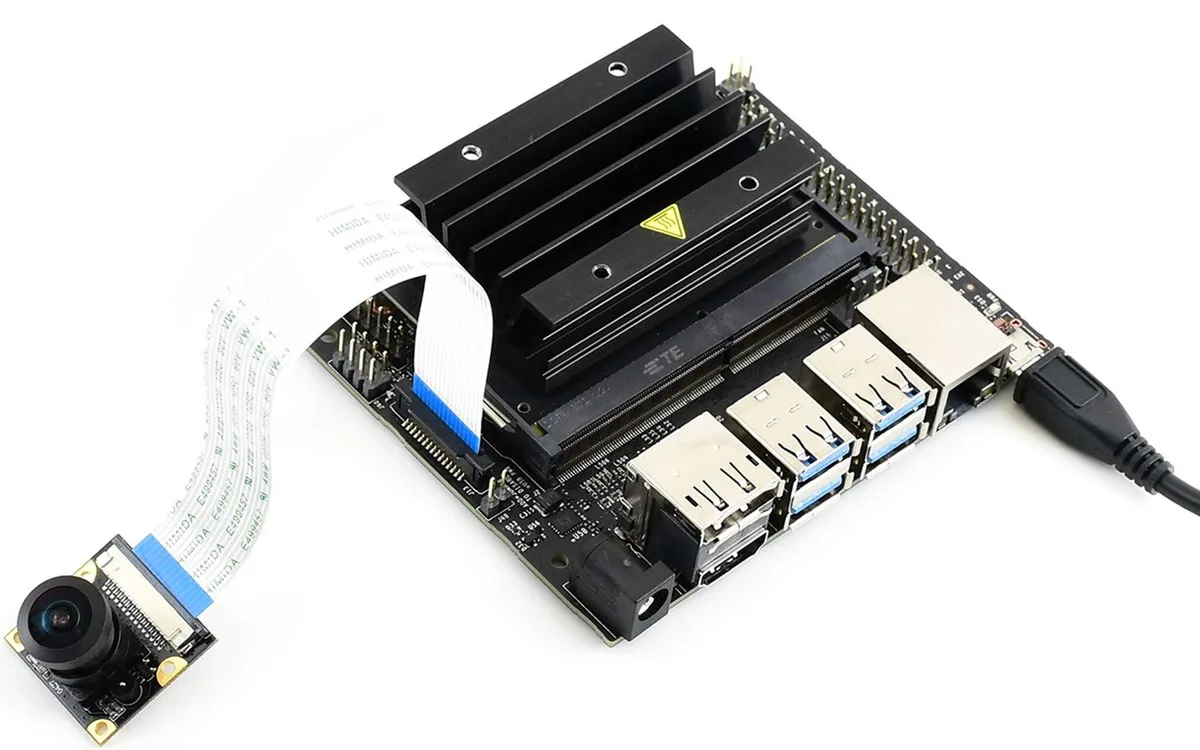

The board measures 25mm x 24mm and includes four screw holes for secure mounting inside tight enclosures. A 15-pin FFC with opposite-sides contact ships in the box at 16cm length, while a 60cm variant is available separately for flexible routing. The unit provides a 3.3V power output and connects directly to the CSI interface on supported compute modules without additional adapters.

Upgrade From Narrow FOV Sensors

This module replaces standard camera boards that offer a narrower angle of view, enabling single-camera coverage where multiple units were previously required. The jump is worth it when a project demands 160 degree diagonal visibility with distortion kept below 14.3 percent. Builders needing a narrower perspective or a different sensor format should look elsewhere.

Highlights

  • 8MP IMX219 sensor captures 3280 x 2464 resolution images
  • 160° diagonal field of view with
  • F2.35 aperture and 3.15mm focal length suited to low-light scenes
  • 25mm x 24mm board with four screw holes and 3.3V power output
  • Includes 16cm 15-pin FFC cable for Jetson Nano and CM3/3+ connection

Specifications

No published specifications for this item yet.

Questions about this item

What is the widest field of view the IMX219-160 sensor can capture?

The lens provides a 160 degree diagonal angle of view with less than 14.3 percent distortion.

How much power does the module draw from the host board during continuous operation?

The board supplies 3.3 V to the sensor through the 15-pin FFC; exact current draw depends on the Jetson Nano or Compute Module regulator.

Which connector and cable length are required to attach this camera to a Jetson Nano or Raspberry Pi Compute Module 3/3+?

A 15-pin FFC with opposite-side contacts is included at 16 cm; a 60 cm Raspberry Pi camera cable can be used if a longer reach is needed.
