WaveShare Galvanic Isolated Rail-Mount TTL to RS485 Converter Adapter 600W 1.2km Factory Integration

TTL to RS485 Converter for Industrial Use

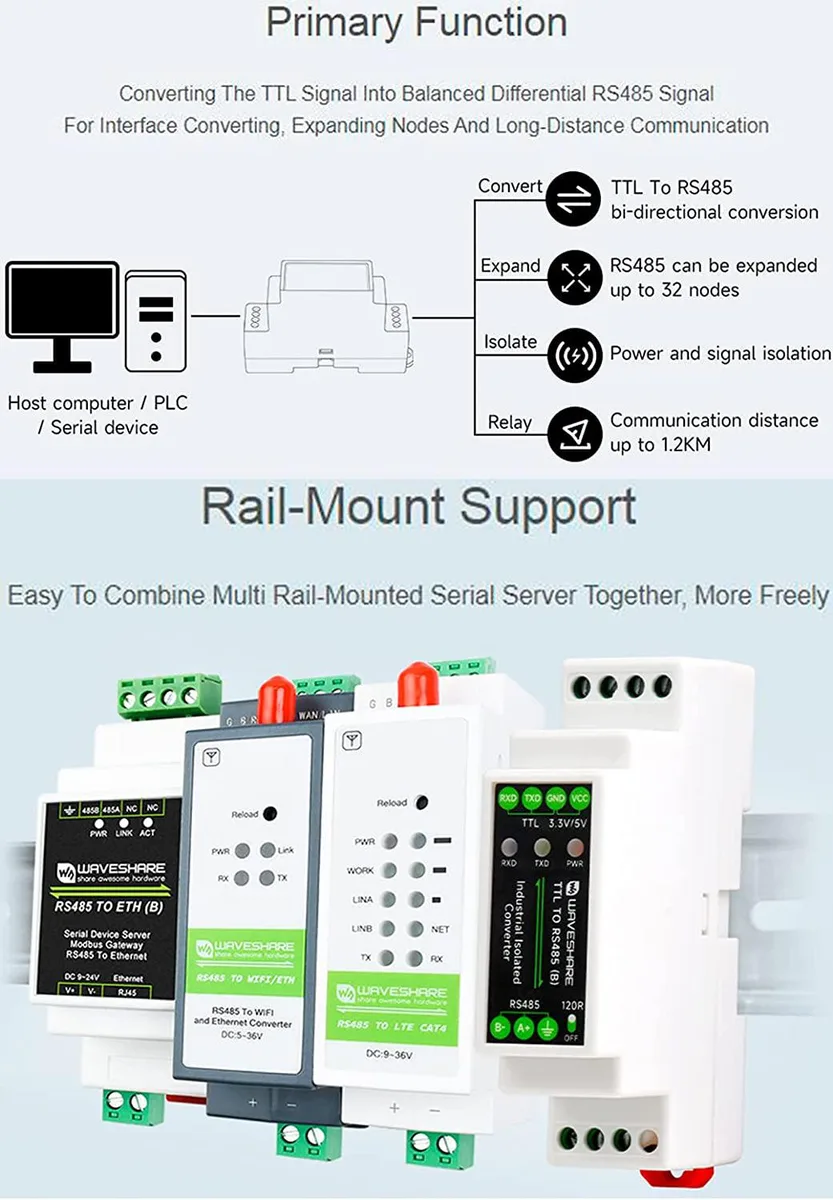

This galvanically isolated adapter converts TTL signals into balanced differential RS485 signals for long-distance communication. It supports transmission distances up to 1.2 km, making it suitable for factory integration and industrial automation. The rail-mount design allows multiple units to be combined easily on standard DIN rails. Onboard power and signal isolation provides a stable isolated voltage for reliable operation in noisy environments.

Suited for Point-to-Multipoint Networks.

Engineers building cascaded communication networks between hosts, MCUs, or peripherals will benefit from the multi-node expansion capability. The 600 W lightningproof and anti-surge protection suits installations exposed to transient voltage spikes. Buyers who need a simple short-range TTL link without isolation or surge suppression should look at a basic level shifter instead. This unit is designed for harsh industrial conditions, not benign desktop prototyping.

Handles 1.2 km Differential Links

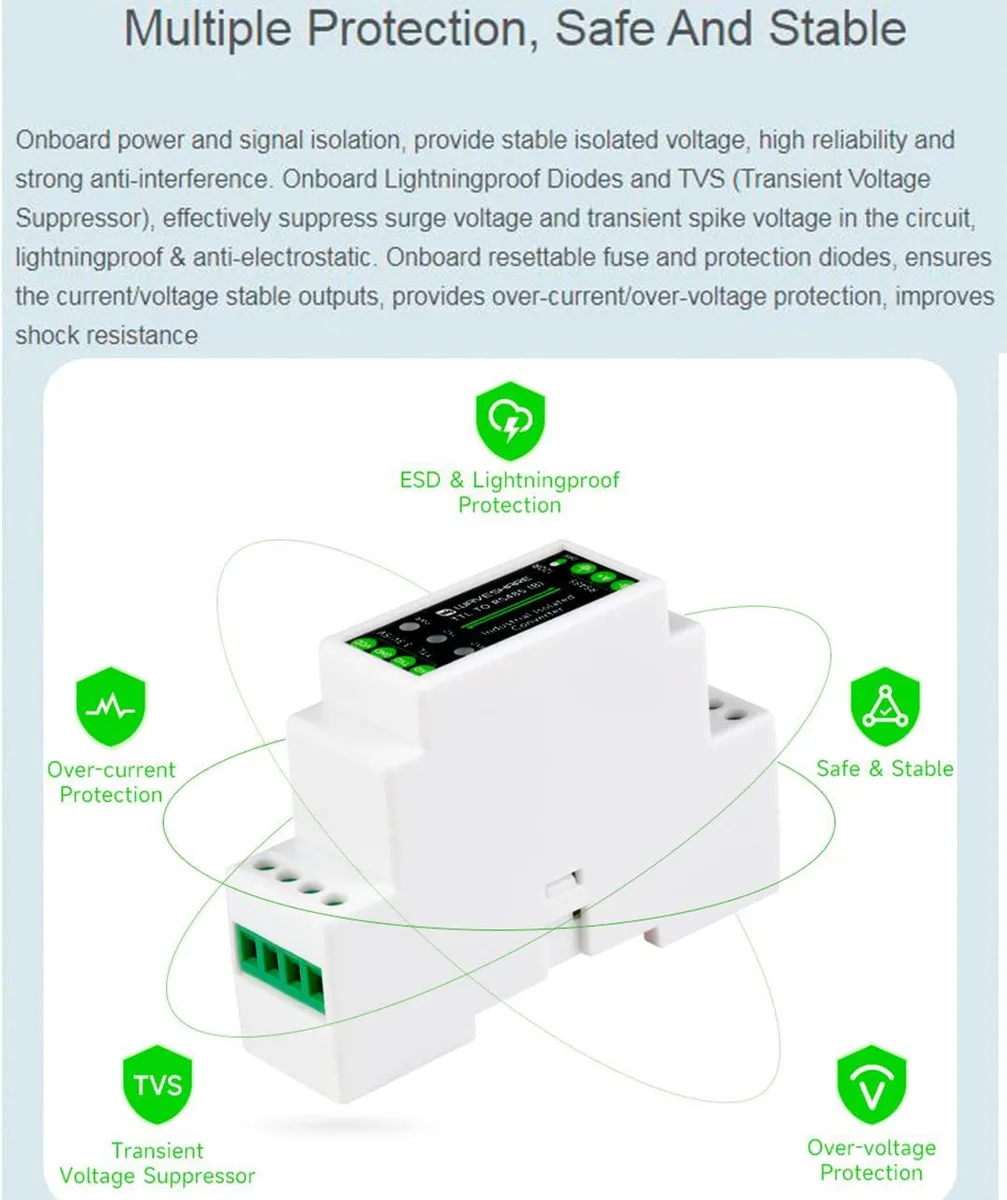

The RS485 differential signalling comfortably handles point-to-point and point-to-multipoint topologies over the full 1.2 km range. Onboard TVS diodes and a resettable fuse absorb surge events and over-current faults without permanent damage. Headroom decreases when cable quality degrades or when node counts exceed the electrical loading limits of the RS485 standard. The 600 W rating defines the surge energy the protection circuit can withstand, not continuous power delivery.
