WaveShare AVR ISP programmer, compact USB 2.0 dongle, matte black finish

WaveShare

WaveShare AVR ISP In-System Programmer AT AVRISP mkII Compatible USB 2.0

SKU CH-MCA7-TVP4D

An in-system programmer compatible with AT AVRISP mkII, supporting all AVR devices with ISP or PDI interfaces plus certain 51 devices, working with AVR Studio 4 through 7 and USB 2.0

  • CPU TypeOther
  • Programs all AVR devices with ISP or PDI interface
  • Compatible with AT AVRISP mkII firmware for reliable operation
  • Works with AVR Studio 4 through 7 via updatable firmware
  • Adjustable ISP speed up to 8M frequency for flexible programming
  • USB 2.0 bus-powered — no external supply needed

AVR ISP Programmer for AVR Studio Users

This WaveShare programmer is compatible with the AT AVRISP mkII from ATMEL and targets engineers and hobbyists working with AVR microcontrollers. It supports all AVR devices with ISP or PDI interfaces, including XMEGA, and certain 51 devices. The tool works with AVR Studio versions 4 through 7.

Check AVR Studio Version and Target Interface

Verify which AVR Studio version you run because the unit ships with firmware for version 5 and may need an update for other releases. Confirm your target board uses an ISP or PDI interface, as other programming interfaces are not supported. Ensure you have a free USB 2.0 port for both communication and power.

USB-Powered with Adjustable Speed and Three Cable

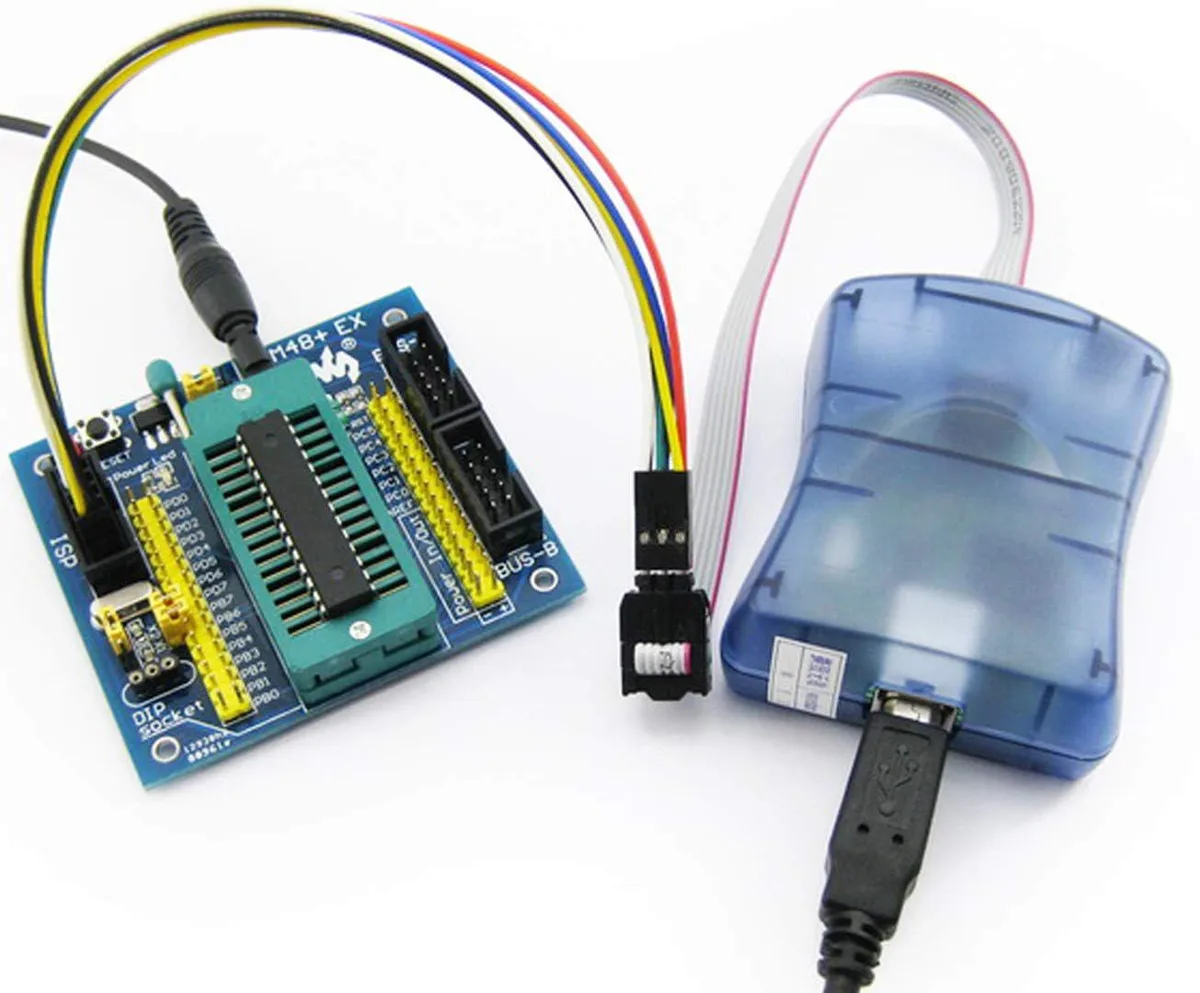

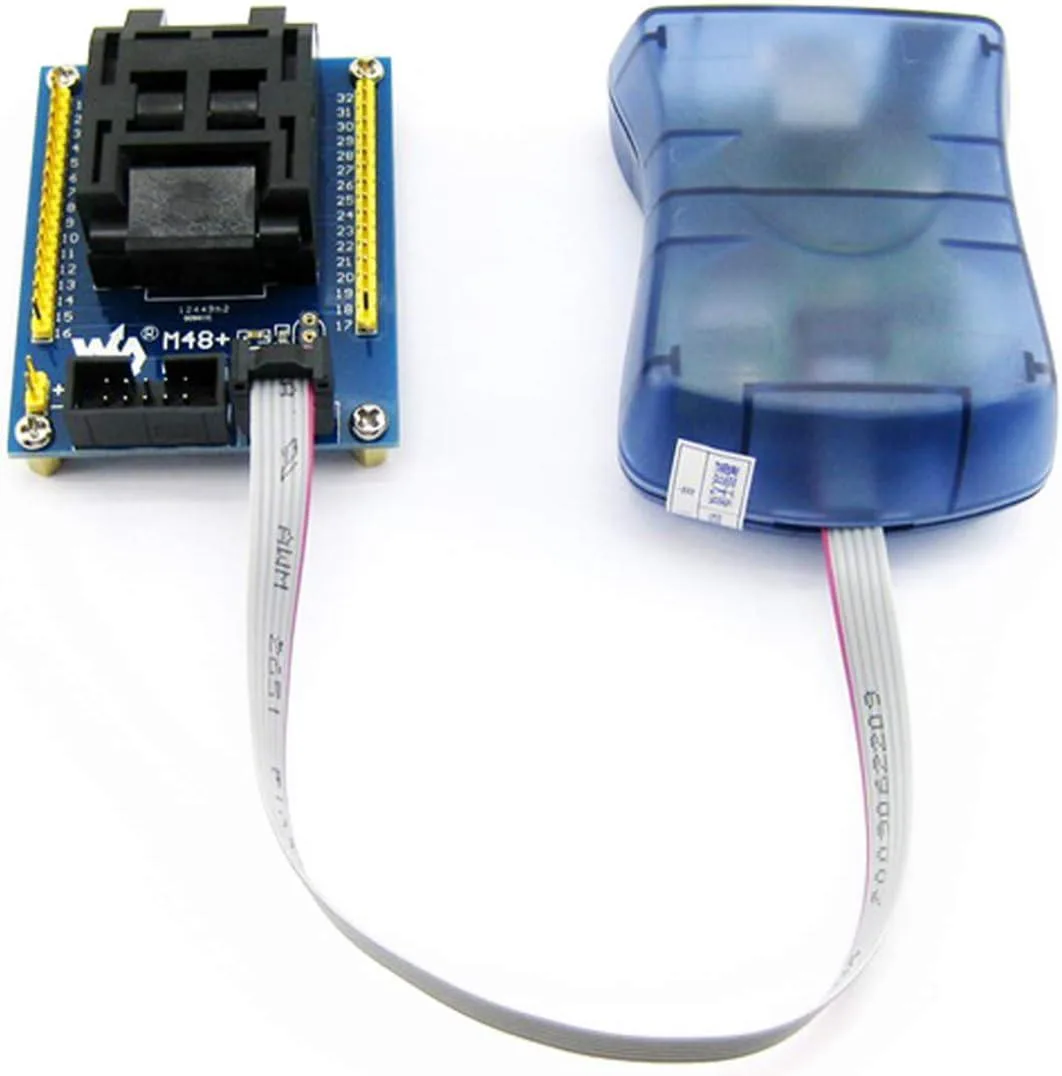

The programmer draws power from the USB bus, removing the need for an external supply. Programming speed is adjustable up to an 8M frequency over a USB 2.0 full-speed link at 12 Mbps. Three optional cables are provided for connecting to different target board headers, and the firmware can be upgraded to support future devices.

Highlights

  • Programs all AVR devices with ISP or PDI interface
  • Compatible with AT AVRISP mkII firmware for reliable operation
  • Works with AVR Studio 4 through 7 via updatable firmware
  • Adjustable ISP speed up to 8M frequency for flexible programming
  • USB 2.0 bus-powered — no external supply needed

Specifications

CPU TypeOther

Questions about this item

Does the WaveShare AVR ISP programmer ship with cables, or must I buy them separately?

The unit is supplied with three optional cables for the target board and draws power from the USB bus, so no external power supply is needed.

Which firmware version should I select for AVR Studio 7?

The programmer ships with firmware for AVR Studio 5 and can be updated to work with AVR Studio 4, 5, 6 or 7.

What does the 12 Mbps USB 2.0 full-speed rating mean for programming time?

The USB 2.0 full-speed link runs at 12 Mbps, while the ISP clock is adjustable up to 8 MHz, so actual programming speed depends on the target device and chosen ISP frequency.
