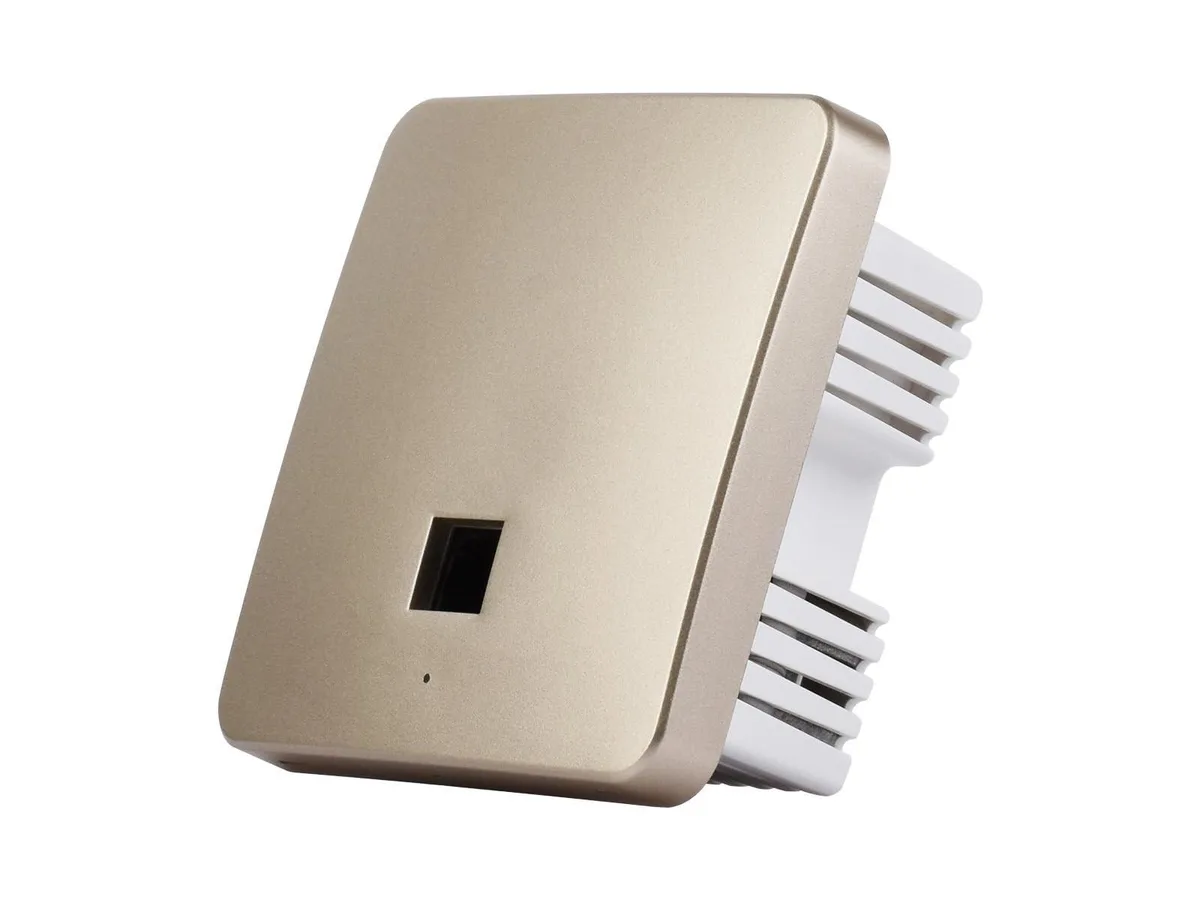

Square light gold wall-mounted access point, 86 by 86 by 42 mm

WaveShare

WaveShare AP-AX3000G-POE 3000 Mbps PoE Access Point

SKU CH-Y02P-BVQCE

Wall-mounted PoE access point delivering 3000 Mbps total bandwidth with dual-mode Fit and Fat AP flexibility

  • 3000 Mbps total bandwidth with 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
  • Fit and Fat AP modes for flexible small or large deployments
  • PoE on 10/100/1000 Base-T WAN port removes separate power cables
  • 86×86×42 mm light-gold housing weighs 190 g for discreet wall mounting
  • Operates 0 °C to 40 °C at 10 %–90 % RH for reliable indoor use

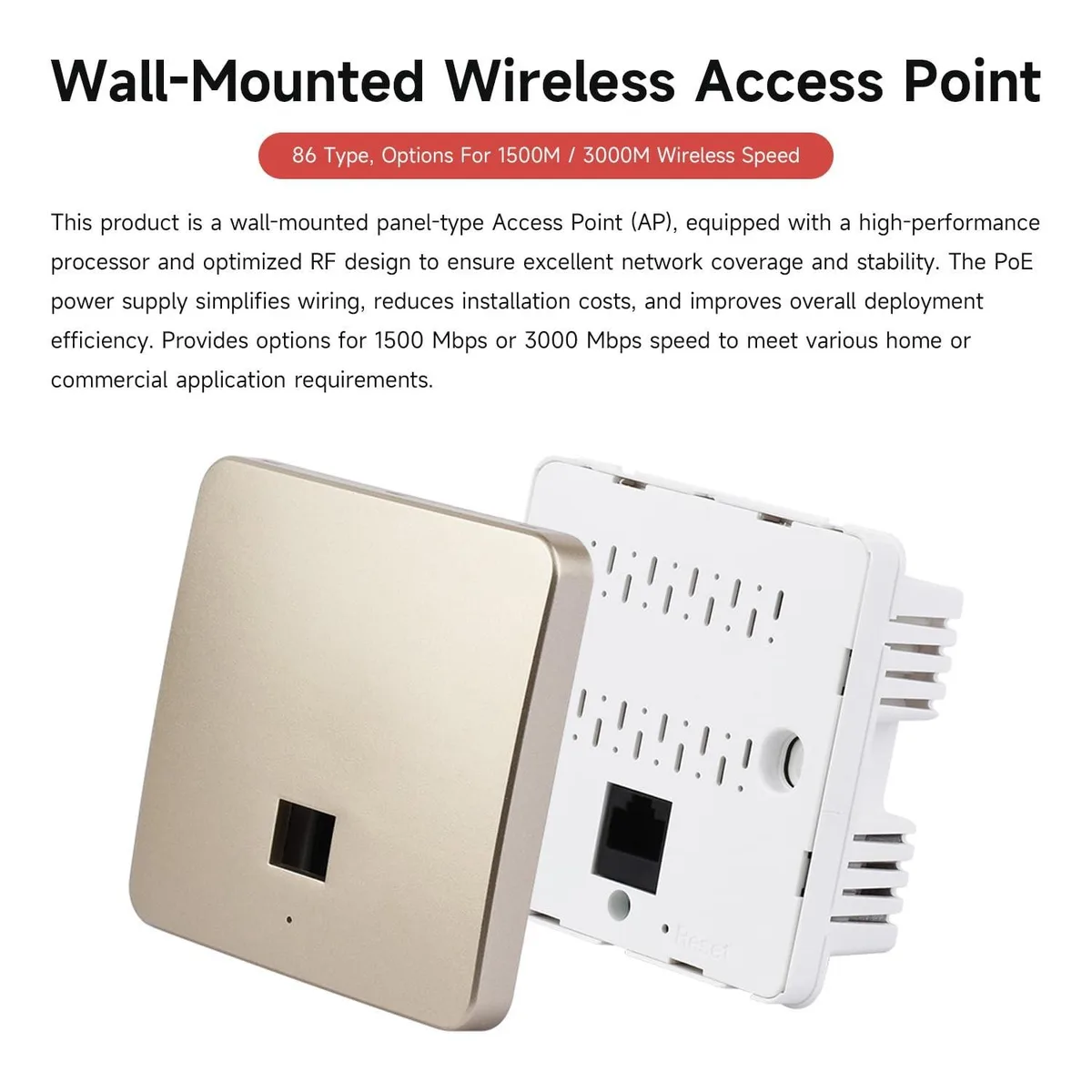

Indoor wall-mounted access point

The WaveShare AP-AX3000G-POE is a dual-band wireless access point designed for indoor ceiling or wall installation. It targets installers and network managers who need a single PoE-powered unit that fits a standard 86 mm square mounting box. The light gold finish and 42 mm depth keep the profile low in offices, retail spaces or hospitality corridors. It operates from 0C to 40C in humidity up to 90 percent non-condensing.

PoE-powered gigabit uplink

Power and data arrive through one 10/100/1000 Base-T Ethernet WAN port that accepts PoE, so no separate mains adapter is required. The uplink caps wired throughput at 1000 Mbps, which becomes the practical ceiling for aggregate wireless traffic leaving the device. Fit and Fat AP modes let the unit operate either under central controller management or as a standalone router, but the single gigabit port remains the hard bottleneck for backhaul capacity.

AX3000 dual-band radio

The radio delivers a combined 3000 Mbps link rate split between 2.4 GHz at 574 Mbps and 5 GHz at 2402 Mbps. Client devices must support the same PHY rates to reach those figures; real-world throughput will be lower due to overhead, interference and the gigabit uplink limit. Buyers who need multi-gigabit backhaul or additional Ethernet ports for wired clients should look elsewhere.

Highlights

  • 3000 Mbps total bandwidth with 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
  • Fit and Fat AP modes for flexible small or large deployments
  • PoE on 10/100/1000 Base-T WAN port removes separate power cables
  • 86×86×42 mm light-gold housing weighs 190 g for discreet wall mounting
  • Operates 0 °C to 40 °C at 10 %–90 % RH for reliable indoor use

Specifications

No published specifications for this item yet.

Questions about this item

Which WaveShare AP-AX3000G-POE version should I choose for the full 3000 Mbps combined bandwidth?

This single model delivers the full 3000 Mbps total bandwidth, split as 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, so no other version is needed for the headline speed.

What does the 3000 Mbps figure mean when the access point is installed in a real network?

The 3000 Mbps is the aggregate theoretical maximum across both radios; actual client throughput will be lower and depends on the 10/100/1000 Base-T Ethernet WAN port, channel width, interference and the capabilities of each connected device.

How does the 10/100/1000 Base-T Ethernet port and PoE support affect installation and speed limits?

The Gigabit Ethernet WAN port caps wired backhaul at 1000 Mbps, while PoE allows power and data over one cable, simplifying wall mounting in the 86 mm by 86 mm by 42 mm form factor without a separate power supply.
