Compact 7-inch IPS touchscreen with toughened glass panel

WaveShare

WaveShare 7inch DSI LCD 1024×600 Touch Screen portable monitor

SKU CH-YF1D-Q080D

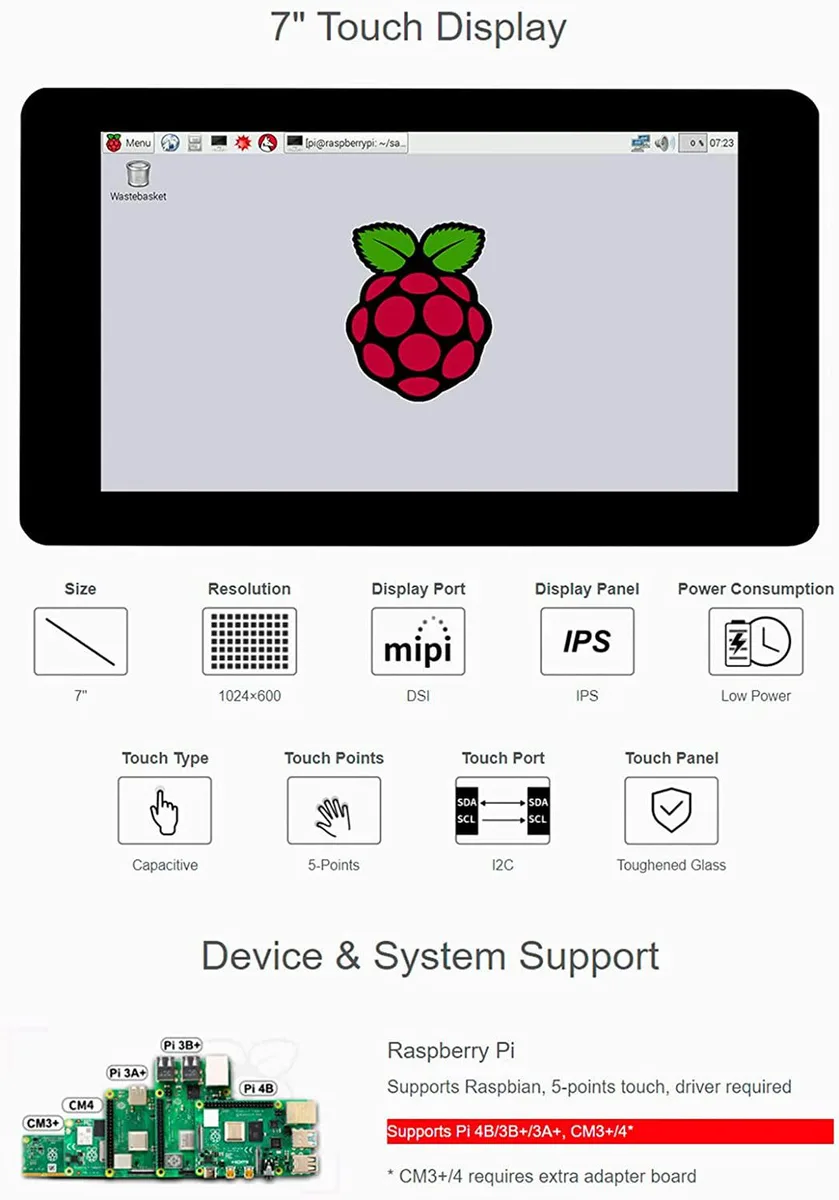

7-inch IPS touch display connects via DSI to Raspberry Pi boards with 1024×600 resolution and 60 Hz refresh

  • CPU TypeOther
  • 1024×600 IPS panel gives wide viewing angles
  • Capacitive touch supports five simultaneous touch points
  • DSI interface connects directly to Raspberry Pi boards
  • 60 Hz refresh keeps motion smooth on screen
  • 6H toughened glass resists everyday scratches

7-inch DSI display for Raspberry Pi projects

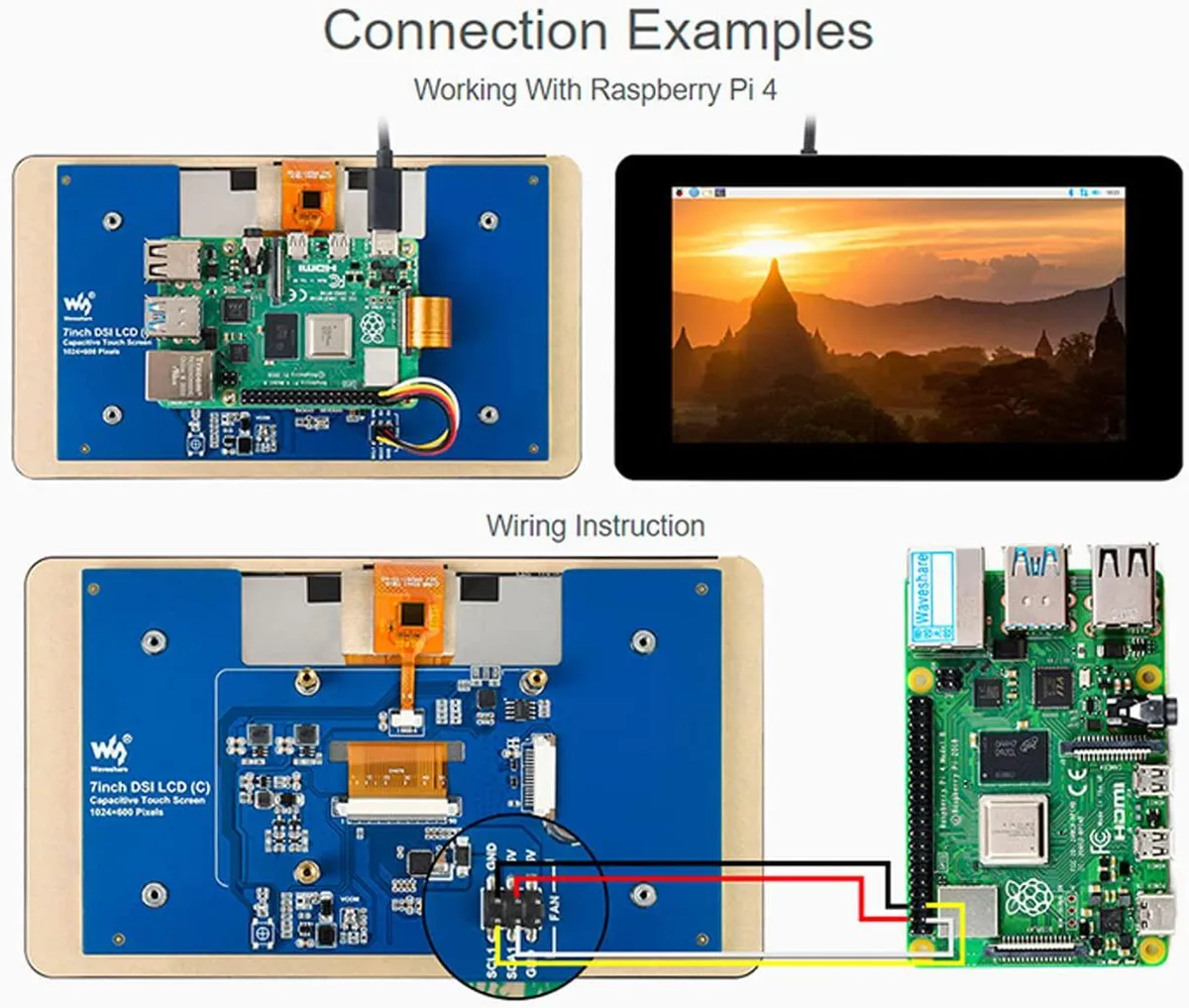

This portable monitor connects directly to the MIPI DSI interface on Raspberry Pi 4B, 3B+, 3A+, Compute Module 4 and Compute Module 3+. It provides a 1024×600 resolution IPS panel with a capacitive touch layer. A software driver is required for operation with Raspberry Pi OS.

DSI interface limits cable length

The MIPI DSI connection is designed for short internal ribbons, so the screen must sit close to the board. Only the listed Raspberry Pi models expose a compatible DSI port; other single-board computers or HDMI-only hosts cannot drive this panel. CM3+ and CM4 units also need an extra adapter board.

60 Hz refresh rate caps motion smoothness

The display tops out at 60 Hz, which is adequate for desktop use, media playback and simple GUI work. Fast-paced gaming or high-frame-rate video will not benefit from higher refresh rates. Buyers needing smoother motion should consider HDMI panels that support higher rates.

Highlights

  • 1024×600 IPS panel gives wide viewing angles
  • Capacitive touch supports five simultaneous touch points
  • DSI interface connects directly to Raspberry Pi boards
  • 60 Hz refresh keeps motion smooth on screen
  • 6H toughened glass resists everyday scratches

Specifications

CPU TypeOther

Questions about this item

Should I choose the 1024×600 panel or a higher-resolution model for my Raspberry Pi project?

This display is offered only at 1024×600 resolution, so there is no alternative panel to select.

How does the 1024×600 resolution look when driven by a Raspberry Pi over DSI?

The IPS panel delivers a 1024×600 image at up to 60 Hz with software-adjustable brightness.

What does the MIPI DSI interface cap in practice for this monitor?

The DSI link drives the LCD directly at up to 60 Hz, and the touch controller needs the supplied Raspbian driver.
