4.3 inch DSI LCD portable monitor with capacitive touchscreen

WaveShare

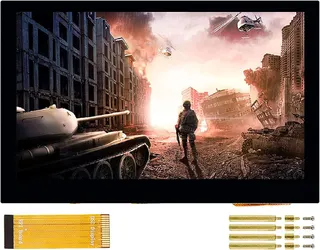

WaveShare 4.3 inch DSI LCD 800x480 Touchscreen portable monitor

SKU CH-06CT-BRHYQ

A 4.3 inch DSI IPS portable monitor with 800x480 resolution, capacitive 5-point touch and 60 Hz refresh for Raspberry Pi and other systems

  • CPU TypeOther
  • 3 inch IPS display gives wide viewing angles
  • 800 by 480 resolution delivers sharp visuals
  • Capacitive panel supports five point touch
  • DSI interface runs at up to 60Hz
  • Works with many Raspberry Pi boards and operating systems

Raspberry Pi DSI Touchscreen

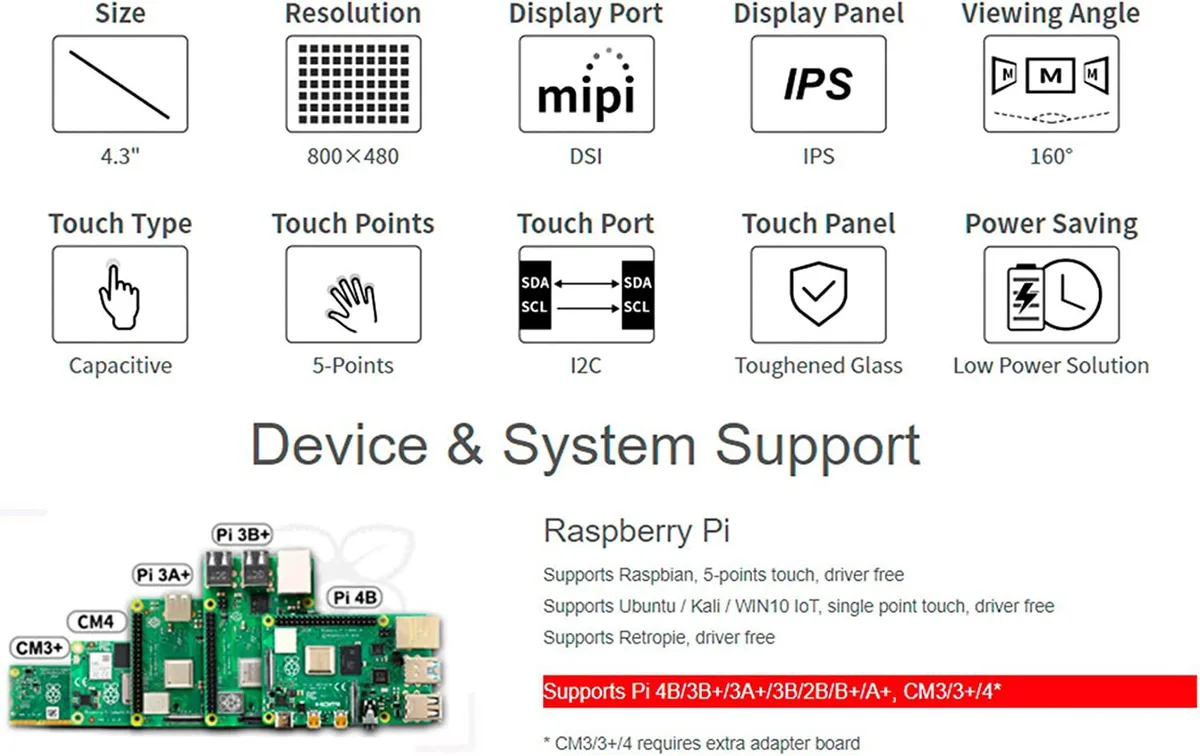

This 4.3 inch portable monitor connects directly to Raspberry Pi boards through the DSI interface. It targets makers, educators and embedded developers who need a compact display for Pi 4B, 3B+, 3A+, 3B, 2B, B+, A+ and Compute Module 3, 3+ or 4 projects. An extra adapter board is required when using Compute Module variants. The screen works with Raspbian, Ubuntu, Kali, WIN10 IoT and Retropie without separate driver installation.

IPS Panel With Capacitive Touch

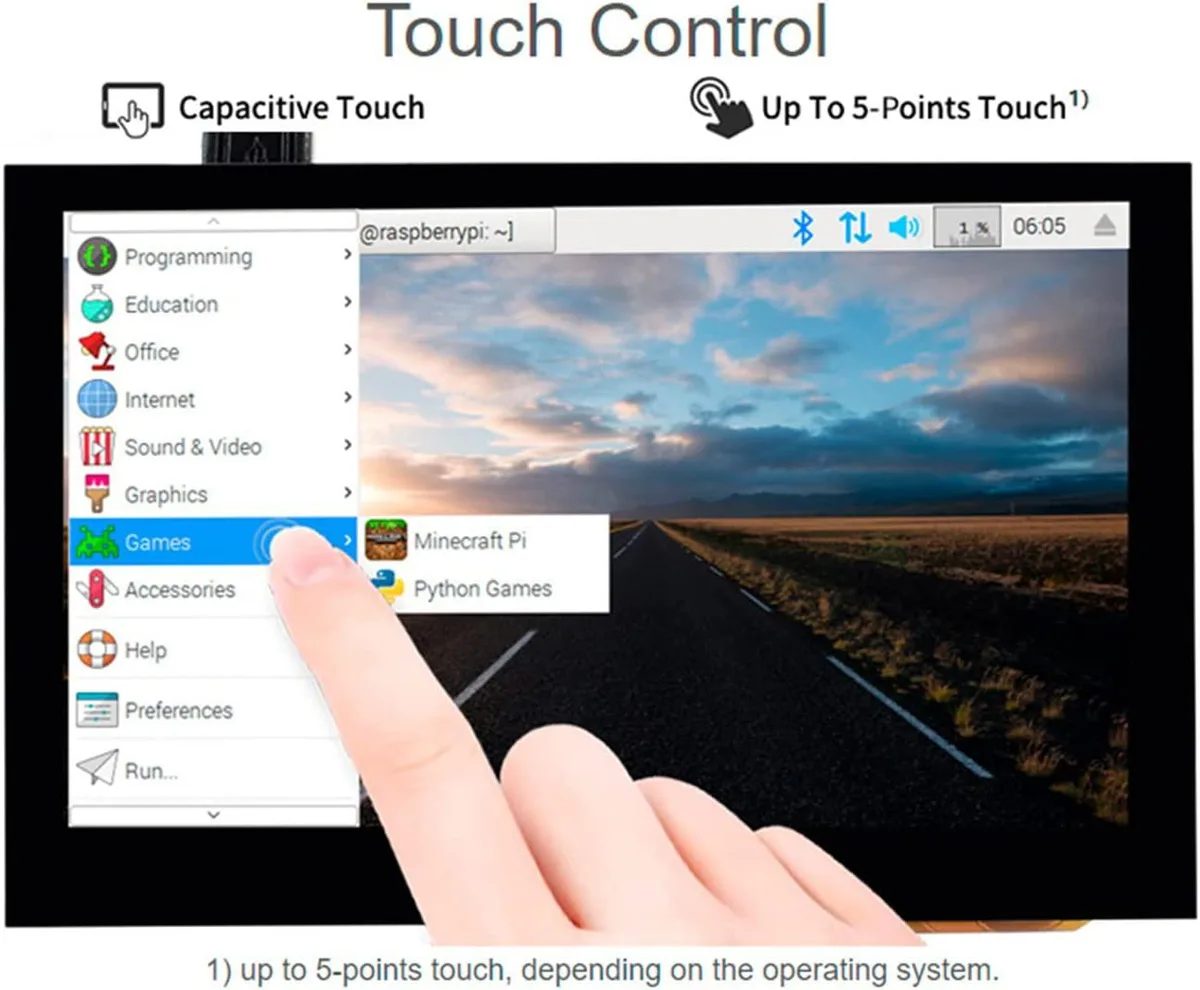

The IPS panel delivers an 800x480 hardware resolution and wide viewing angles for clear visibility in kiosk or handheld builds. A capacitive overlay supports up to five simultaneous touch points on Raspbian, while other supported operating systems register single-point input. The DSI ribbon cable carries both video and touch data, so no separate USB or HDMI cables are needed, keeping cabling minimal inside tight enclosures.

DSI Interface Limits At 60 Hz

The DSI link caps the refresh rate at 60 Hz and the resolution at 800x480, so the display cannot scale to higher definitions or faster frame rates. Buyers who need more screen area, higher pixel density or HDMI connectivity must choose a different panel. The fixed DSI pin-out also means the monitor is not compatible with non-Pi single-board computers or standard PC graphics outputs.

Highlights

  • 3 inch IPS display gives wide viewing angles
  • 800 by 480 resolution delivers sharp visuals
  • Capacitive panel supports five point touch
  • DSI interface runs at up to 60Hz
  • Works with many Raspberry Pi boards and operating systems

Specifications

CPU TypeOther

Questions about this item

What resolution and refresh rate does the 4.3 inch DSI LCD run at?

The panel has an 800×480 hardware resolution and a refresh rate up to 60Hz.

What Raspberry Pi models fit the DSI connector directly?

Pi 4B, 3B+, 3A+, 3B, 2B, B+, A+ connect directly; CM3, CM3+, CM4 need an extra adapter board.

How is the driver installed on Raspbian for 5‑point touch?

Raspbian supports 5‑point touch driver‑free; just enable the DSI overlay in config.txt and reboot.
