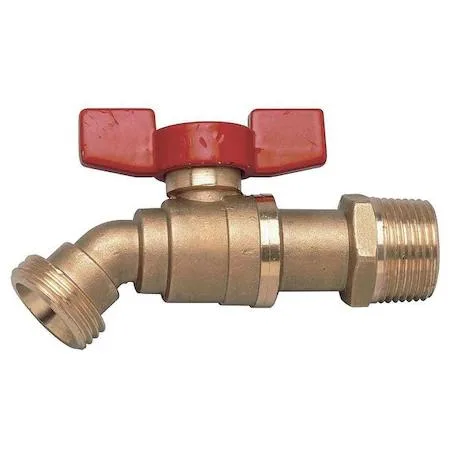

Brass boiler drain valve with tee handle, male NPT to male GHT connections

Watts

Watts BD-QT 3/4 Boiler Drain Valve Brass MNPT x MGHT

SKU CH-CB0S-3F0YG

Brass boiler drain valve with 3/4 inch MNPT inlet and MGHT outlet, rated 200 psi and 250 degrees F

  • TypeOther
  • 3/4 in MNPT inlet fits standard boiler piping
  • 3/4 in MGHT outlet connects garden hose threads directly
  • Brass body rated for 200 psi and 250 °F service
  • Quarter-turn tee handle gives fast on/off control
  • Certified to ASSE, CSA, FM, NSF, UL, ULC, USC and WQA standards

Brass Boiler Drain Valve 3/4 MNPT x MGHT

The Watts BD-QT is a brass boiler drain valve with a 3/4 inch male NPT inlet and a 3/4 inch male GHT outlet. It uses a quarter-turn ball mechanism and an aluminium tee handle for quick shut-off. The body is rated for 200 psi and media temperatures up to 250 degrees Fahrenheit. It meets ASSE, CSA, FM, NSF, UL, ULC, USC and WQA standards.

Quarter-turn handle installs on standard pipe

The valve threads directly onto 3/4 inch female NPT boiler tappings and accepts a standard garden hose on the GHT outlet. Brass construction allows hand-tightening plus one to two turns with a wrench on the wrench flats. Over-tightening can distort the seat and cause weeping. Ensure thread sealant is compatible with potable water if the system requires it.

Verify inlet thread type

Confirm the existing boiler or tank tapping is female NPT, not BSP or compression, because the inlet is male NPT only. Check that the 3/4 inch male GHT outlet matches the hose or adapter you plan to use. The overall length is 4.13 inches, so allow enough clearance for the tee handle to rotate a full quarter turn without obstruction.

Highlights

  • 3/4 in MNPT inlet fits standard boiler piping
  • 3/4 in MGHT outlet connects garden hose threads directly
  • Brass body rated for 200 psi and 250 °F service
  • Quarter-turn tee handle gives fast on/off control
  • Certified to ASSE, CSA, FM, NSF, UL, ULC, USC and WQA standards

Specifications

BrandZoro Select
TypeOther

Questions about this item

How do I confirm the valve is operating correctly after installation?

Turn the tee handle a quarter-turn and check that water flows freely through the 3/4-inch MGHT outlet; the ball valve should stop flow completely when the handle is returned to the closed position.

What comes with the valve and what must I supply?

The box contains the brass boiler drain valve with 3/4-inch MNPT inlet and MGHT outlet, tee handle, and aluminum handle; you must provide pipe sealant and any adapters needed for your piping.

Which version should I choose for a standard boiler drain application?

Select the 3/4-inch MNPT x MGHT brass ball valve rated for 200 psi and 250 °F; it meets ASSE, CSA, FM, NSF, UL, ULC, USC, and WQA standards for potable water and heating systems.
