Wasp Barcode

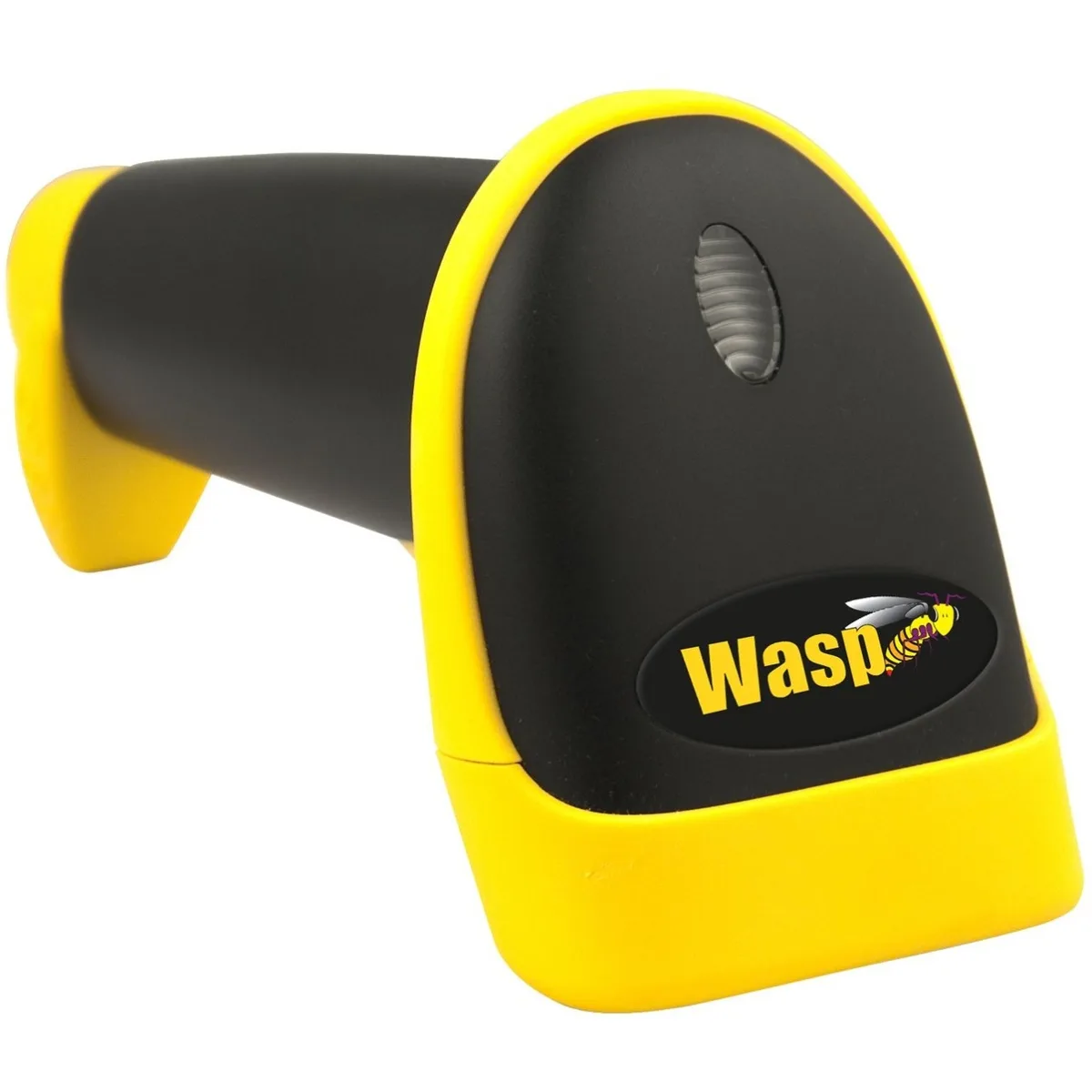

Wasp Barcode WLR8950 Long Range CCD Barcode Scanner PS/2
Handheld CCD scanner reads 1D barcodes up to 300 mm with 450 scans per second via PS/2 keyboard wedge
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine1D
- Included CablesPS/2 Keyboard Wedge Cable Included
- Interfaces SupportedPS/2
- Light SourceLED
- Long-range scanning up to 300 mm for EAN codes
- 450 scans per second captures fast-moving items
- Reads 15+ symbologies including UPC, EAN, Code 128 and Code 39
- PS/2 keyboard wedge cable included for direct PC connection
- Rugged ABS housing survives multiple 6-foot drops to concrete
Long-range CCD scanner with PS/2 wedge
The Wasp WLR8950 is a corded handheld barcode scanner that connects via a PS/2 keyboard wedge cable. Its CCD engine reads one-dimensional symbologies at distances from 25 mm to 300 mm depending on code density. The unit weighs 1.05 and is rated for multiple 6-foot drops to concrete.
Suited for fixed POS stations needing 1D scanning
Retail, warehouse and point-of-sale workers who scan UPC, EAN, Code 39, Code 128 or Interleaved 2 of 5 at arm's length will benefit from the 230 to 450 scans per second rate. It is not for users who need two-dimensional code capture, wireless freedom or a USB-native connection.
PS/2 keyboard wedge interface decides fit
The only host interface supplied is PS/2, so the host system must present a PS/2 keyboard port or a compatible adapter. If the target terminal lacks PS/2, this scanner cannot be connected.
Highlights
- Long-range scanning up to 300 mm for EAN codes
- 450 scans per second captures fast-moving items
- Reads 15+ symbologies including UPC, EAN, Code 128 and Code 39
- PS/2 keyboard wedge cable included for direct PC connection
- Rugged ABS housing survives multiple 6-foot drops to concrete
Specifications
| Brand | Wasp |
|---|---|
| Series | WLR8950 |
| Model | 633808121679 |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D |
| Included Cables | PS/2 Keyboard Wedge Cable Included |
| Interfaces Supported | PS/2 |
| Light Source | LED |
| Resolution | 3 mils |
| Depth of Scan Field | 80 to 100 mm at 4 mil (Code 39); 80 to 125 mm at 5 mil (Code 39); 25 to 300 mm at 15.6 mil (EAN); 95 to 170 mm at X:10 mil, Y:1mm (PDF 417) |
| Scan Speed | 230 - 450 scans/sec |
| Decoding Capability | Bar Code Symbology Supported: UPC-A/UPC-E EAN-8/EAN-13 Industrial 2 of 5 Codabar Matrix 2 of 5 Code 11 Code 93 Code 32 Code 128 Standard Code 39 Full ASCII Code 39 Interleaved 2 of 5 China Postal Code MSI Plessy Code UK Plessy Code EAN/UCC 128 Telepen Code IATA Code |
| Color | Yellow/Black |
| Weight | 1.05 |
| Features | Increase accuracy and efficiency compared to manual data entry processes Economical barcode scanner allows for a cost effective scanning solution Simple to implement and use, connect to your PC through a USB or PS2 cable Ergonomic and lightweight form factor ensures comfort Durable construction eliminates downtime due to breakage Error free scanning accurately adds data to your active document, spreadsheet, or database Read 1D, colored barcodes up to 12" away Automatic bi-color technology changes light sources between green and red for improved scanner performance Scan barcodes with |
| Ruggedness | Rugged |
| Shipping weight | 0.68 kg |
| Package size | 194 × 146 × 78 mm |
Questions about this item
How much power does the WLR8950 draw when scanning continuously all day?
The scanner draws power directly from the PS/2 port, so no external supply is needed and heat output remains low during extended use.
What must my PC already have for this PS/2 model to work?
Your computer needs an available PS/2 keyboard port; the included wedge cable plugs in-line with your keyboard.
Will the 3 mil resolution read the same 15.6 mil EAN labels my older scanner handles?
Yes, it reads 15.6 mil EAN codes from 25 to 300 mm, covering the range your existing labels require.
