Wasp Barcode
Wasp Barcode WCS3900 CCD barcode scanner USB
A handheld 1D linear imager scanner reads barcodes up to 25 cm away and 8.25 cm wide at 45 scans per second via USB
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine1D Linear Imager
- Included CablesUSB Cable Included
- Interfaces SupportedUSB
- Light Source660 nm red visible LED
- Fast 1D reading at 45 scans per second
- Accurate data capture with 100 scans per second decode rate
- Comfortable all-day use weighing only 0.28 lb
- Simple USB connection works instantly without drivers
- Durable ABS plastic construction handles daily retail use

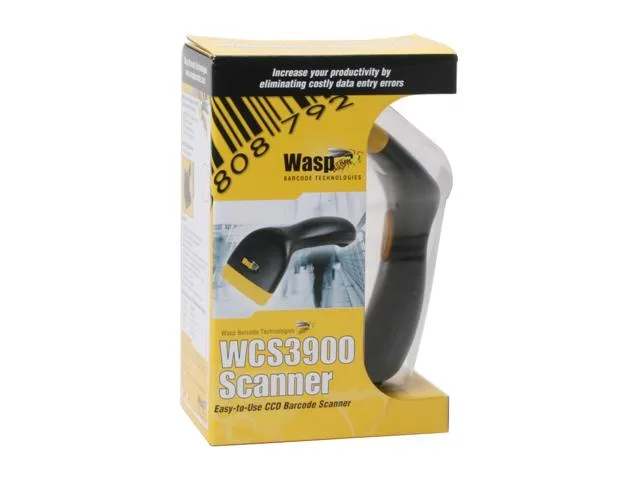

Wasp WCS3900 1D Handheld Scanner
The Wasp WCS3900 is a corded handheld barcode scanner built for light retail, library and office workflows. It reads common 1D linear barcodes using a CCD imager and connects directly through a USB interface with the included cable. No driver installation is required, so the scanner behaves like a keyboard input the moment it is plugged in. The yellow-and-black ABS housing weighs 0.28 lb without the cable.
Sustained Scanning Performance
Under continuous operation the scanner draws less than 95 mA at 5 VDC and delivers a decode rate of 100 scans per second. The CCD engine captures 45 scans per second with a 660 nm red LED illumination source. The scan field extends from contact to 25.00 cm depth and covers a maximum barcode width of 3.25 inches (8.25 cm). One-touch triggering keeps repetitive scanning efficient during long shifts.
Upgrade From Manual Entry
This scanner replaces keyboard-based data entry for single-line barcodes up to 3.25 inches wide. The jump is worth it when accuracy and speed matter more than the cost of a basic imager. It does not suit users who need 2D code reading, wireless freedom or ruggedised housings for harsh industrial environments. Hands-free operation requires an optional stand not included in the box.
Highlights
- Fast 1D reading at 45 scans per second
- Accurate data capture with 100 scans per second decode rate
- Comfortable all-day use weighing only 0.28 lb
- Simple USB connection works instantly without drivers
- Durable ABS plastic construction handles daily retail use
Specifications
| Brand | Wasp |
|---|---|
| Model | WCS3900 |
| Part Number | 633808091040 |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Linear Imager |
| Included Cables | USB Cable Included |
| Interfaces Supported | USB |
| Light Source | 660 nm red visible LED |
| Depth of Scan Field | 0.00 cm to 25.00 cm |
| Width of Scan Field | 3.25" (8.25 cm) |
| Scan Speed | Scan rate: 45 scans/sec Decode rate: 100 scans/sec |
| Input Voltage | +5 VDC +/- 5% |
| Power Consumption | Idle: <30 mA, Operating: <95 mA |
| Color | Yellow/Black |
| Dimensions | 1.06" x 3.62" x 7.40" |
| Weight | 0.28 lb. without cable |
| Features | One-touch scanning Durable, manufactured from high-quality ABS plastic Includes 6-foot USB or PS/2 cable Lightweight, ergonomic design Maximum barcode scanning width of 3.25" Hands-free scanning (with optional stand) |
| Shipping weight | 0.35 kg |
| Package size | 196 × 140 × 79 mm |
Questions about this item
How much heat or power draw should I expect from the WCS3900 during a full day of scanning?
The scanner idles under 30 mA and draws under 95 mA while operating at 5 VDC, so heat and power use stay minimal even with continuous use.
What host port and cable do I already need to plug the 633808091040 in and start scanning?
It ships with a 6-foot USB cable and connects directly to a standard USB port — no extra adapters or PS/2 cable required unless you choose that interface instead.
Will the WCS3900 read the same 1D barcodes my older PS/2 wedge scanner handles without reconfiguring my POS software?
Yes — it outputs keystrokes over USB just like a keyboard wedge, reads common 1D symbologies out of the box, and needs no driver installation on the host.
