Green circuit board with gold edge connector, two U.FL sockets and a USB header

Vszerda

Vszerda WA01 M.2 E Key to PCIe x1 WiFi Bluetooth Adapter with 6-dBi SMA Antenna Kits

SKU CH-VF9C-ER4YE

Converts an M.2 E-key Wi-Fi module to a PCIe x1 slot with 6-dBi SMA antennas and Bluetooth via USB

  • Speed5000 megabits_per_second
  • Interfacepci_express_x1
  • BUSpci_express_x1
  • Weight0.15 kilograms
  • Package Contents6-dBi SMA Antenna Kits
  • Converts M.2 E-key WiFi modules to PCIe x1 with 5000 megabits_per_second speed
  • Includes 6 dBi RP-SMA triple-band antennas covering 2.4GHz 5GHz 6GHz
  • Bluetooth routed through USB header requiring motherboard USB connection
  • Supports Intel AX200NGW AX210NGW BE200NGW and Broadcom Realtek Atheros 2230 modules
  • Works with WiFi 4 and Bluetooth 4.0 modules across DOS Windows Linux Mac OS

PCIe x1 adapter for M.2 E-key modules

This adapter converts an M.2 E-key Wi-Fi or Bluetooth module to a standard PCI Express x1 slot. It also supports Coral TPU accelerators that use the A+E keying. The board carries the wireless signal over the PCIe lane while routing Bluetooth through an internal USB header on the motherboard. No driver is required for the adapter itself, only for the installed module.

Triple-band 6 dBi antenna kit included

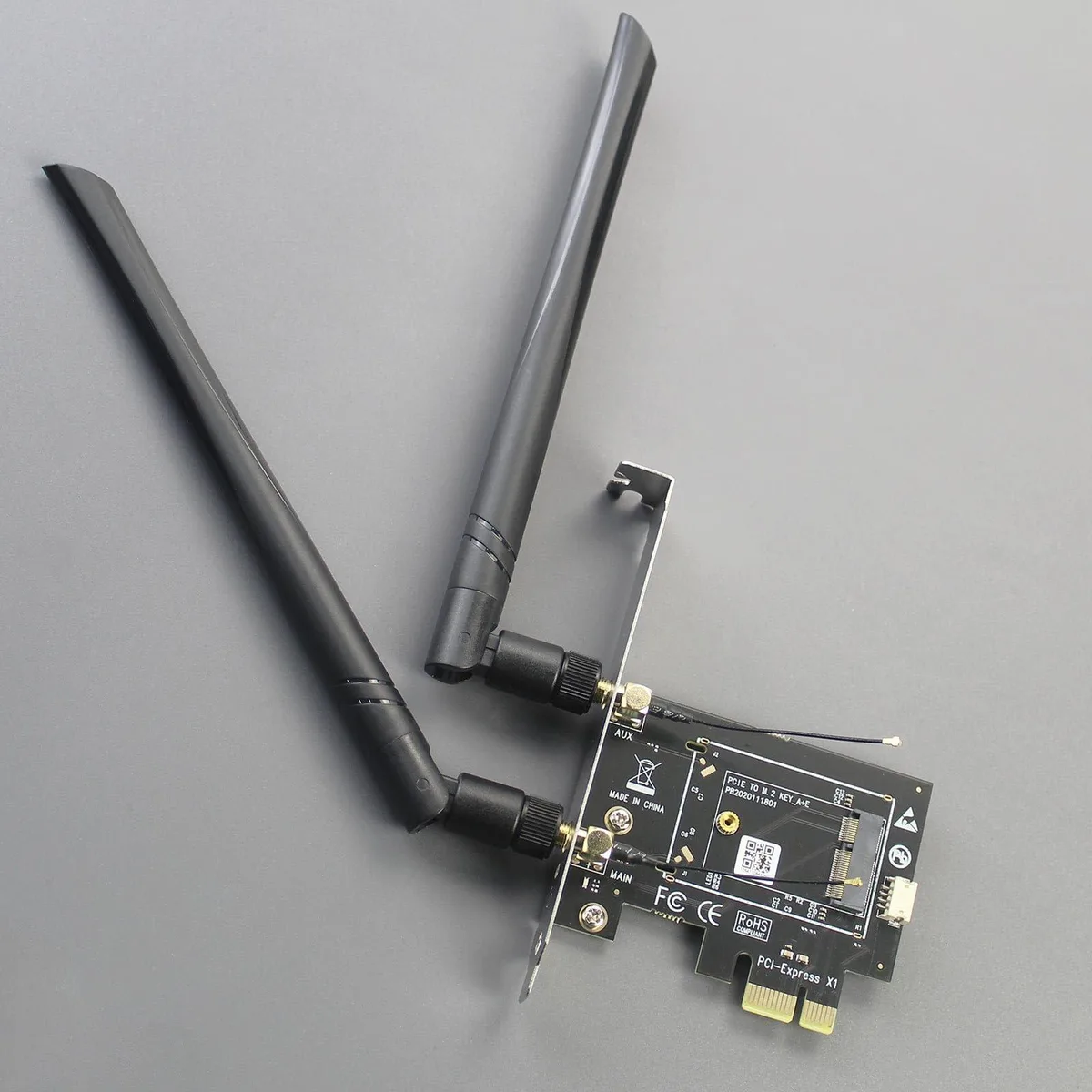

Two 15 cm U.FL to RP-SMA pigtail cables connect the module to the supplied 6 dBi antennas covering 2.4 GHz, 5 GHz and 6 GHz bands. The antennas attach via SMA connectors for flexible positioning outside the chassis. Bluetooth functionality is enabled only when the bundled USB cable is plugged into a motherboard header. Power draw and thermal output are negligible for the adapter board alone.

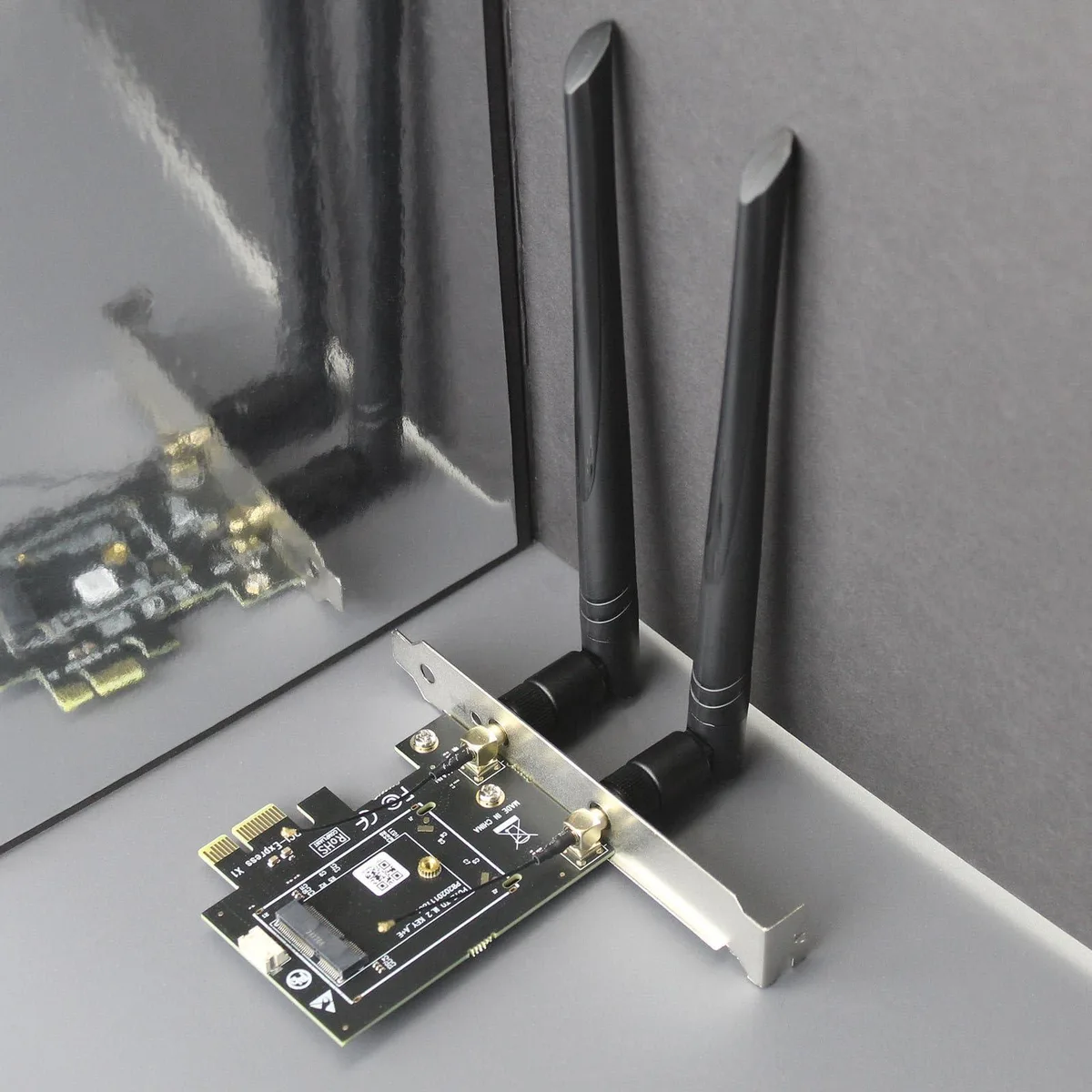

Regular and low-profile brackets supplied

A 12 cm full-height bracket comes pre-installed and an 8 cm low-profile bracket is included for slim cases. The card is compatible with a wide range of Intel and third-party M.2 2230 modules including the 7260, 7265, 8260, 8265, 9260, AX200 and AX210 series. It does not support CNVio or CNVio2 modules such as the AX201, AX211 or 9560 series, nor Mini PCIe cards.

Highlights

  • Converts M.2 E-key WiFi modules to PCIe x1 with 5000 megabits_per_second speed
  • Includes 6 dBi RP-SMA triple-band antennas covering 2.4GHz 5GHz 6GHz
  • Bluetooth routed through USB header requiring motherboard USB connection
  • Supports Intel AX200NGW AX210NGW BE200NGW and Broadcom Realtek Atheros 2230 modules
  • Works with WiFi 4 and Bluetooth 4.0 modules across DOS Windows Linux Mac OS

Specifications

BrandGLOTRENDS
ModelWA01
Speed5000 megabits_per_second
Interfacepci_express_x1
BUSpci_express_x1
Weight0.15 kilograms
Package Contents6-dBi SMA Antenna Kits

Questions about this item

How do I install the Vszerda WA01 adapter and where does the USB cable go?

Insert the M.2 WiFi module into the E-key slot on the adapter, secure it with the screw, plug the adapter into a PCIe x1 slot, attach the U.FL pigtail cables to the module and the 6 dBi SMA antennas, then connect the included USB cable to a motherboard USB header to enable Bluetooth.

What parts might need replacement after extended use?

The U.FL to RP-SMA pigtail cables and the 6 dBi SMA antennas are the only external RF components; they can be swapped if the connectors wear or the cables are damaged.

What limits sustained throughput on this adapter?

The PCIe x1 interface caps the link at 5000 megabits per second, so sustained traffic cannot exceed that bandwidth regardless of the WiFi module installed.
