A green circuit board with seven blue USB ports and a gold PCIe connector

Vszerda

Vszerda USB3 PCIe USB 3.0 7-Port Expansion Card

SKU CH-YTX0-FG0YK

Adds seven USB 3.0 Type-A ports via a PCIe slot with independent 5 V 2 A power per port and NEC 720201/720210 controllers

  • Seven USB 3.0 ports expand connectivity for multiple peripherals
  • Independent two-phase power module runs all ports without external supply
  • NEC720201 and NEC720210 chips deliver 5 Gbps theoretical throughput
  • Seven solid capacitors provide stable 5 V 2 A power per port

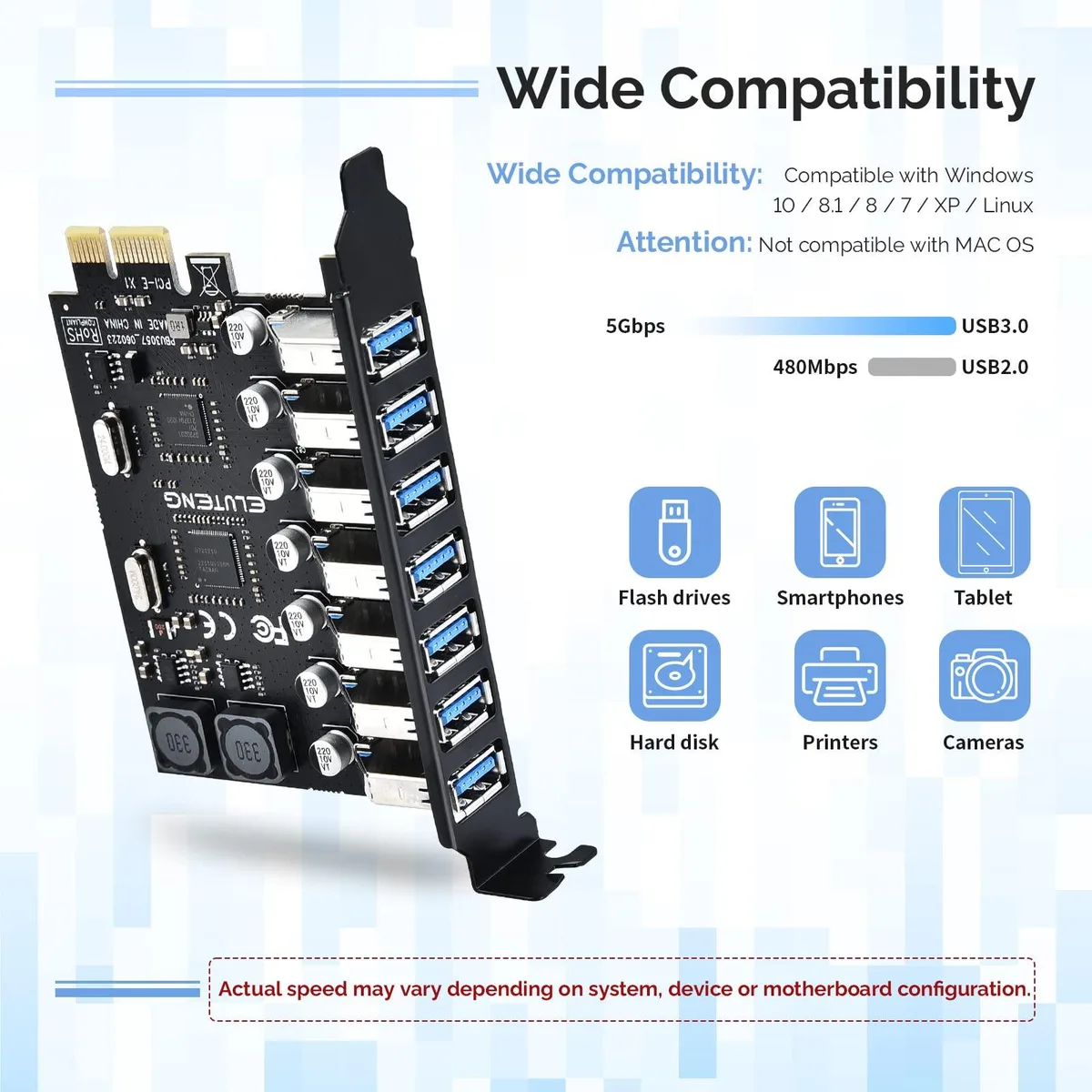

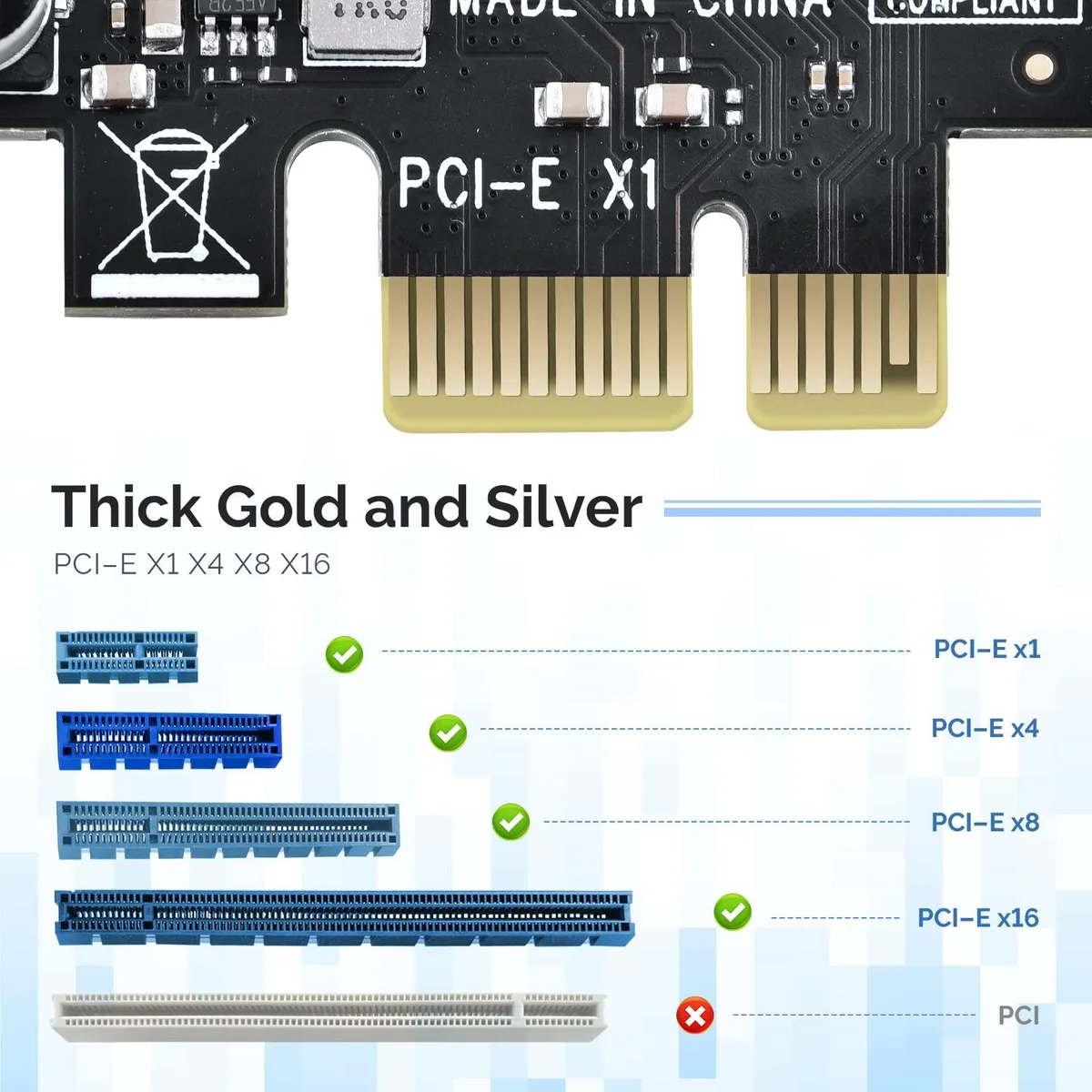

  • Fits PCIe x1 x4 x8 x16 slots and works with Windows 11 10 8 7 XP Linux

Seven independent USB 3.0 ports

This PCIe expansion card adds seven USB 3.0 Type-A ports to a desktop computer. Each port operates independently through a two-phase power module so one device cannot starve another. The board fits any PCIe x1, x4, x8 or x16 slot and works with 32-bit or 64-bit Windows 11, 10, 8, 7, XP or Linux; macOS is not supported.

Dual NEC controller with solid capacitors

The card uses NEC 720201 and NEC 720210 controllers backed by seven dedicated solid capacitors. These polymer-dielectric capacitors deliver low ESR for fast charge and discharge cycles while maintaining stable voltage at each port. No external power cable is required because the slot provides enough current for the 5 V / 2 A output on every connector.

5 Gbps bandwidth per port

USB 3.0 theoretical throughput reaches 5 Gbps, roughly ten times the rate of USB 2.0, so large files such as HD video move quickly. The interface is backward compatible with USB 2.0 and 1.1 devices, but the card cannot be used with PlayStation 3 or 4 consoles. Bandwidth is shared across the PCIe lane, so simultaneous maximum-speed transfers on all seven ports will saturate the link.

Highlights

  • Seven USB 3.0 ports expand connectivity for multiple peripherals
  • Independent two-phase power module runs all ports without external supply
  • NEC720201 and NEC720210 chips deliver 5 Gbps theoretical throughput
  • Seven solid capacitors provide stable 5 V 2 A power per port
  • Fits PCIe x1 x4 x8 x16 slots and works with Windows 11 10 8 7 XP Linux

Specifications

No published specifications for this item yet.

Questions about this item

How long do the seven solid capacitors on this card typically last before they need replacement?

The solid capacitors use conductive polymer dielectric material rated for high stability and long life, with low ESR for fast charge and discharge cycles under continuous 5 V 2 A loads.

What limits total throughput when all seven USB 3.0 ports run at 5 Gbps simultaneously?

The PCIe x1 host link provides far less bandwidth than the combined port demand, so the bus becomes the bottleneck before any port hits its 5 Gbps ceiling.

How much heat does the NEC720201 and NEC720210 controller pair generate under all-day 5 V 2 A loads?

The dual-controller design with independent power phases and solid capacitors keeps impedance and temperature low, allowing stable operation without active cooling.
