Four black USB-C to bare-wire pigtails, 11 inch each

Vszerda

Vszerda USB C to 4 Pin Bare Wire 11in 4-Pack

SKU CH-TSYV-X6D9Z

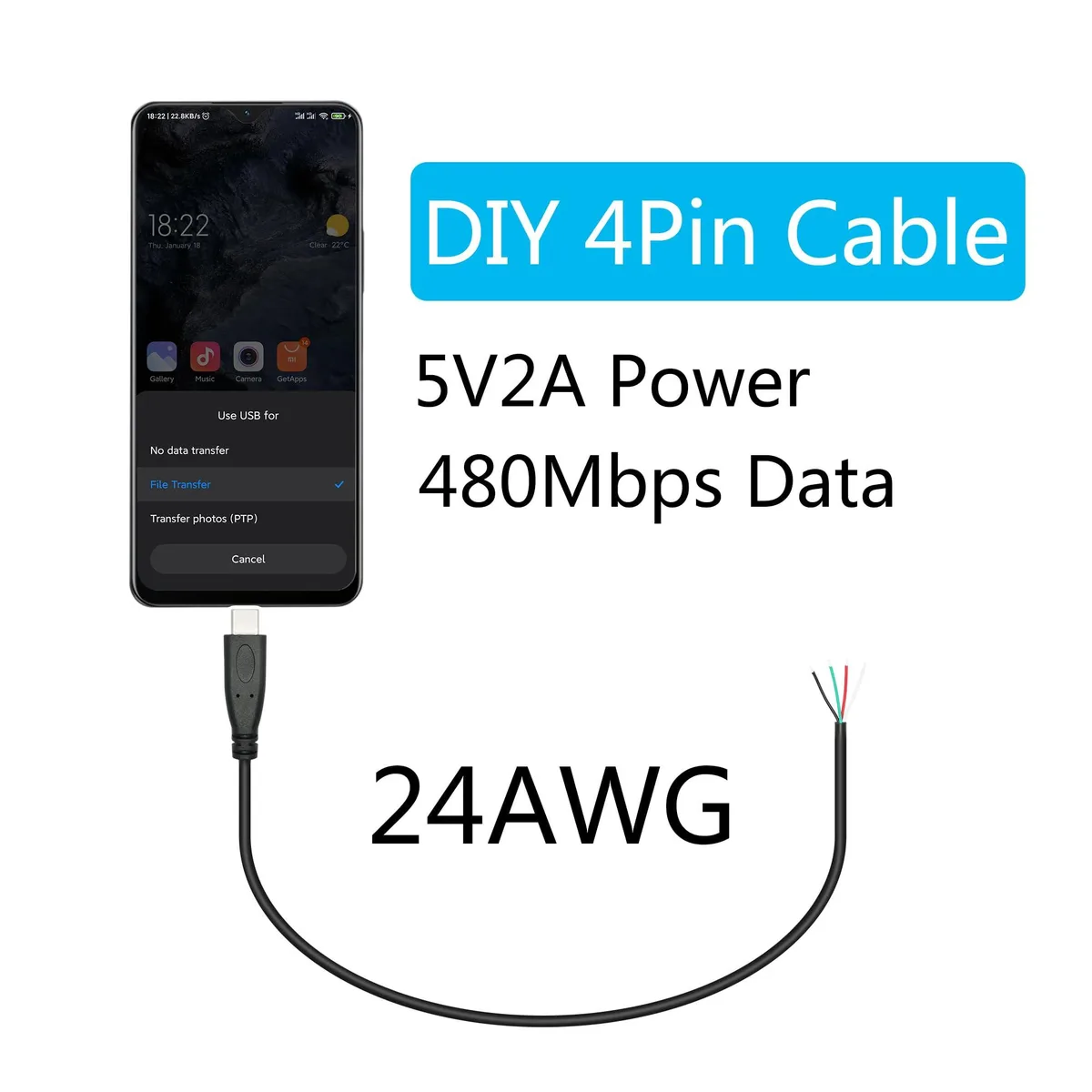

Four 11-inch USB-C male to 4-pin bare-wire pigtails for 5 V, 2 A power and 480 Mbps data DIY repairs

  • TypeUSB
  • Connector TypeUSB Type C
  • ColorBlack
  • Connector Number4
  • Connector DetailUSB Type C
  • Terminal GenderMale-to-Male
  • Ready-to-solder tinned ends simplify DIY repairs
  • 480 Mbps data rate supports USB 2.0 devices
  • 5 V 2 A rating powers small USB-C gear
  • Colour-coded wires match the supplied pin-out diagram
  • Four 11-inch cables included for multiple projects

DIY USB-C pigtail cable pack

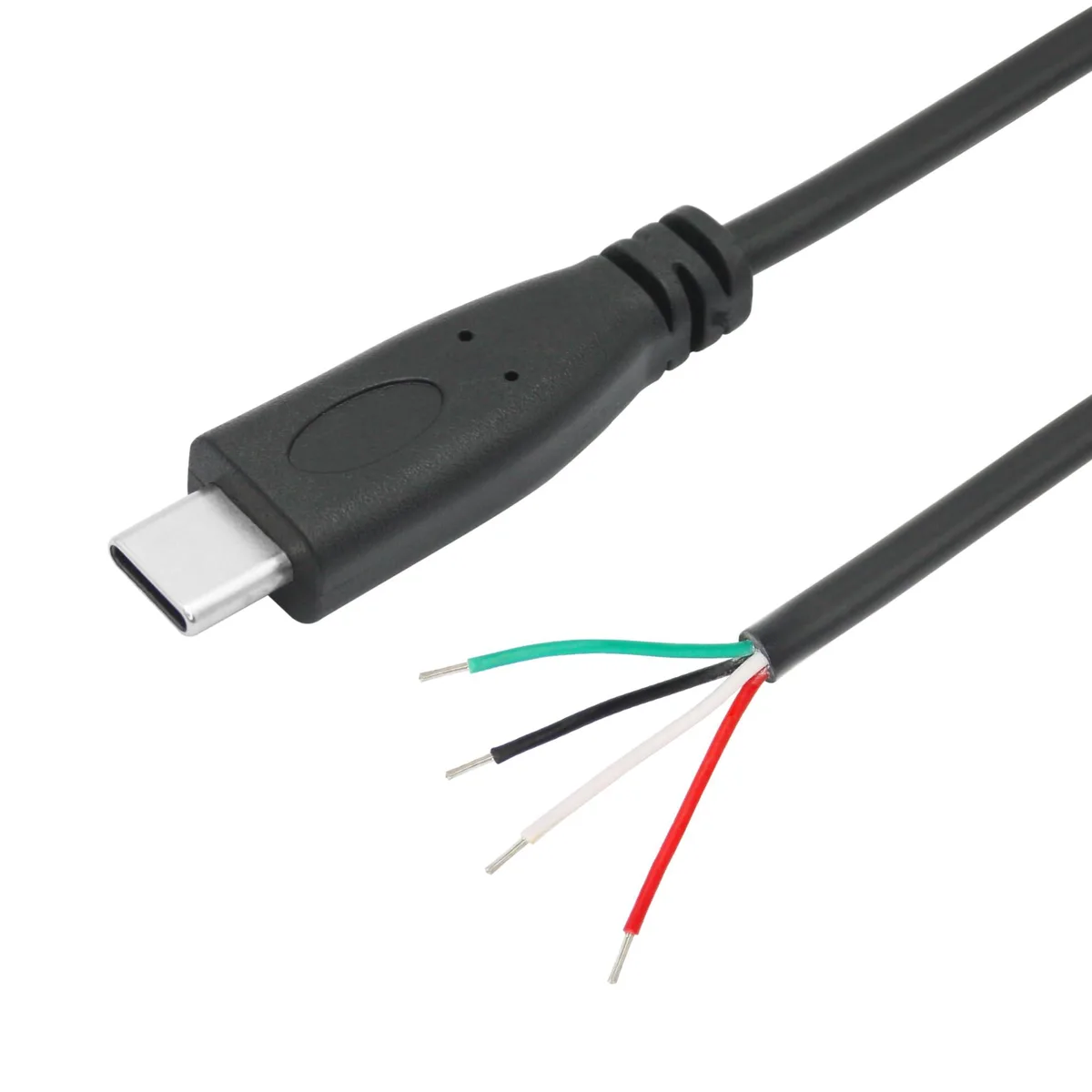

This four-pack supplies USB Type-C male to four-pin bare-wire cables for low-power DIY projects and repair work. Each 11-inch lead carries 5 V at up to 2 A and supports 480 Mbps data. The colour-coded conductors — red for positive, white for negative data, green for positive data and black for ground — simplify soldering or screw-terminal connections.

Thermals noise and power draw

The 24 AWG all-copper cores and PVC jacket stay cool during normal 5 V 2 A charging and data use. No active cooling or fan is involved, so the cables add no audible noise to a build. Power draw is limited to the connected device’s requirements, with the cable itself introducing negligible resistance.

Four-pin bare-wire termination

The decisive specification is the open-ended four-pin pigtail that requires soldering or screw terminals to complete a connection. Buyers who need a ready-made plug such as Micro-USB, Lightning or barrel jack cannot use these leads without adding their own connector.

Highlights

  • Ready-to-solder tinned ends simplify DIY repairs
  • 480 Mbps data rate supports USB 2.0 devices
  • 5 V 2 A rating powers small USB-C gear
  • Colour-coded wires match the supplied pin-out diagram
  • Four 11-inch cables included for multiple projects

Specifications

BrandMaixbomr
TypeUSB
Connector TypeUSB Type C
ColorBlack
Connector Number4
Connector DetailUSB Type C
Terminal GenderMale-to-Male
Speed480 megabits_per_second
ConstructionPVC
FeaturesCharging, Data transmission, DIY Cable

Questions about this item

How do I install the USB C to 4 pin bare wire cable and which colour goes where?

Solder the tinned tails: red to positive 5 V, white to D-, green to D+, black to ground.

What maintenance or replacement will the 24 AWG PVC cable need later?

Inspect the solder joints and insulation periodically; replace the pigtail if the copper cores fray or the PVC jacket cracks.

What limit appears first when the 480 Mbps link runs at 5 V and 2 A continuously?

The 2 A current ceiling is reached before the data rate saturates, so power delivery caps sustained use.
