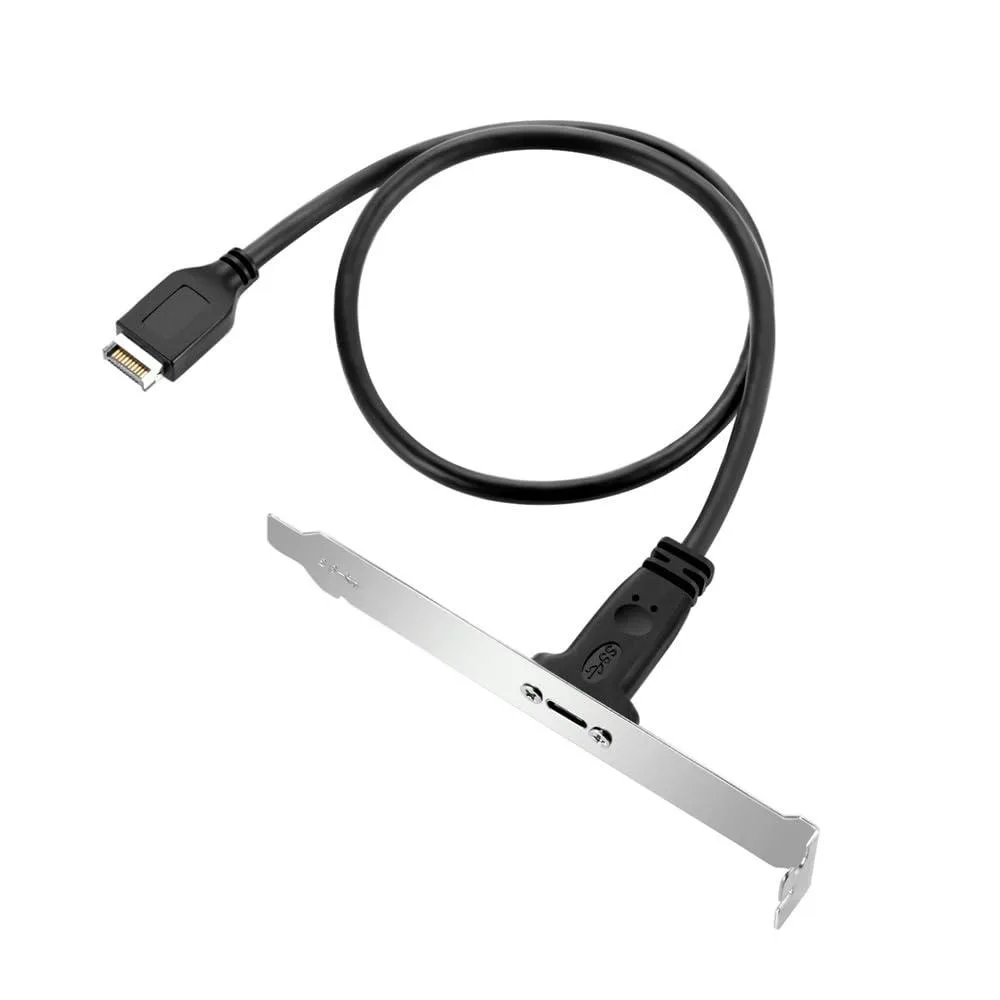

Black USB-C female panel-mount connector on 40 cm cable to Type-E header

Vszerda

Vszerda USB 3.1 Type-E to USB-C Female 40cm Panel Mount

SKU CH-PWP8-7KGHK

A 40 cm panel-mount adapter cable linking a motherboard USB 3.1 Type-E front-panel header to an external USB-C female port

  • TypeUSB
  • Connector TypeUSB Type C
  • ColorBlack
  • Connector Number33
  • Connector DetailUSB Type C
  • Terminal GenderMale-to-Female
  • USB 3.1 front-panel header adds modern Type-C port to compatible motherboards
  • 40 cm cable reaches front-panel cut-outs without strain
  • Male Type-E header plugs directly into board header, no adapters needed
  • Female Type-C panel connector mounts securely with screw holes
  • Copper conductors support high-speed USB 3.1 data transfer

Front-panel USB 3.1 Type-E adapter

This 40 cm cable converts a motherboard USB 3.1 Type-E front-panel header into a panel-mounted USB-C female port. It suits PC builders adding a modern Type-C front connector to cases that only provide a standard cut-out. The male-to-female design bridges the header directly without extra electronics.

USB 3.1 header constraints

The USB 3.1 Type-E header uses the USB 3.0 pin set plus additional signals and has no officially published specification. Compatibility is limited to motherboards that implement this proprietary header, such as early Z270 boards. Systems with only a USB 3.0 header cannot drive the link at 3.1 speeds.

Panel-mount construction

A 33-contact copper connector and threaded screw mount secure the Type-C female port in a standard chassis opening. The fixed 40 cm length restricts routing to nearby front-panel locations. Builders needing longer reach or a different header type must choose another solution.

Highlights

  • USB 3.1 front-panel header adds modern Type-C port to compatible motherboards
  • 40 cm cable reaches front-panel cut-outs without strain
  • Male Type-E header plugs directly into board header, no adapters needed
  • Female Type-C panel connector mounts securely with screw holes
  • Copper conductors support high-speed USB 3.1 data transfer

Specifications

Brandxiwai
TypeUSB
Connector TypeUSB Type C
ColorBlack
Connector Number33
Connector DetailUSB Type C
Terminal GenderMale-to-Female
ConstructionCopper
FeaturesHigh Speed

Questions about this item

Which connector variant should I choose for a USB 3.1 Type-E front-panel header?

This cable has a single USB 3.1 Type-E header on one end and a panel-mount USB-C female on the other; no alternative variants are offered.

What throughput will I actually see when the cable is connected to a Z270 board?

The link runs at USB 3.1 Gen 1 rates (the 3.0 pin set plus extras), so real-world speed tops out at the 3.1 Gen 1 ceiling.

Does the USB 3.1 Type-E header limit the cable to 3.0 speeds in practice?

The header uses the USB 3.0 pin set with additional pins for 3.1, so it does not cap you at 3.0; it enables the full 3.1 Gen 1 bandwidth.
