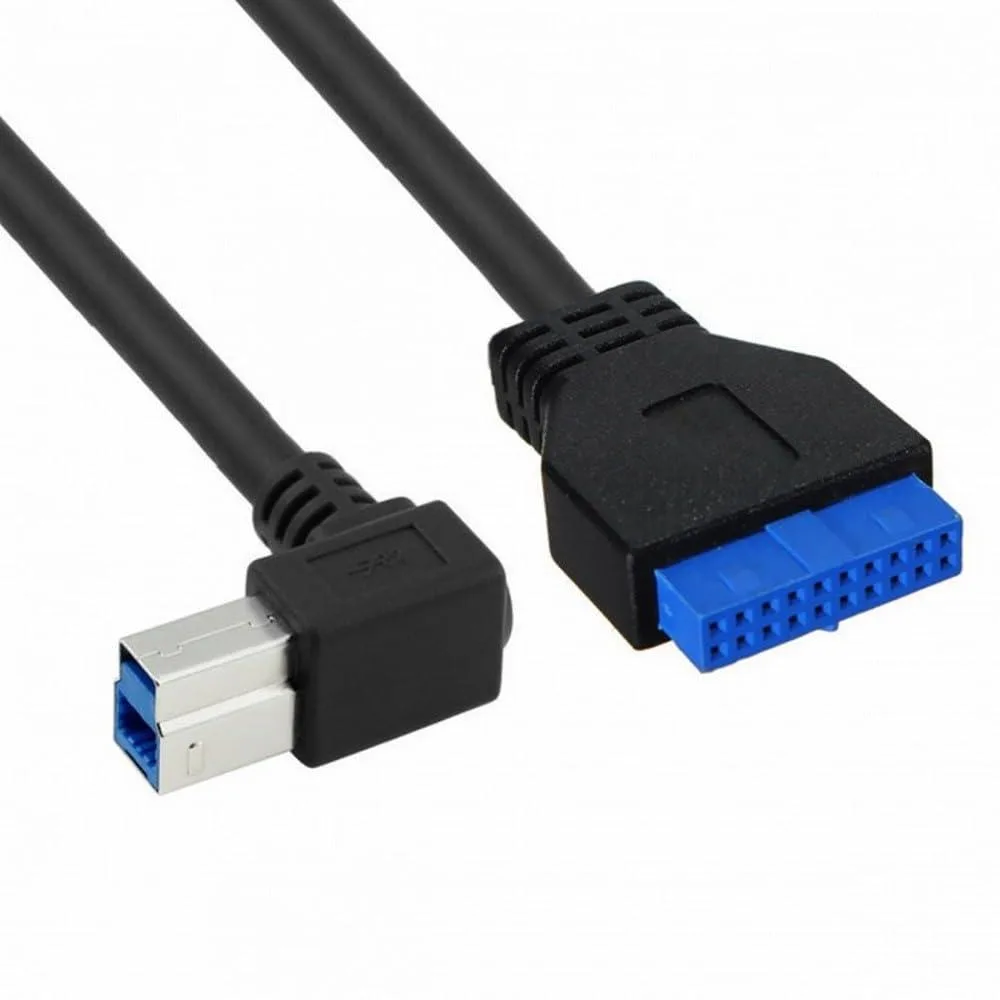

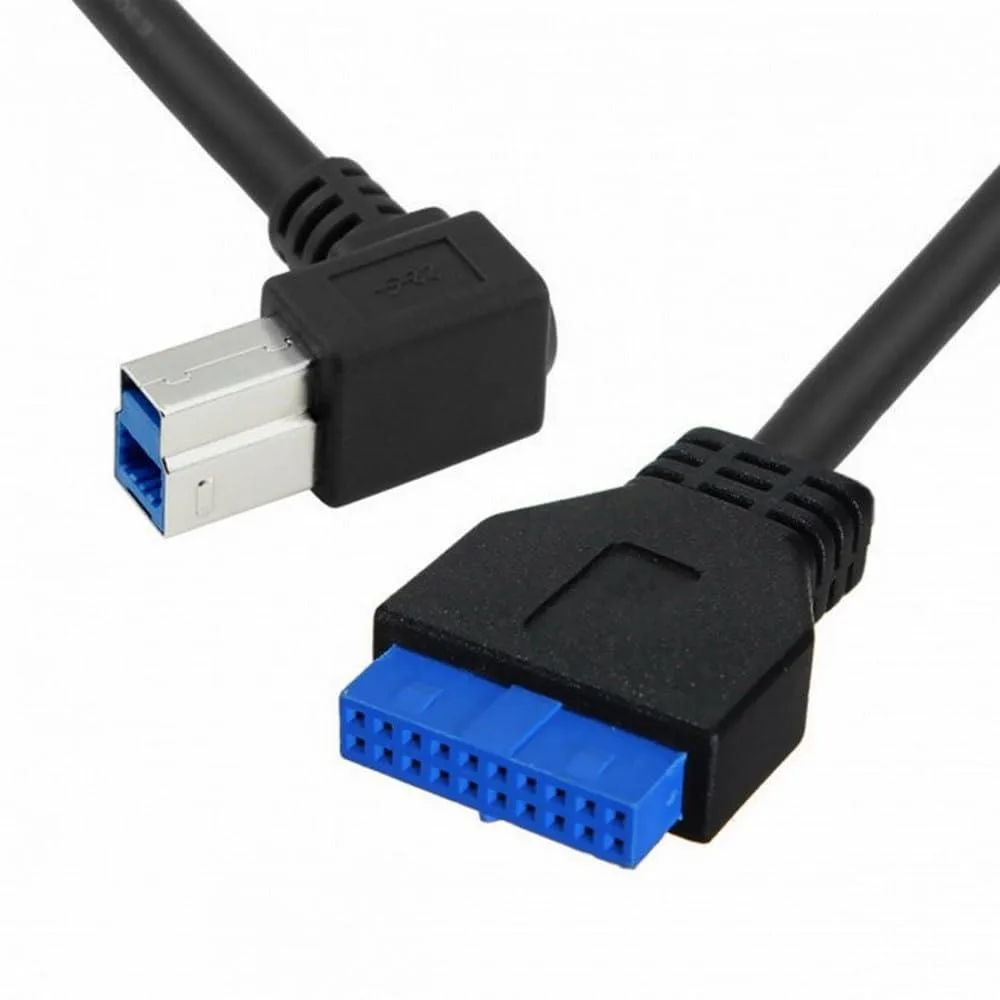

Black 90° left-angled USB 3.0 Type B male to 19-pin header cable, 50cm

Vszerda

Vszerda USB 3.0 Type B Male to 19-pin Header 90° Left Angled 50cm

SKU CH-M8V9-F1JGE

A 90-degree left-angled cable converts a motherboard 19-pin header to an external USB 3.0 Type B male port at 5 Gbps over 50 cm

  • TypeUSB
  • Connector TypeUSB Type B
  • ColorBlack
  • Connector Number24
  • Connector DetailUSB Type B
  • Terminal GenderMale-to-Female
  • 90° left-angled connector fits tight spaces around the motherboard header
  • 5 Gbps USB 3.0 throughput moves data ten times faster than USB 2.0
  • 19-pin internal header converts to external USB Type-B male for front-panel access
  • 50 cm length reaches front-panel ports without excess cable slack
  • Gold-plated contacts and welded strain relief resist wear from repeated insertion

Angled USB 3.0 B-to-Header Cable

This 50 cm cable converts a motherboard 19-pin internal USB 3.0 header to an external USB Type B male port. The 90-degree left-angled connector fits tight spaces around rear I/O panels or drive cages. It targets builders adding a front-panel or external Type B connection without rerouting internal cabling. Gold-plated contacts and a moulded single-piece shell aim to survive repeated insertion cycles.

Installing the 19-pin Header Link

Align the 19-pin plug with the motherboard keying notch; the connector seats in one orientation only. The left-angled hood clears adjacent headers but can foul tall CPU coolers or large 24-pin ATX cables if routed carelessly. A common error is forcing the plug backwards, which bends the delicate header pins. Route the 50 cm tail before tightening case side panels to avoid tension on the solder joints.

5 Gbps Throughput and Length Limit

The link runs at USB 3.0 5 Gbps when both host and device support the standard, otherwise it falls back to 480 Mbps. The 50 cm length suits mid-tower builds; longer runs would need an active repeater cable not included here. Bandwidth handles external hard drives, docks or printer traffic comfortably. It cannot carry video or deliver high-current charging beyond the USB 3.0 specification.

Highlights

  • 90° left-angled connector fits tight spaces around the motherboard header
  • 5 Gbps USB 3.0 throughput moves data ten times faster than USB 2.0
  • 19-pin internal header converts to external USB Type-B male for front-panel access
  • 50 cm length reaches front-panel ports without excess cable slack
  • Gold-plated contacts and welded strain relief resist wear from repeated insertion

Specifications

BrandVszerda
TypeUSB
Connector TypeUSB Type B
ColorBlack
Connector Number24
Connector DetailUSB Type B
Terminal GenderMale-to-Female
Speed5 gigabits_per_second
Constructiongold
FeaturesData Transfer

Questions about this item

How do I confirm the 5 Gbps link is active after connecting the 19-pin header to my motherboard?

Check the operating system device manager or system profiler; the port should enumerate as a USB 3.0 device and report a 5 Gbps signalling rate.

What connectors and cable length are included in the package?

The cable has a 90-degree left-angled USB 3.0 Type-B male plug on one end and a 19-pin motherboard header on the other, with a 50 cm black cable between them.

Which version of this cable should I choose for an internal 19-pin USB 3.0 header?

This single 50 cm model is built for that exact 19-pin header and delivers up to 5 Gbps; no other length or angle variants are listed.
