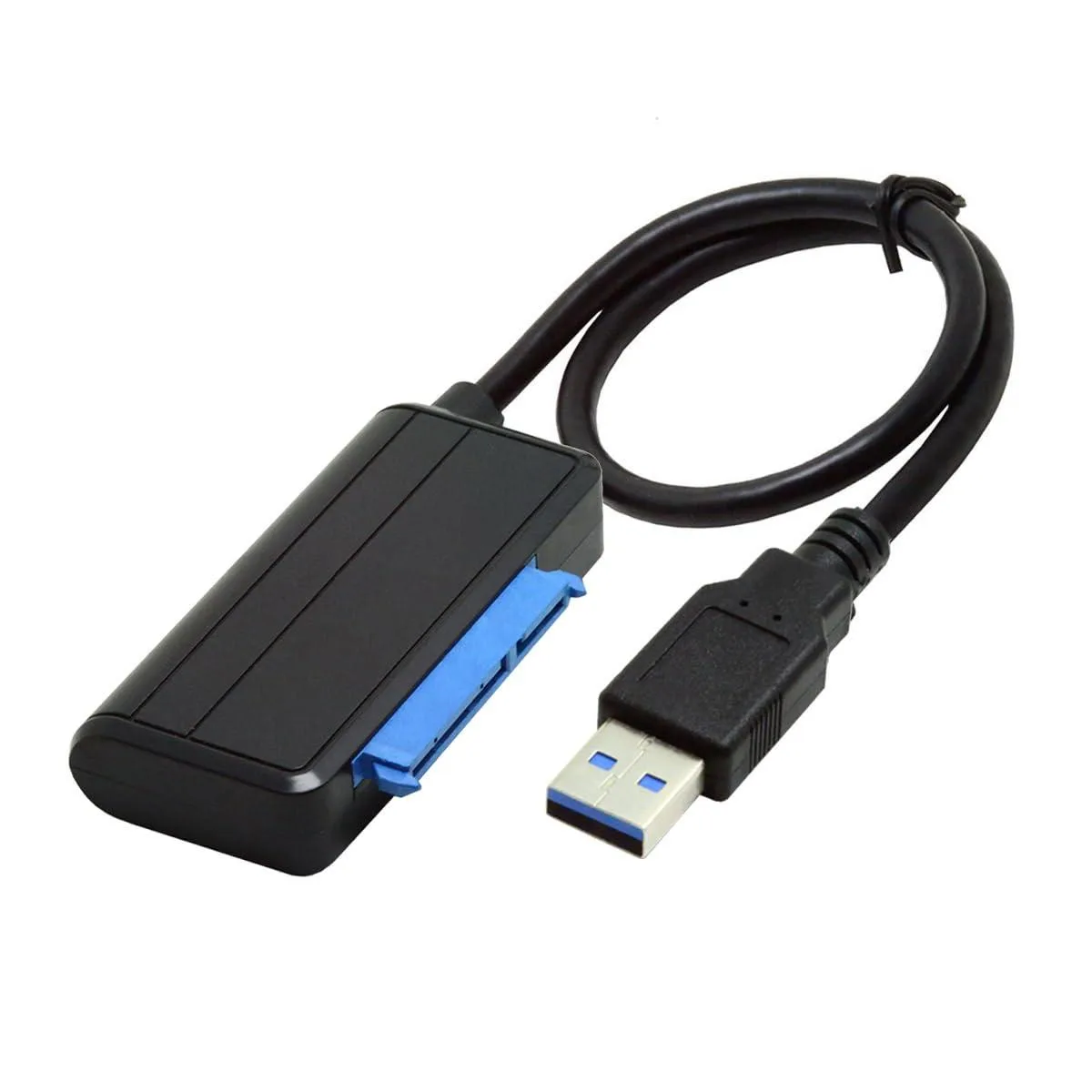

Black USB 3.0 Type-A to angled SATA 22-pin adapter cable

Vszerda

Vszerda USB 3.0 Type-A to SATA 22Pin Angled Adapter Cable

SKU CH-J72M-Q5TX2

Angled USB 3.0 to SATA 22-pin cable connects 2.5-inch or 3.5-inch drives at up to 5 Gb/s, with 3.5-inch units requiring separate 12 V power

  • TypeUSB
  • ColorBlack
  • FeaturesAngled Connector
  • USB 3.0 interface delivers up to 5 Gb/s transfer speed
  • Angled 22-pin SATA connector eases installation in tight spaces
  • Works with 2.5-inch drives using bus power alone
  • Supports 3.5-inch drives with external 12 V 2 A supply
  • Hot-swap and plug-and-play across Windows, Linux and macOS

Vszerda USB 3.0 to SATA 22-Pin Adapter Cable

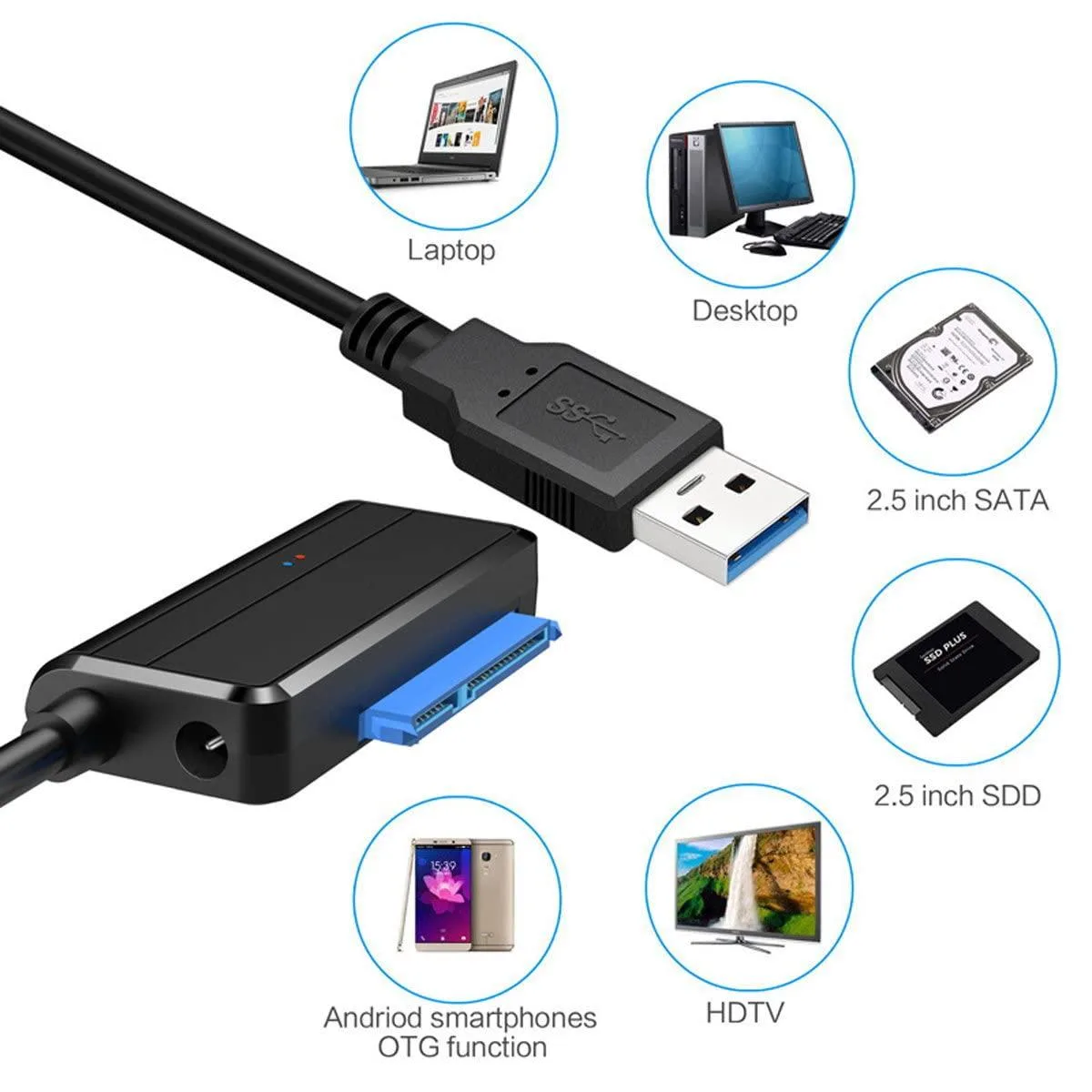

This angled adapter connects 2.5-inch or 3.5-inch SATA hard drives and SSDs to a USB 3.0 Type-A port on a desktop or laptop. It is built for users who need to access data from bare drives without installing them inside a case. The cable supports hot-swapping and plug-and-play operation across Windows, Linux and macOS without extra drivers.

USB 3.0 interface limited to 5 Gbps maximum

The SuperSpeed USB 3.0 link caps transfer rates at 5 Gbps, while the SATA side handles Gen1, Gen2 and Gen3 speeds of 1.5, 3.0 and 6 Gbps respectively. Actual sustained throughput will not exceed the USB 3.0 ceiling and falls back to USB 2.0 or 1.1 speeds when connected to older ports. Backward compatibility covers USB 1.0, 1.1 and 2.0 hosts.

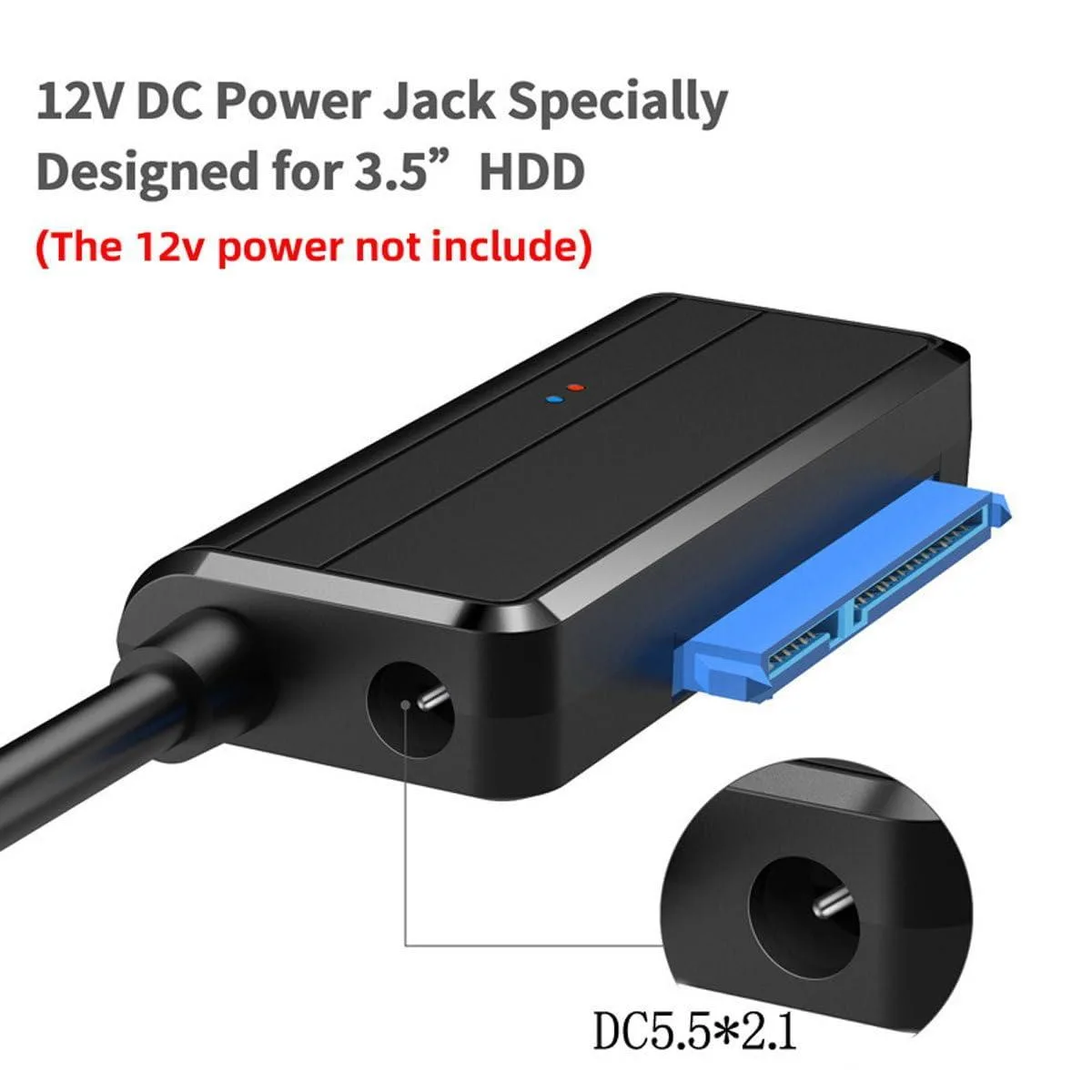

Check 12 V power requirement for 3.5-inch drives

A separate DC 12 V 2 A supply with a 5.5 mm × 2.1 mm barrel plug is mandatory for 3.5-inch desktop disks and is not included in the package. Laptop 2.5-inch drives draw sufficient power from the USB bus alone. Verify you have the correct external power brick before ordering if you plan to use 3.5-inch drives.

Highlights

  • USB 3.0 interface delivers up to 5 Gb/s transfer speed
  • Angled 22-pin SATA connector eases installation in tight spaces
  • Works with 2.5-inch drives using bus power alone
  • Supports 3.5-inch drives with external 12 V 2 A supply
  • Hot-swap and plug-and-play across Windows, Linux and macOS

Specifications

BrandNGFF
TypeUSB
ColorBlack
FeaturesAngled Connector

Questions about this item

Which cable version should I pick for a 3.5-inch desktop drive versus a 2.5-inch laptop drive?

The same cable works for both sizes; a 3.5-inch drive requires a separate DC 12 V 2 A supply with a 5.5 × 2.1 mm plug, while a 2.5-inch drive draws power from the USB port alone.

What does the 5 Gbps USB 3.0 rating actually deliver when I connect a SATA SSD?

The USB 3.0 link tops out at 5 Gbps, so real-world throughput will be limited to that ceiling even if the drive supports SATA 6 Gbps.

Which SATA standard does the adapter implement, and what speed does that cap in practice?

It complies with SATA revision 2.0, capping the native SATA link at 3.0 Gbps, though the USB 3.0 interface can run up to 5 Gbps.
