Blue USB 3.0 to USB-C 90-degree angled cable with panel-mount screw connectors, 2.0m length

Vszerda

Vszerda USB 3.0 to USB C 90° Angled Cable Panel Mount Screw 2.0m

SKU CH-27HK-JBB47

A 2.0 m USB 3.0 to USB C cable with a 90° angled connector, panel-mount screw lock and 4.8 Gbps throughput

  • TypeUSB
  • Connector TypeUSB Type C
  • Cable Length2.0
  • Length2.0
  • Connector DetailUSB Type C
  • Featuresshock-resistant
  • USB 3.0 delivers 4.8Gbps throughput for fast data transfer
  • 90° angled connector reduces strain in tight routing scenarios
  • Panel-mount screws spaced 15.0mm apart secure the cable in industrial setups
  • Screw lock removes easily when the port lacks threaded holes
  • 0m length provides reach for cameras, drives and phones

Industrial USB-C Cable with Screw Lock

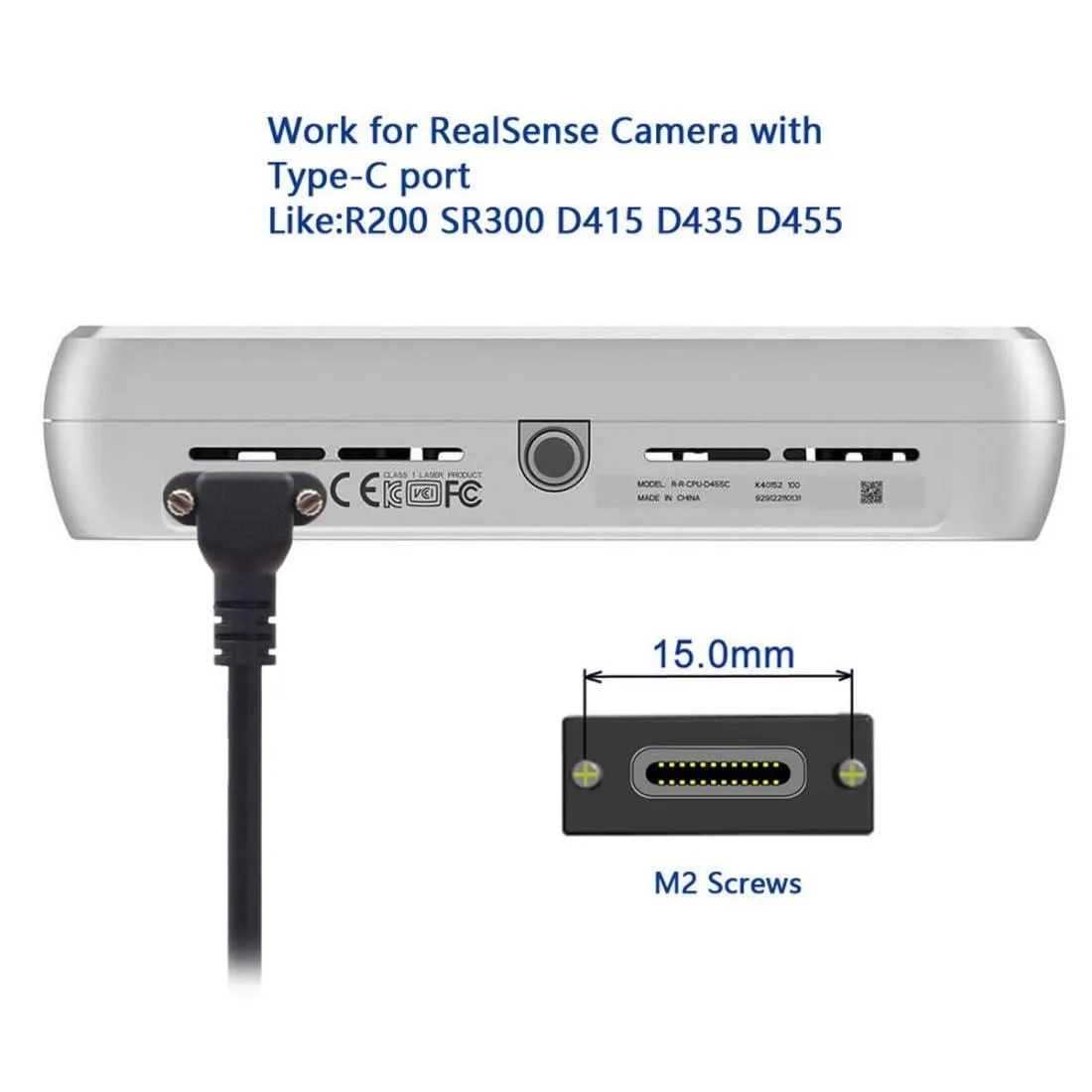

This 2.0 metre USB 3.0 to USB-C cable is built for industrial cameras, external hard disks, mobile phones and other devices that use a USB-C port. A 90° angled connector and panel-mount screw holes spaced 15.0 mm apart with M2*0.4 threads keep the link secure in vibration-prone environments. The screw lock can be removed if the host port does not accept it. The shock-resistant construction suits fixed installations and mobile rigs alike.

Throughput Decides Suitability

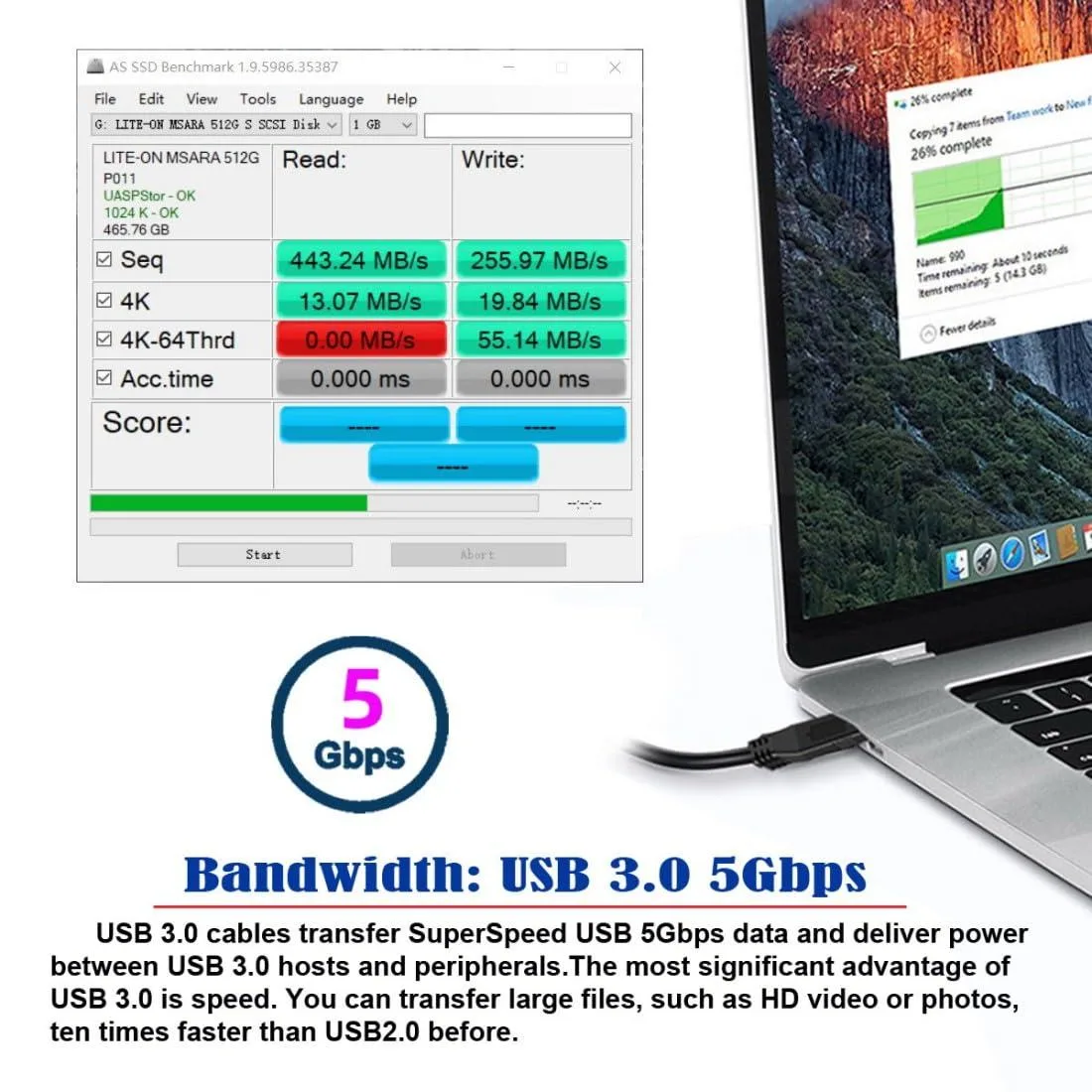

The cable delivers up to 4.8 Gbps when both host and device support USB 3.0, which is 10 times the 480 Mbps ceiling of USB 2.0. If your camera or storage unit only negotiates USB 2.0 speeds, the extra bandwidth will not be realised, so verify the port specification before purchasing. The 2.0 m length provides reach without exceeding the USB 3.0 passive-cable limit. No active electronics are present, so performance depends entirely on the connected endpoints.

Sustained Load Behaviour

The elbow design reduces mechanical stress on the connector during continuous flexing and fixed routing, extending service life compared with straight cables under the same strain. Shielding and conductor gauge are chosen to maintain the 4.8 Gbps signal integrity over the full 2.0 m during prolonged transfers, not just in short bursts. Heat rise remains low because the cable carries only data and standard USB power, not high-current charging profiles. The removable screw lock does not affect electrical performance when engaged or removed.

Highlights

  • USB 3.0 delivers 4.8Gbps throughput for fast data transfer
  • 90° angled connector reduces strain in tight routing scenarios
  • Panel-mount screws spaced 15.0mm apart secure the cable in industrial setups
  • Screw lock removes easily when the port lacks threaded holes
  • 0m length provides reach for cameras, drives and phones

Specifications

Brandchenyang
ModelCY-UC-128-2.0M
TypeUSB
Connector TypeUSB Type C
Cable Length2.0
Length2.0
Connector DetailUSB Type C
Featuresshock-resistant

Questions about this item

What does the 4.8Gbps throughput mean for my industrial camera?

With a USB 3.0 host and device the cable can move data at up to 4.8Gbps, roughly ten times the 480Mbps ceiling of USB 2.0, so high-resolution frames transfer without the bottleneck of the older standard.

Which USB standard does the connector use and what speed ceiling does that impose?

The Type C plug follows the USB 3.0 specification, capping practical throughput at 4.8Gbps when both ends support that generation; it will fall back to 480Mbps if either side is only USB 2.0.

What are the exact screw spacing and thread size for panel mounting?

The two mounting screws sit 15.0mm apart and use an M2*0.4 thread; the bracket can be removed if your panel lacks matching holes.
