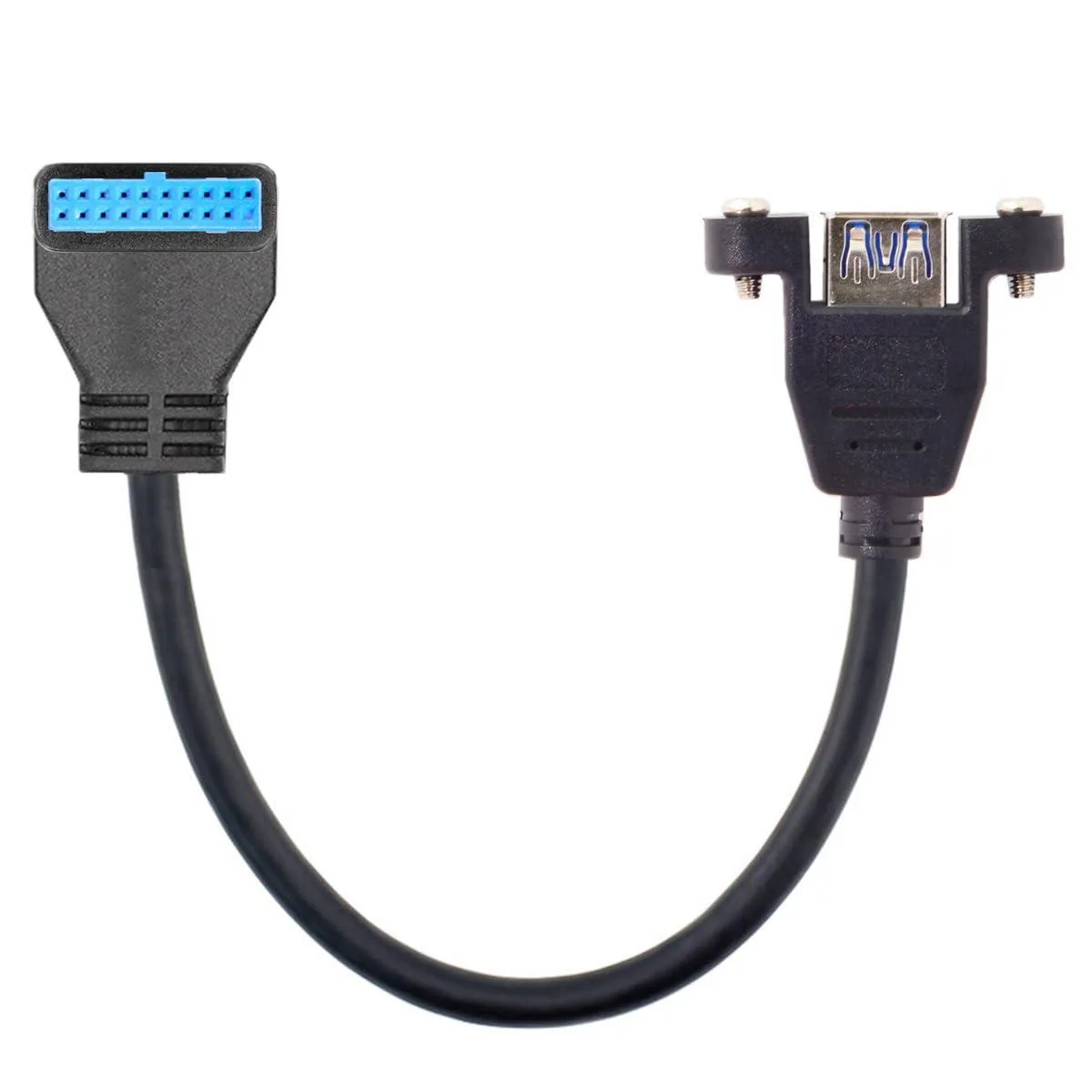

USB 3.0 Type-A female screw-mount to 20-pin header 90-degree angled cable 25cm

Vszerda

Vszerda USB 3.0 A Female Screw Mount to 20-pin Header 90° Angled 25cm

SKU CH-JBNY-Z6GXK

Connects a motherboard 20-pin header to a screw-mount USB 3.0 Type-A port with a 90° angled 25 cm cable for tight spaces

  • TypeUSB3.0
  • Connector TypeUsb3.0 Type-a to 19pin/20pin
  • Connector Number24
  • Connector DetailUsb3.0 Type-a to 19pin/20pin
  • Terminal GenderMale
  • Speed5 gigabytes_per_second
  • Screw-mount female port secures front-panel USB 3.0 connections

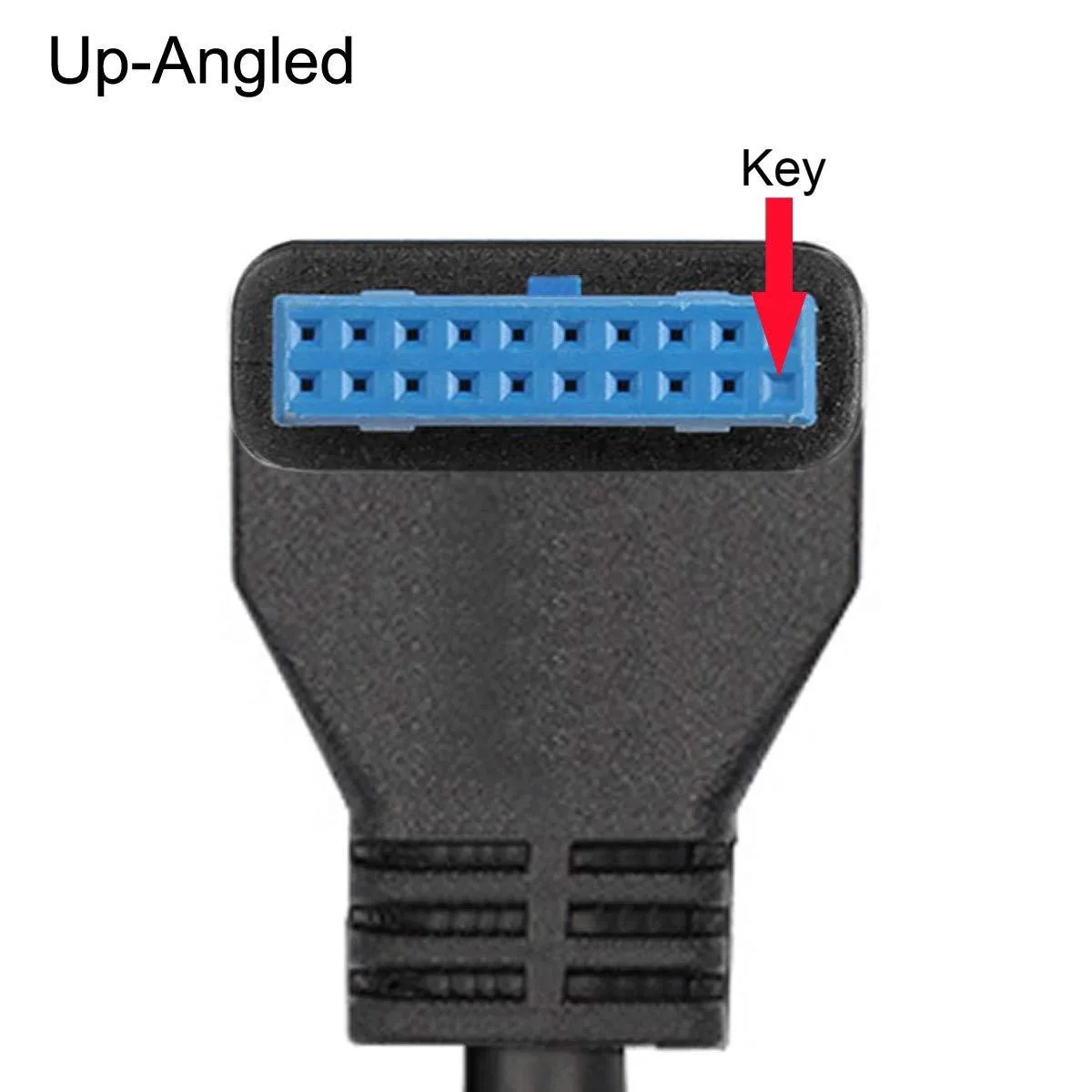

  • 90-degree angled header fits tight motherboard clearances
  • 25 cm cable reaches front-panel headers without strain
  • 20-pin header converts to USB 3.0 Type-A speeds
  • Copper construction supports 5 gigabytes_per_second data rates

USB 3.0 Front-Panel Adapter Cable

This 25 cm cable converts a motherboard 20-pin header into a single USB 3.0 Type-A port with screw-mount flanges. The 90-degree angled header lets builders route the connection in tight chassis corners. It targets system integrators and DIY enthusiasts adding front-panel USB 3.0 to cases that lack a native header.

Bandwidth and Connector Limits

The link runs at the USB 3.0 5 Gbps signalling rate over copper conductors. The 24-contact header plug mates with standard 19/20-pin motherboard sockets, but the assembly provides only one Type-A receptacle, so a second front-panel port requires an additional cable. Length is fixed at 25 cm, restricting placement to nearby drive bays or front-panel cut-outs.

Mounting Hardware Included

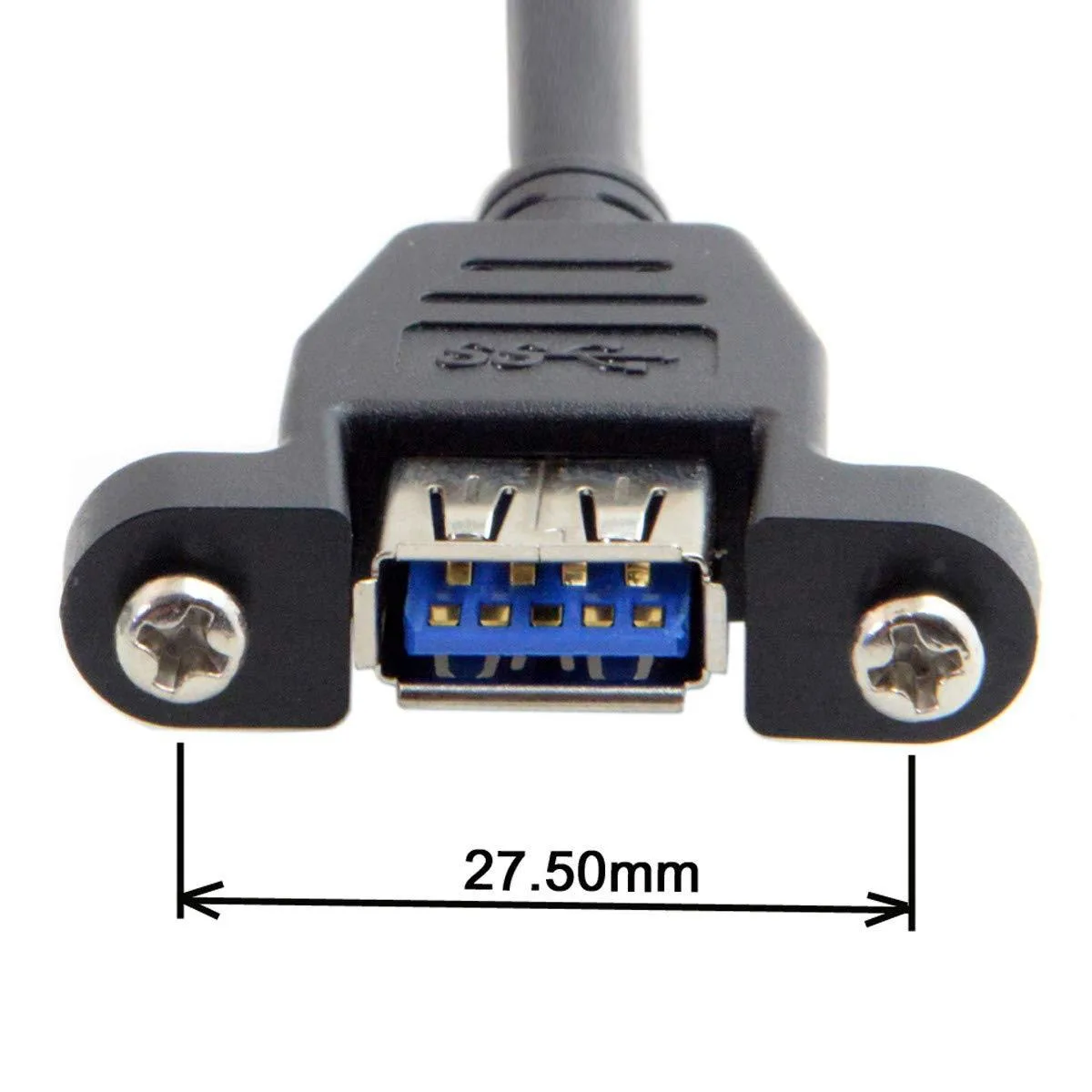

Two screw holes on the Type-A flange secure the port to a chassis cut-out, preventing the connector from pushing back during cable insertion. No driver disc, software utility or additional brackets are bundled; the cable is a purely passive mechanical and electrical adapter.

Highlights

  • Screw-mount female port secures front-panel USB 3.0 connections
  • 90-degree angled header fits tight motherboard clearances
  • 25 cm cable reaches front-panel headers without strain
  • 20-pin header converts to USB 3.0 Type-A speeds
  • Copper construction supports 5 gigabytes_per_second data rates

Specifications

BrandVszerda
TypeUSB3.0
Connector TypeUsb3.0 Type-a to 19pin/20pin
Connector Number24
Connector DetailUsb3.0 Type-a to 19pin/20pin
Terminal GenderMale
Speed5 gigabytes_per_second
ConstructionCopper
FeaturesAngled

Questions about this item

Will the 20-pin header fit my motherboard that only has a 19-pin USB 3.0 connector?

The cable uses a 19-pin/20-pin connector that matches standard motherboard USB 3.0 headers, so it will connect to either pin count.

How can I verify the 5 Gbps link is active after installing the angled cable?

Check the operating system device manager or USB controller view — it should list the port as SuperSpeed or USB 3.0 running at 5 Gbps.

Does the package include mounting screws for the two screw holes on the Type-A end?

The cable has two screw holes on the female Type-A connector, but screws are not included and must be sourced separately.
