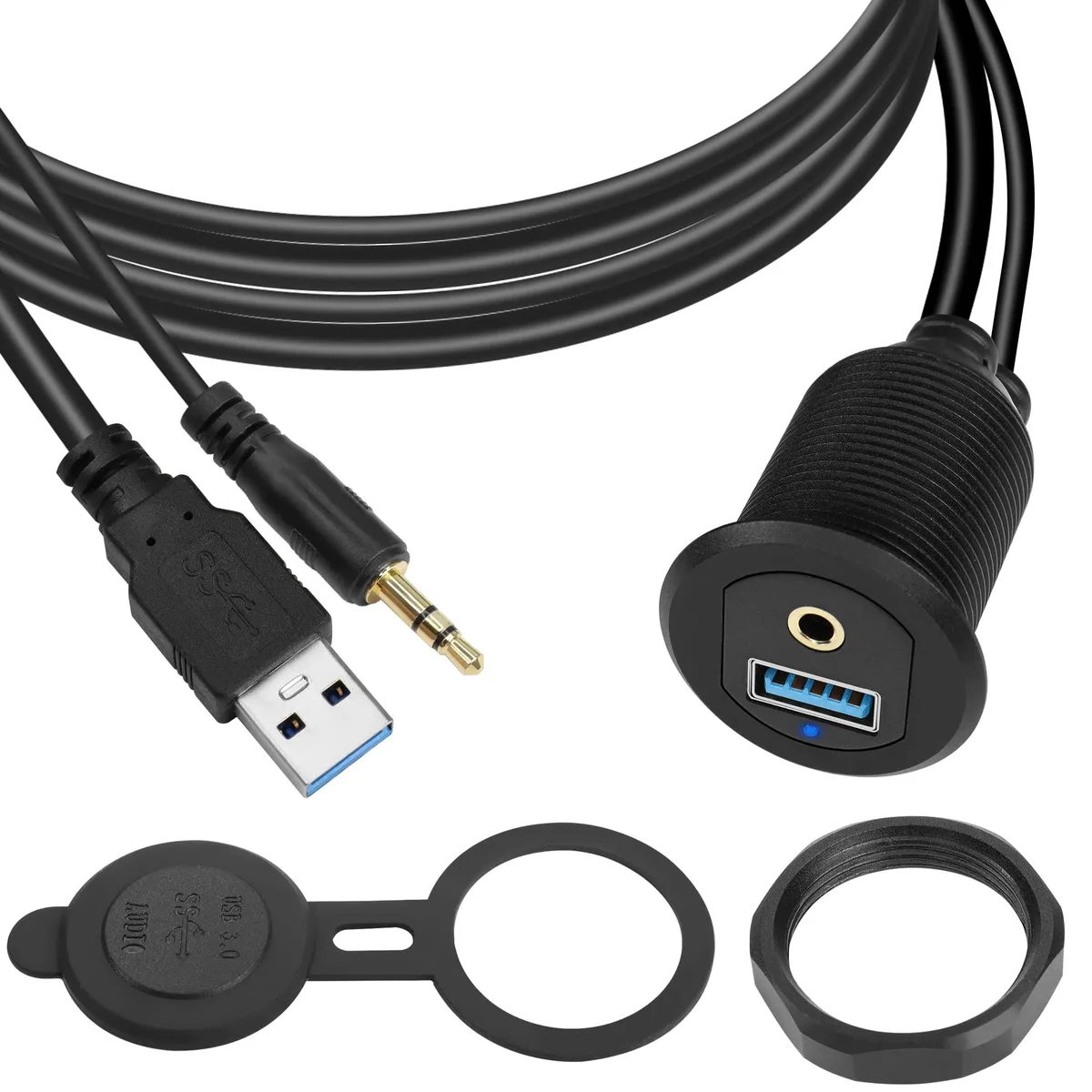

Black aluminium panel-mount cable with USB 3.0 and 3.5 mm audio connectors, threaded nut, waterproof cap, two-metre length

Vszerda

Vszerda USB 3.0 & 3.5mm Audio Panel Mount Cable 2m Waterproof

SKU CH-T7SV-S5RKP

A 2 m panel-mount cable adds USB 3.0 and 3.5 mm audio ports to a dashboard or bulkhead with a waterproof, aluminium housing

  • TypeUSB
  • Connector TypeUSB Type A
  • ColorBlack
  • Cable Length2
  • Length2
  • Connector Number7
  • Combined USB 3.0 data and 3.5 mm audio in one cable
  • 5 Gbps transfer speed for fast file moves
  • Aluminium alloy housing resists knocks and vibration
  • M26 x 1.5 threaded nut mounts securely in a 27 mm cut-out
  • Waterproof dust cover protects ports in outdoor conditions

Dashboard USB-Audio Extension

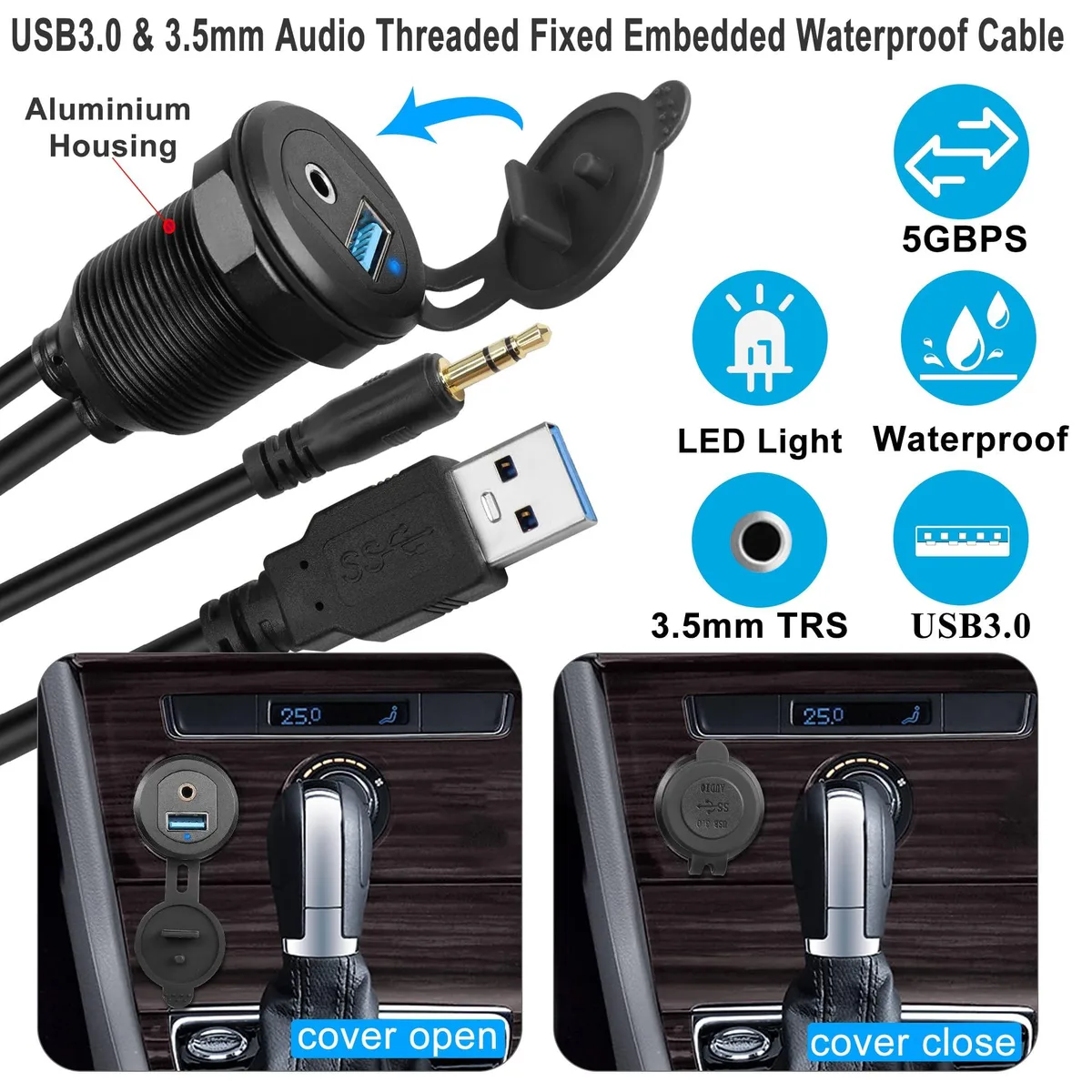

This panel-mount cable adds a USB 3.0 port and a 3.5 mm stereo jack to a vehicle dashboard or desktop surface. It carries 5 Gbps data and 5 V 1 A charging on the USB side while passing analogue audio independently. The aluminium-alloy housing uses an M26 x 1.5 thread and requires a 27 mm cut-out for a secure, flush fit.

Installation Notes

Drill a 27 mm hole, insert the barrel from the front and tighten the supplied aluminium nut from behind; no soldering or special tools are needed. The two internal cables run separately, so USB traffic does not induce noise on the audio line. A common mistake is over-tightening the nut and cracking thin plastic panels — stop when the flange seats firmly.

Capacity and Limits

The 2 m length reaches most centre-console or helm positions without strain. USB 3.0 bandwidth handles external SSDs, cameras and phone mirroring at full speed, while the 5 V 1 A supply suits phone charging but not high-draw tablets. The TRS jack passes line-level stereo only; it cannot drive headphones directly or carry microphone signals. The IP-rated cover seals the ports when not in use, yet the cable is not rated for permanent submersion.

Highlights

  • Combined USB 3.0 data and 3.5 mm audio in one cable
  • 5 Gbps transfer speed for fast file moves
  • Aluminium alloy housing resists knocks and vibration
  • M26 x 1.5 threaded nut mounts securely in a 27 mm cut-out
  • Waterproof dust cover protects ports in outdoor conditions

Specifications

BrandQIANRENON
TypeUSB
Connector TypeUSB Type A
ColorBlack
Cable Length2
Length2
Connector Number7
Connector DetailUSB Type A
Terminal GenderMale-to-Female
Speed5 gigabits_per_second
ConstructionCopper
FeaturesWaterproof

Questions about this item

How do I confirm the panel mount is passing 5Gbps USB 3.0 data after installation?

Connect a USB 3.0 flash drive to the female port and verify the host device reports a 5Gbps SuperSpeed connection in its USB settings or device manager.

What comes in the box and what extra parts are needed for the dashboard install?

The package includes one 2m male-to-female USB 3.0 and 3.5mm audio cable with an M26 x 1.5 aluminium nut; you must supply the dashboard and cut a 27mm hole yourself.

Which cable length should I choose for a standard car dashboard run?

The 2m (6.5ft) length is the only version offered and is designed to reach from a rear-mounted source to a front dashboard panel.
