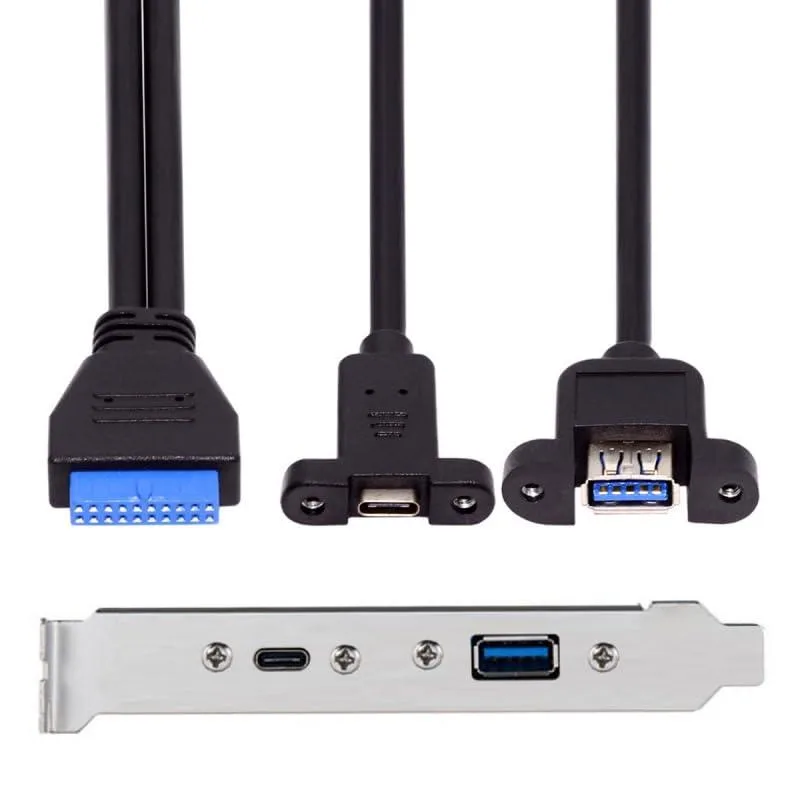

50 cm internal cable with 19/20-pin header to dual USB Type-C and Type-A female ports

Vszerda

Vszerda USB 3.0 19/20-pin to Type-C & Type-A female bracket cable 50cm

SKU CH-YR61-VX4AB

Adds a USB 3.0 Type-A and Type-C port to a PC back panel from a motherboard 19/20-pin header, delivering 5 Gbps data for SSDs or HDDs

  • Connector TypeUSB Type C
  • ColorDual Type-A+C Female to USB3.0-19P Header
  • Connector DetailUSB Type C
  • ConstructionCopper
  • Adds front-panel USB-C and USB-A ports via a 19/20-pin motherboard header
  • Delivers up to 5 Gbps data transfer for external SSDs and HDDs
  • Maintains backward compatibility with USB 2.0 and USB 1.1 devices
  • 50 cm cable length suits standard ATX and micro-ATX case layouts
  • Type-C port carries data only — no video, audio, PD or DP alt-mode support

Vszerda USB 3.0 bracket cable

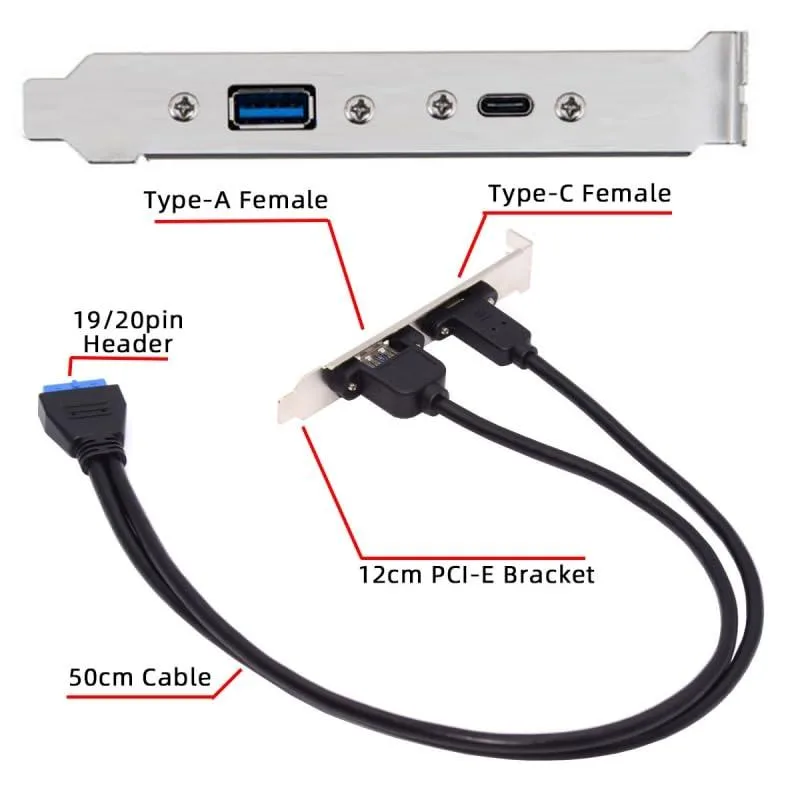

This 50 cm cable converts a motherboard 19/20-pin header into one USB Type-C and one USB Type-A female port on a PCIe back-panel bracket. It targets builders who want front-panel USB 3.0 connectivity on a case that lacks native Type-C ports. The adapter supports USB 3.0, 2.0 and 1.1 speeds for broad device compatibility.

Installation notes and common issues

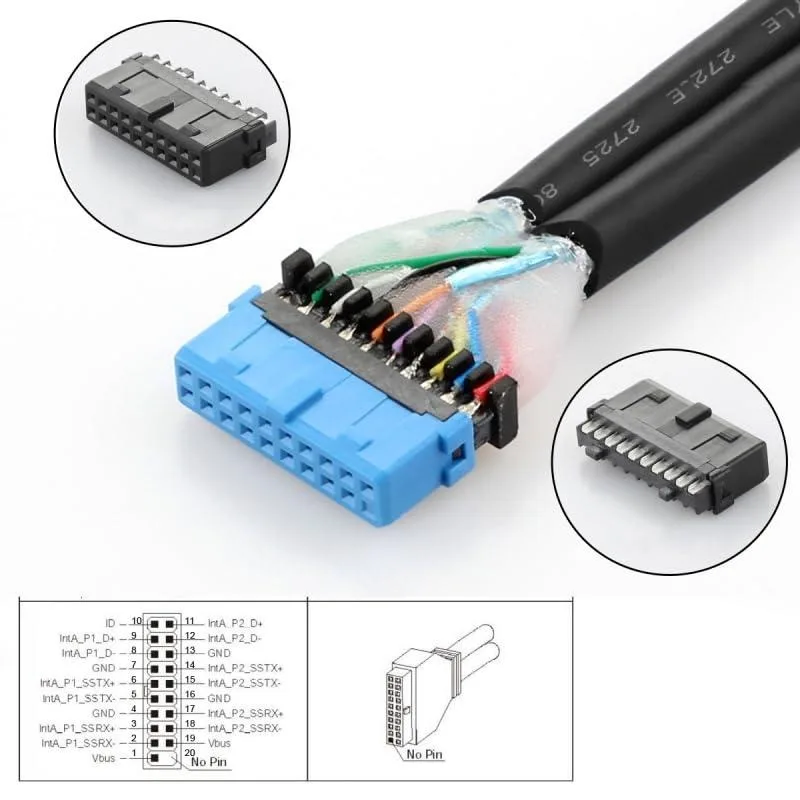

The bracket mounts into a standard PCIe slot opening and plugs directly onto the 19/20-pin header; no drivers are required. Builders must verify header pin-out matches the board manual because keying varies between vendors. The Type-C port carries data only and will not negotiate Power Delivery or DisplayPort alternate mode, so monitors and high-power chargers will not work.

USB 3.0 interface limits

The link tops out at 5 Gbps and falls back to 480 Mbps or 1.5 Mbps for older peripherals. Cable length is fixed at 50 cm, which restricts routing options in larger chassis. The connector does not support audio, video, docking or any PD power profiles, limiting it to pure data transfers with SSDs, HDDs or flash drives.

Highlights

  • Adds front-panel USB-C and USB-A ports via a 19/20-pin motherboard header
  • Delivers up to 5 Gbps data transfer for external SSDs and HDDs
  • Maintains backward compatibility with USB 2.0 and USB 1.1 devices
  • 50 cm cable length suits standard ATX and micro-ATX case layouts
  • Type-C port carries data only — no video, audio, PD or DP alt-mode support

Specifications

BrandVszerda
Connector TypeUSB Type C
ColorDual Type-A+C Female to USB3.0-19P Header
Connector DetailUSB Type C
ConstructionCopper

Questions about this item

How can I verify the 5 Gbps link is active after connecting the 19/20-pin header to my motherboard?

Check the OS device manager or USB tree view — both the Type-C and Type-A ports should enumerate as SuperSpeed USB 3.0 devices when a 5 Gbps drive is attached.

What comes in the box and what must I source separately?

The package contains the 50 cm bracket cable with dual Type-C and Type-A female ports; you supply the motherboard with a 19/20-pin USB 3.0 header and a PCI-E back-panel slot.

Which header version should I choose for a board that only has a 19-pin USB 3.0 connector?

The cable fits both 19-pin and 20-pin motherboard headers, so the single version works for either layout.
