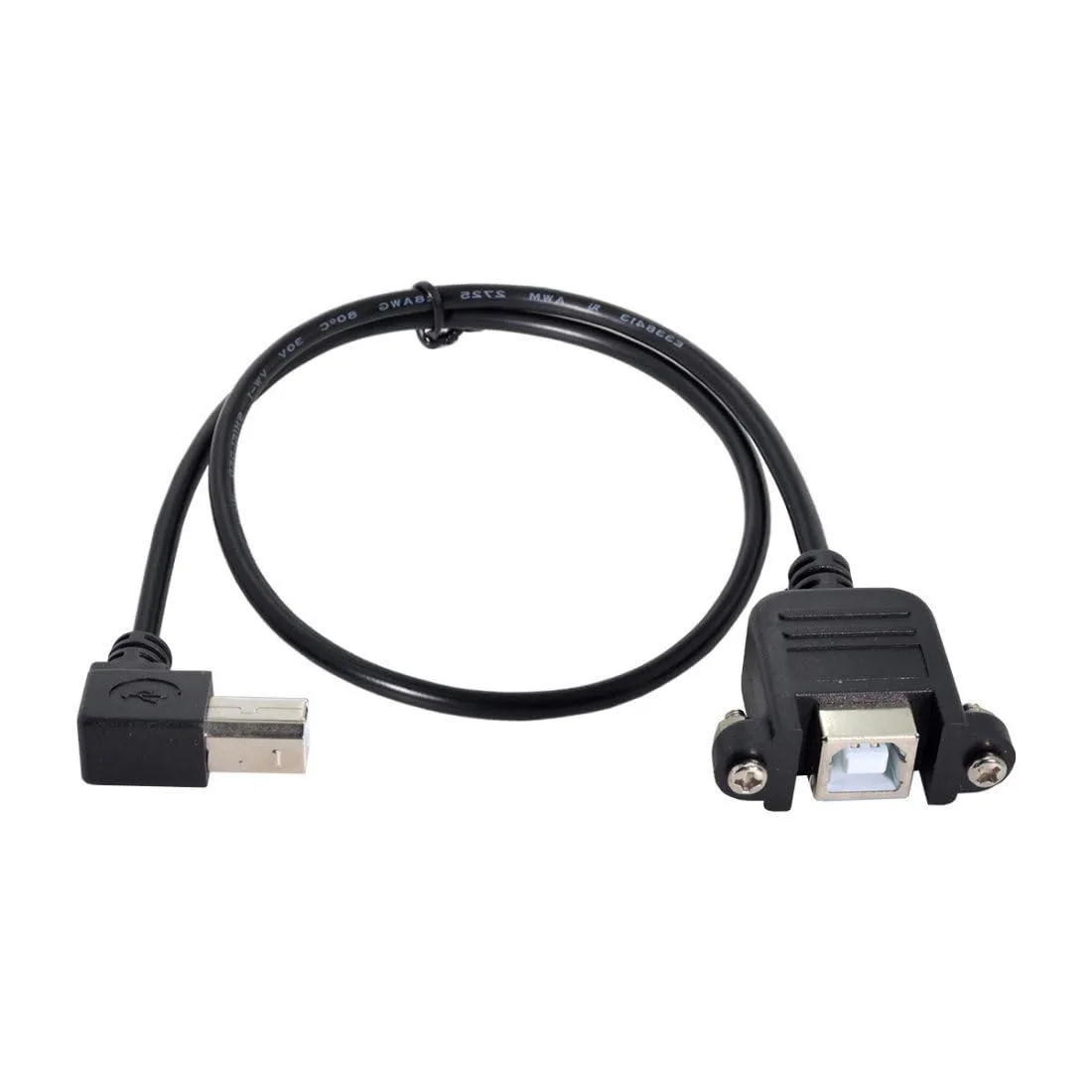

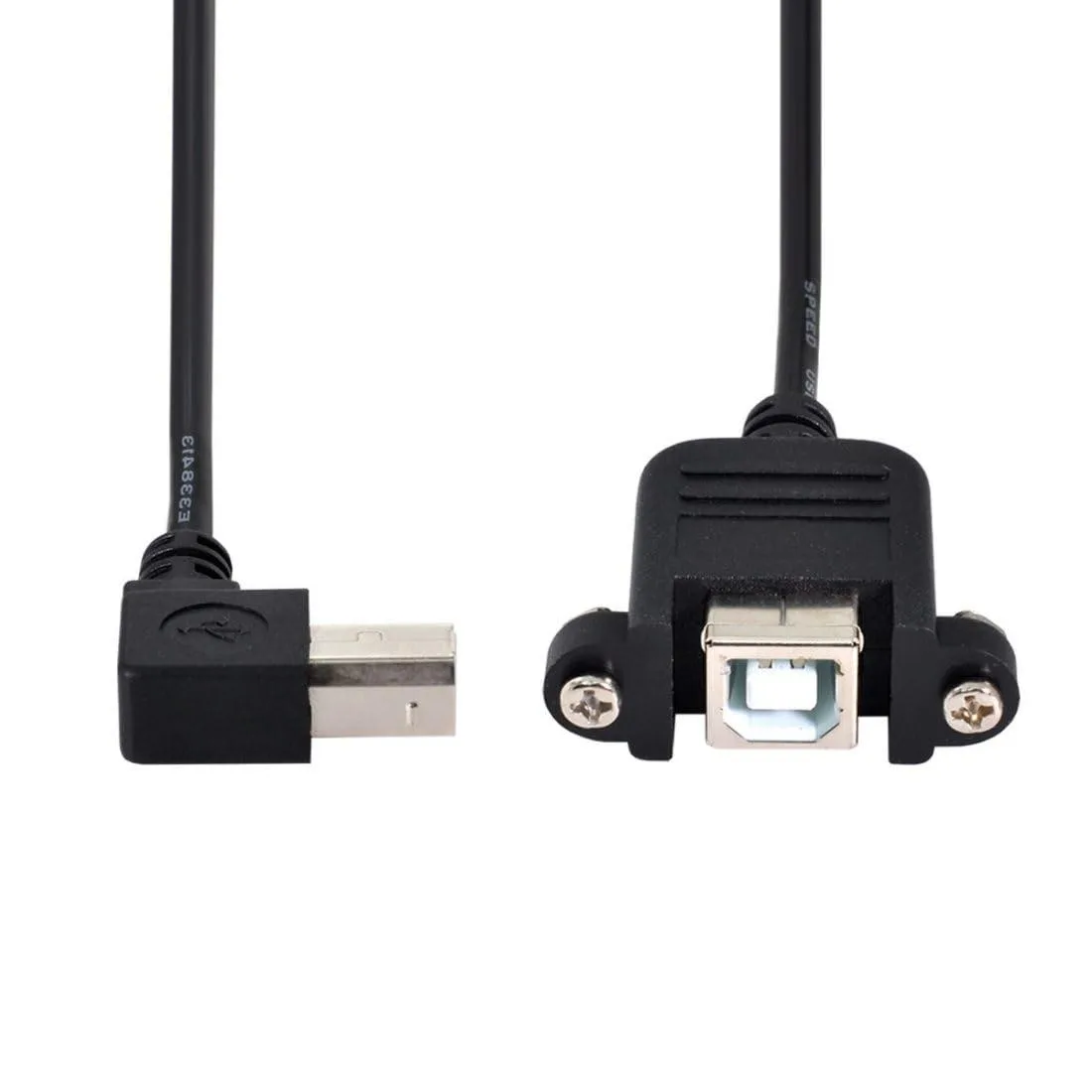

Braided USB 2.0 Type B male to panel-mount female right-angle cable 50cm

Vszerda

Vszerda USB 2.0 Type B Male to Female Panel Mount Braided Cable 50cm 90 Degree Right Angled 005-U2-059

SKU CH-XWGT-W3XVY

A 50 cm braided USB 2.0 Type B extension cable with a 90-degree male plug and a panel-mount female end secured by screws

  • TypeUSB
  • Connector TypeUsb 2.0
  • Connector Number4
  • Connector DetailUsb 2.0
  • Terminal GenderMale
  • ConstructionCopper
  • 90-degree right-angled connector fits tight spaces
  • Panel-mount female port with screws secures installation
  • Braided 28 AWG cable resists wear and tangles
  • 50 cm length keeps desk clutter minimal
  • USB 2.0 Type B male to female extends printer or scanner links

USB 2.0 Type B panel-mount cable

This 50 cm braided cable provides a USB 2.0 Type B male connector on one end and a screw-mount Type B female port on the other. It is built for printers, scanners and external hard-disk enclosures that need a fixed bulkhead connection. The 28 AWG copper conductors handle standard USB 2.0 data rates while the braided jacket resists wear in tight enclosures.

Replaces loose or short factory cables

Use this assembly when the original device cable is too short to reach a rear-panel cut-out or when a removable panel interface is preferred over a trailing cord. The right-angled male plug reduces strain in shallow chassis and the 90° orientation keeps the cable close to the mounting surface. It is not suited for USB 3.0 or higher speeds, so devices that require SuperSpeed bandwidth need a different cable.

Stable under continuous transfer

The braided shielding and screw-secured female port maintain signal integrity during long print jobs or sustained disk transfers. Heat buildup remains minimal because USB 2.0 current limits are low and the 28 AWG conductors are adequate for the spec. The panel-mount screws prevent vibration from unseating the connection in rack or kiosk installations.

Highlights

  • 90-degree right-angled connector fits tight spaces
  • Panel-mount female port with screws secures installation
  • Braided 28 AWG cable resists wear and tangles
  • 50 cm length keeps desk clutter minimal
  • USB 2.0 Type B male to female extends printer or scanner links

Specifications

Brandchenyang
TypeUSB
Connector TypeUsb 2.0
Connector Number4
Connector DetailUsb 2.0
Terminal GenderMale
ConstructionCopper
FeaturesBraided

Questions about this item

What panel cut-out size does the USB 2.0 Type B female connector with screws need?

The connector uses a standard USB 2.0 Type B panel-mount footprint; allow roughly 3.94 x 3.94 inches of clearance for the flange and screw holes.

How do I install the cable so the 90-degree right-angled male plug does not strain the port?

Route the 50 cm braided cable so the right-angled plug inserts straight into the host port, then secure the female end with the two mounting screws before tightening.

When should I replace the 28 AWG braided extension cable?

Replace it if the braid frays, the right-angle plug wobbles in the port, or data transfers become intermittent after repeated panel mounting cycles.
