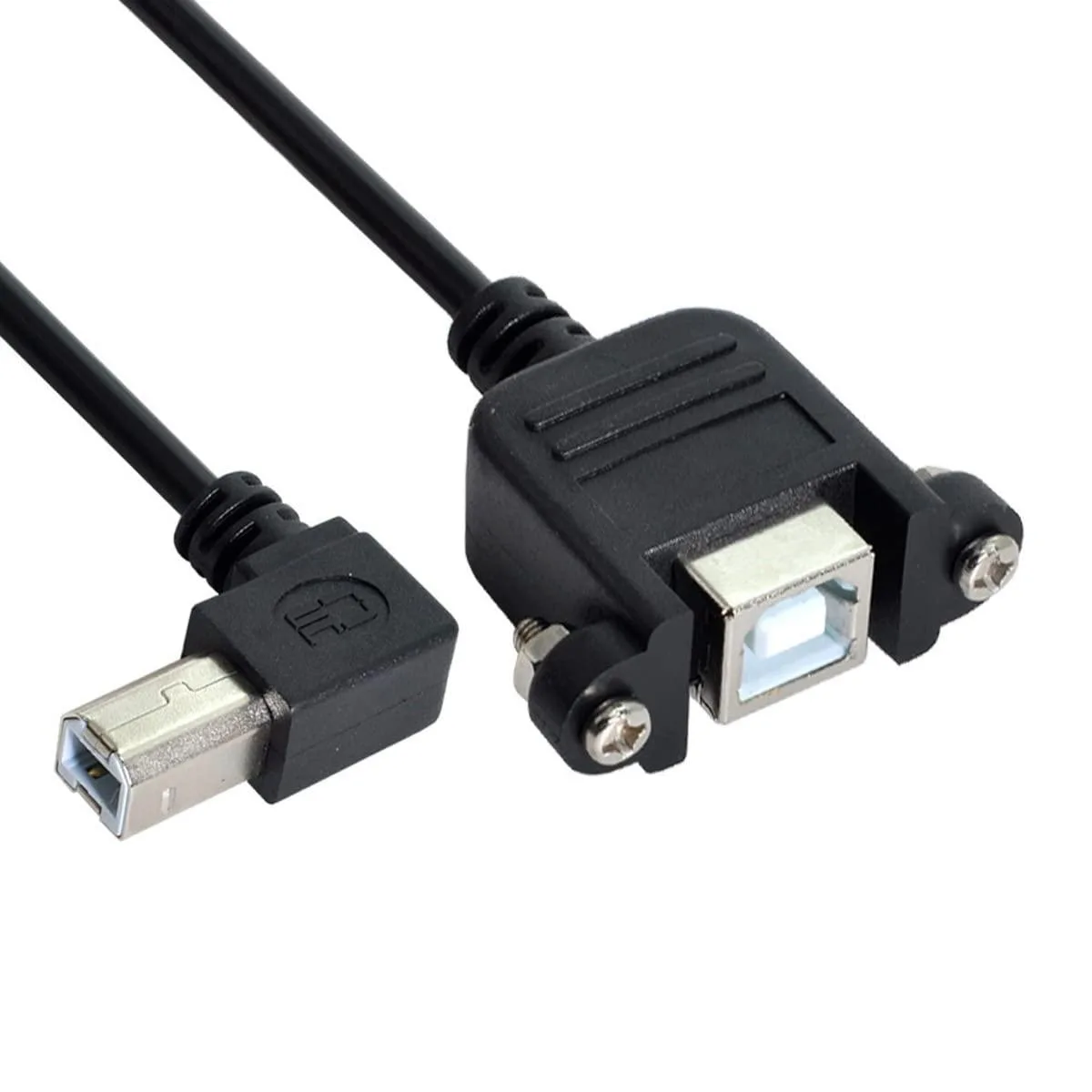

Black USB 2.0 Type-B male to panel-mount female cable, left 90-degree angled, 50 cm

Vszerda

Vszerda USB 2.0 Type-B Male to Female Extension Cable 50cm Left Angled 90 Degree with Screws Panel Mount

SKU CH-VRPP-KM7W6

A 50 cm left-angled 90 degree USB 2.0 Type-B male to female extension cable with panel-mount screws and double-shielded 28 AWG copper conductors for reliable 480 Mbps data transfer in tight spaces

  • TypeUSB
  • Connector TypeUsb2.0
  • ColorBlack Left Angled
  • Connector Number4
  • Connector DetailUsb2.0
  • Terminal GenderMale

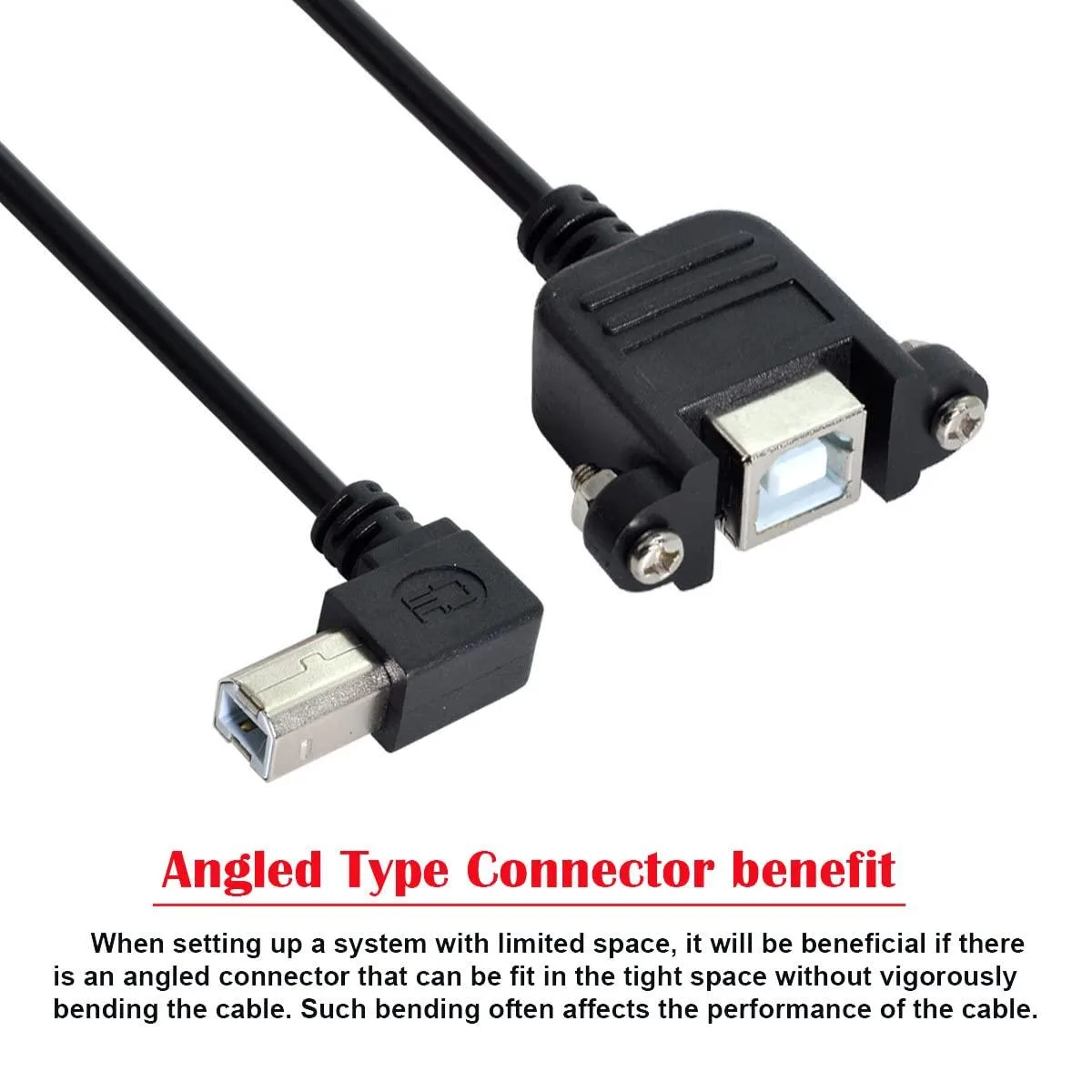

  • Connects in tight spaces with 90 degree left-angled connector

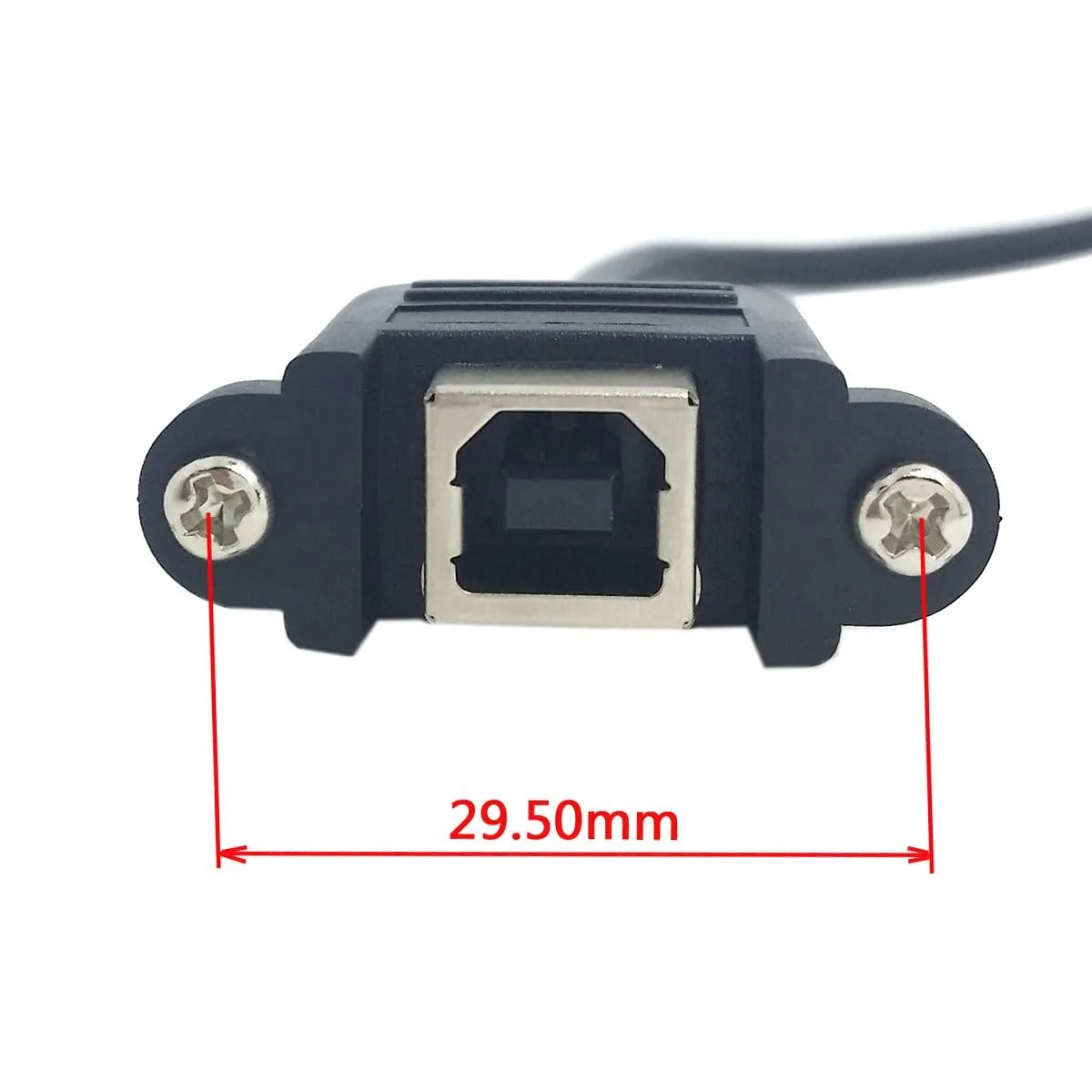

  • Secure panel mounting using integrated screw holes on female end
  • Reliable data transfer at 480 Mbps via USB 2.0 standard
  • Shielded 28 AWG copper cable reduces electromagnetic interference
  • Extends USB Type-B connections by 50 cm for printers or scanners

Tight-fit USB 2.0 Type-B extension

This 50 cm USB 2.0 Type-B male-to-female extension cable features a left-angled 90-degree connector that fits into confined ports on printers, scanners or external disks. The panel-mount female end secures with screws for a permanent bulkhead installation. It extends the reach of existing Type-B cables without adding bulk.

Shielded copper construction for interference

The cable uses 28 AWG copper conductors wrapped in foil and braided double shielding to minimise crosstalk and electromagnetic interference. Pure copper cores maintain signal integrity across the full length. The black angled housing is moulded for strain relief at the bend point.

Limited to USB 2.0 bandwidth and Type-B devices

Data transfers run at 480 Mbps, the maximum defined by the USB 2.0 standard, so high-throughput peripherals will not reach their potential speed. The Type-B connectors restrict use to legacy printer, scanner or disk enclosures; newer USB-C or Micro-B equipment cannot be attached.

Highlights

  • Connects in tight spaces with 90 degree left-angled connector
  • Secure panel mounting using integrated screw holes on female end
  • Reliable data transfer at 480 Mbps via USB 2.0 standard
  • Shielded 28 AWG copper cable reduces electromagnetic interference
  • Extends USB Type-B connections by 50 cm for printers or scanners

Specifications

BrandVszerda
TypeUSB
Connector TypeUsb2.0
ColorBlack Left Angled
Connector Number4
Connector DetailUsb2.0
Terminal GenderMale
Speed480 megabits_per_second
ConstructionCopper
FeaturesUSB2.0

Questions about this item

What speed does the USB 2.0 interface on this cable cap at in practice?

The cable supports the USB 2.0 maximum of 480 Mbps, so real-world throughput will not exceed that rate.

What physical clearance does the 90-degree left-angled male plug and the panel-mount female end with screws need to fit?

The 90-degree left-angled male plug fits tight spaces beside a port, while the panel-mount female end requires a cut-out and screw holes for secure mounting.

How is this cable installed, and what step do people often get wrong?

Screw the panel-mount female end into the enclosure cut-out first, then plug the angled male end into the device port; skipping the panel-mount step leaves the female connector loose.
