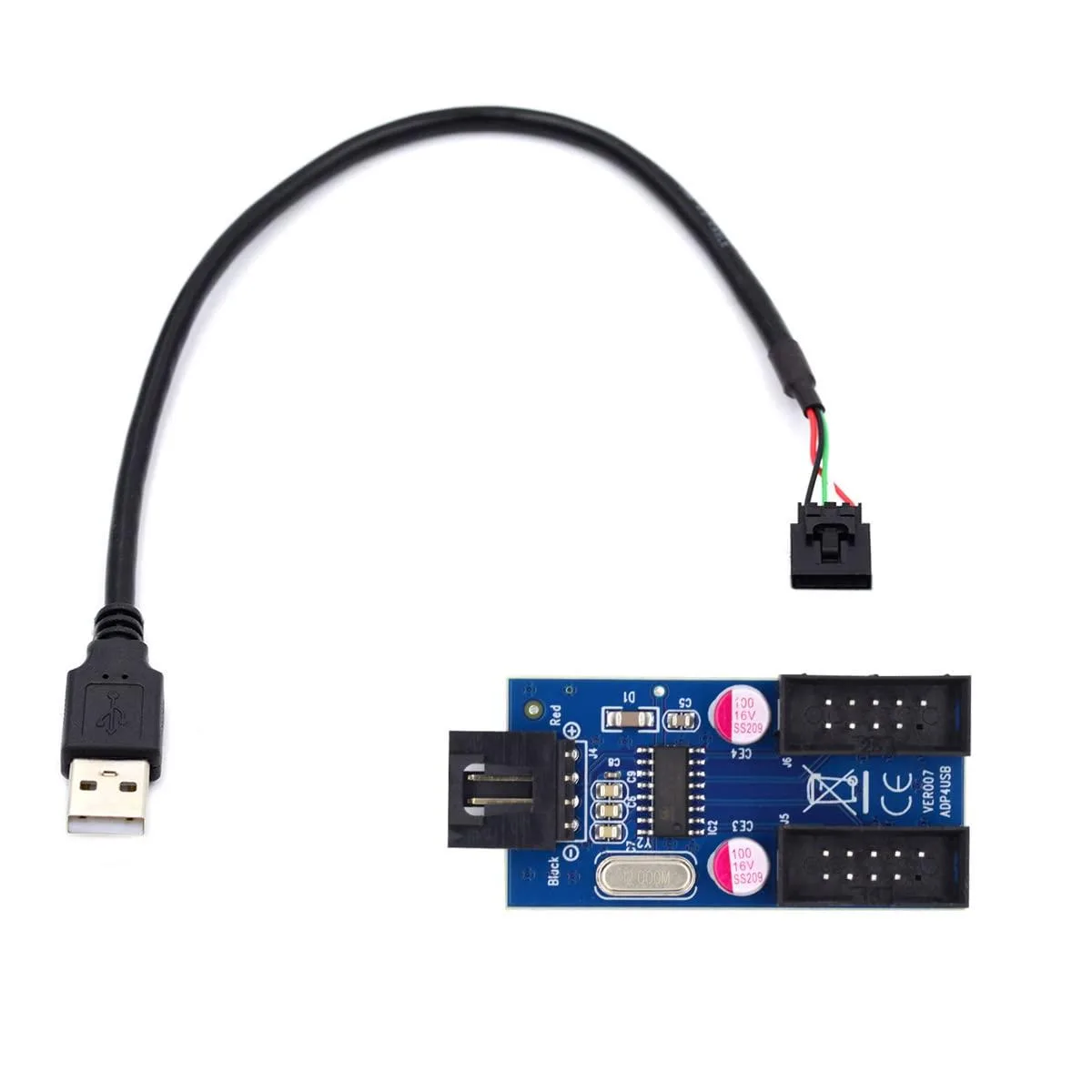

Black USB 2.0 10-pin header splitter cable with adhesive backing, one male to two female connectors

Vszerda

Vszerda USB 2.0 Header 10pin 1 to 2 Female Splitter Cable

SKU CH-GSJQ-CRDJQ

Splits one USB 2.0 motherboard header into two female ports with an integrated hub chip supporting 480 Mbps and 500 mA per port, and includes adhesive backing for chassis mounting

  • TypeUSB
  • Connector TypeUSB Type A
  • ColorBlack 1 to 2 Cable+USB
  • Connector DetailUSB Type A
  • ConstructionCopper
  • FeaturesHigh Speed
  • Splits one internal USB header into two ports
  • Built-in hub chipset delivers 480 Mbps data speed
  • Each port supplies 500 mA at 5 V for reliable power
  • Adhesive backing lets you secure the splitter to the board or chassis
  • Copper construction ensures stable signal transmission

Splitter cable for internal USB 2.0 headers

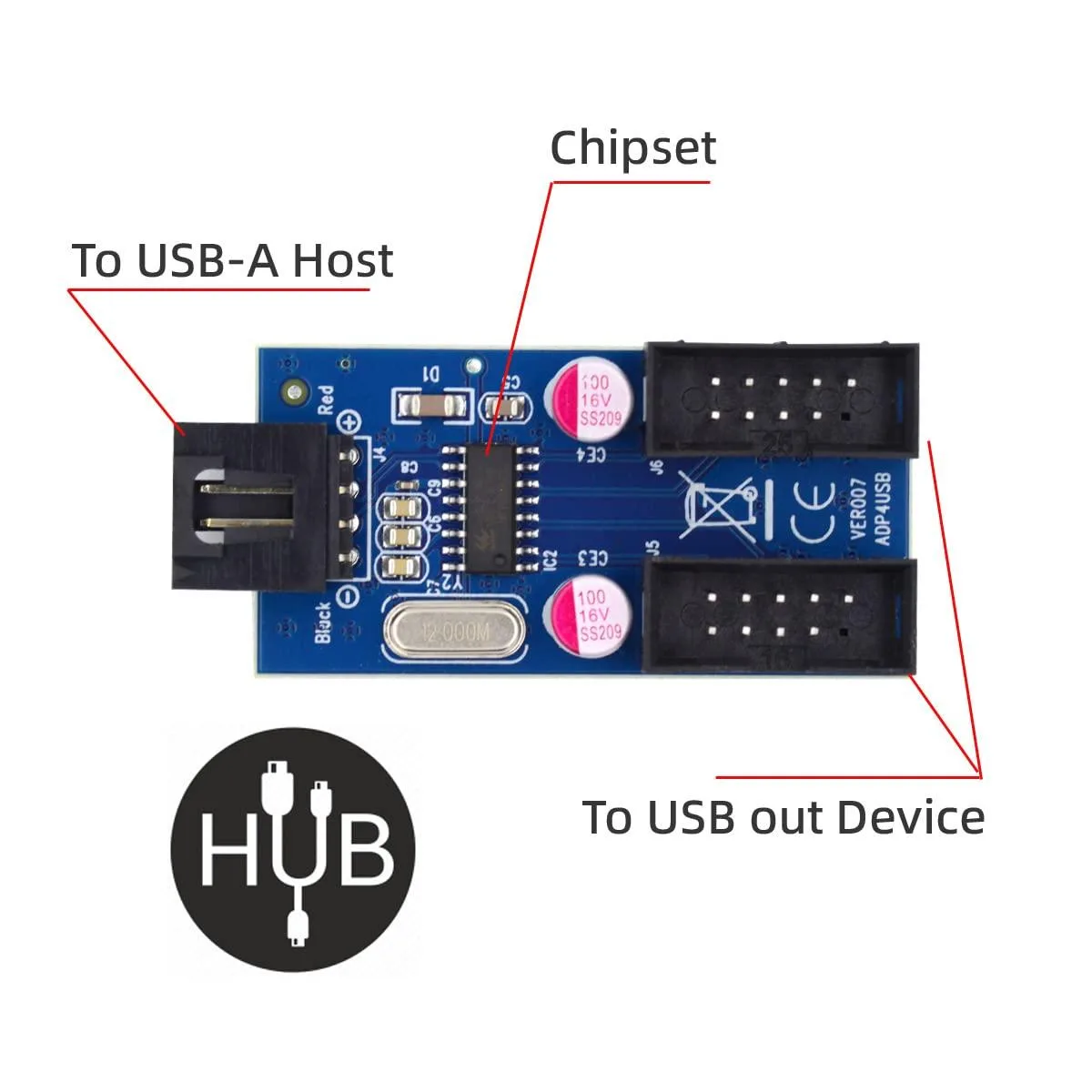

This Vszerda adapter turns one motherboard 9-pin USB 2.0 header into two female 10-pin connectors. It adds an integrated USB 2.0 hub chipset so both ports share the single upstream link. Each downstream port delivers up to 480 Mbps and 500 mA at 5 V. The black cable uses copper conductors and includes adhesive backing for mounting on the board or chassis.

Upgrade when front-panel ports exceed headers

The splitter replaces the need for a second native header when a case provides more front-panel USB 2.0 ports than the motherboard supplies. It is worth fitting when you have a spare 9-pin header and want to connect two 10-pin devices without adding a PCIe card. Builders who need more than two additional ports or require independent bandwidth per port should look elsewhere.

Fits standard 9-pin headers and 10-pin devices

Plug the male 9-pin end into any desktop motherboard USB 2.0 header, then attach up to two 10-pin cables from front panels, card readers or other internal peripherals. The hub chipset manages the shared 480 Mbps link, freeing the second header for other uses. Adhesive backing secures the splitter without screws or brackets.

Highlights

  • Splits one internal USB header into two ports
  • Built-in hub chipset delivers 480 Mbps data speed
  • Each port supplies 500 mA at 5 V for reliable power
  • Adhesive backing lets you secure the splitter to the board or chassis
  • Copper construction ensures stable signal transmission

Specifications

BrandVszerda
TypeUSB
Connector TypeUSB Type A
ColorBlack 1 to 2 Cable+USB
Connector DetailUSB Type A
ConstructionCopper
FeaturesHigh Speed

Questions about this item

How wide is the 9-pin header that plugs into the motherboard?

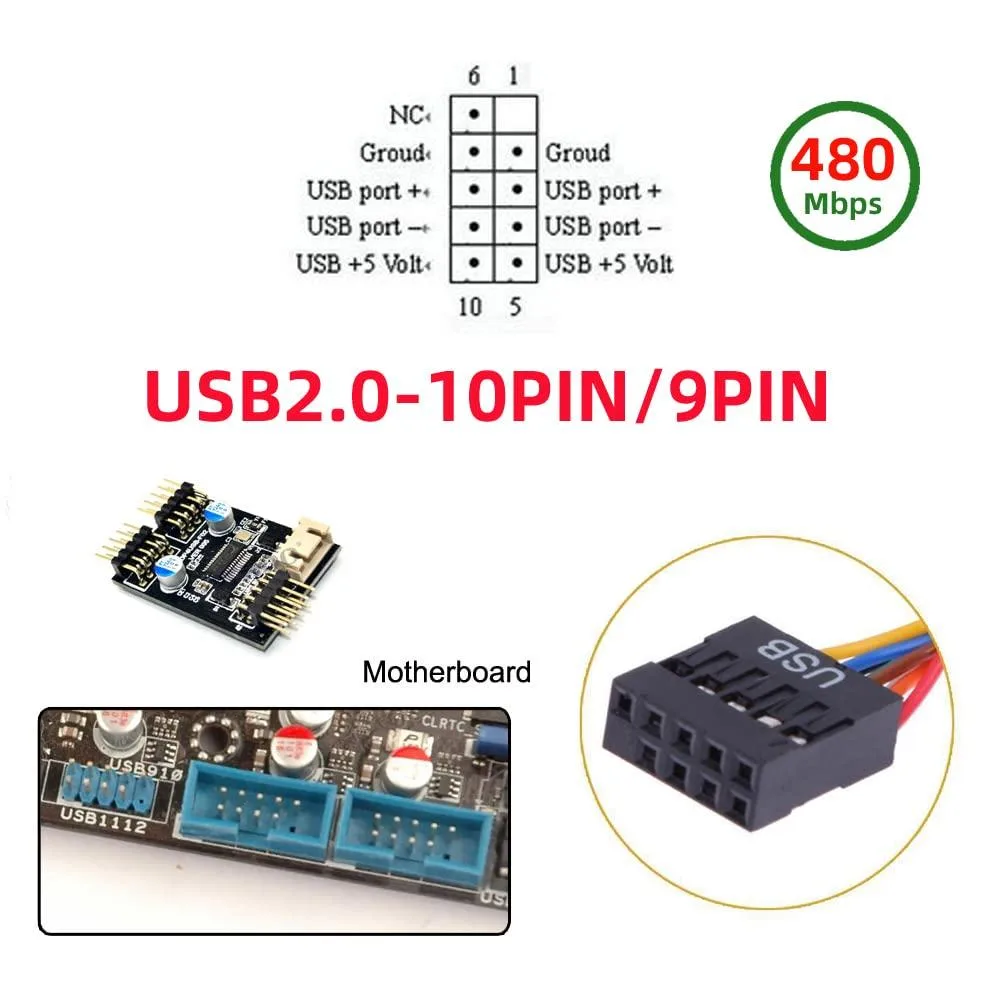

The cable uses a standard 9-pin USB 2.0 header, matching the 10-pin layout with one pin blocked for keying.

Which step do builders often miss when installing the splitter?

Many forget to align the missing-pin key on the 9-pin connector before pressing it onto the motherboard header.

When should the adhesive pad on the back be replaced?

Replace the pad if it loses grip after repeated case moves or if the cable shifts and strains the header connection.
