Vszerda USB 2.0 9-pin Header 1-to-2 Splitter 30cm 90 Degree+SATA Cable

USB 2.0 9-pin header splitter for internal expansion

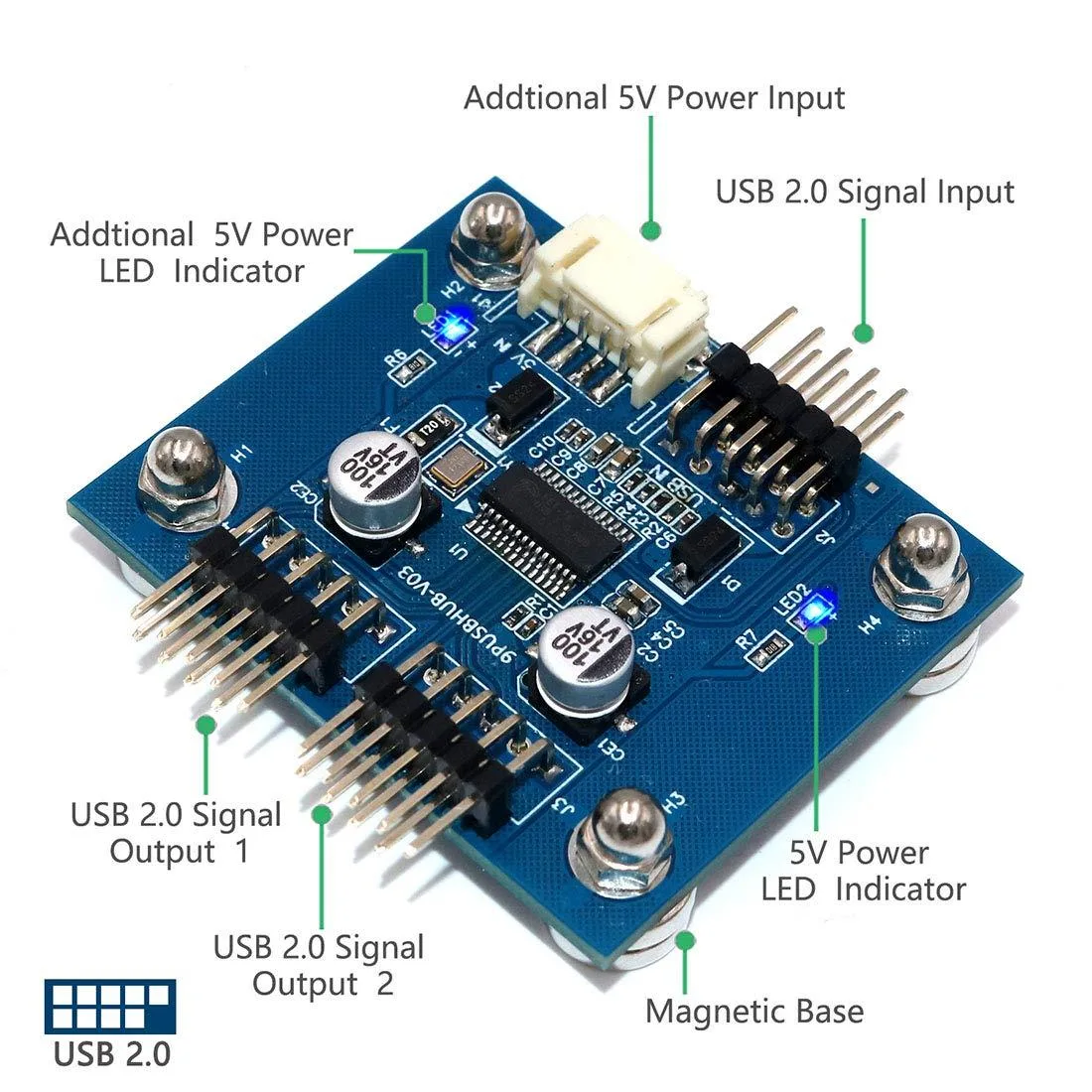

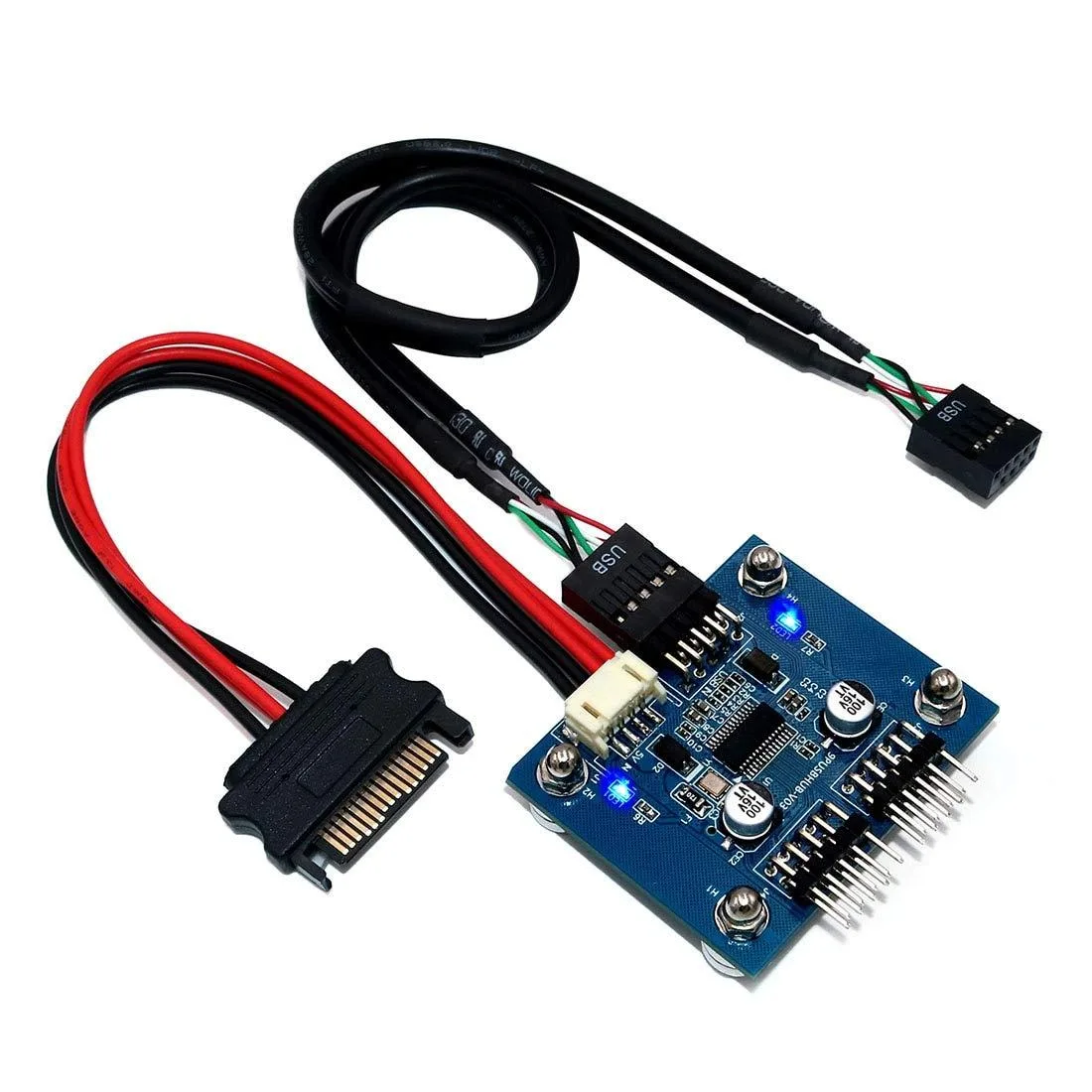

This adapter converts a single motherboard USB 2.0 9-pin header into two usable ports. It is aimed at builders who need extra internal USB connections for front-panel ports, card readers or other headers. The 30cm cable length and 90-degree connector help route wiring in tight chassis spaces. A magnet foot pad allows flexible, repeatable mounting on the case floor.

Capacity and headroom at 480 Mbps

The hub supports USB 2.0 transfer rates up to 480 Mbps and falls back to 12 Mbps for USB 1.1 devices. It handles typical low-bandwidth peripherals such as keyboards, mice, printers and scanners without bottleneck. The single upstream header shares total bandwidth between both downstream ports, so simultaneous high-throughput transfers will contend for the 480 Mbps limit. An included SATA power cable supplies 5 V to the hub, with an LED indicator confirming operation.

Upgrade from a single occupied header

This splitter replaces the need to choose between two internal USB devices when only one 9-pin header is free. It is worth adding when a build requires both a front-panel USB block and an internal card reader, or when a chassis provides more ports than the motherboard headers allow. The plug-and-play design works with Windows 10, 8.1, 7, Vista, XP, Mac OS X, Linux and Chrome OS without driver installation. Builders needing more than two additional ports or USB 3.0 speeds will require a different solution.
