Black rectangular M.2 SSD enclosure with USB-C cable

Vszerda

Vszerda UC-092-2280MM USB 3.2 20Gbps M.2 NVME/SATA drive enclosure RTL9220

SKU CH-KVKA-TD1Z4

Connects M.2 NVME or SATA drives via USB 3.2 20Gbps with auto-switching RTL9220 controller

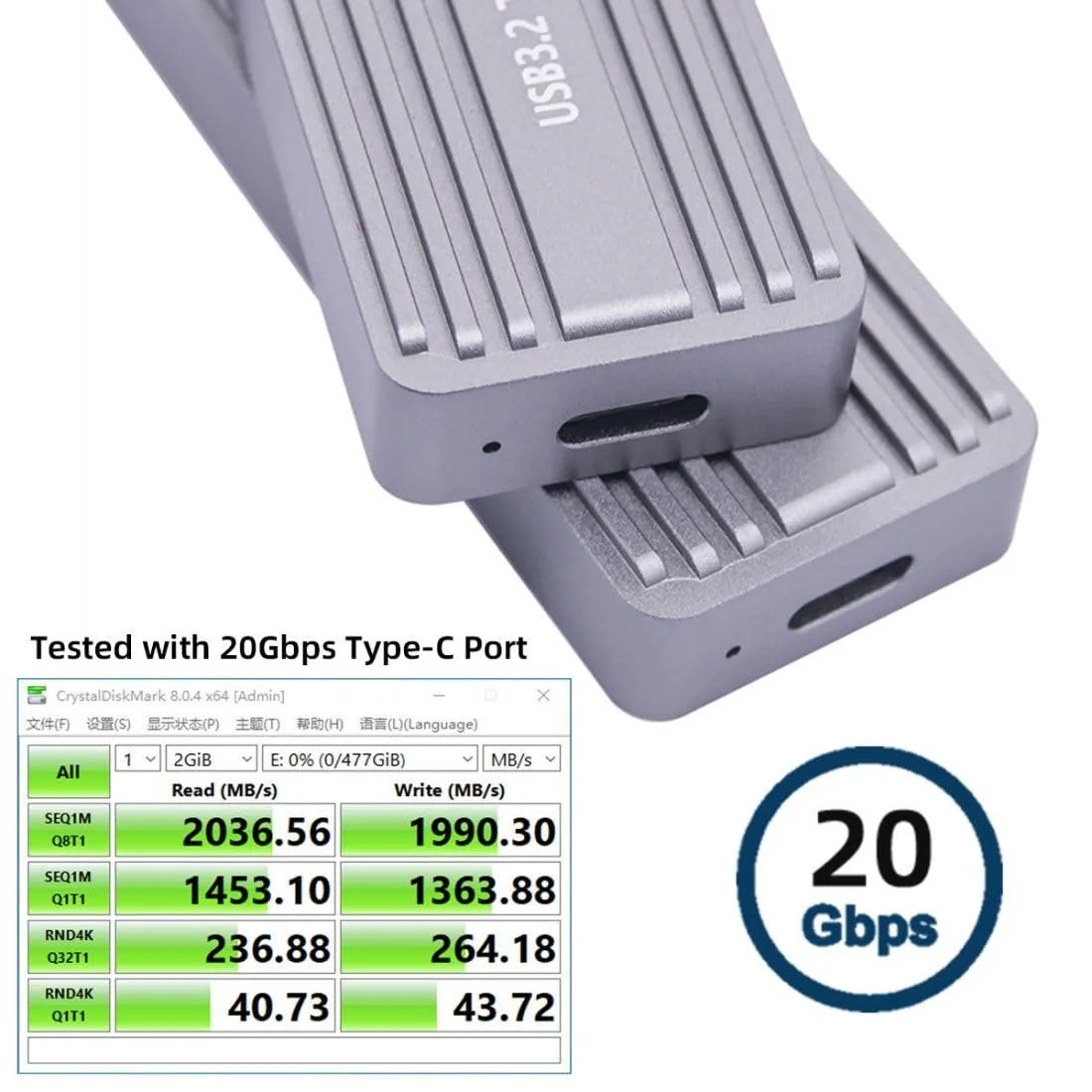

  • Supports 20Gbps USB 3.2 for fast NVME transfers
  • Auto-detects NVME or SATA drives via RTL9220 chipset
  • Includes enclosure, cable and screwdriver for quick setup
  • Dynamic power management reduces drive power consumption
  • Fits 2230, 2242 and 2280 M.2 form factors

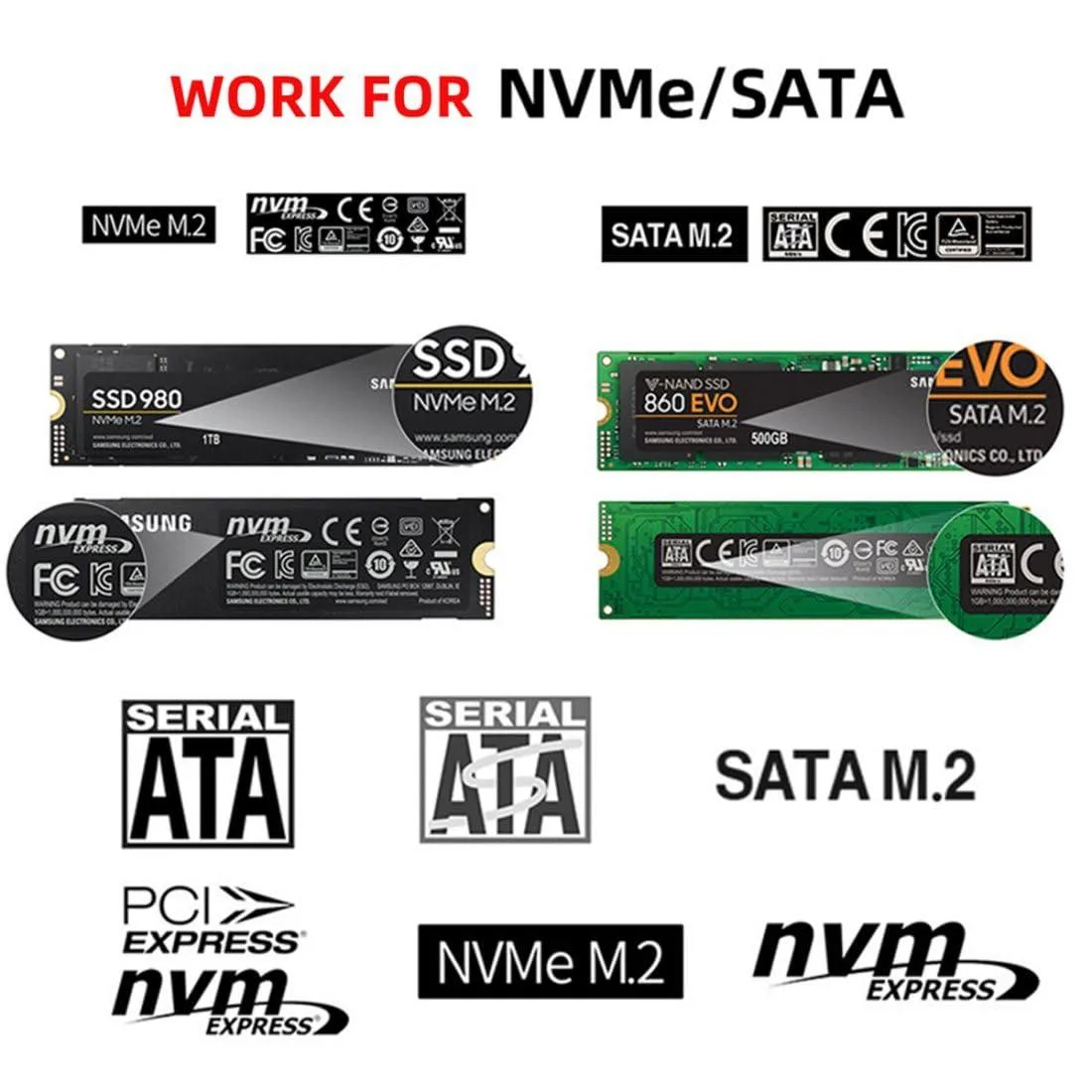

Drive enclosure for NVMe and SATA M.2 modules

This enclosure accepts M.2 drives in 2230, 2242 and 2280 lengths and handles both NVMe and SATA protocols through the RTL9220 bridge. It connects over USB 3.2 Gen 2x2 at up to 20 Gbps for NVMe and up to 6 Gbps for SATA. The package includes the enclosure, a cable and a screwdriver; the drive itself is not supplied.

Tool-free assembly with automatic protocol detection

The RTL9220 chipset reads the PEDET pin on the M.2 connector and switches between PCIe and SATA modes without user intervention. A dynamic power state reduces consumption when the drive is idle. The black shell weighs 0.09 kilograms and measures 6.73 by 4.29 by 0.91 inches, making it compact enough for portable use.

Check your host port and drive keying before

NVMe speeds require a USB 3.2 Gen 2x2 or compatible 20 Gbps port; slower ports will limit throughput. SATA drives are capped at 6 Gbps regardless of the USB link. Verify that your M.2 module uses an M-key or B+M key suitable for the enclosure’s slot, and confirm the drive length matches one of the three supported sizes.

Highlights

  • Supports 20Gbps USB 3.2 for fast NVME transfers
  • Auto-detects NVME or SATA drives via RTL9220 chipset
  • Includes enclosure, cable and screwdriver for quick setup
  • Dynamic power management reduces drive power consumption
  • Fits 2230, 2242 and 2280 M.2 form factors

Specifications

No published specifications for this item yet.

Questions about this item

What practical speed ceiling does the USB 3.2 Gen 2x2 20Gbps interface impose on an NVMe drive in this enclosure?

The RTL9220 chipset runs PCIe Gen3 x2, so an NVMe drive is limited to the 20Gbps USB 3.2 Gen 2x2 link even if the drive itself is faster.

Which M.2 form factors fit inside the UC-092-2280MM enclosure?

The enclosure accepts 2230, 2242 and 2280 length M.2 modules in both NVMe and SATA variants.

How is the drive secured during installation, and what step is often missed?

Use the supplied screwdriver to fasten the M.2 screw into the standoff matching your drive length; skipping the standoff selection leaves the drive loose.
