Black ABS enclosure for 2230 and 2242 M.2 drives with USB-C cable and screwdriver

Vszerda

Vszerda UC-092-2242MM USB 3.2 Gen 2×2 20Gbps M.2 NVME SATA enclosure

SKU CH-SD6A-H85KC

Connects 2230 or 2242 M.2 NVME and SATA drives via USB 3.2 Gen 2×2 at 20 Gbps using RTL9220 chipset

  • USB 3.2 Gen 2×2 delivers up to 20Gbps for fast NVME transfers
  • RTL9220 chipset auto-switches between NVME and SATA protocols
  • Dynamic power management reduces consumption during idle periods
  • Supports 2230 and 2242mm M.2 form factors
  • Includes enclosure, cable and screwdriver for immediate setup

What this enclosure is for

The Vszerda UC-092-2242MM connects M.2 NVME or SATA drives at lengths of 2230 or 2242 to a USB 3.2 Gen 2×2 host port. It uses the RTL9220 bridge chip to detect the drive protocol automatically and switch between PCIe and SATA modes. The package supplies the enclosure, a cable and a screwdriver; the drive itself is not included.

Sustained-load behaviour

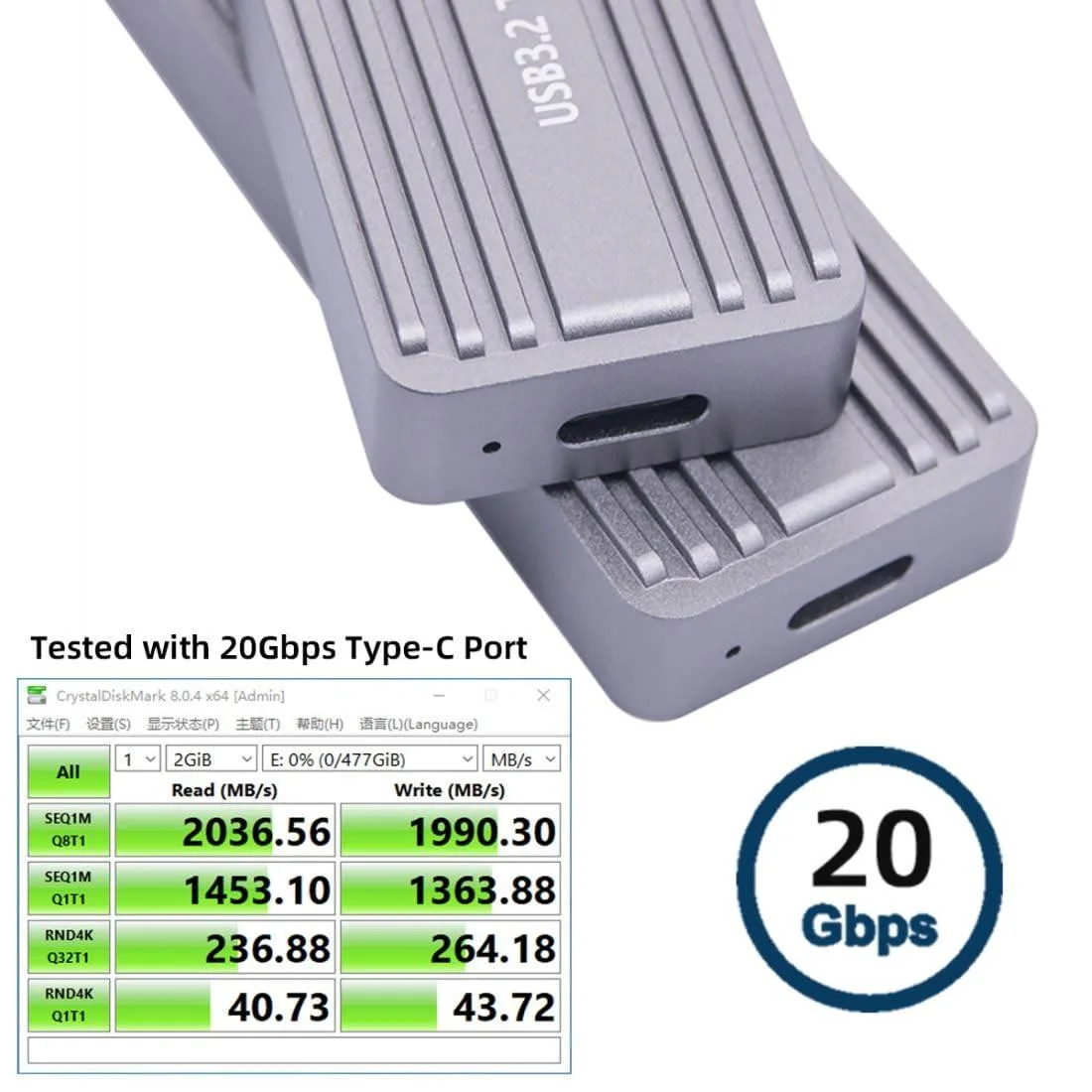

The RTL9220 chipset manages power states dynamically across NVME, SATA and USB interfaces to reduce consumption during idle periods. In PCIe mode it runs at Gen3 x2, delivering up to 20 Gbps through the USB 3.2 Gen 2×2 link. In SATA mode the bridge tops out at 6 Gbps, matching the SATA Gen3 host limit.

Check before ordering

Verify that your host system provides a USB 3.2 Gen 2×2 port to reach the 20 Gbps ceiling; slower ports will operate at their own maximum. Confirm the M.2 drive you plan to install is either 2230 or 2242 in length and uses a key compatible with NVME or SATA signalling. The ABS enclosure is supplied without a drive, so have a suitable module ready.

Highlights

  • USB 3.2 Gen 2×2 delivers up to 20Gbps for fast NVME transfers
  • RTL9220 chipset auto-switches between NVME and SATA protocols
  • Dynamic power management reduces consumption during idle periods
  • Supports 2230 and 2242mm M.2 form factors
  • Includes enclosure, cable and screwdriver for immediate setup

Specifications

No published specifications for this item yet.

Questions about this item

How much heat does the RTL9220 chipset generate during all-day transfers?

The RTL9220 supports dynamically switching power states with NVME/SATA/USB power management for power saving mode, reducing heat during continuous operation.

Which cable and drive sizes are needed to use this UC-092-2242MM enclosure?

A USB 3.2 Gen 2×2 cable is included; you must supply an M.2 2230 or 2242 NVME or SATA SSD.

Will a SATA M.2 drive work at full speed alongside my older USB 3.0 ports?

In USB-to-SATA mode the RTL9220 provides up to 6Gbps bandwidth, but actual speed will be limited by the older USB 3.0 host.
