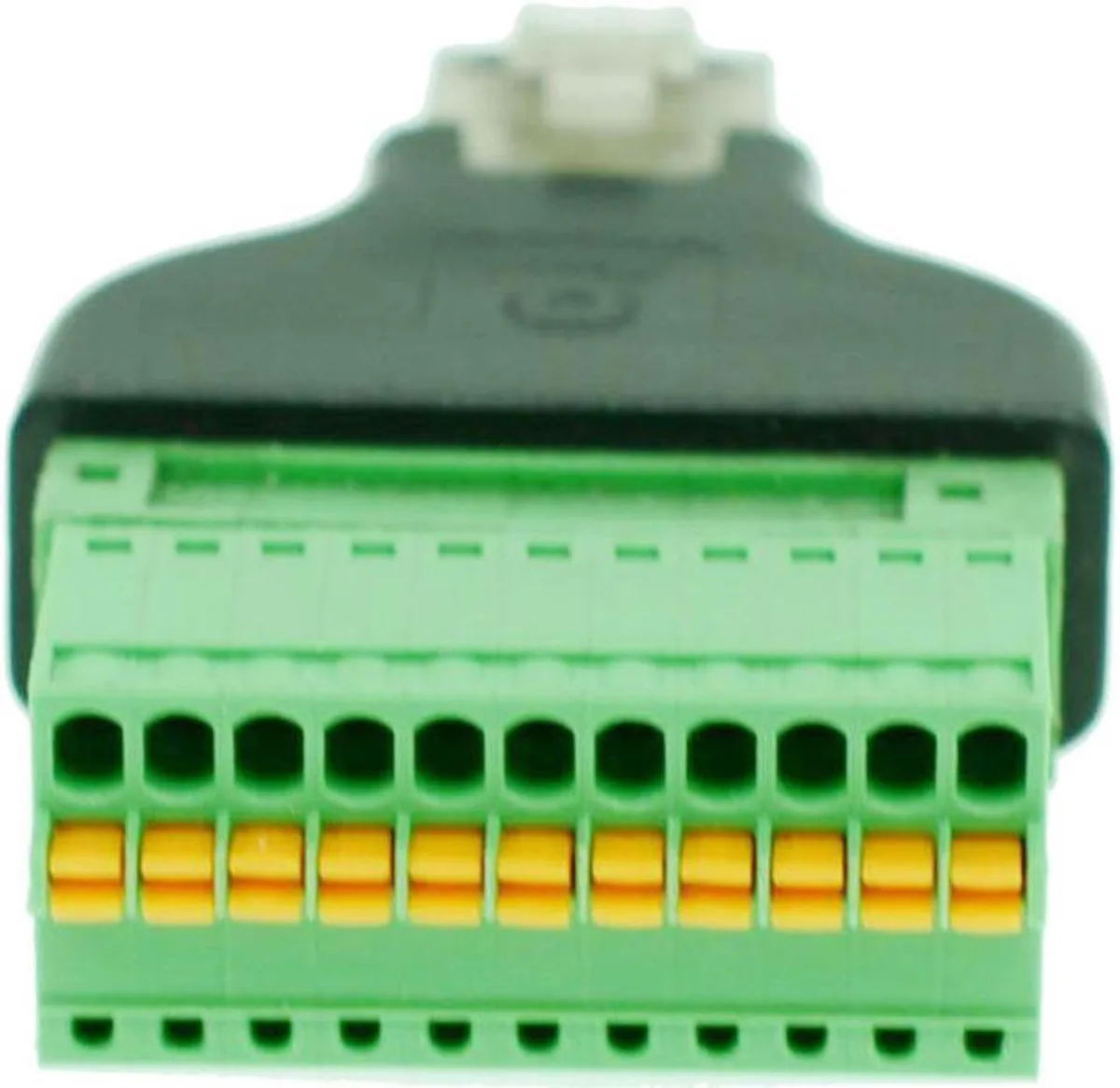

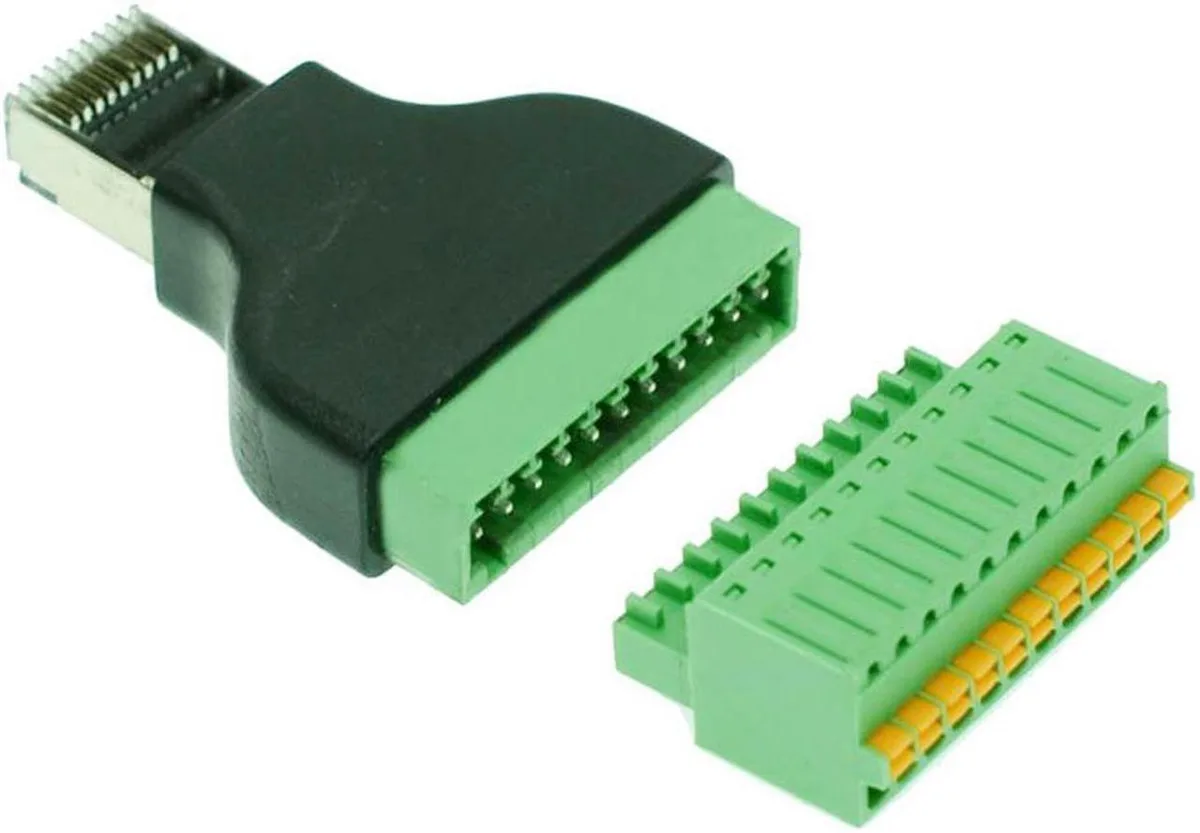

Black plastic RJ50 male plug with green 11 pin spring terminal block, 58 by 32 by 11 mm

Vszerda

Vszerda RJ50 Male to 11 Pin Spring Terminal Adapter

SKU CH-F9D0-J6J2T

Converts an RJ50 male jack into an 11-pin spring terminal block for DVR connections using the EIA/TIA 568B wiring standard

  • Connects DVR to structured cabling via EIA/TIA 568B wiring
  • Spring terminals secure each UTP conductor for reliable signal paths
  • RJ50 male plug fits hubs with RJ50 video ports
  • Compact 58 by 32 by 11 mm black and green housing
  • Shielded construction protects video feeds from interference

RJ50-to-spring-terminal converter for DVR hubs

This adapter converts an RJ50 male plug into an 11-pin spring terminal block so that UTP conductors can be landed directly on a digital DVR hub. It follows the EIA/TIA 568B wiring standard and is intended for installers who need to connect structured cabling to equipment that presents RJ50 video ports. The heavy-duty plastic-and-metal housing is coloured black and green and measures 58 by 32 by 11 millimetres. One piece is supplied in new condition.

11-pin spring terminal block with 568B pinout

The single specification that decides fit is the 11-position spring terminal wired to the 568B standard, matching the channel markings on the DVR hub. If the hub uses a different pin assignment or a different terminal count, this adapter will not align the conductors correctly. No other connector counts or wiring schemes are supported by this model.

Stable contact under continuous recording loads

The spring terminals maintain consistent pressure on each solid or stranded conductor, preventing intermittent signal loss during long recording sessions. Shielded construction reduces electromagnetic interference that can accumulate on cables running alongside power lines in a CCTV installation. The rigid housing resists vibration from rack-mounted DVR units without loosening the terminated wires.

Highlights

  • Connects DVR to structured cabling via EIA/TIA 568B wiring
  • Spring terminals secure each UTP conductor for reliable signal paths
  • RJ50 male plug fits hubs with RJ50 video ports
  • Compact 58 by 32 by 11 mm black and green housing
  • Shielded construction protects video feeds from interference

Specifications

No published specifications for this item yet.

Questions about this item

What does the 11-pin spring terminal block actually give me when I plug it into a DVR?

It breaks out the single RJ50 connection into eleven individual spring-clamp contacts so each DVR channel can be wired to its own screwless terminal without soldering.

How does the EIA/TIA 568B wiring standard affect the pinout on this adapter?

The adapter follows the 568B colour sequence, so the eight conductors from the RJ50 plug land on the first eight terminals in that order while the remaining three terminals carry the extra signals the 11-pin block provides.

Will the 58 by 32 by 11 mm black-and-green housing fit inside a standard DVR rack enclosure?

The compact rectangular body measures 58 mm long, 32 mm wide and 11 mm high, leaving enough clearance for most DIN-rail or panel-mount DVR chassis.
