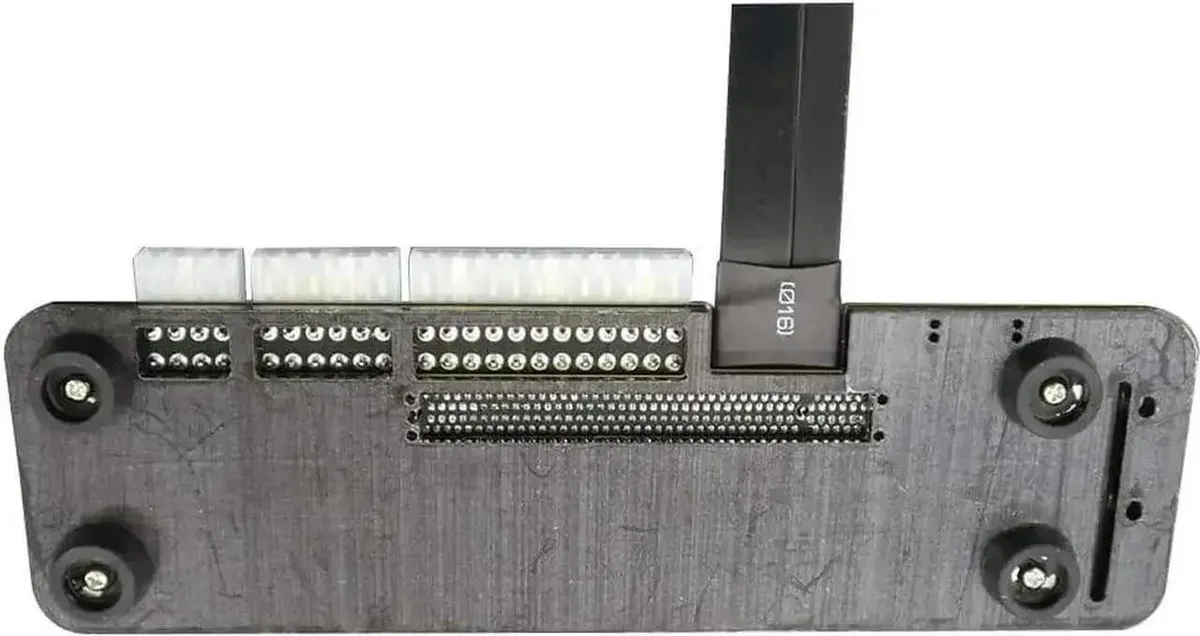

A small metal bracket with a 50cm flat ribbon cable attached

Vszerda

Vszerda R43SG M.2 NVMe GPU Bracket 50cm Cable

SKU CH-24TD-M75BM

Connects a post-2015 graphics card to an M.2 NVMe slot via a PCIe 4.0 x4 riser cable, requiring a separate 12 V 18 A power supply and Windows 10 1909 or newer

  • M.2 NVMe bracket enables external GPU on compact systems
  • PCIe 4.0 x4 cable delivers 64 Gbps bandwidth for modern graphics cards
  • Compatible with GPUs released after 2015 including 1660 series and newer
  • Requires 12 V 18 A 220 W or ATX power supply for stable operation
  • Windows 10 1909 or later needed for GPU recognition

External GPU via M.2 NVMe

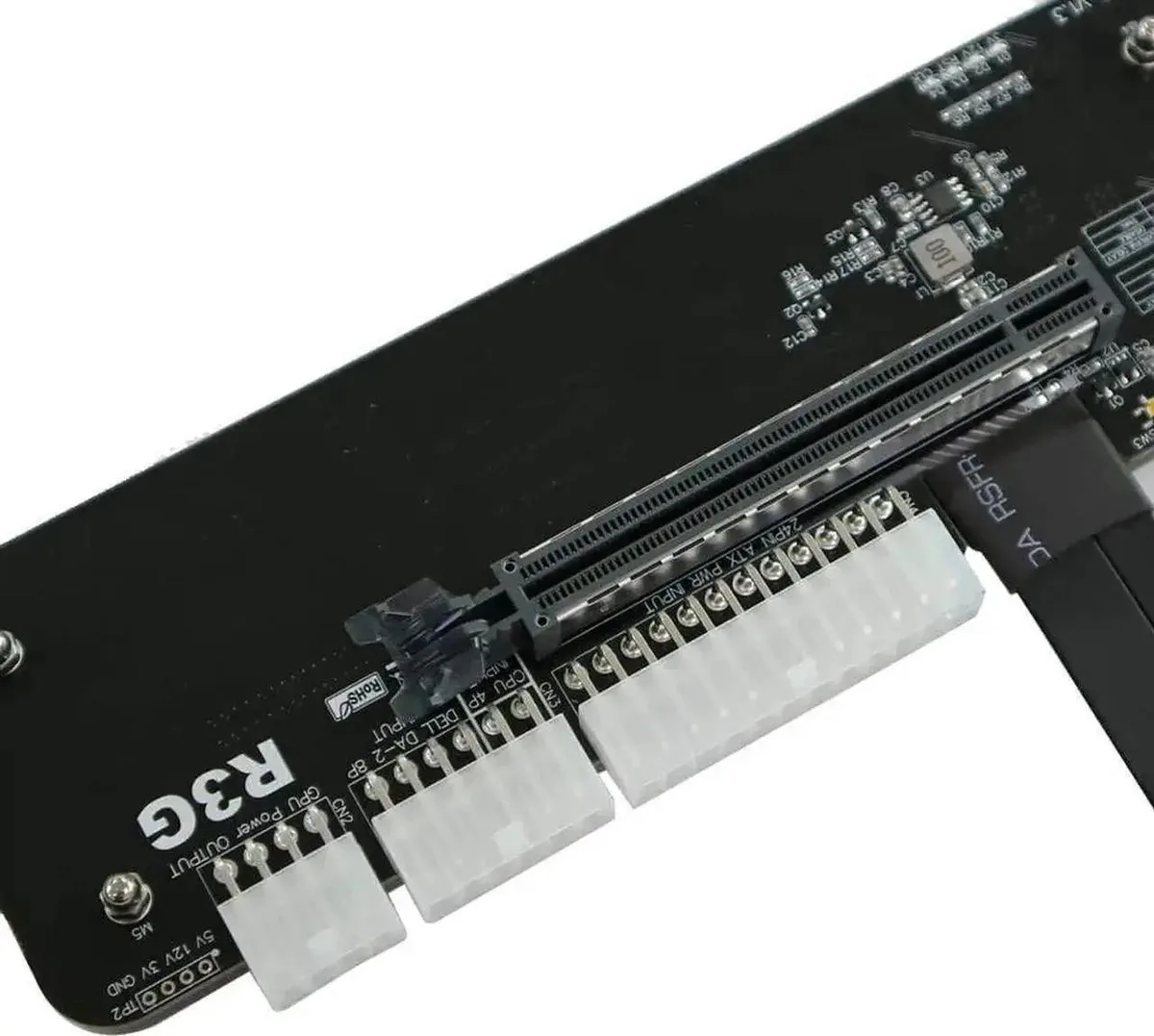

The Vszerda R43SG bracket lets you connect a desktop graphics card to a notebook, ITX, STX or NUC system through an M.2 Key M NVMe slot. It ships with a PCIe 4.0 x4 riser cable rated at 64 Gb/s and is available in 25 cm or 50 cm lengths. A separate 12 V 18 A 220 W power supply or standard ATX unit is required to power the attached graphics card.

Suits post-2015 GPUs on WIN10 1909+

This adapter works with graphics cards released after 2015, such as models from the 1660 onward, provided the host runs Windows 10 version 1909 or later. It does not support graphics cards shipped before 2014, M.2 SATA, M.2 WiFi or M.2 WWAN slots, or dual-CPU machines. Buyers needing internal GPU installation or lacking a compatible M.2 NVMe port should look elsewhere.

PCIe 4.0 x4 64 Gb/s riser cable

The included riser cable delivers PCIe 4.0 x4 bandwidth at 64 Gb/s, doubling the 32 Gb/s of PCIe 3.0. This link speed is the decisive specification for whether the bracket can saturate a modern graphics card. Confirm your system exposes an M.2 Key M NVMe lane wired for PCIe 4.0 x4 before purchase.

Highlights

  • M.2 NVMe bracket enables external GPU on compact systems
  • PCIe 4.0 x4 cable delivers 64 Gbps bandwidth for modern graphics cards
  • Compatible with GPUs released after 2015 including 1660 series and newer
  • Requires 12 V 18 A 220 W or ATX power supply for stable operation
  • Windows 10 1909 or later needed for GPU recognition

Specifications

No published specifications for this item yet.

Questions about this item

What bandwidth does the PCIe 4.0 x4 riser cable deliver?

The PCIe 4.0 x4 riser cable provides 64G/s bandwidth, which is double the 32G/s of PCIe 3.0.

What physical space and power connections does the bracket require?

The bracket fits an M.2 Key M NVMe slot on notebooks, ITX/STX boards, or NUCs and needs a separate D 12V/18A/220W or standard ATX power supply.

Which OS version is required and what happens if it is older?

Windows 10 1909 or newer is required; on older versions the connected GPU will not be recognised by the system.
