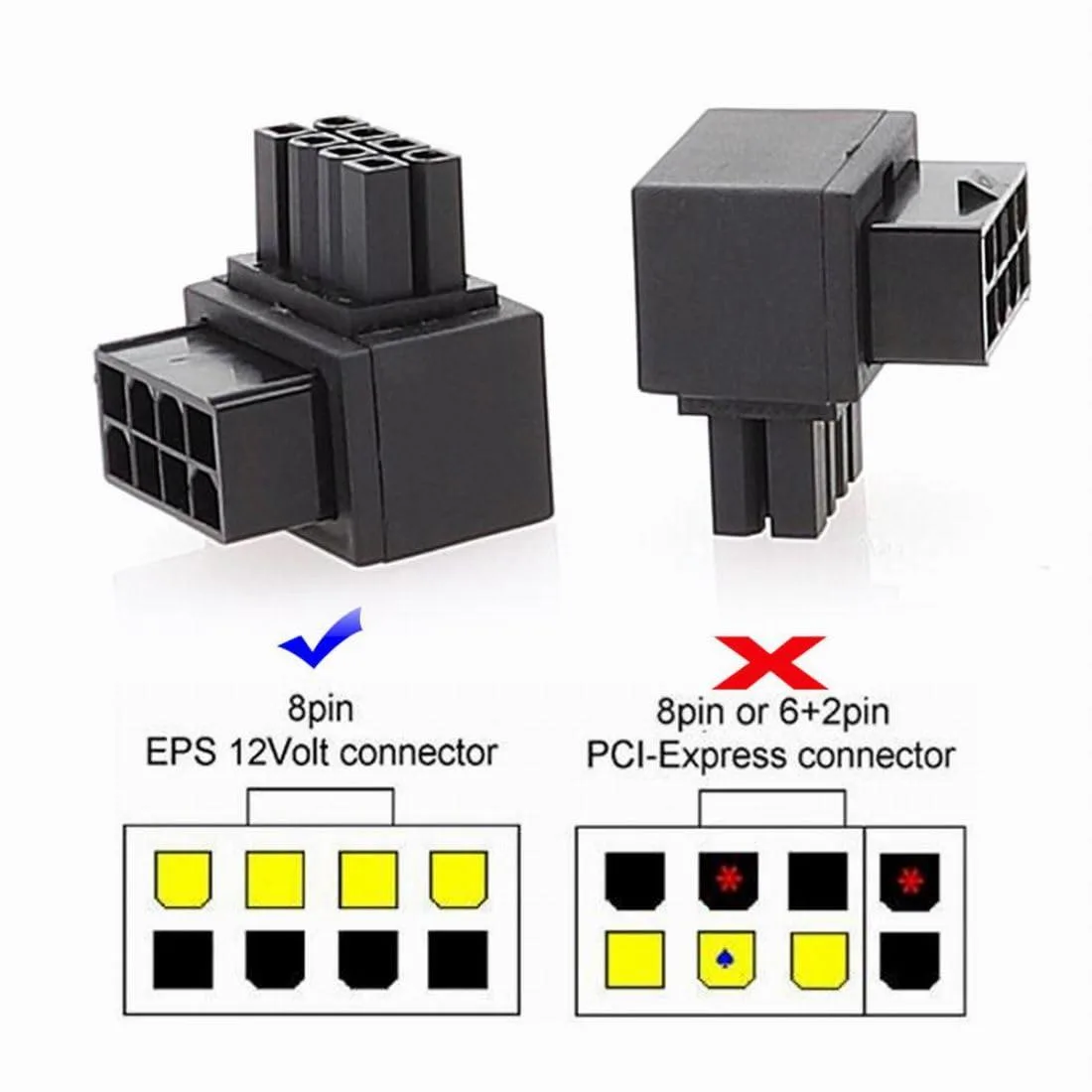

Two black 90-degree ATX 8-pin CPU power adapters, one up-angled, one down-angled, metallic finish

Vszerda

Vszerda PW-054 ATX 8pin 90° CPU power adapter 2-pack

SKU CH-198M-HDWQB

90-degree angled ATX 8-pin CPU power adapters reroute cables in tight cases, two-piece pack with up and down orientations

  • Connector TypeAtx 8pin
  • Connector DetailAtx 8pin
  • Constructioncopper
  • Connects in tight spots with 90° angled design
  • Redirects CPU power cable from vertical to horizontal
  • Includes both up-angled and down-angled adapters
  • Copper construction ensures reliable power delivery
  • Not compatible with PCI-E graphics card power

ATX 8-pin 90° CPU power adapter 2-pack

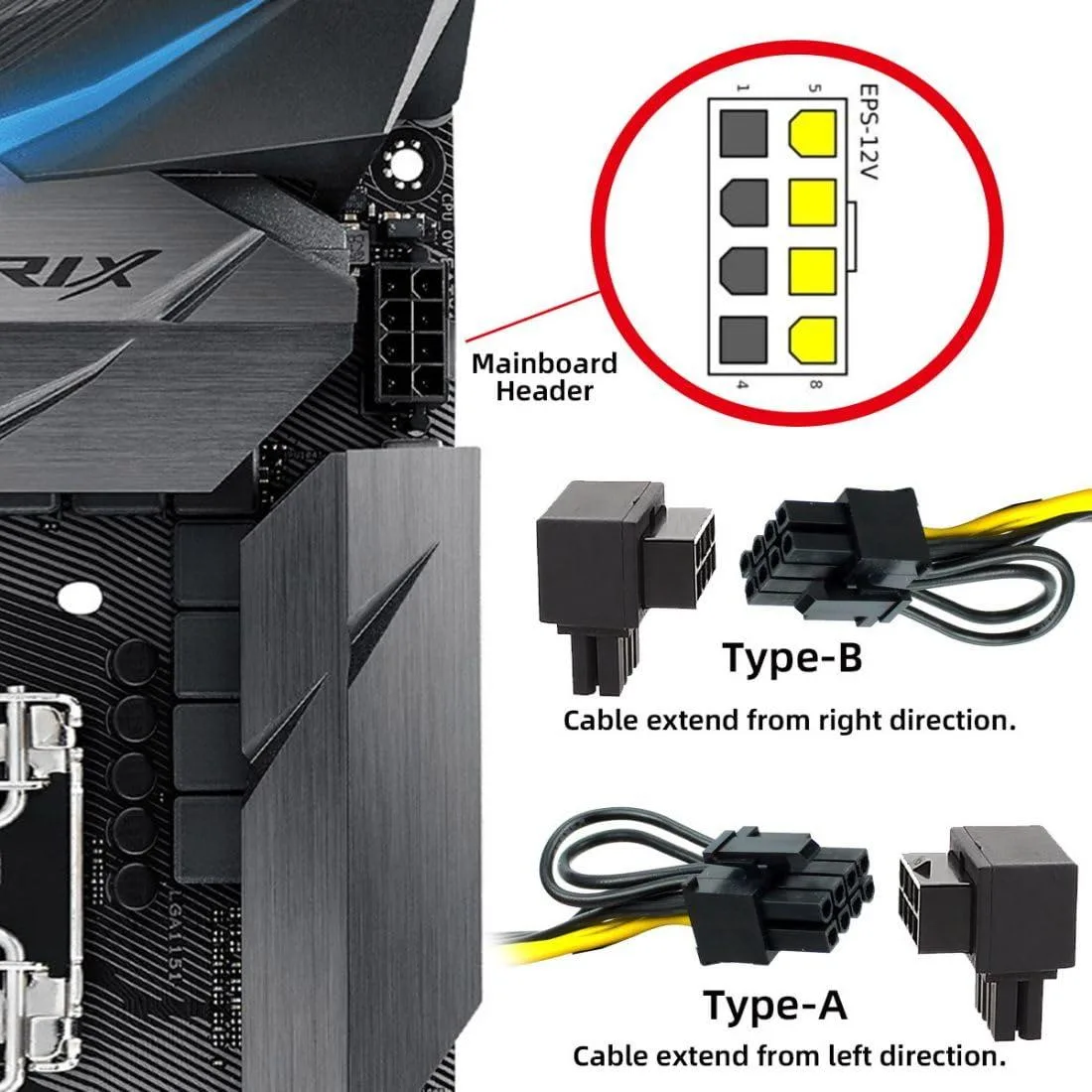

This pair of Vszerda PW-054 adapters re-routes the motherboard CPU power connector by ninety degrees. Builders working in compact cases where the EPS header sits too close to the top panel or cooler bracket can change the cable exit from vertical to horizontal. The pack supplies one up-angled and one down-angled unit for routing flexibility.

Fits standard ATX 8-pin EPS headers

Each adapter plugs directly into the existing motherboard socket and accepts the PSU cable without extra tools. The metallic finish and copper construction maintain conductivity while the low-profile body clears tight spaces around VRM heatsinks or tall memory modules. No additional power phases or headers are required beyond the single CPU connector already present.

Sustains continuous CPU power delivery

Under sustained load the solid copper contacts keep resistance low, so the connection does not become a thermal bottleneck even when case ventilation is limited. The rigid angled housing prevents cable fatigue that can occur when stiff EPS cables are forced into sharp bends. Not intended for PCIe graphics-card power connectors.

Highlights

  • Connects in tight spots with 90° angled design
  • Redirects CPU power cable from vertical to horizontal
  • Includes both up-angled and down-angled adapters
  • Copper construction ensures reliable power delivery
  • Not compatible with PCI-E graphics card power

Specifications

Brandchenyang
Connector TypeAtx 8pin
Connector DetailAtx 8pin
Constructioncopper

Questions about this item

How much does the 90-degree angle add to the height clearance needed above the CPU socket?

The adapter redirects the cable from vertical to horizontal, reducing the vertical space required above the 8-pin CPU power header in low-profile chassis.

Does the copper construction generate noticeable heat when the system runs continuously?

Copper conductors handle the EPS 12V current efficiently; the adapter itself has no active components and adds negligible thermal load during all-day operation.

What motherboard header must be present for these adapters to function?

A standard ATX 8-pin EPS 12V CPU power header is required; the two included adapters (one up-angled, one down-angled) both mate with that same connector type.
