Two black EPS power adapters angled 180 degrees up and down

Vszerda

Vszerda PW-053 ATX 8Pin EPS 12V 180° Angled CPU Power Adapter 2 Pack

SKU CH-WT9Y-CQT9M

Two angled EPS 12 V adapters re-route CPU power cables from vertical to horizontal for low-clearance chassis

  • Connector TypeEPS
  • Connector DetailEPS
  • Constructioncopper
  • Routes CPU power cable 180° for tight clearance builds
  • Two adapters included — up and down angled for flexible routing
  • Copper construction ensures reliable 12 V EPS delivery
  • Fits standard 8-pin EPS motherboard headers only
  • Low-profile design suits limited-height chassis installations

8-Pin EPS 180° Adapter 2-Pack

The Vszerda PW-053 kit includes two angled adapters that redirect an ATX 12V EPS cable from vertical to horizontal. One adapter angles upward and the other downward to suit different board layouts. They are intended solely for CPU power headers and must not be used for graphics card PCIe connectors. Copper construction carries the current between the male and female EPS ends.

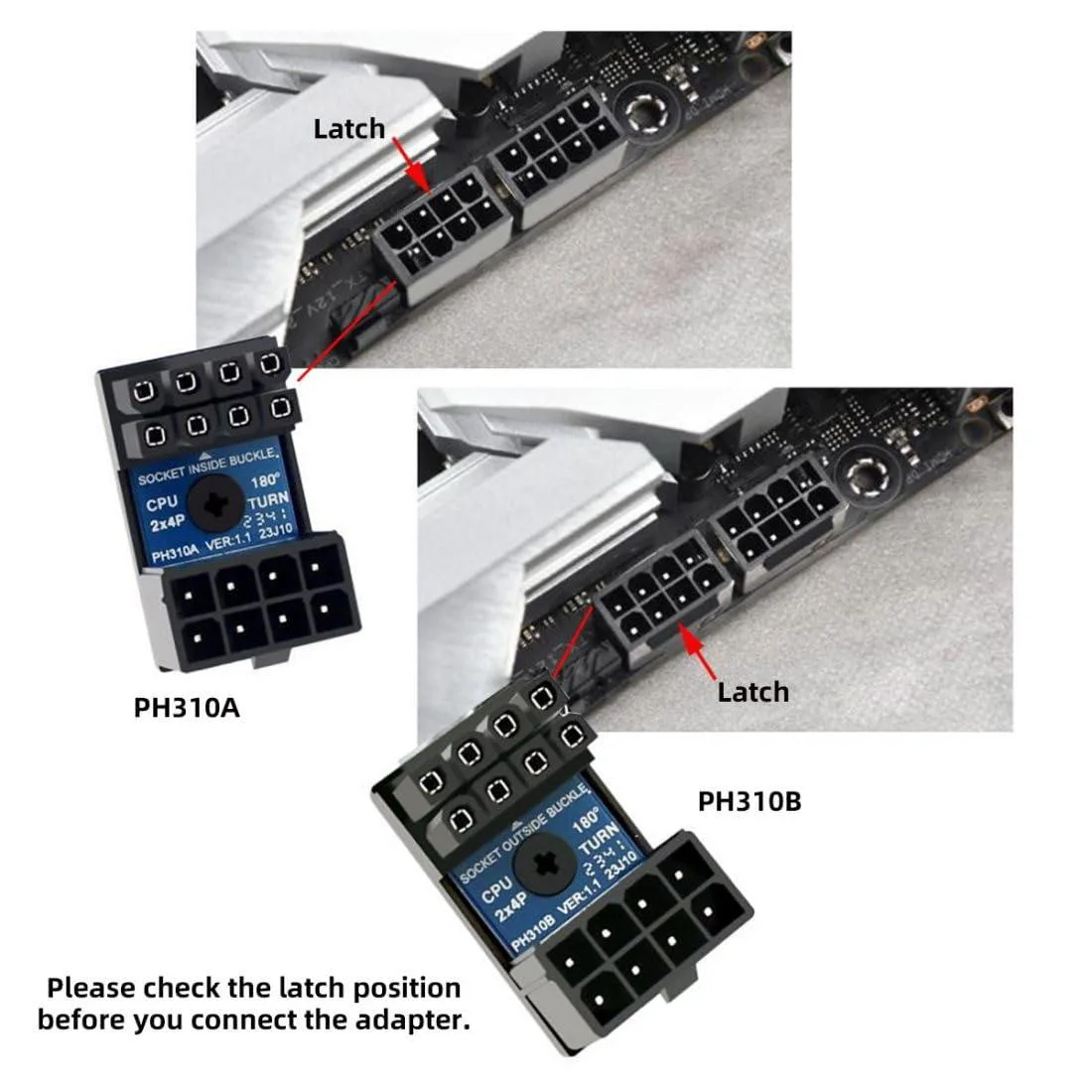

Check Motherboard Header Orientation

Verify that your motherboard uses a standard 8-pin EPS 12V socket for the CPU power input. Confirm the surrounding clearance so the right-angle turn will not foul nearby components such as VRM heatsinks or the top PCIe slot. The adapter changes cable direction only; it does not alter pin-out or voltage. Ensure the power supply cable reaching the adapter is long enough for the new horizontal routing.

Fits Low-Profile Builds

The 180-degree bend lets the EPS cable run flat against the board, freeing vertical space above the socket for low-profile coolers or compact chassis lids. Each adapter weighs 0.04 kg and measures 5.24 x 3.11 x 0.98 inches, so they add minimal bulk inside the case. The pair gives flexibility to route the cable either toward the top edge or toward the expansion slots depending on the build.

Highlights

  • Routes CPU power cable 180° for tight clearance builds
  • Two adapters included — up and down angled for flexible routing
  • Copper construction ensures reliable 12 V EPS delivery
  • Fits standard 8-pin EPS motherboard headers only
  • Low-profile design suits limited-height chassis installations

Specifications

Brandchenyang
Connector TypeEPS
Connector DetailEPS
Constructioncopper

Questions about this item

Does the two-pack include both an up-angled and a down-angled EPS adapter?

Yes, the pack contains two adapters — one angled up and one angled down — so you can route the CPU power cable horizontally in either direction.

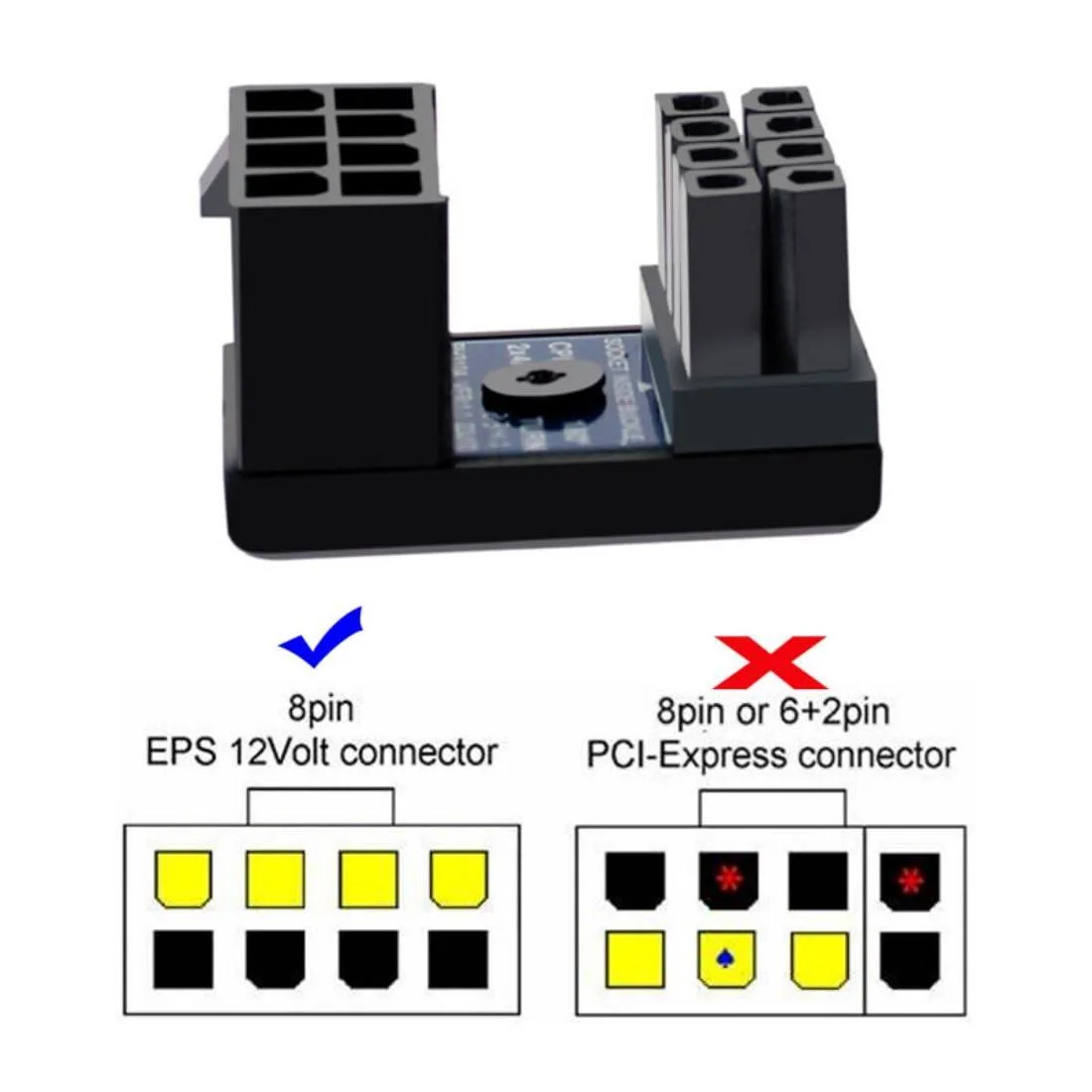

Will this EPS 12 V adapter work with a graphics-card PCIe power connector?

No, it is designed only for the motherboard CPU 8-pin EPS header and will not fit or function on a PCIe graphics-card power socket.

How much clearance does the 180-degree angled connector save inside a low-profile chassis?

The right-angle design lets the cable run parallel to the motherboard instead of sticking straight up, freeing vertical space above the CPU socket for tight coolers or slim cases.
