Green circuit board with two M.2 slots and PCIe x8 gold fingers

Vszerda

Vszerda PH45 adapter card, 2 x 32Gbps NVME

SKU CH-STDF-5BXM9 MPN PH45

PCIe x8 card adds two M-key NVMe slots running at 32 Gbps each for desktop storage expansion

  • Supports two NVMe drives at full 32 Gbps each via PCIe 3.0 and 4.0
  • Dual M‑key slots expand storage without sacrificing speed
  • PCIe x8 interface uses thickening technology for stable throughput
  • Requires motherboard with PCIe bifurcation and RAID for both drives to be recognised
  • Accelerates game loading and creative workloads by unlocking full SSD performance

Dual 32Gbps NVMe expansion

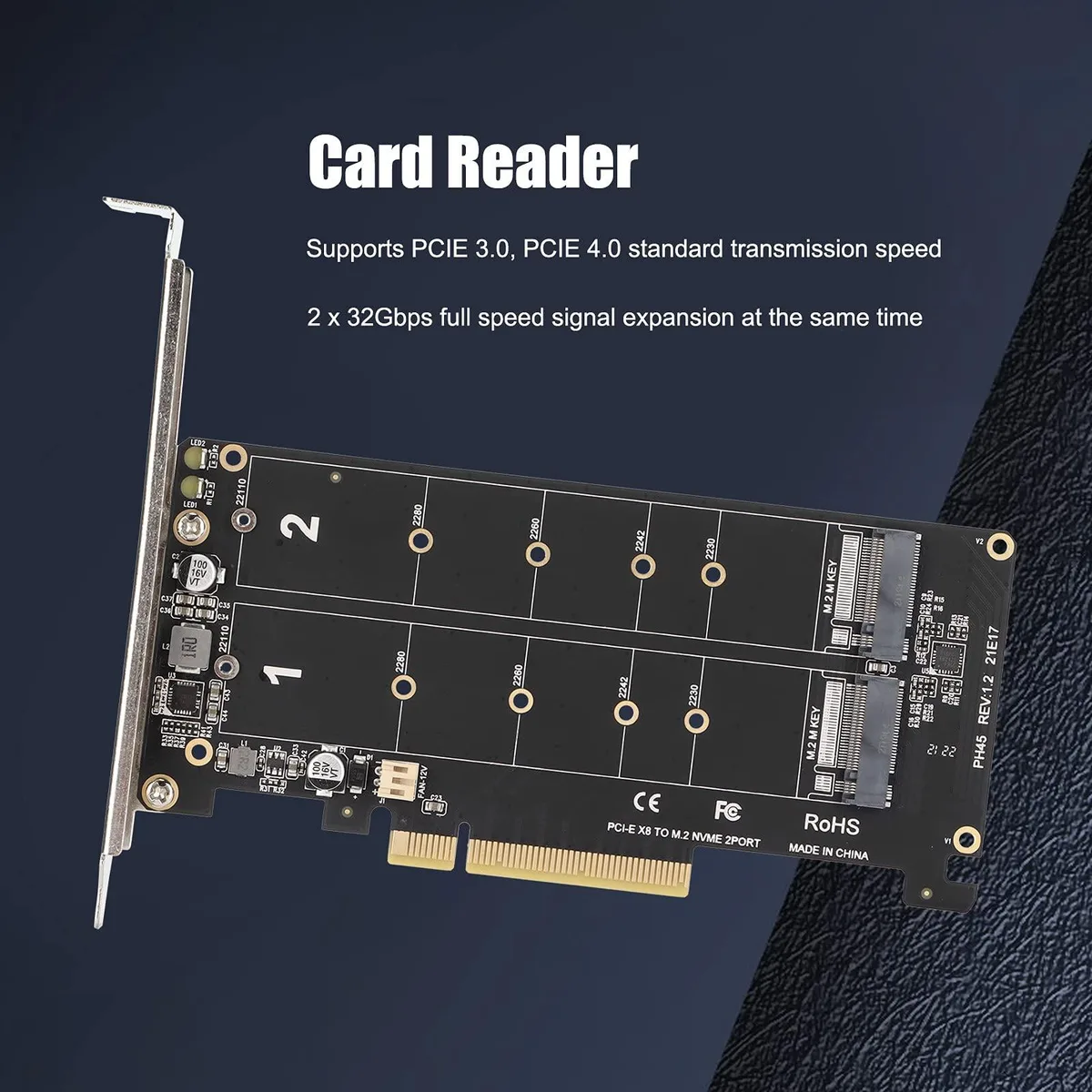

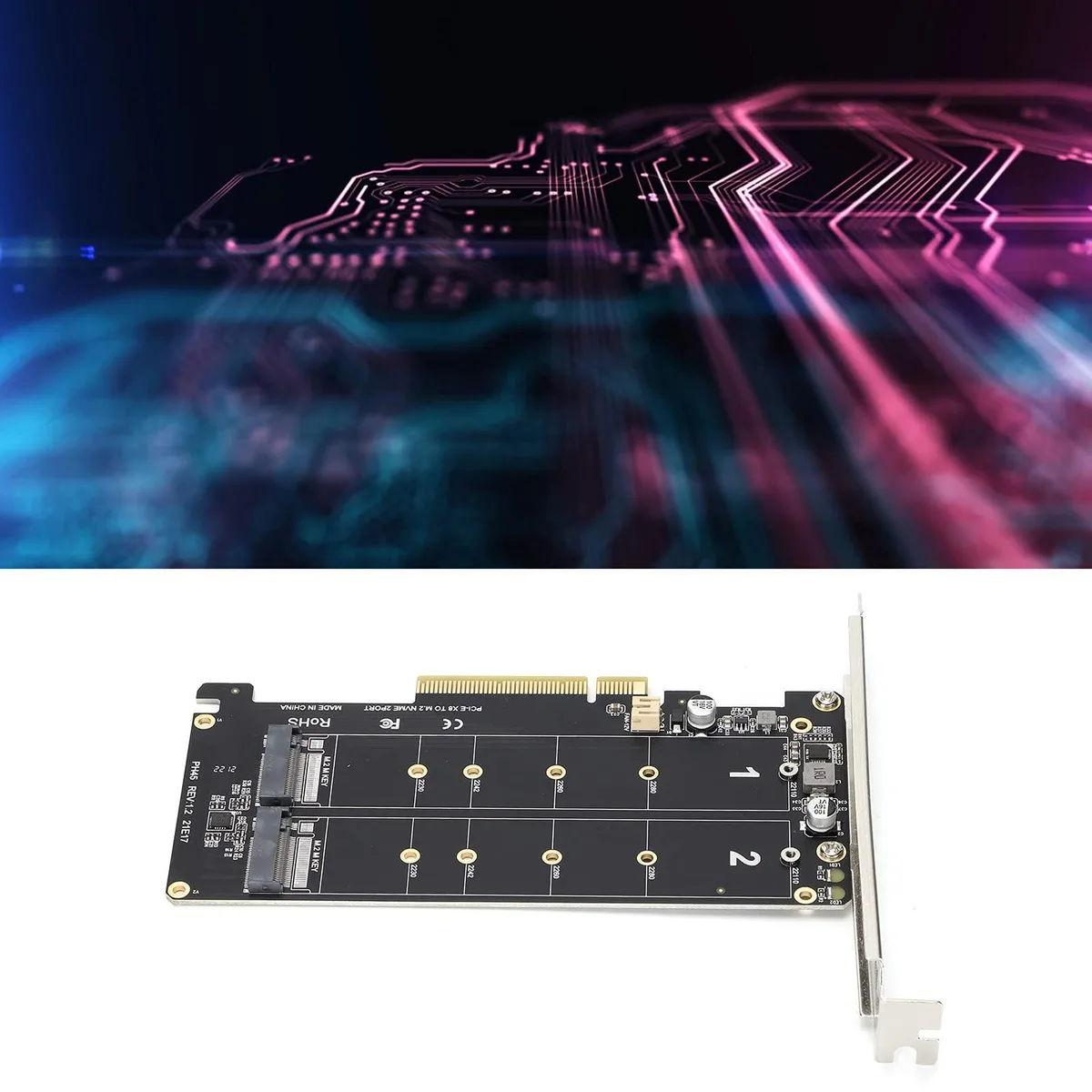

The Vszerda PH45 adapter card adds two M-key NVMe slots to a desktop PC through a single PCIe x8 connection. Each slot runs at up to 32Gbps using PCIe 3.0 or 4.0 signalling, so both drives can operate at full x4 lane speed simultaneously. Builders who need extra high-speed storage without occupying additional expansion slots will find this card a direct fit.

Sustained throughput on both slots

Because the card relies on the motherboard's PCIe bifurcation feature, sustained performance depends on the platform correctly splitting the x8 link into two x4 links. When the motherboard is configured for x4+x4 mode and PCIe RAID is enabled, each NVMe device maintains its rated bandwidth during long transfers. If the board cannot bifurcate or shares lanes with other devices, the second drive may not be detected or may fall back to lower speeds.

Replaces single-slot adapters and onboard limits

This card upgrades systems that have only one M.2 slot or lack PCIe splitting support, turning a single x8 slot into two full-speed NVMe ports. The jump is worth it when the motherboard explicitly supports x4+x4 bifurcation and RAID, and when the builder can free enough PCIe lanes by removing other expansion cards. Boards without bifurcation will not recognise both drives, so the upgrade only applies to compatible platforms.

Highlights

  • Supports two NVMe drives at full 32 Gbps each via PCIe 3.0 and 4.0
  • Dual M‑key slots expand storage without sacrificing speed
  • PCIe x8 interface uses thickening technology for stable throughput
  • Requires motherboard with PCIe bifurcation and RAID for both drives to be recognised
  • Accelerates game loading and creative workloads by unlocking full SSD performance

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the PH45 adapter card draw when both NVME SSDs run all day?

The adapter card itself has no published power-draw figure; total consumption depends on the two NVME SSDs you install.

What motherboard feature must I already have for the PH45 to run both NVME SSDs at full speed?

Your motherboard must support PCIe bifurcation (x4+x4) and have a free x8 or x16 slot wired for that split.

Will the PH45 work in an older PCIe 3.0 slot without slowing down my existing NVME drive?

Yes — the card is backward-compatible with PCIe 3.0, so an existing NVME drive keeps its native speed while the PH45 adds two more at 3.0 rates.
