Green PCIe x1 adapter card with M.2 slot, USB cable, two black 6 dBi RP-SMA antennas, metal bracket

Vszerda

Vszerda PCIe x1 to NGFF A+E/E-Key WiFi Adapter with Dual Antenna

SKU CH-0X1H-8QF01

Adds Wi-Fi and Bluetooth to a desktop via a PCIe x1 slot using an M.2 2230 A+E or E-key module with dual 6 dBi antennas

  • Add Wi-Fi 4/5/6/6E/7 via PCIe x1 slot
  • Bluetooth 4.0–5.4 through motherboard USB header
  • Dual 6 dBi RP-SMA antennas cover 2.4/5/6 GHz bands
  • Compatible with AX200, AX210, BE200 and other 2230 E-key modules
  • No driver for adapter; only module driver needed

Adapter Purpose

The Vszerda PCIe x1 to NGFF A+E/E-Key adapter lets desktop builders install an M.2 2230 Wi-Fi module into a standard PCI Express x1 slot. It carries the Wi-Fi signal over the PCIe bus and routes Bluetooth over an internal USB header. A 12 cm regular-profile bracket is pre-installed.

Upgrade Path

This card replaces a missing or faulty onboard wireless controller without changing the performance of the chosen M.2 module. The jump is worth it when a desktop lacks integrated Wi-Fi or needs newer standards such as Wifi6E, provided the module itself supports them. The adapter is a passive signal converter and requires no driver of its own.

Fit and Limits

Suits builders who already own or plan to buy an A+E or E-key M.2 2230 module such as the AX210NGW or BE200NGW and have a free PCIe x1 slot plus an internal USB header for Bluetooth. Not for users with CNVi-only modules like the AX211NGW or AX201NGW, nor for Mini PCIe cards, because the adapter does not support those interfaces.

Highlights

  • Add Wi-Fi 4/5/6/6E/7 via PCIe x1 slot
  • Bluetooth 4.0–5.4 through motherboard USB header
  • Dual 6 dBi RP-SMA antennas cover 2.4/5/6 GHz bands
  • Compatible with AX200, AX210, BE200 and other 2230 E-key modules
  • No driver for adapter; only module driver needed

Specifications

No published specifications for this item yet.

Questions about this item

What bracket height does the adapter ship with for mounting in a standard desktop case?

It comes with a pre-installed 12 cm regular-profile bracket that fits a full-height expansion slot.

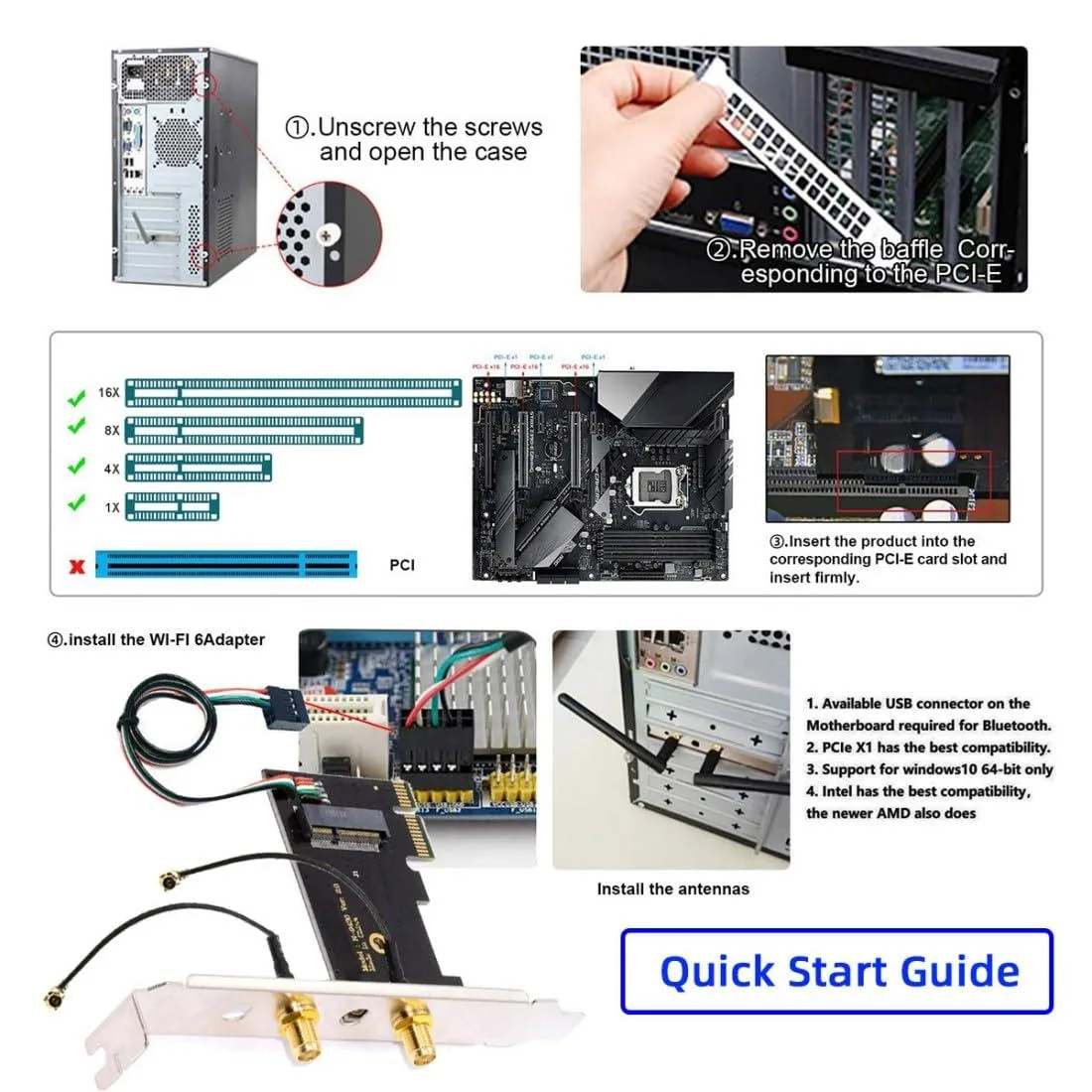

How do I enable Bluetooth on this adapter and which header must be connected?

Connect the supplied USB cable to an internal motherboard USB header; Wi-Fi uses the PCIe x1 slot while Bluetooth travels over that USB link.

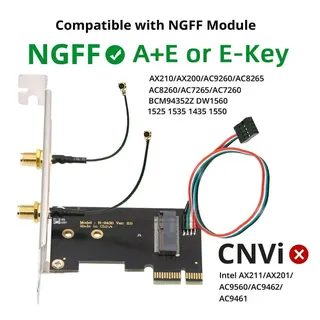

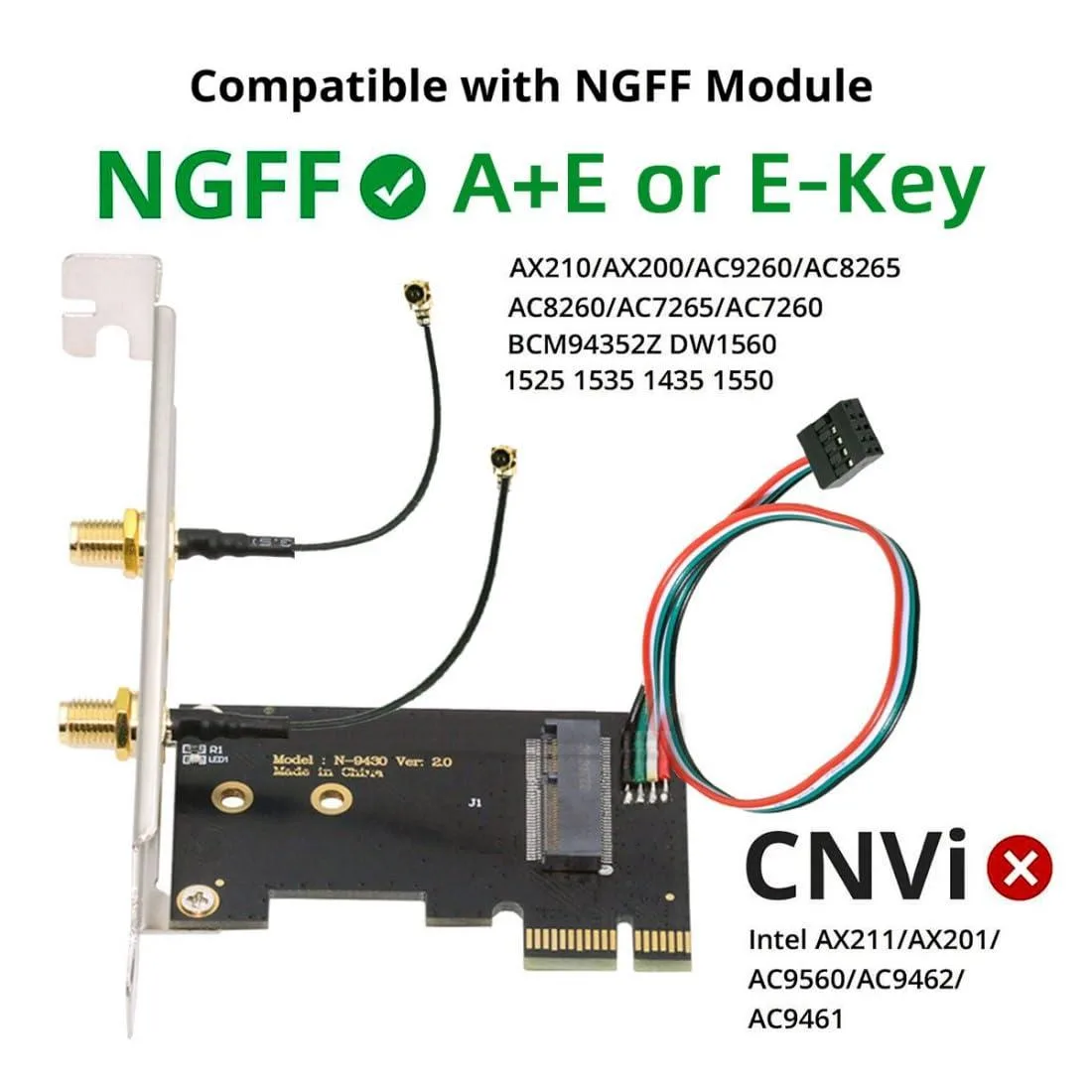

Which M.2 Wi-Fi modules are confirmed compatible and which CNVio models are excluded?

Supported modules include BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW and any NGFF 2230 Key E or A+E card; CNVio modules such as AX211NGW, AX201NGW, 9560NGW, 9462NGW, 9461NGW will not work.
