Green PCIe x1 expansion card with two 19-pin USB 3.0 headers and low-profile bracket

Vszerda

Vszerda PCIe x1 to 2×19-pin USB 3.2 Gen1 card

SKU CH-S8BS-HGZEH

Adds two internal 19-pin USB 3.2 Gen 1 headers via a PCIe x1 slot, delivering up to 5 Gbps per port with driverless setup on Windows 8.1, 10 and 11

  • Adds two internal USB 3.2 Gen1 19-pin headers for front-panel expansion
  • Renesas UPD720201 controller supports PCIe 2.0 x1 and fits x1 through x16 slots
  • Driver-free on Windows 8.0, 8.1, 10, 11 and Server 2012 to 2022
  • Up to 5 Gbps throughput with backward compatibility to USB 2.0, 1.1, 1.0
  • Per-port voltage regulator capacitors and protection circuitry deliver stable 2 A power

PCIe x1 to dual 19-pin USB 3.2 Gen1 card

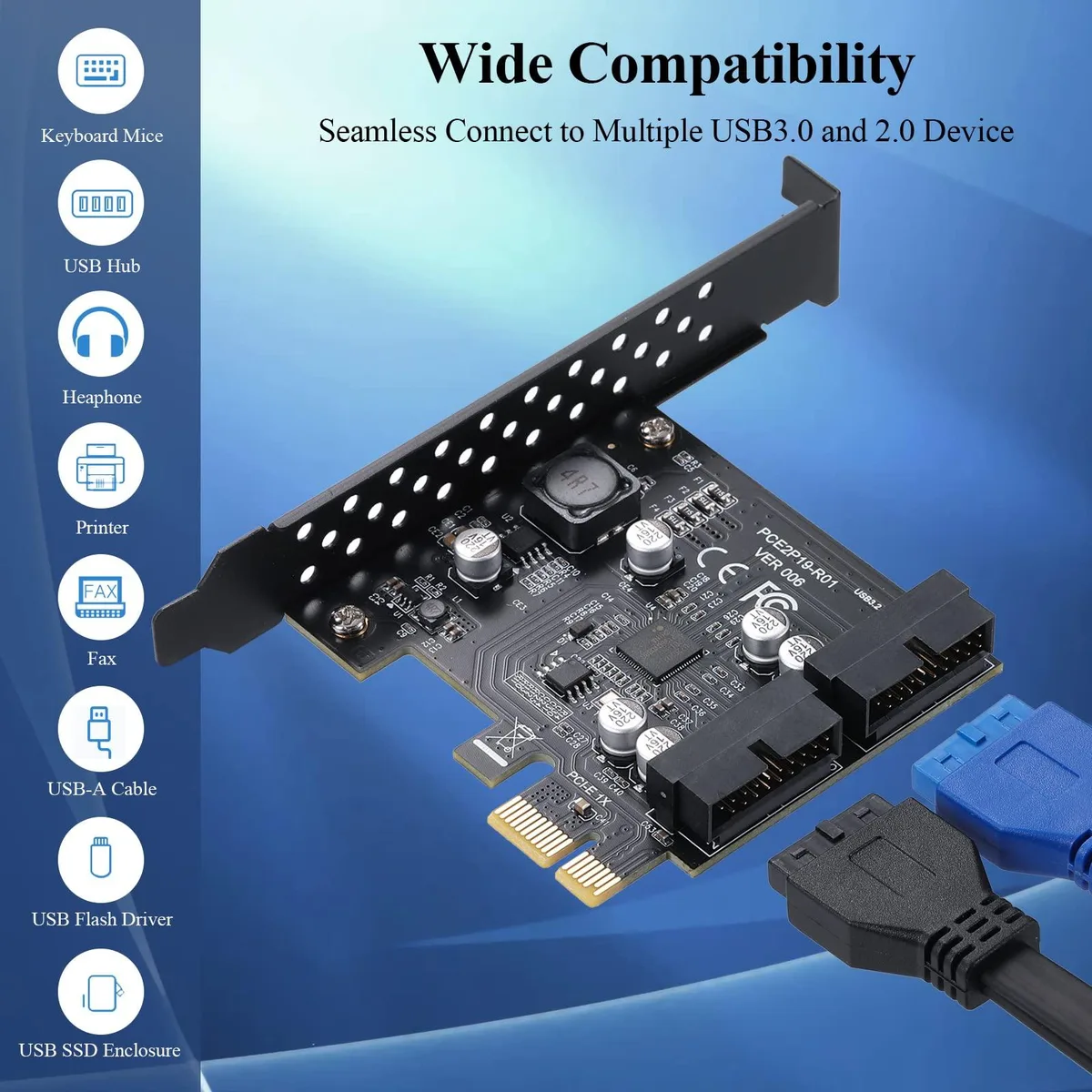

This Vszerda expansion card adds two internal USB 3.0 19-pin headers to a desktop PC through a single PCIe x1 slot. Each header can be extended to four USB-A ports for front-panel or internal devices. It targets builders who need more internal USB 3.0 connections for drive bays, fan controllers or accessory hubs.

Low-profile bracket included.

The card ships with a low-profile bracket for slim cases and fits any PCIe x1, x4, x8 or x16 slot. Installation is a simple mechanical insertion, but Windows XP, Vista, 7 and Server 2003 through 2008 R2 require a manual driver install. Windows 8.0, 8.1, 10, 11 and Server 2012 onward are driverless. Mac OS and Linux are not supported.

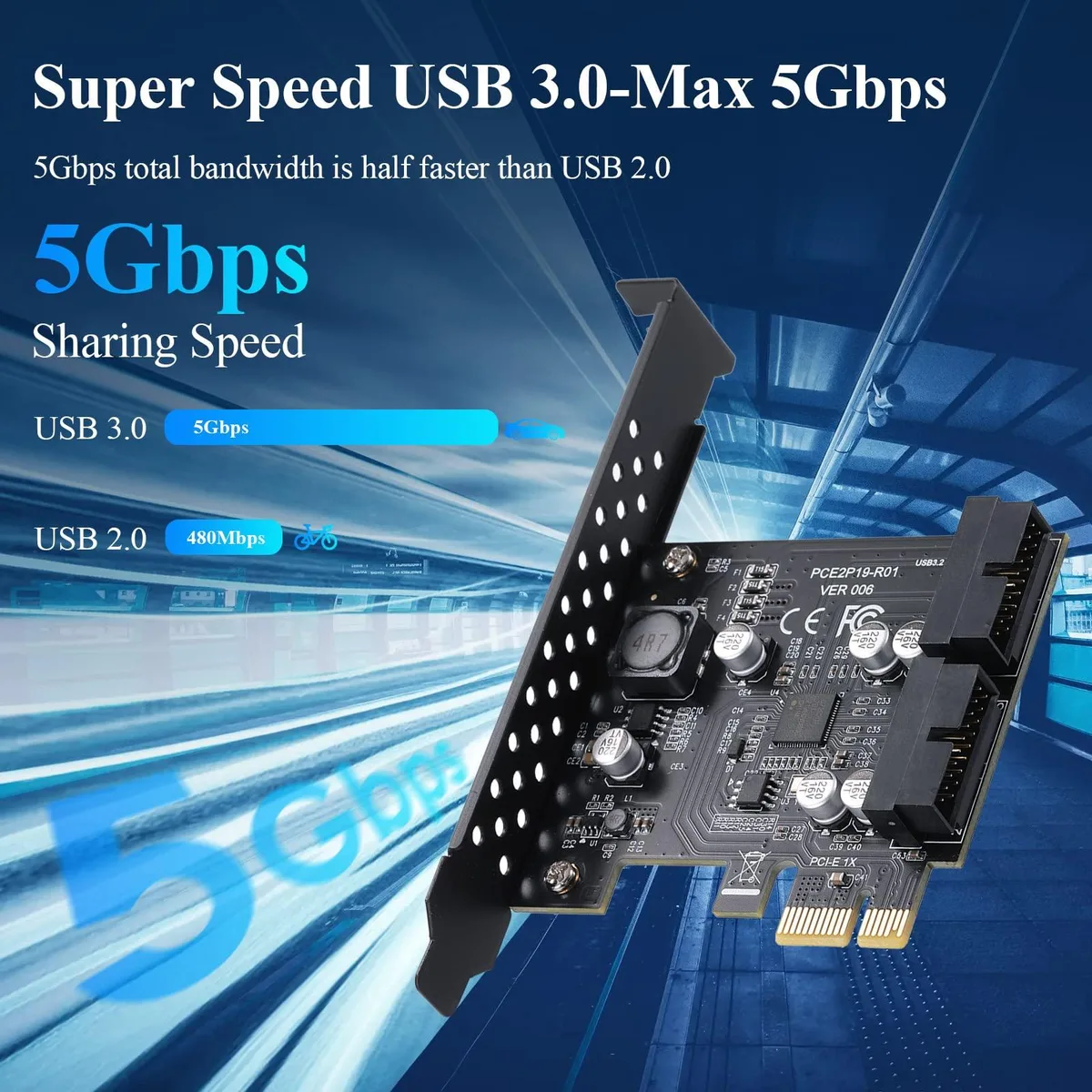

Two headers at 5 Gbps with 2 A per port

Each 19-pin header delivers up to 5 Gbps and supplies 2 A per USB connection, backed by independent voltage-regulator capacitors and protection circuitry. The Renesas uPD720201 controller provides xHCI compliance and PCIe 2.0 x1 signalling. Bandwidth is shared across both headers, so simultaneous high-throughput devices will contend for the single-lane link. Not suited for users who need external ports or Mac and Linux compatibility.

Highlights

  • Adds two internal USB 3.2 Gen1 19-pin headers for front-panel expansion
  • Renesas UPD720201 controller supports PCIe 2.0 x1 and fits x1 through x16 slots
  • Driver-free on Windows 8.0, 8.1, 10, 11 and Server 2012 to 2022
  • Up to 5 Gbps throughput with backward compatibility to USB 2.0, 1.1, 1.0
  • Per-port voltage regulator capacitors and protection circuitry deliver stable 2 A power

Specifications

No published specifications for this item yet.

Questions about this item

How can I verify the card is running at the 5Gbps speed after installing it in a PCIe x1 slot?

Check Device Manager for the Renesas uPD720201 controller listed under Universal Serial Bus controllers and confirm the connection reports SuperSpeed USB 3.2 Gen1.

What comes in the box and which cables or brackets must I source separately?

The package includes the PCIe card and a low-profile bracket; you need to provide 19-pin to USB-A cables or a front-panel module for the two internal headers.

Which Windows version should I choose if I want driver-free operation on a 64-bit system?

Windows 8.0, 8.1, 10 or 11 (64-bit) and Windows Server 2012, 2012R2, 2016, 2019 or 2022 all work without installing a driver.
